Engine Compartment Views
Engine Compartment Views

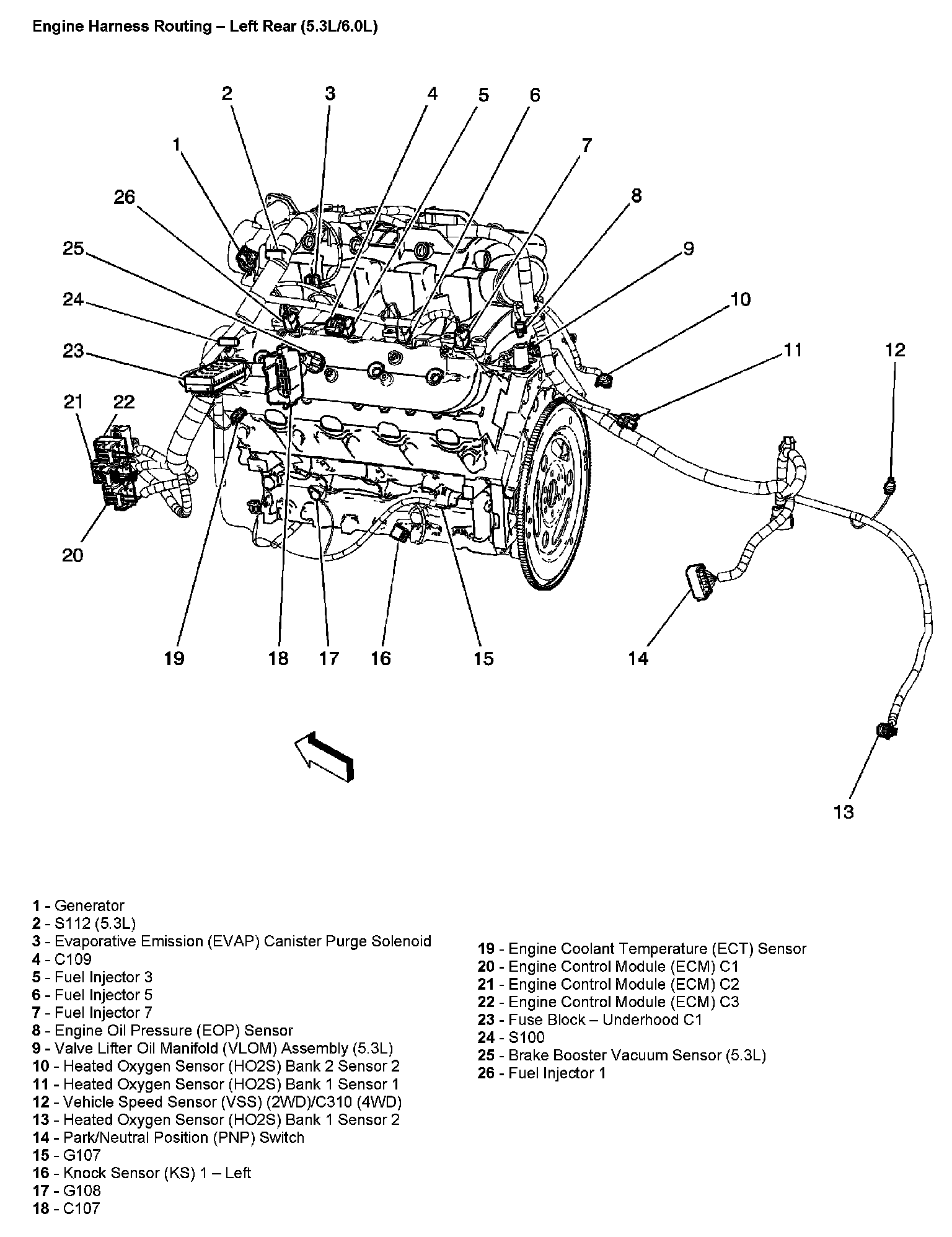

Engine Harness Routing - Left Rear (5.3L/6.0L):

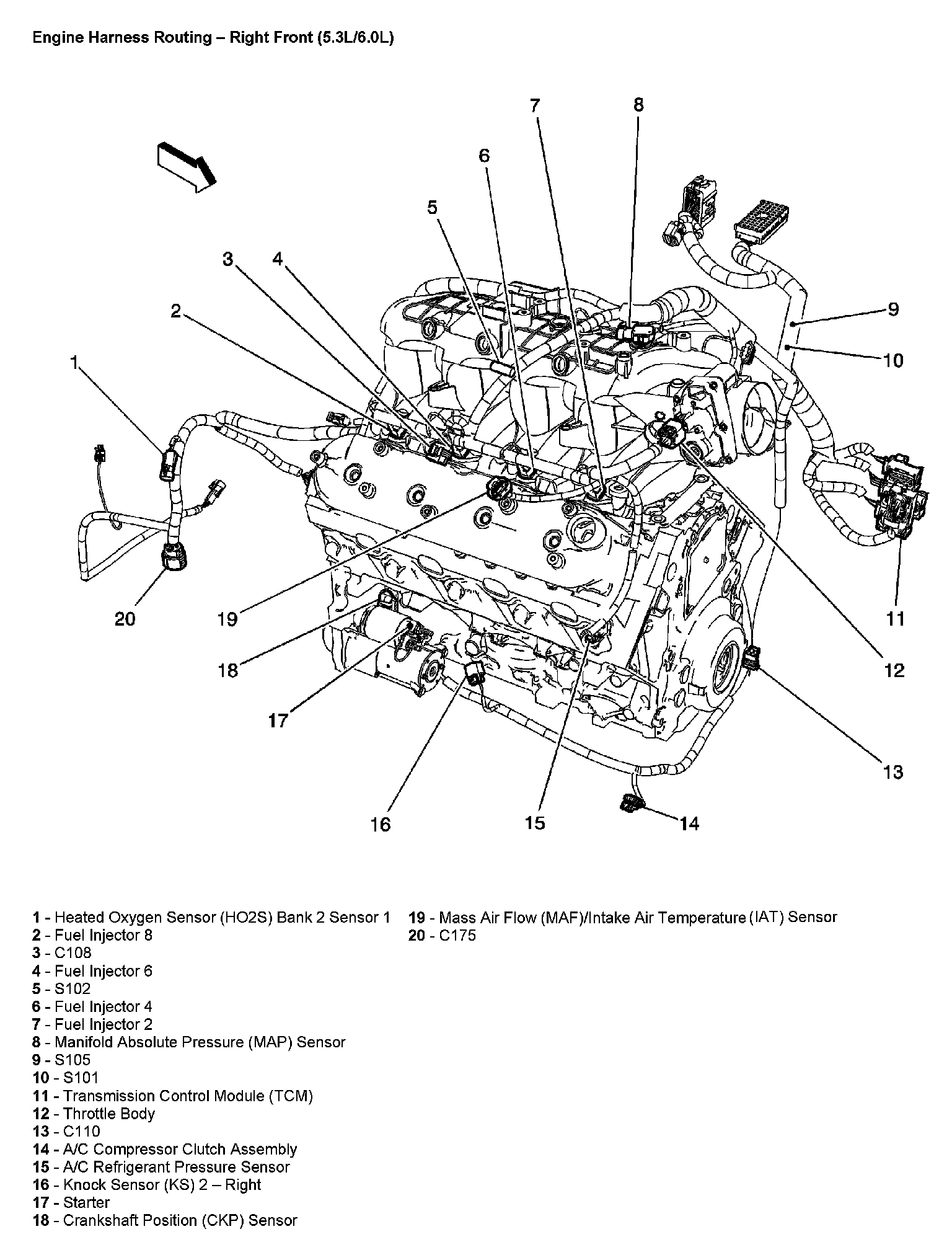

Engine Harness Routing - Right Front (5.3L/6.0L):
