Operation CHARM
: Car repair manuals for everyone.
Home
>>
Buick
>>
2007
>>
Rainier AWD V8-5.3L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Underhood Fuse Block
Underhood Fuse Block
Fuse Block - Underhood (5.3L/6.0L), Label:

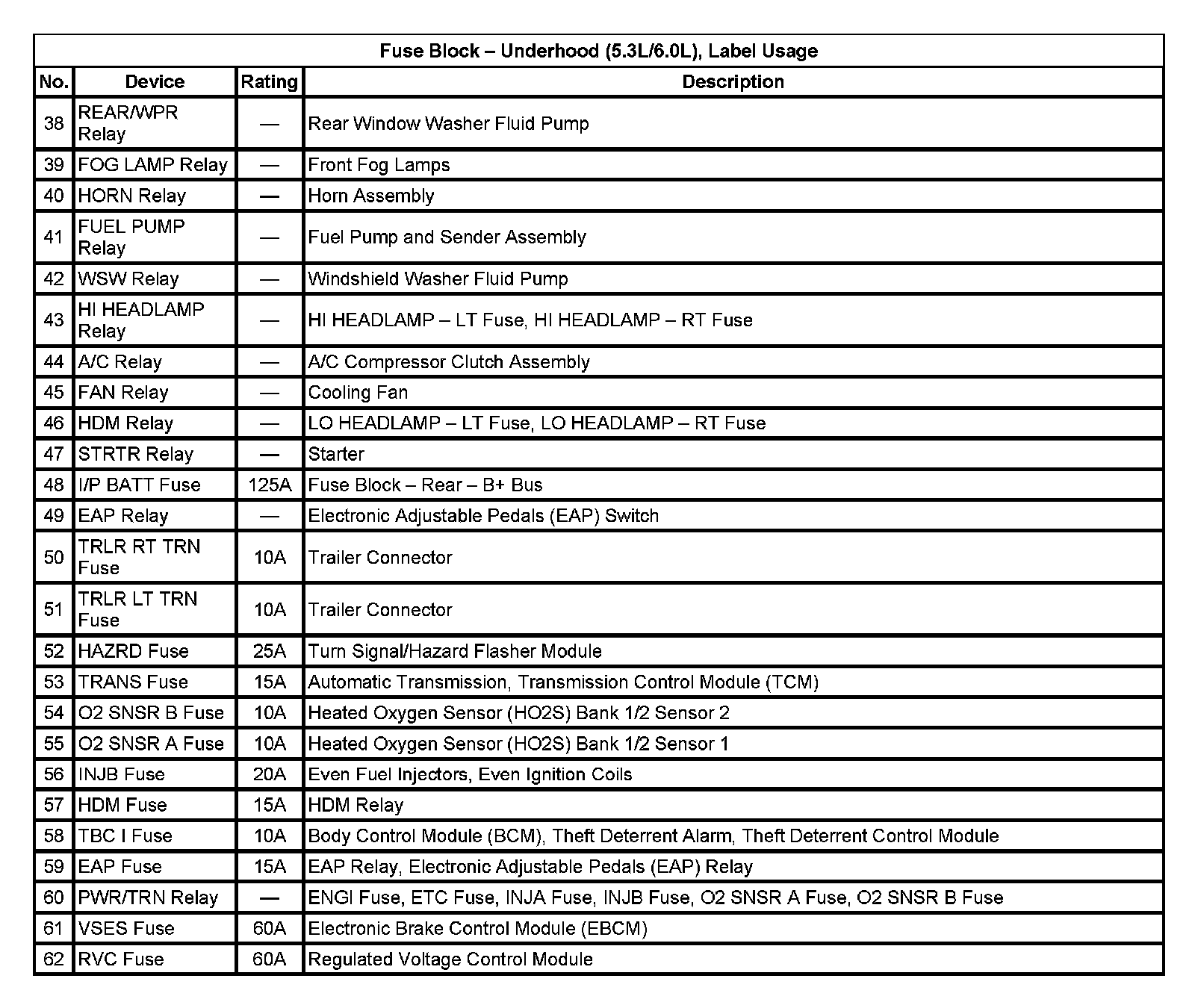

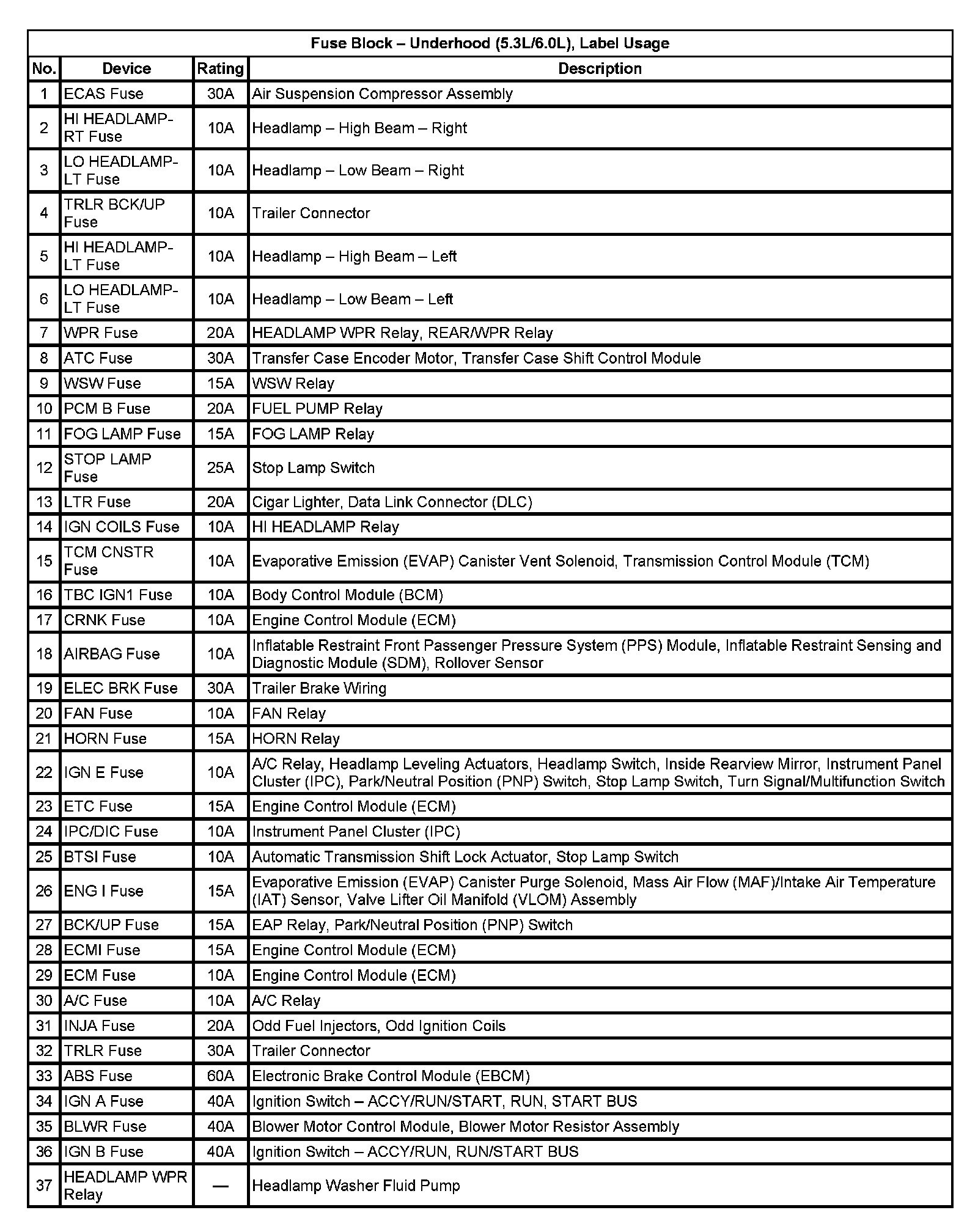

Fuse Block - Underhood (5.3L/6.0L), Label Usage:
Fuse Block - Underhood (5.3L/6.0L), Label Usage:
