Home >> Buick >> 2007 >> Rainier AWD V8-5.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Locations

Information Bus: Locations

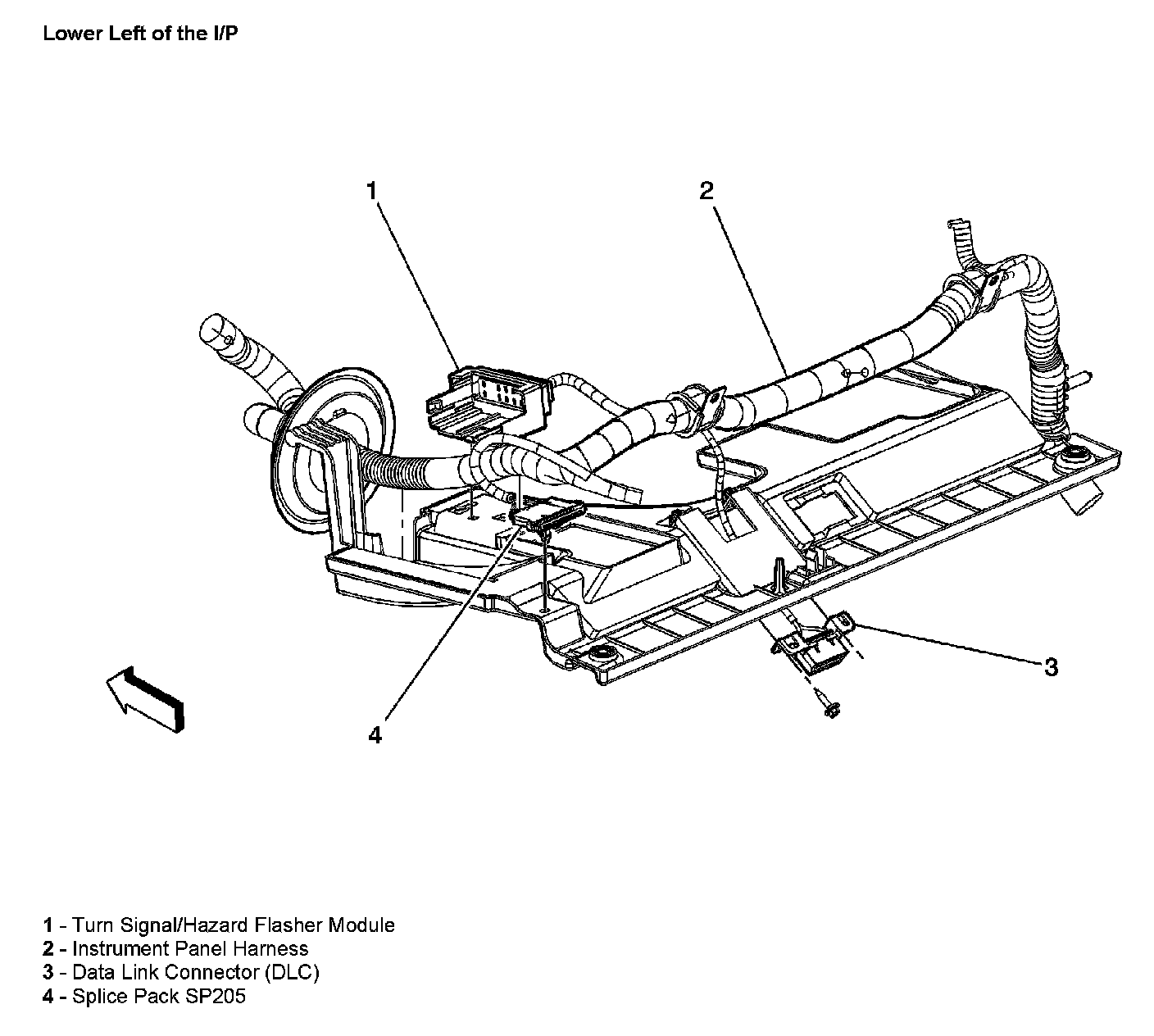

Lower Left Of The I/P:



Body Control Module (BCM):

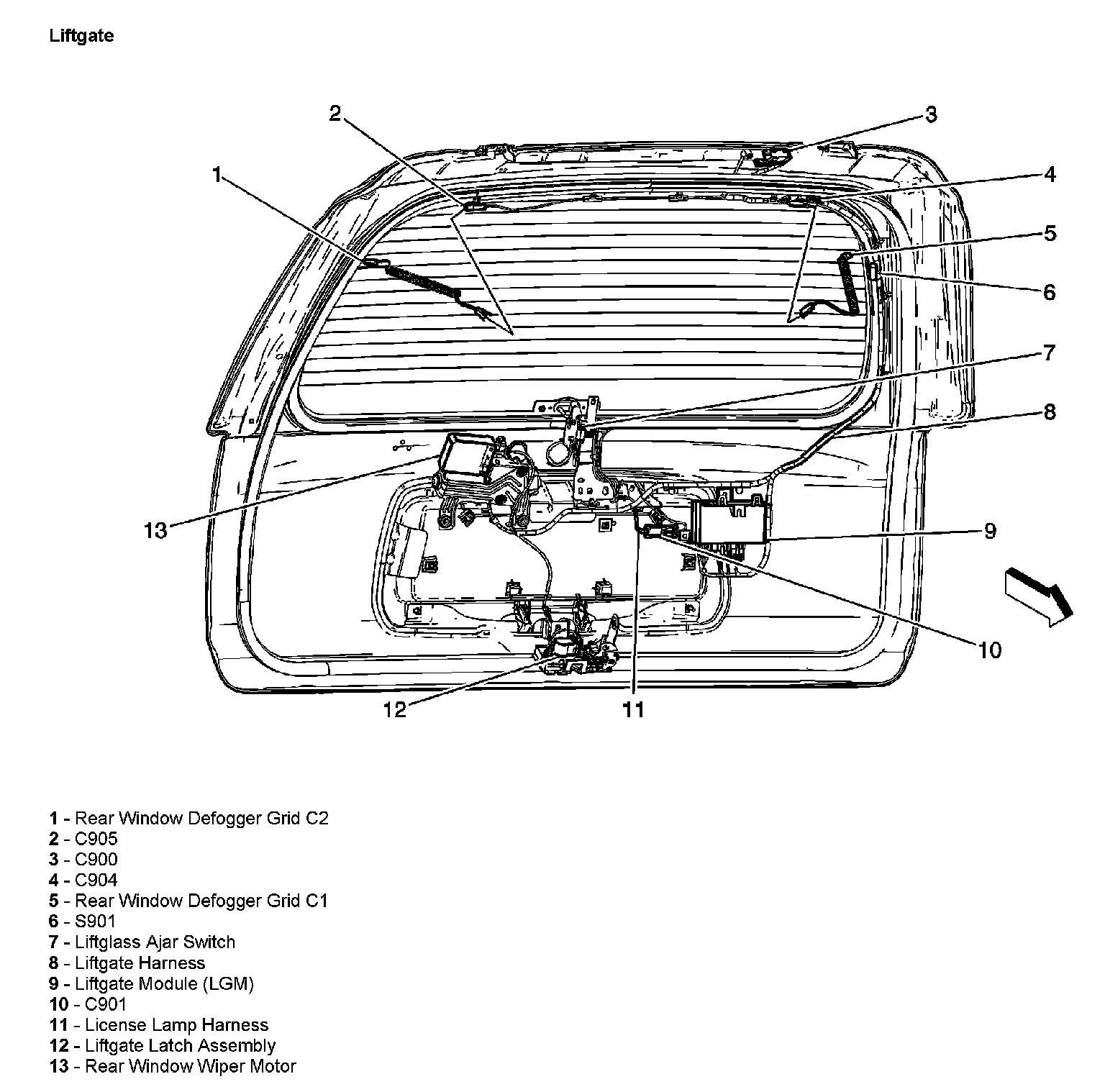

Liftgate:
