Center Air Outlet Replacement

Center Air Outlet Replacement

Removal Procedure




1. Remove the instrument panel (I/P) assembly.

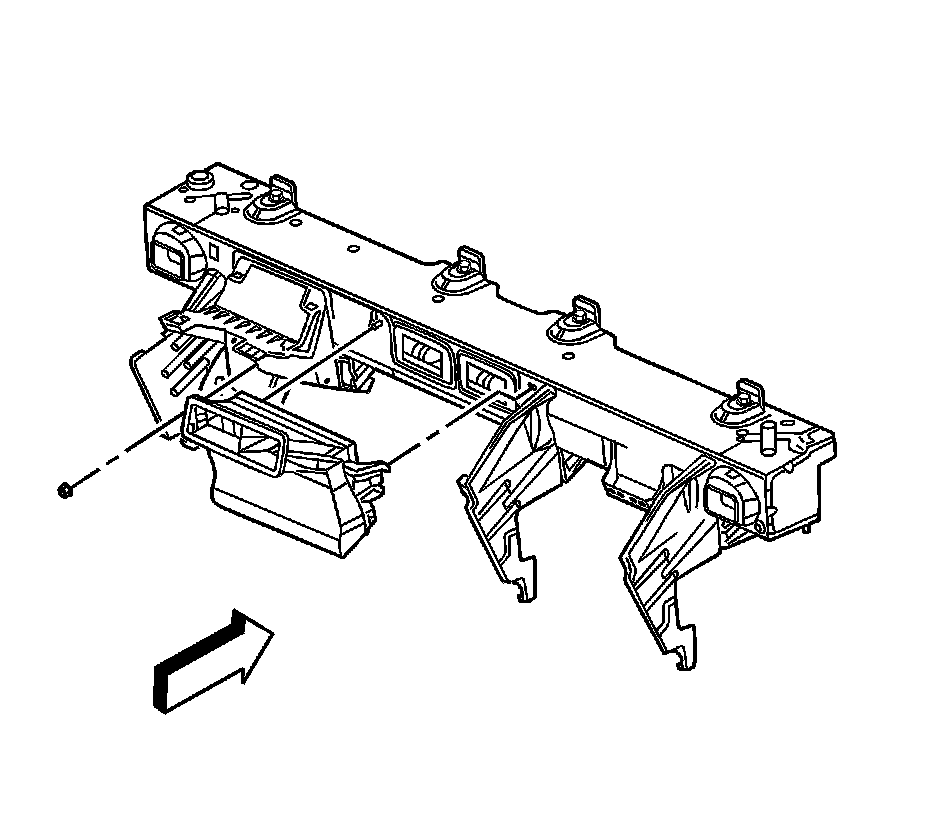

2. Remove the center air distribution duct nuts.
3. Remove the center air distribution duct from the crosscar beam.

Installation Procedure




1. Position the center air distribution duct to the crosscar beam.

Notice: Refer to Fastener Notice.

2. Install the center air distribution duct nuts.

Tighten the nuts to 10 N.m (89 lb in).

3. Install the I/P assembly.
