Floor Air Outlet Replacement

Floor Air Outlet Replacement

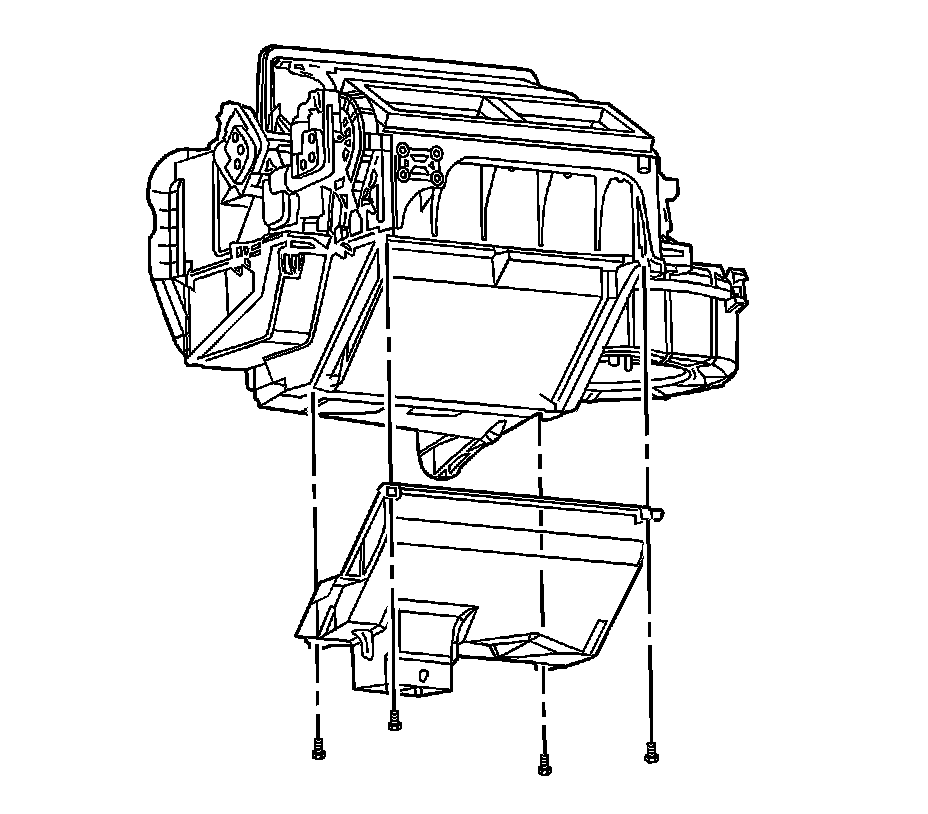

Removal Procedure




1. Remove the instrument panel (I/P) compartment.
2. Remove the center floor air outlet.
3. Remove the floor air outlet screws.
4. Remove the floor air outlet.

Installation Procedure




1. Install the floor air outlet.

Notice: Refer to Fastener Notice.

2. Install the floor air outlet screws.

Tighten the screws to 1.2 N.m (11 lb in).

3. Install the center floor air outlet.
4. Install the I/P compartment.
