Evaporator Drain Tube: Service and Repair

Auxiliary Evaporator Drain Hose Replacement

Removal Procedure

1. Remove the left rear quarter trim panel.

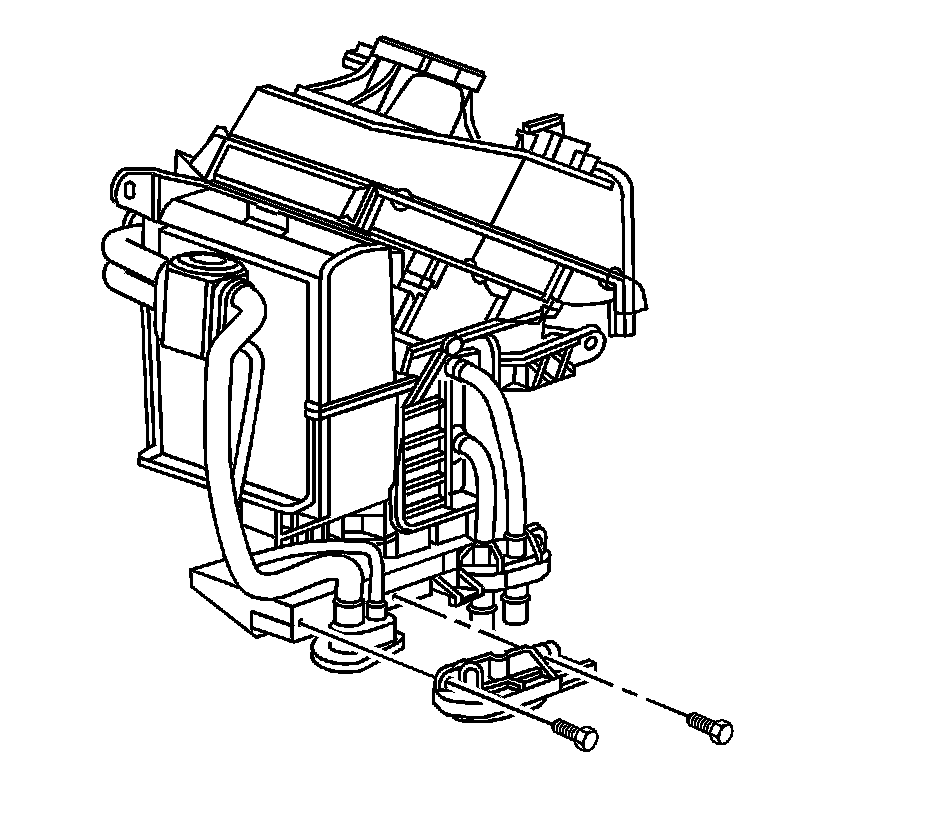

2. Remove the auxiliary evaporator pipe clamp screw.
3. Remove the auxiliary evaporator drain hose from the evaporator clamp.
4. Remove the evaporator drain hose from the auxiliary evaporator housing.

Installation Procedure




1. Install the evaporator drain hose to the auxiliary evaporator housing.
2. Install the auxiliary evaporator drain hose to the evaporator clamp.

Notice: Refer to Fastener Notice.

3. Install the auxiliary evaporator pipe clamp screw.

Tighten the screw to 1.6 N.m (14 lb in).

4. Install the left rear quarter trim panel.
