Windshield Washer Nozzle Replacement

Windshield Washer Nozzle Replacement

Removal procedure

1. Turn the ignition switch to the ACCY position.
2. Set the wiper switch to the Delay position.
3. Turn the ignition switch off when the wipers are in the innerwipe position.

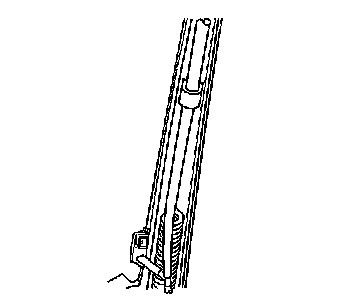

4. Using a small flat-bladed tool, remove the lower washer nozzle from the wiper arm.




5. Using a small flat-bladed tool, remove the upper washer nozzle from the wiper arm.

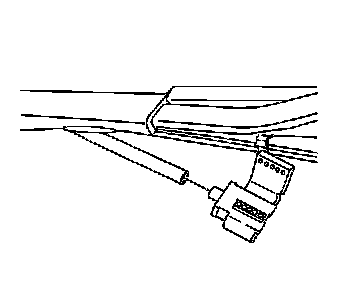

6. Disconnect the upper washer nozzle from the upper washer nozzle hose.




7. Remove the upper washer nozzle hose from the wiper arm.
8. Disconnect the washer nozzle from the washer hose.
9. Remove the washer nozzle hose from the wiper arm.

Installation Procedure

1. Position the washer nozzle hose to the wiper arm.
2. Connect the washer nozzle to the washer hose.




3. Install the upper washer nozzle hose to the wiper arm.




4. Connect the upper washer nozzle to the upper washer nozzle hose.
5. Position the upper washer nozzle to the wiper arm, pressing in until fully seated.
6. Position the lower washer nozzle to the wiper arm, pressing in until fully seated.
7. Inspect the washers for proper operation.
