Part 2

Component Connector End Views

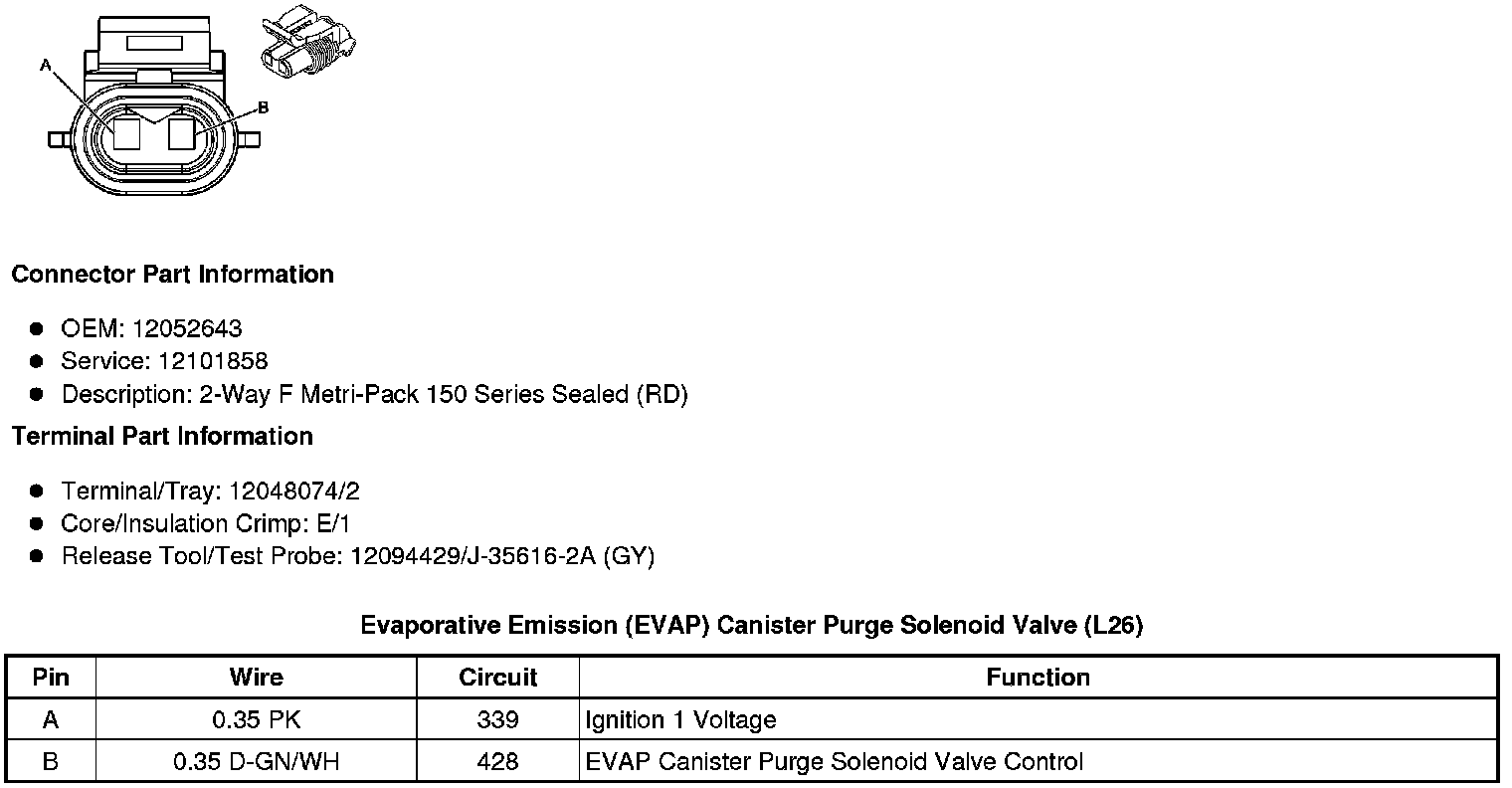

Evaporative Emission (EVAP) Canister Purge Solenoid Valve (L26)

Evaporative Emission (EVAP) Canister Purge Solenoid Valve (LS4)

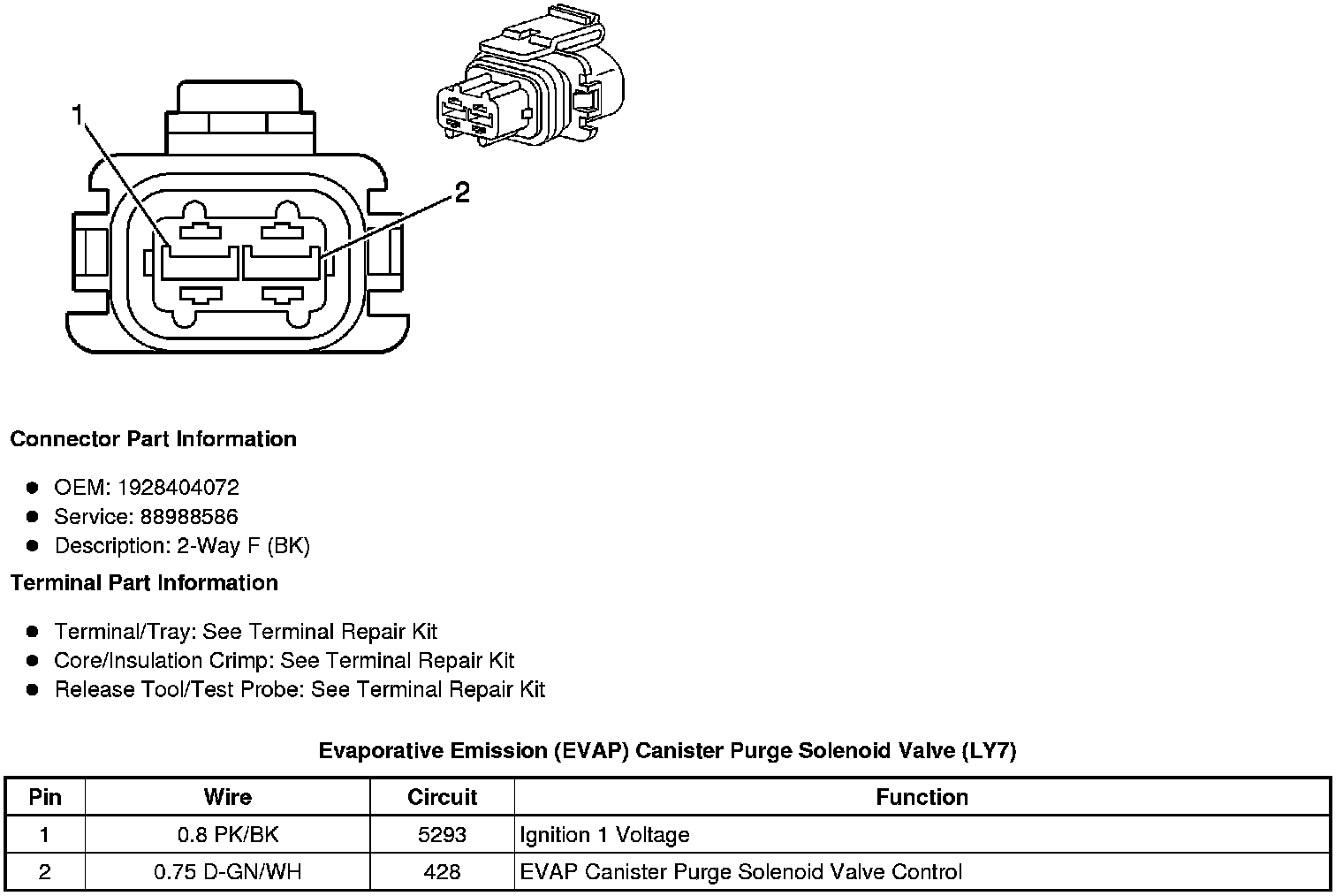

Evaporative Emission (EVAP) Canister Purge Solenoid Valve (LY7)

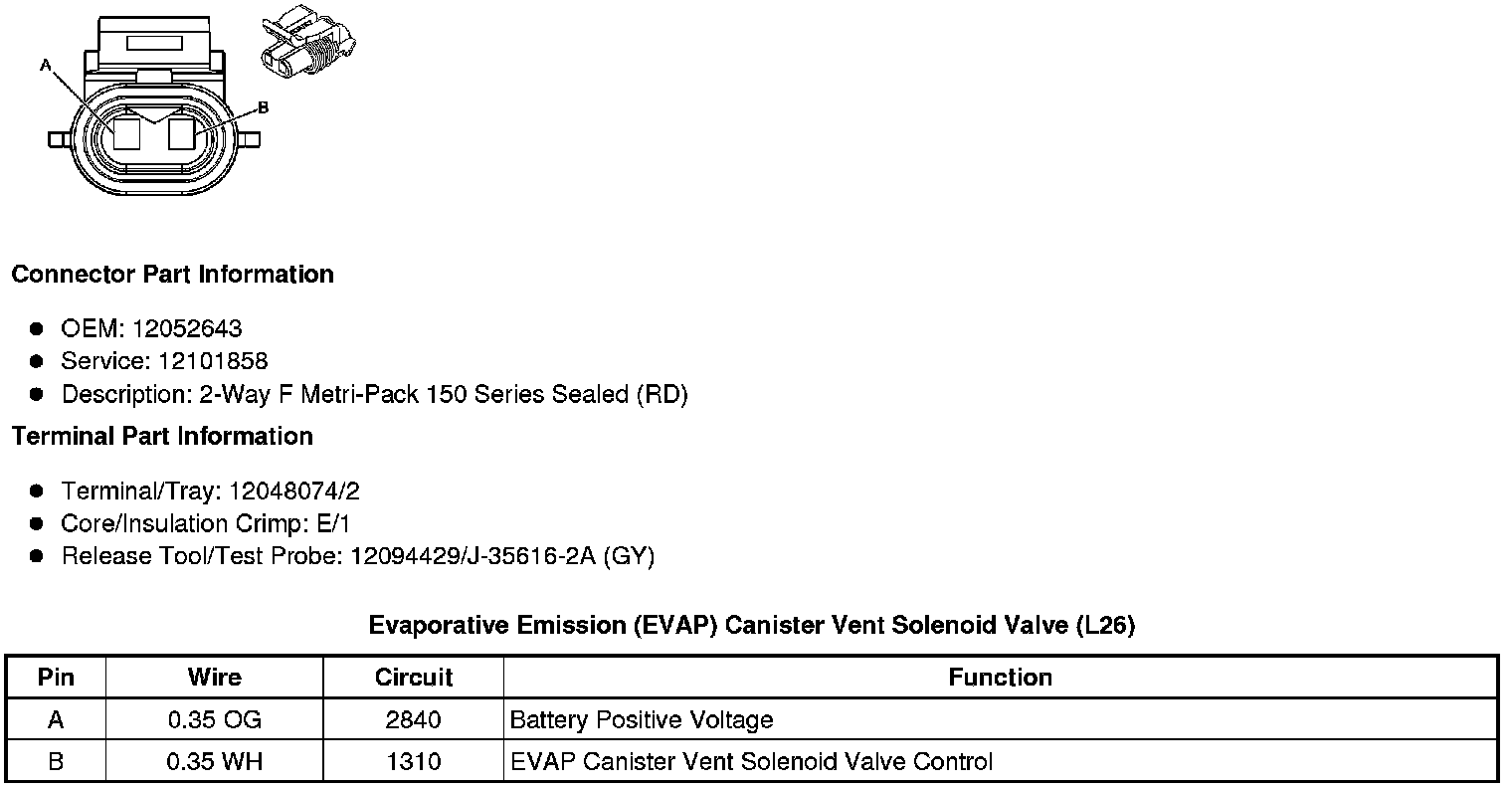

Evaporative Emission (EVAP) Canister Vent Solenoid Valve (L26)

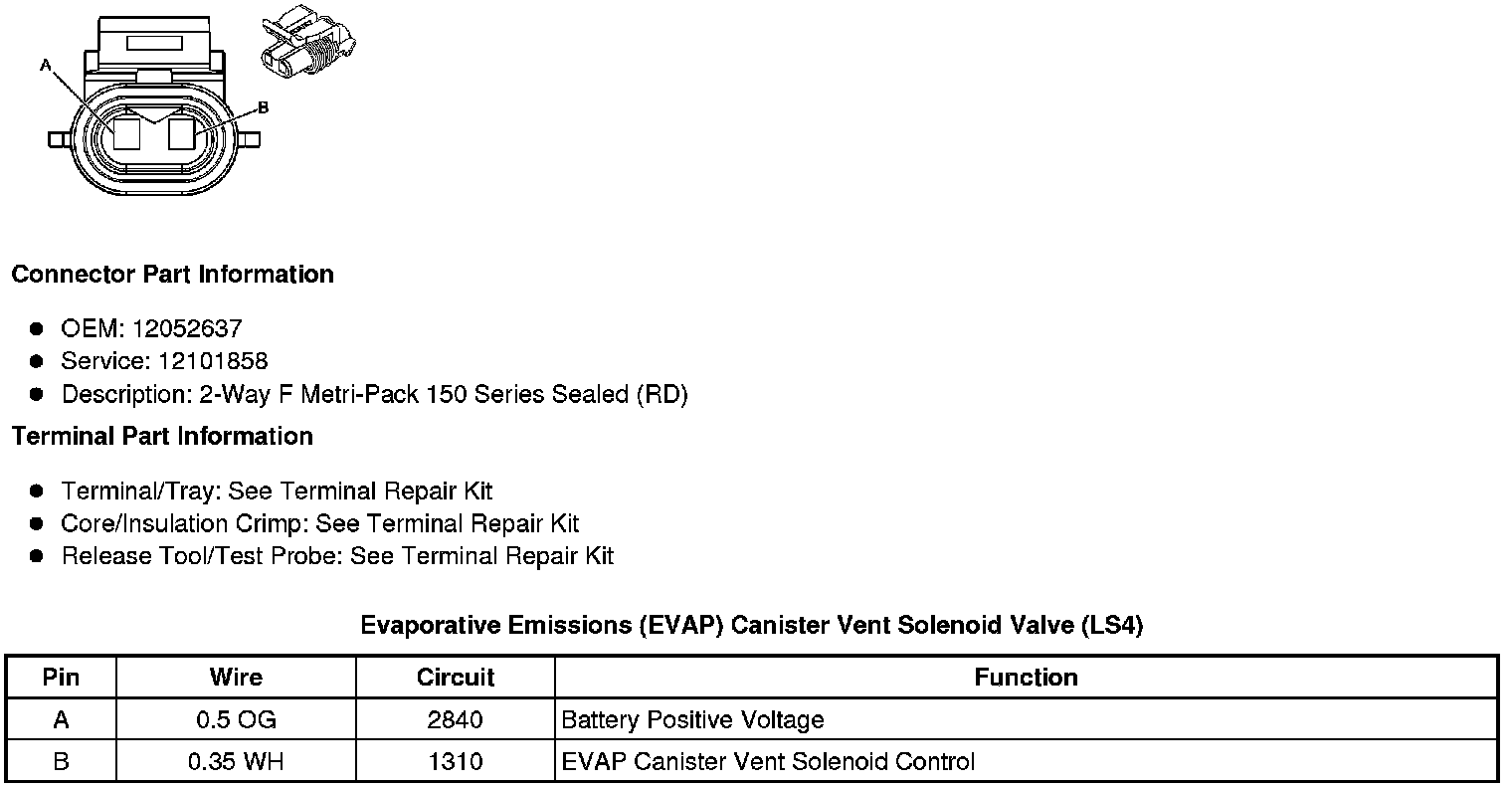

Evaporative Emissions (EVAP) Canister Vent Solenoid Valve (LS4)

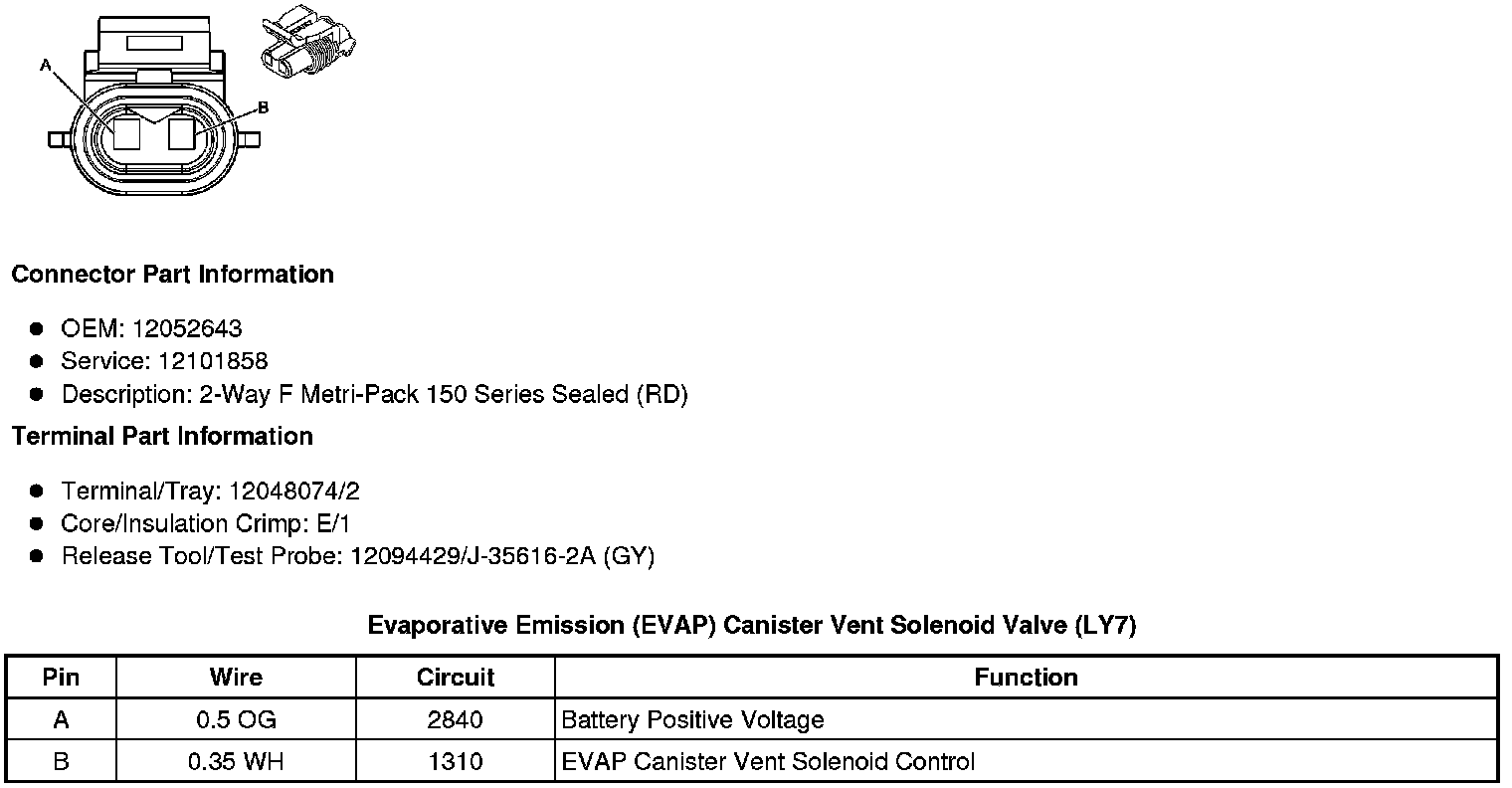

Evaporative Emission (EVAP) Canister Vent Solenoid Valve (LY7)

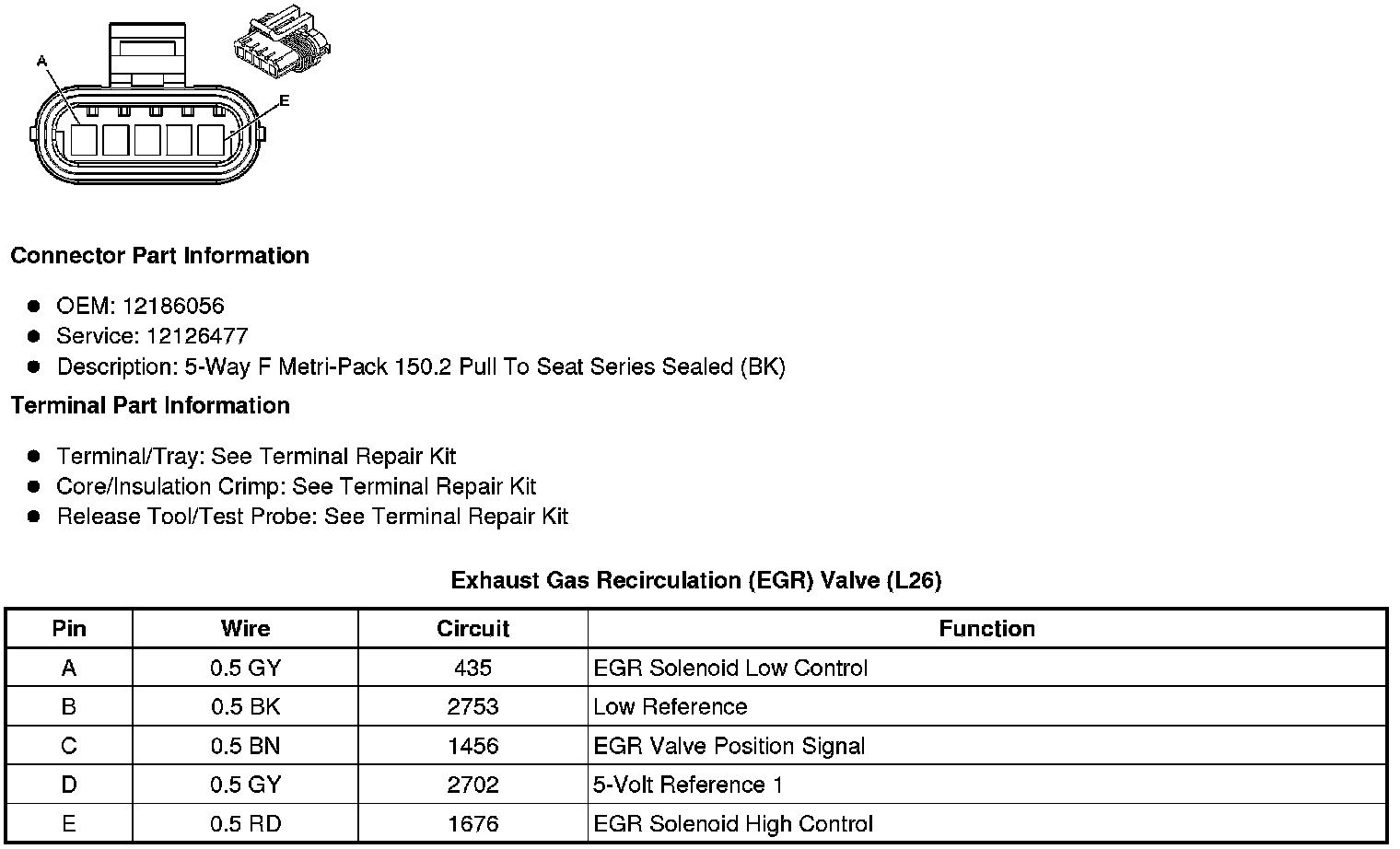

Exhaust Gas Recirculation (EGR) Valve (L26)

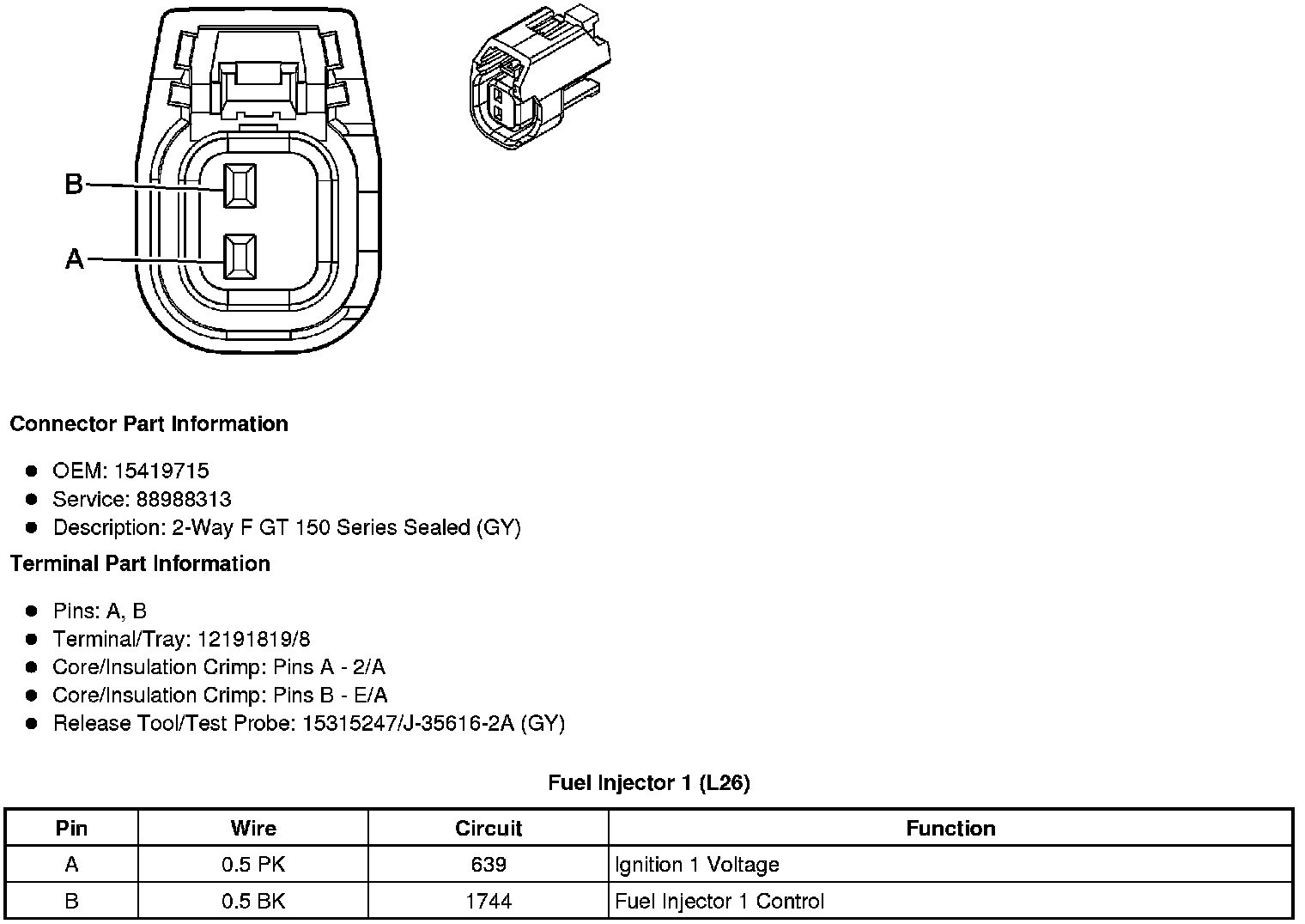

Fuel Injector 1 (L26)

Fuel Injector 1 (LS4)

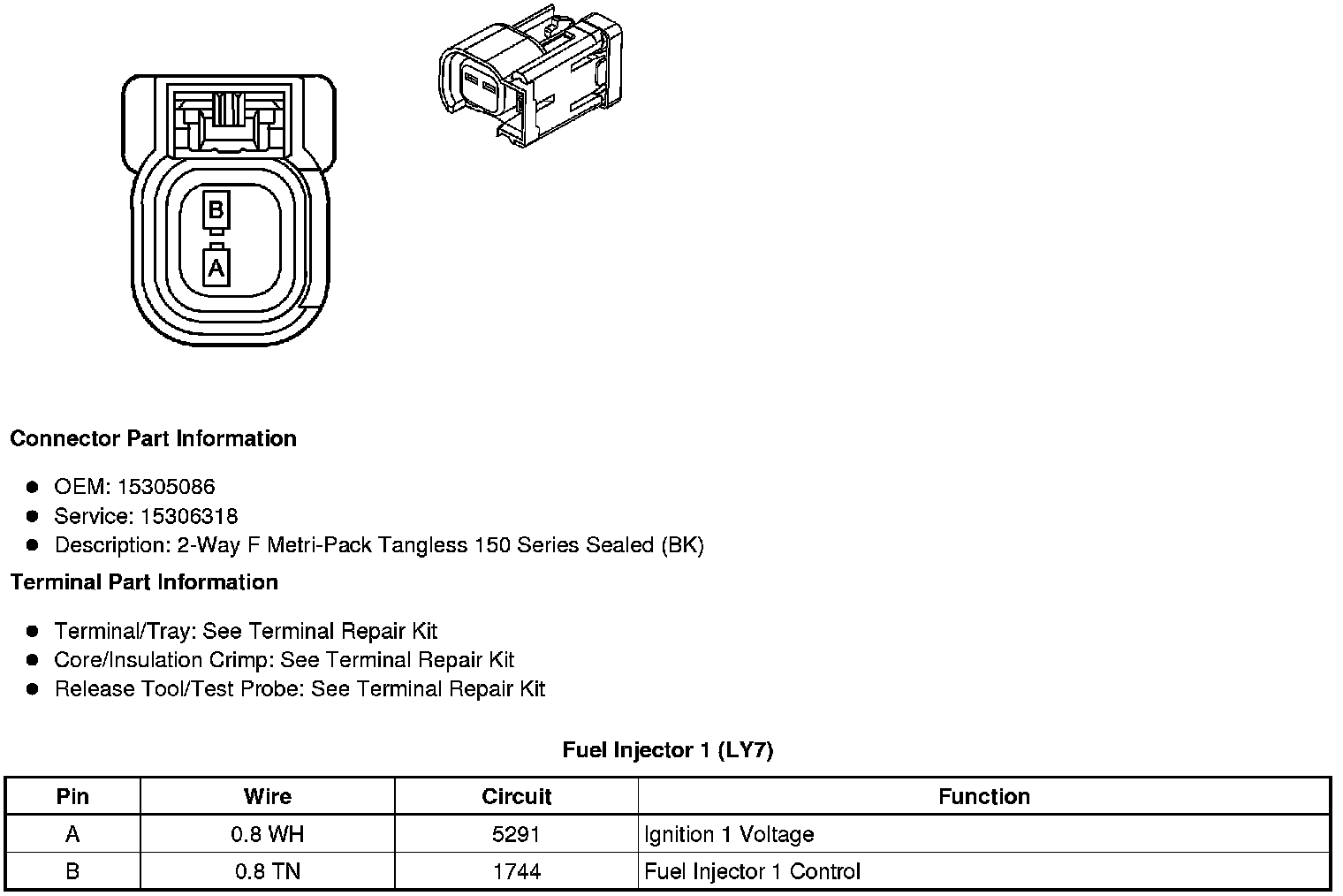

Fuel Injector 1 (LY7)

Fuel Injector 2 (L26)

Fuel Injector 2 (LS4)

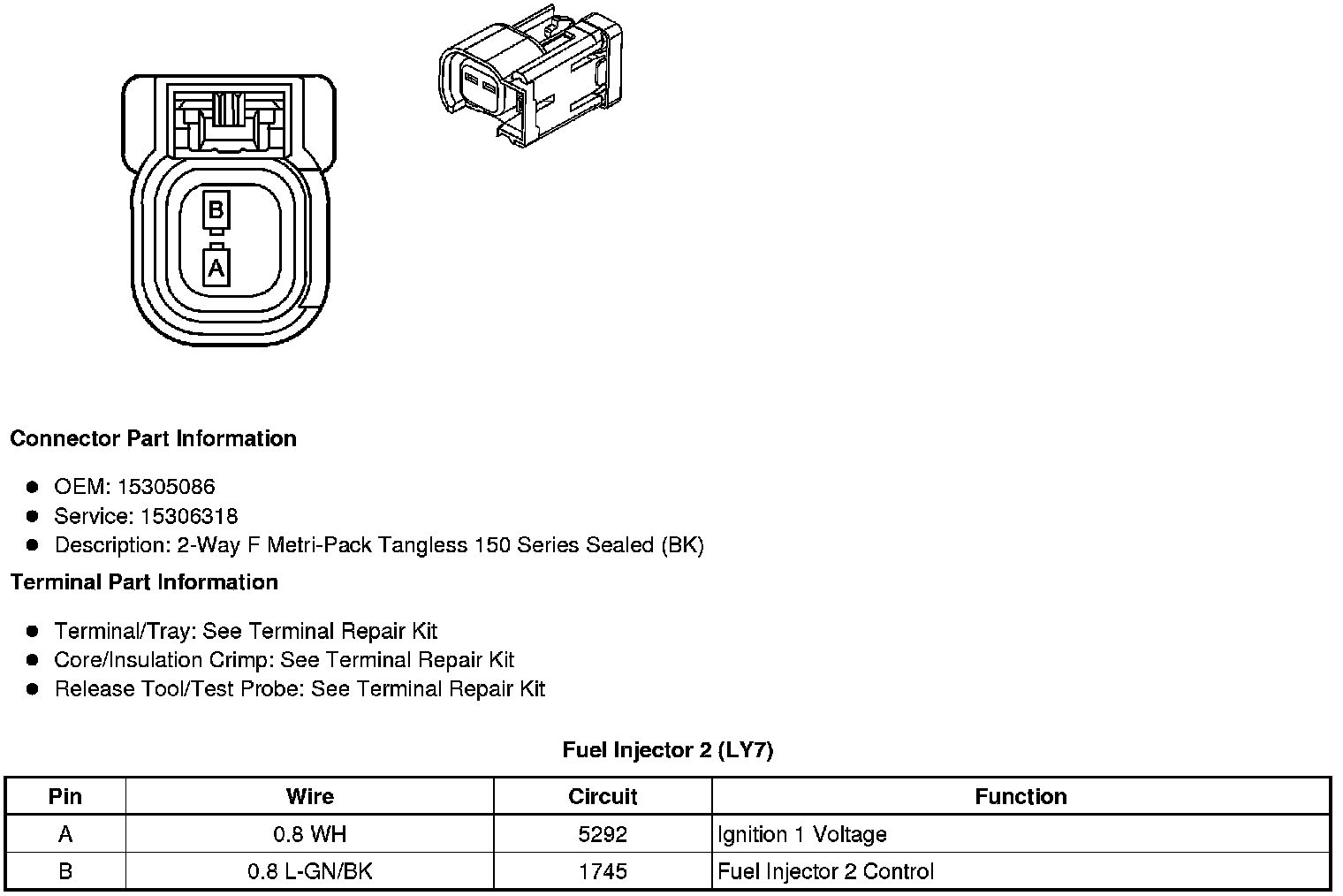

Fuel Injector 2 (LY7)

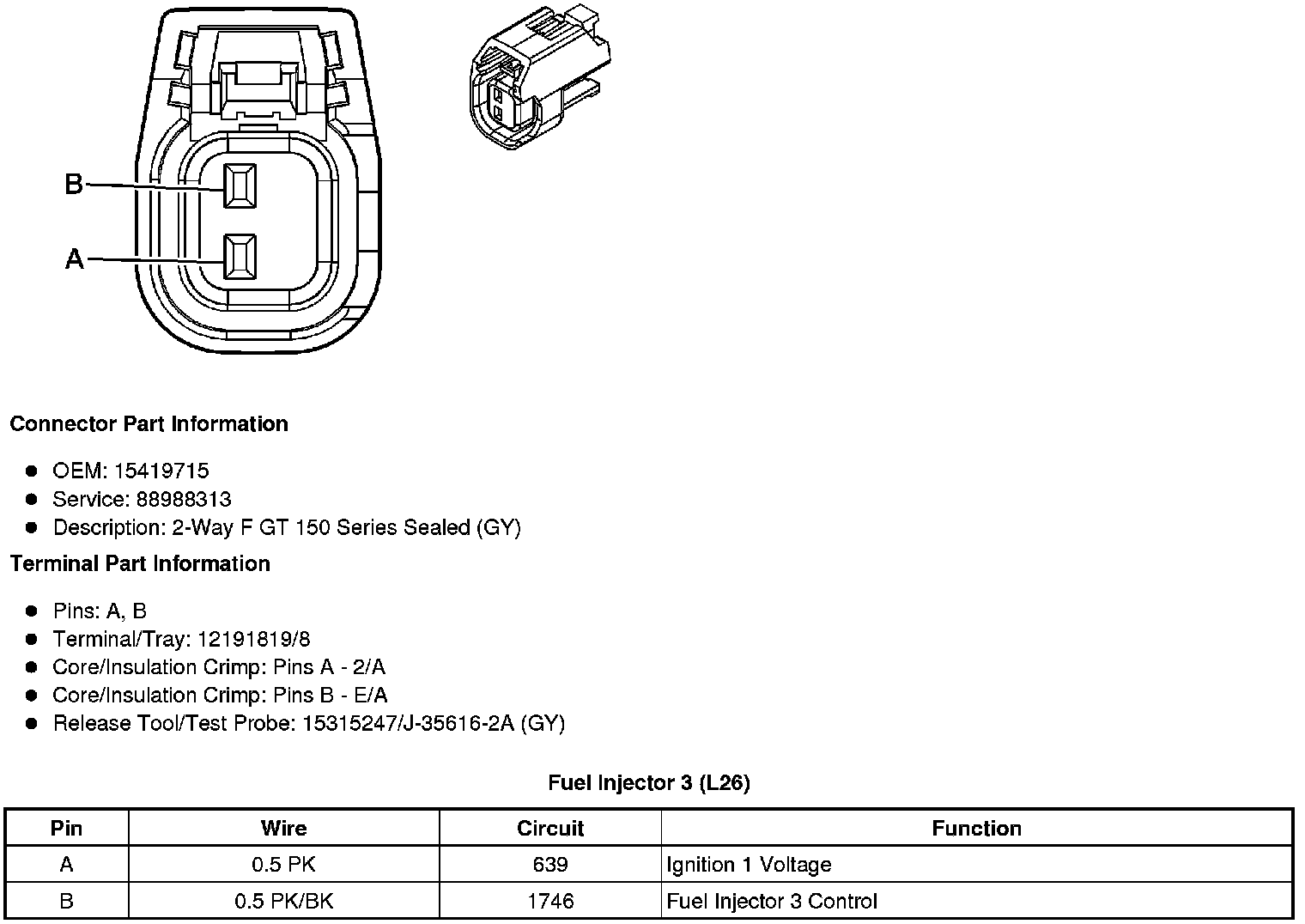

Fuel Injector 3 (L26)

Fuel Injector 3 (LS4)

Fuel Injector 3 (LY7)

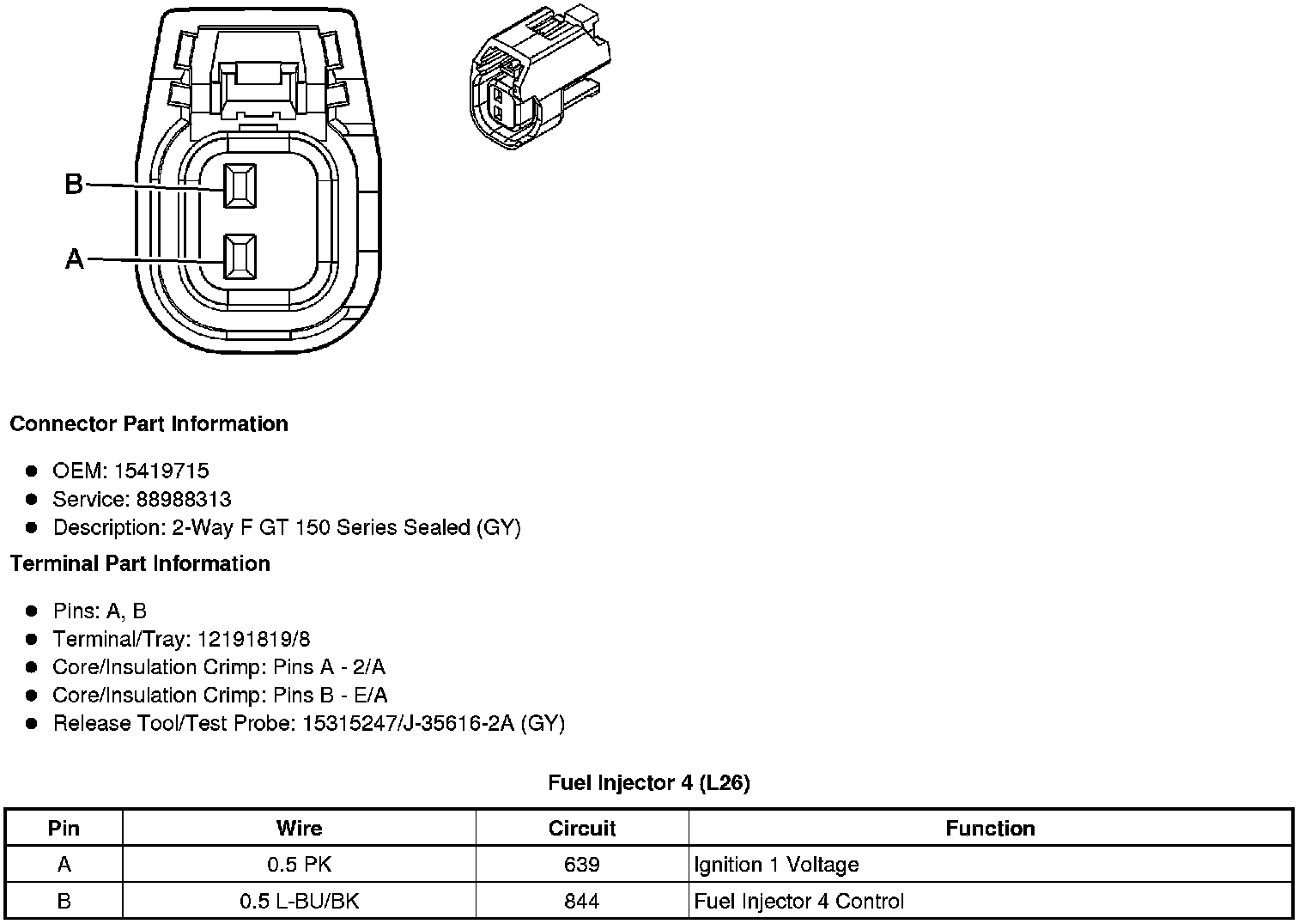

Fuel Injector 4 (L26)

Fuel Injector 4 (LS4)

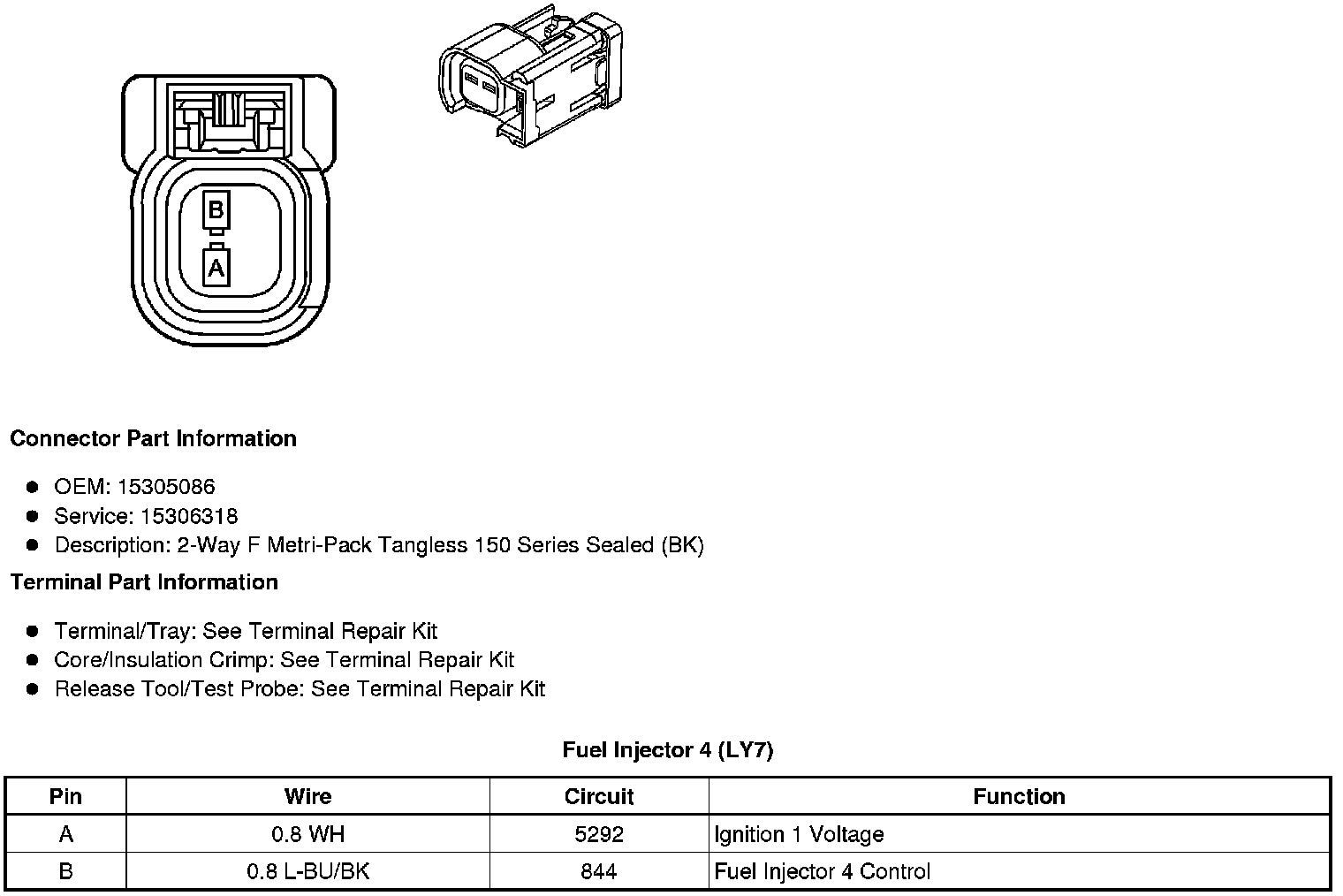

Fuel Injector 4 (LY7)

Fuel Injector 5 (L26)

Fuel Injector 5 (LS4)

Fuel Injector 5 (LY7)

Fuel Injector 6 (L26)

Fuel Injector 6 (LS4)

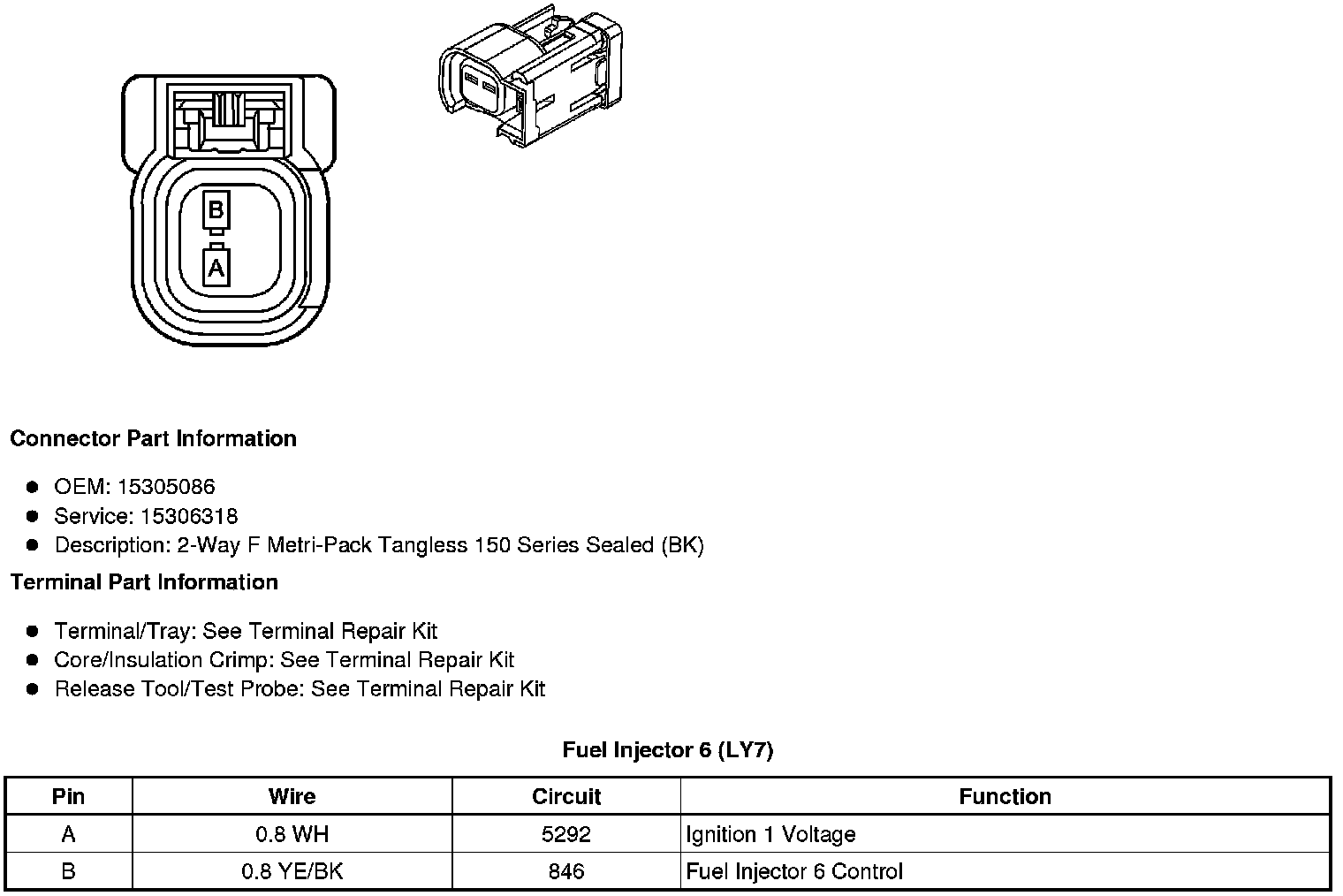

Fuel Injector 6 (LY7)

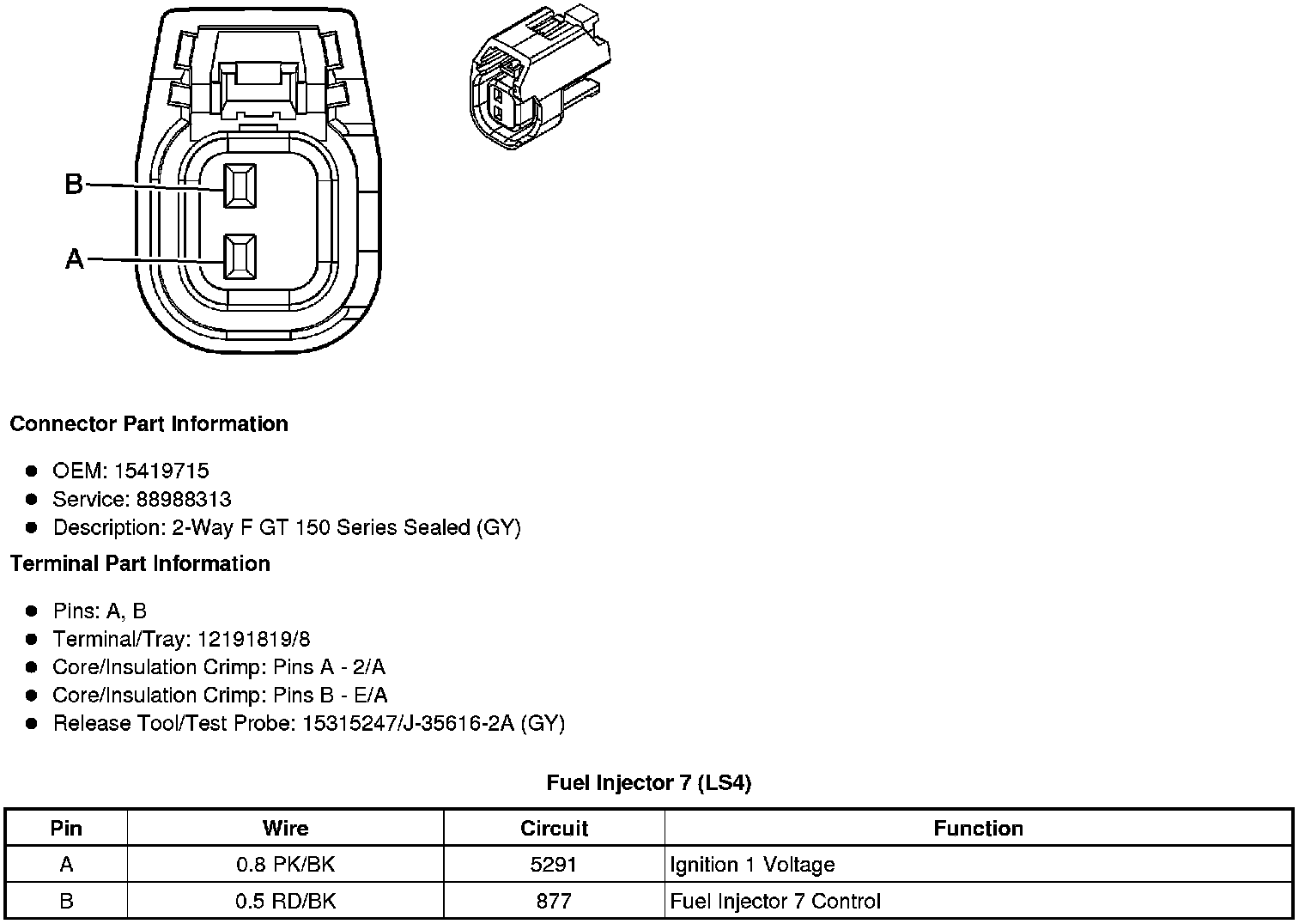

Fuel Injector 7 (LS4)

Fuel Injector 8 (LS4)

Fuel Pump and Sender Assembly (L26)

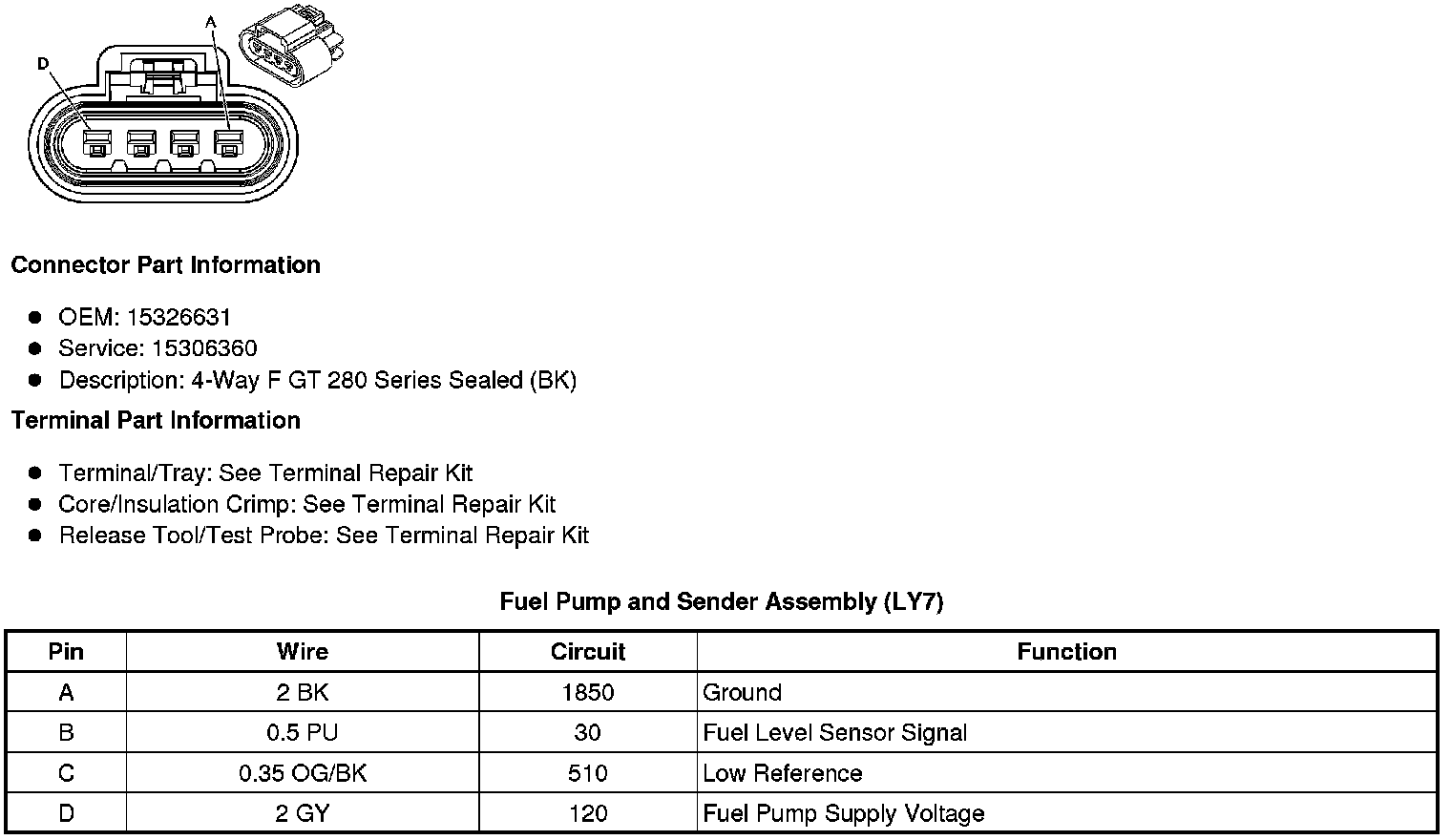

Fuel Pump and Sender Assembly (LY7)

Fuel Tank Pressure (FTP) Sensor (L26)

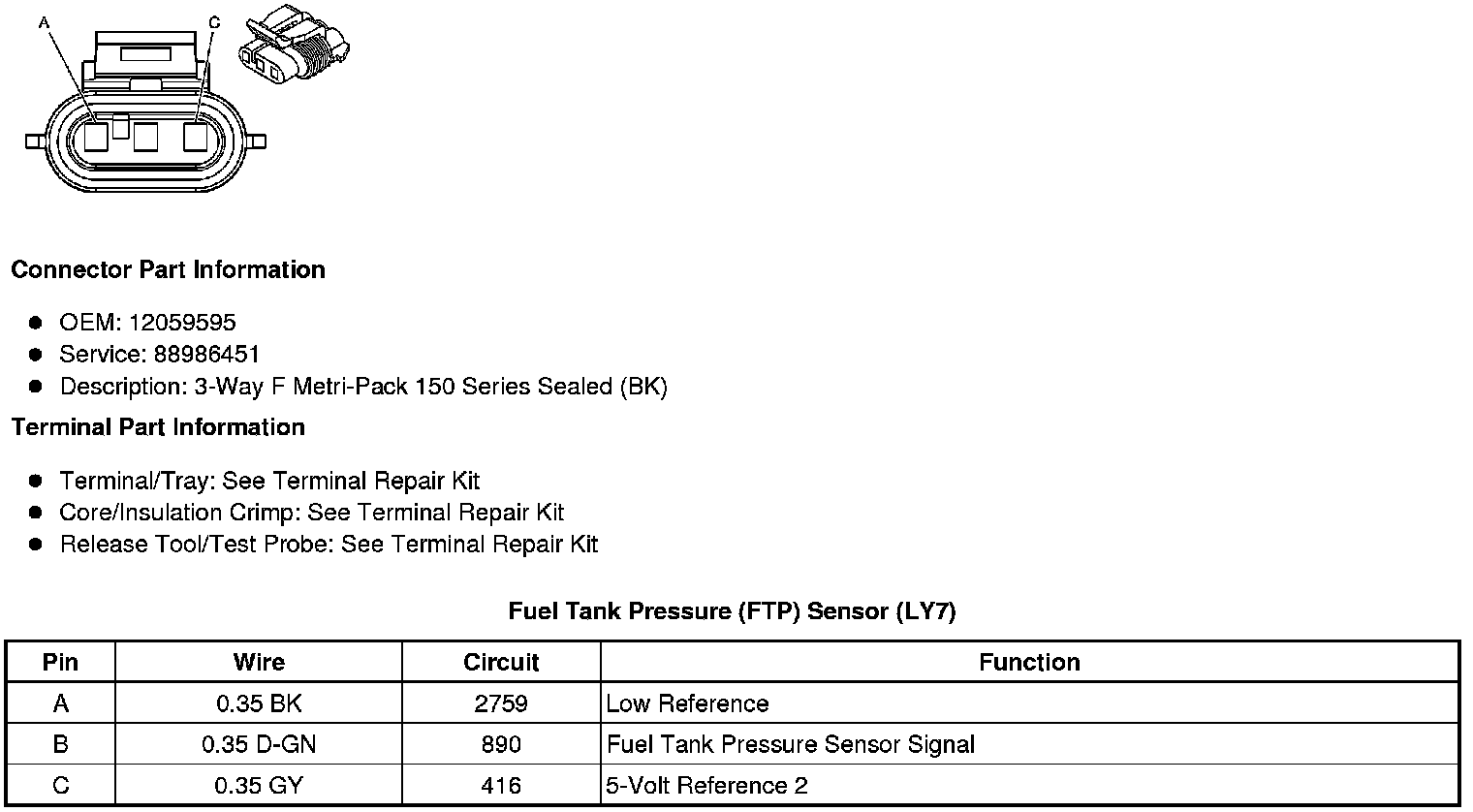

Fuel Tank Pressure (FTP) Sensor (LY7)

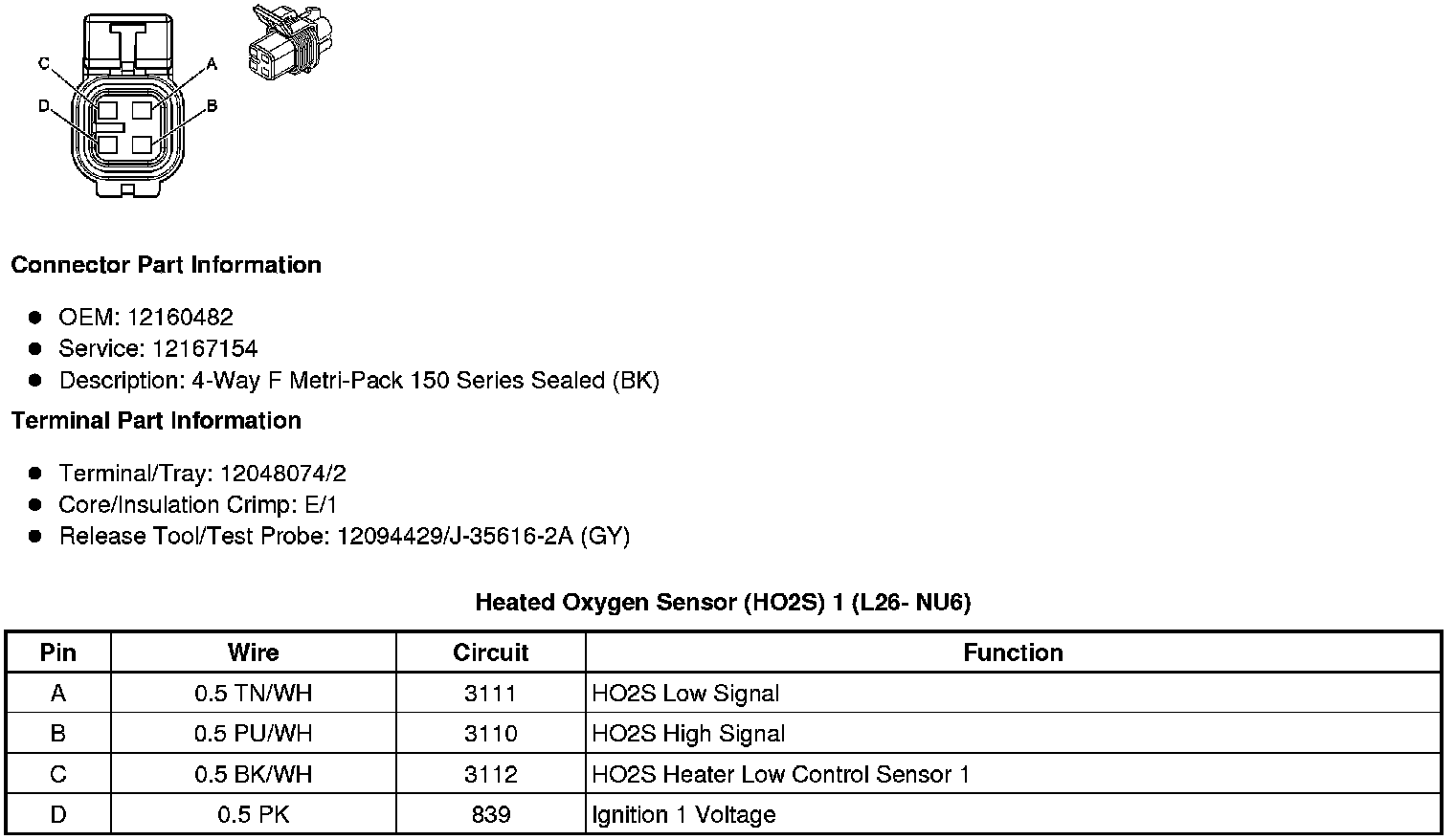

Heated Oxygen Sensor (HO2S) 1 (L26- NU6)

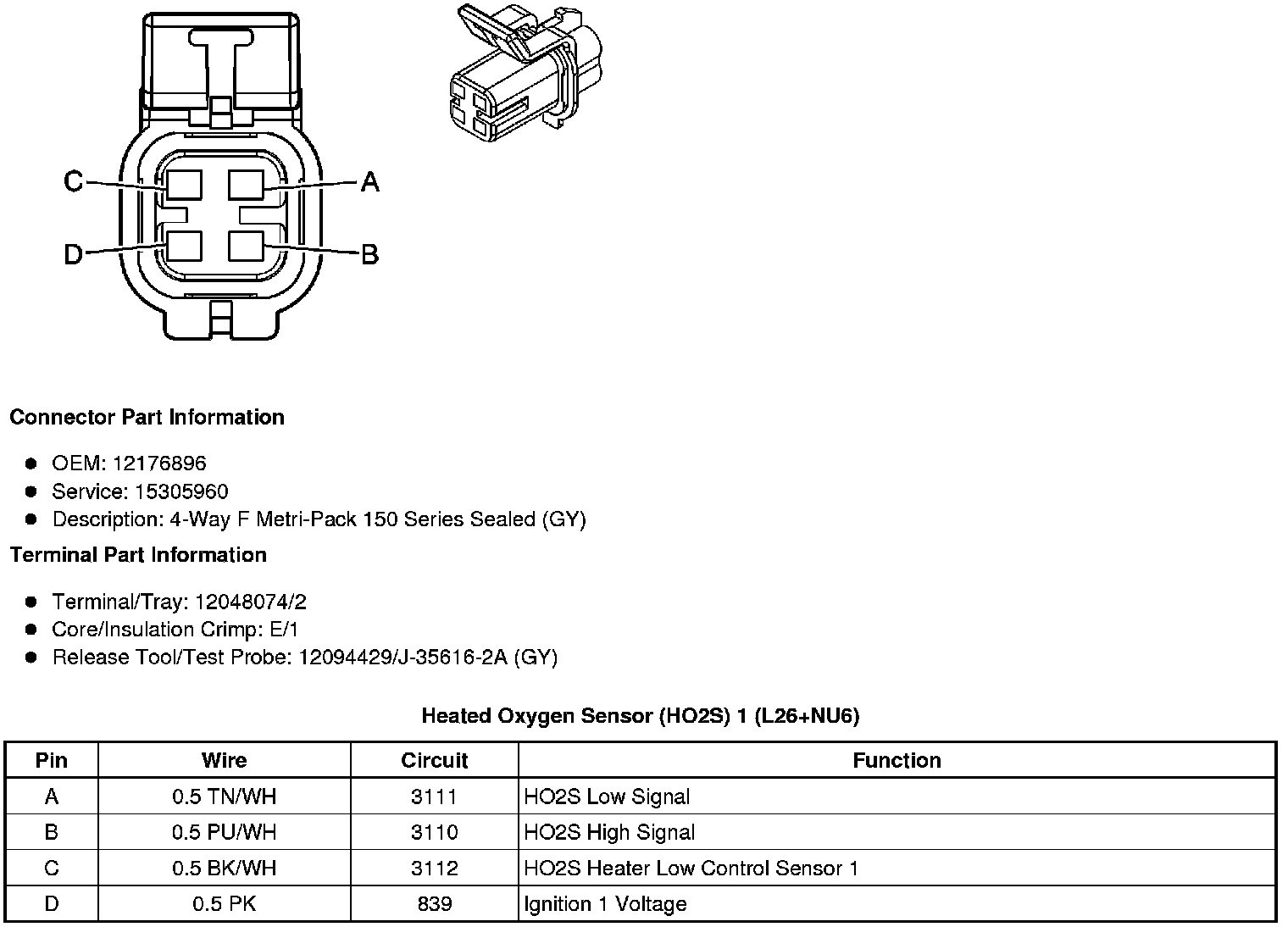

Heated Oxygen Sensor (HO2S) 1 (L26+NU6)

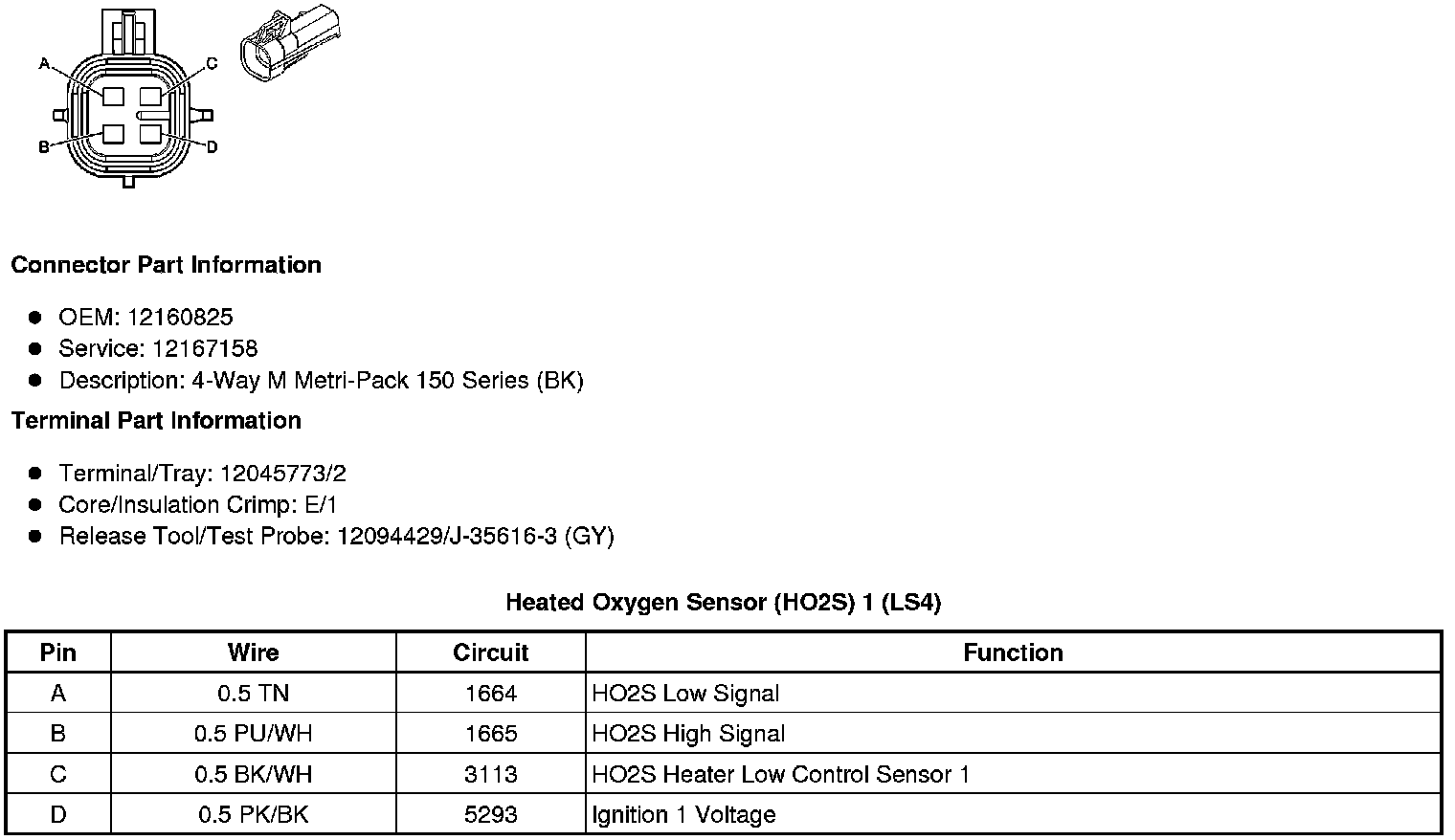

Heated Oxygen Sensor (HO2S) 1 (LS4)

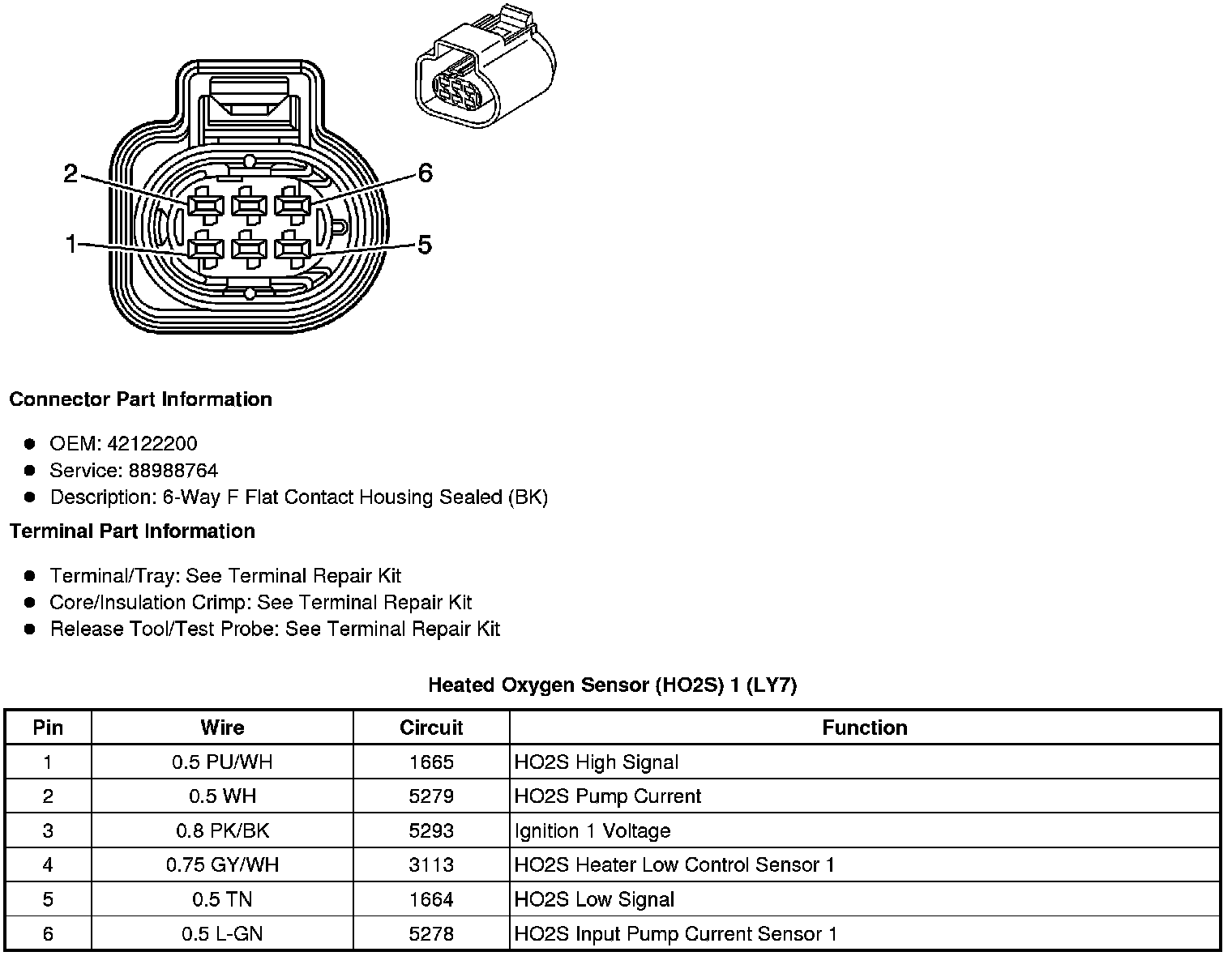

Heated Oxygen Sensor (HO2S) 1 (LY7)

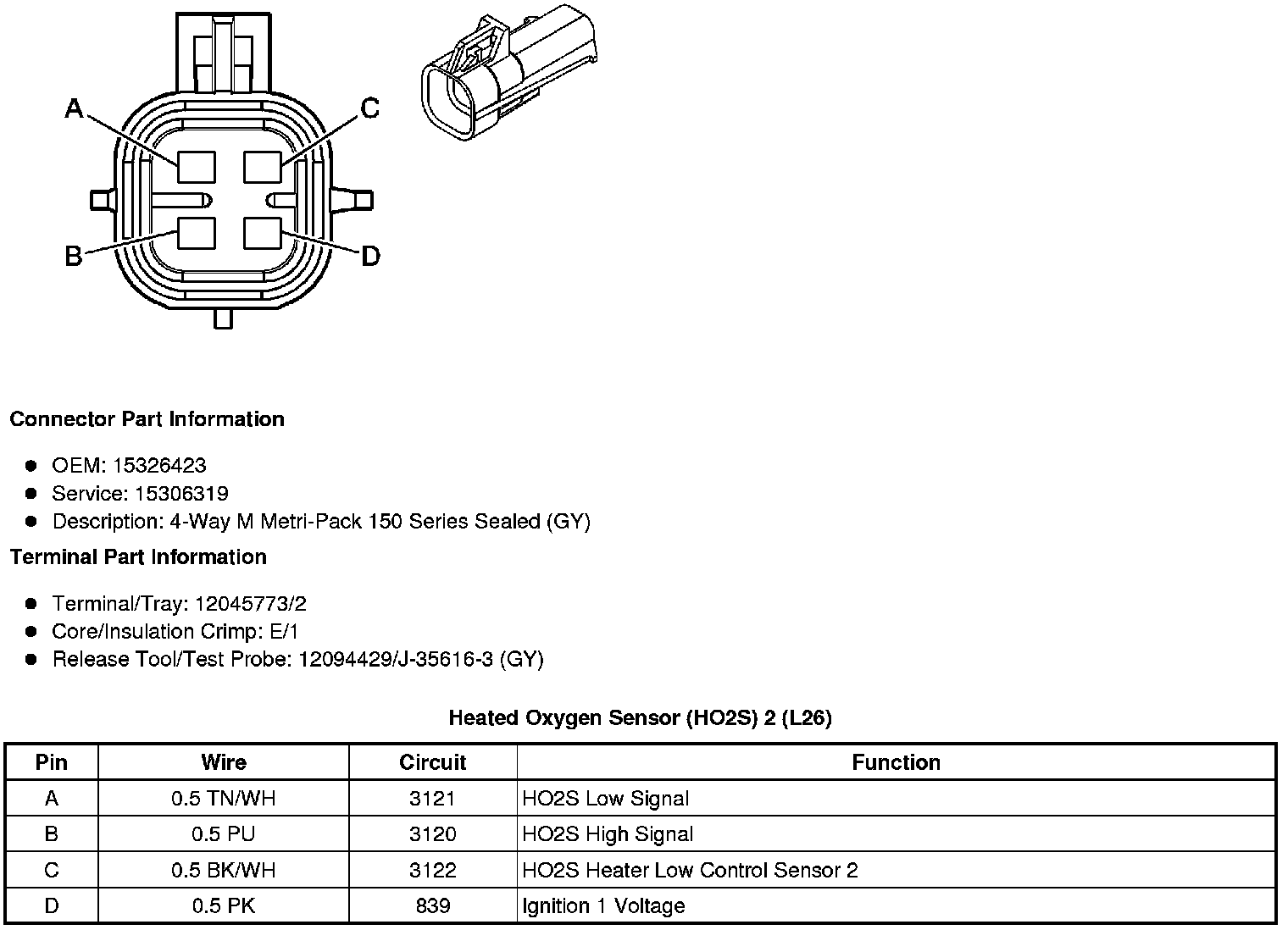

Heated Oxygen Sensor (HO2S) 2 (L26)

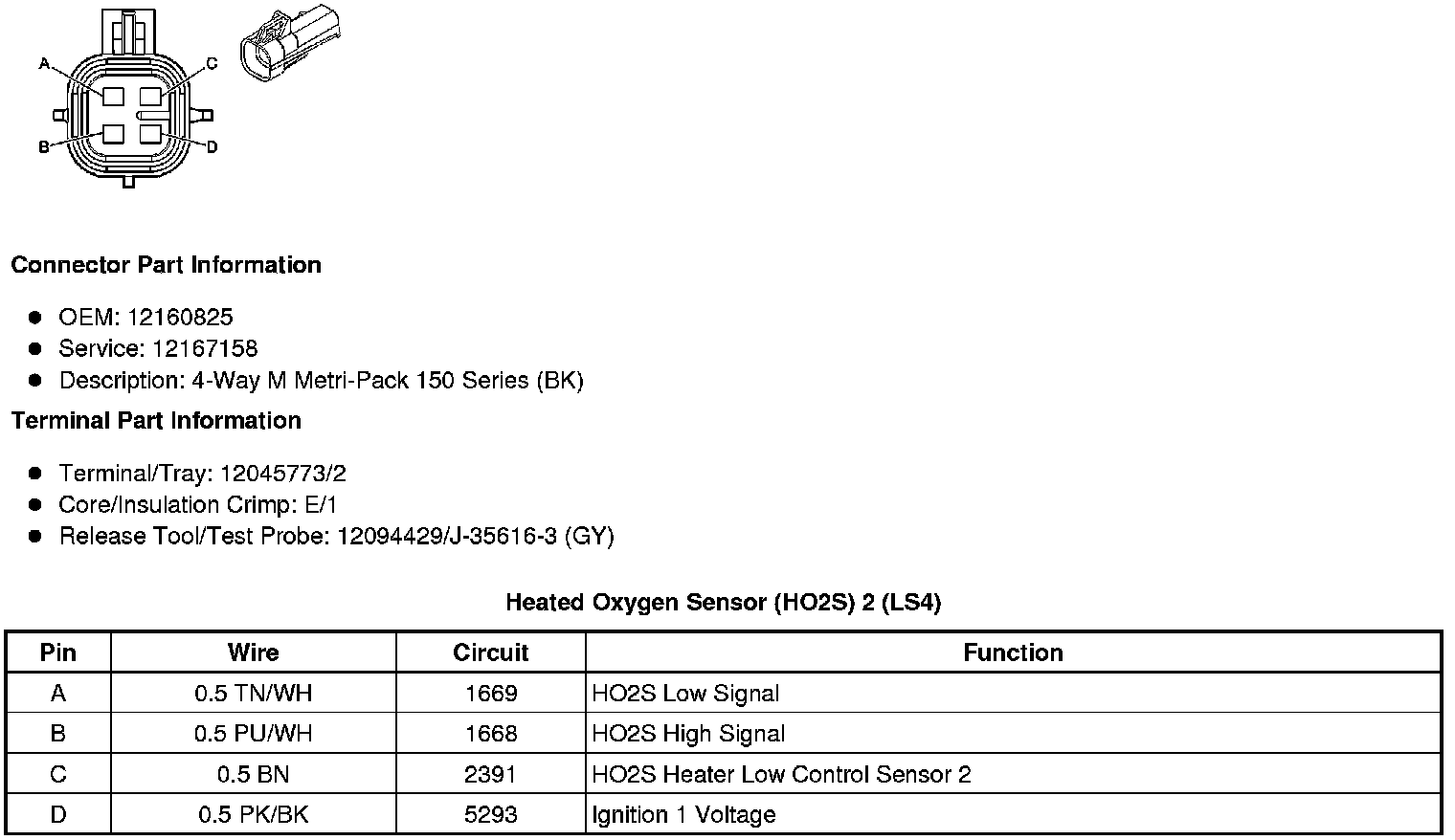

Heated Oxygen Sensor (HO2S) 2 (LS4)

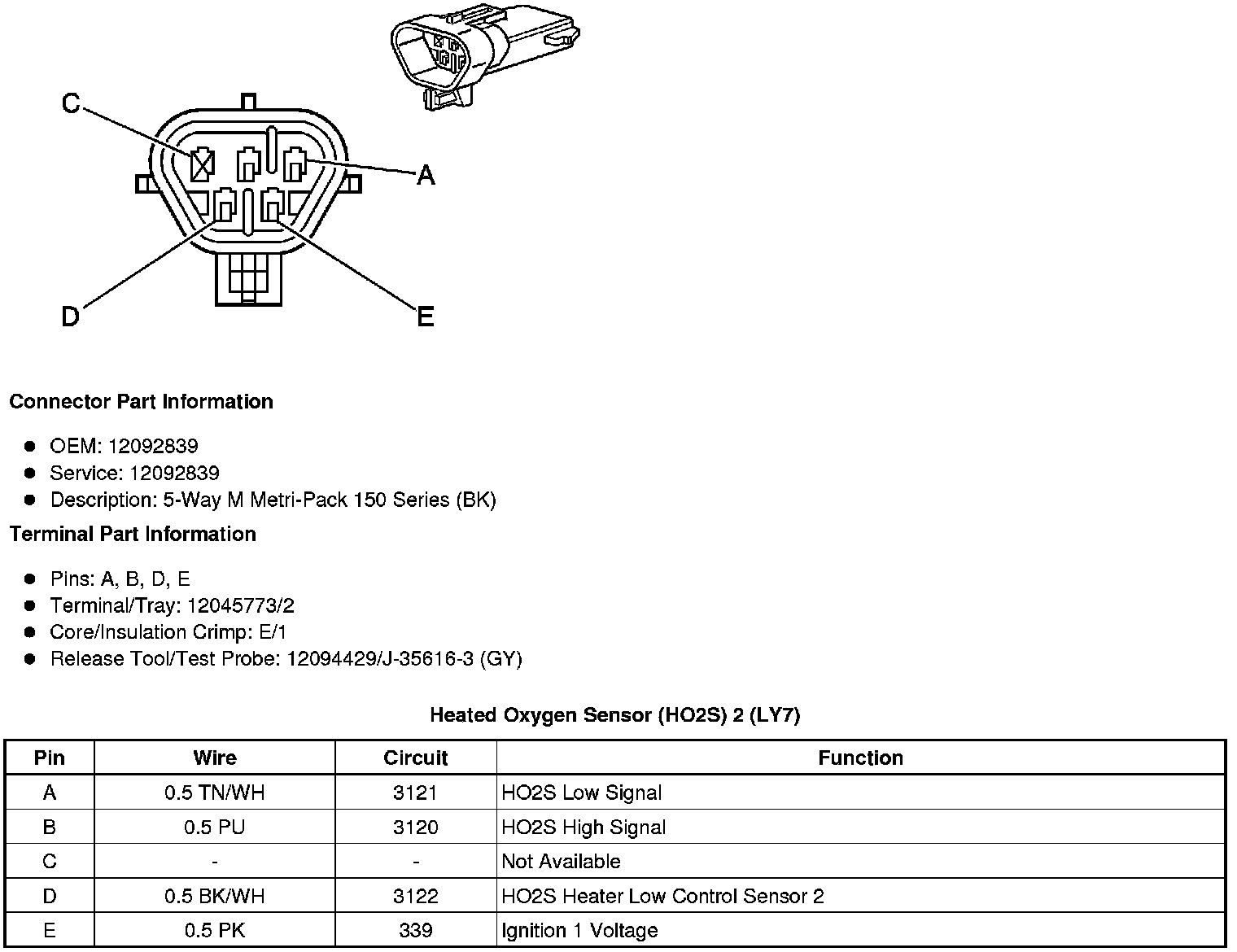

Heated Oxygen Sensor (HO2S) 2 (LY7)
