Restraint Systems



Component Connector End Views

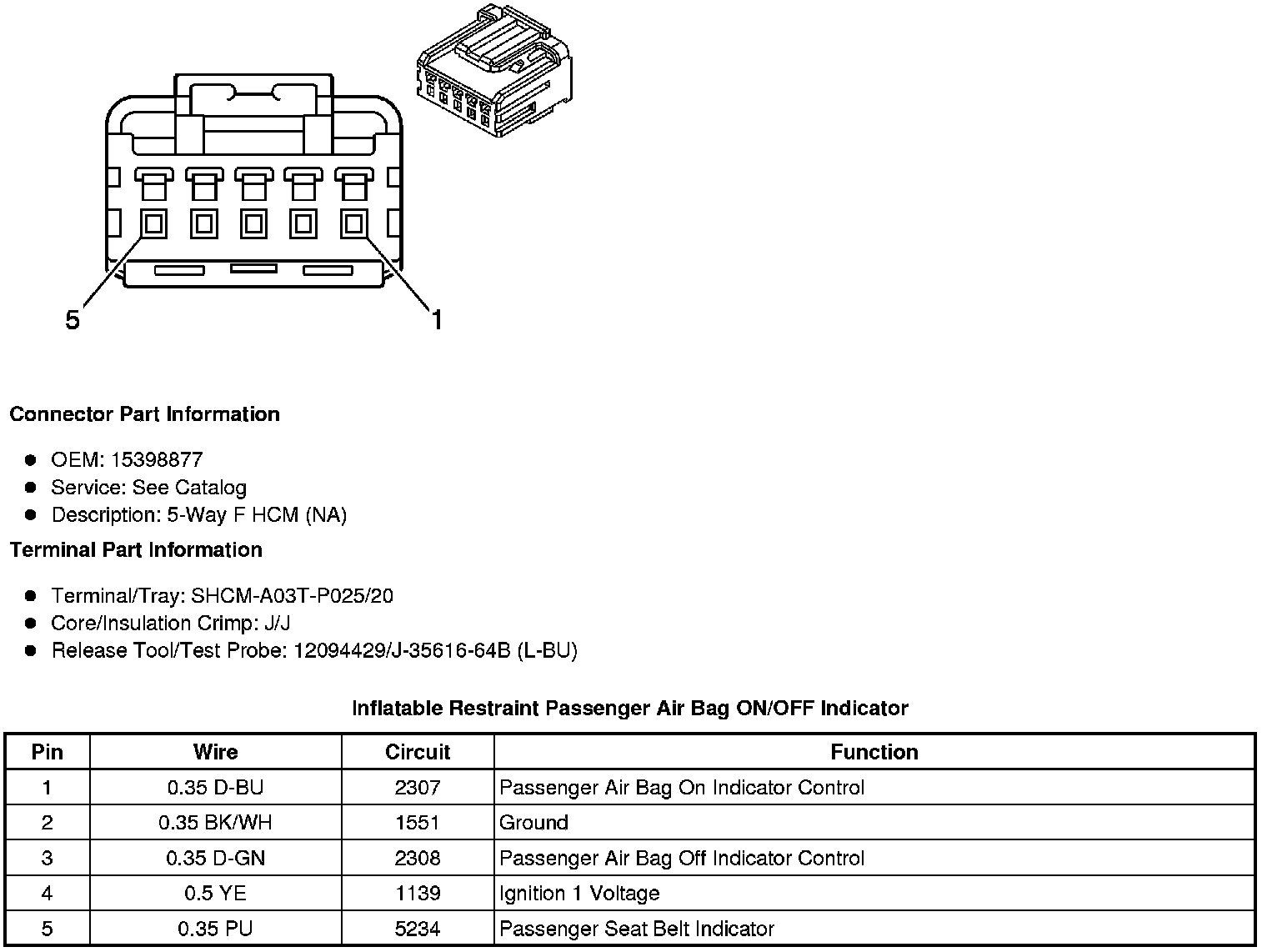

Inflatable Restraint Passenger Air Bag ON/OFF Indicator





Inflatable Restraint Front End Sensor - Left





Inflatable Restraint Front End Sensor - Right





Inflatable Restraint Front Passenger Presence System (PPS) Module X1





Inflatable Restraint Front Passenger Presence System (PPS) Module X2

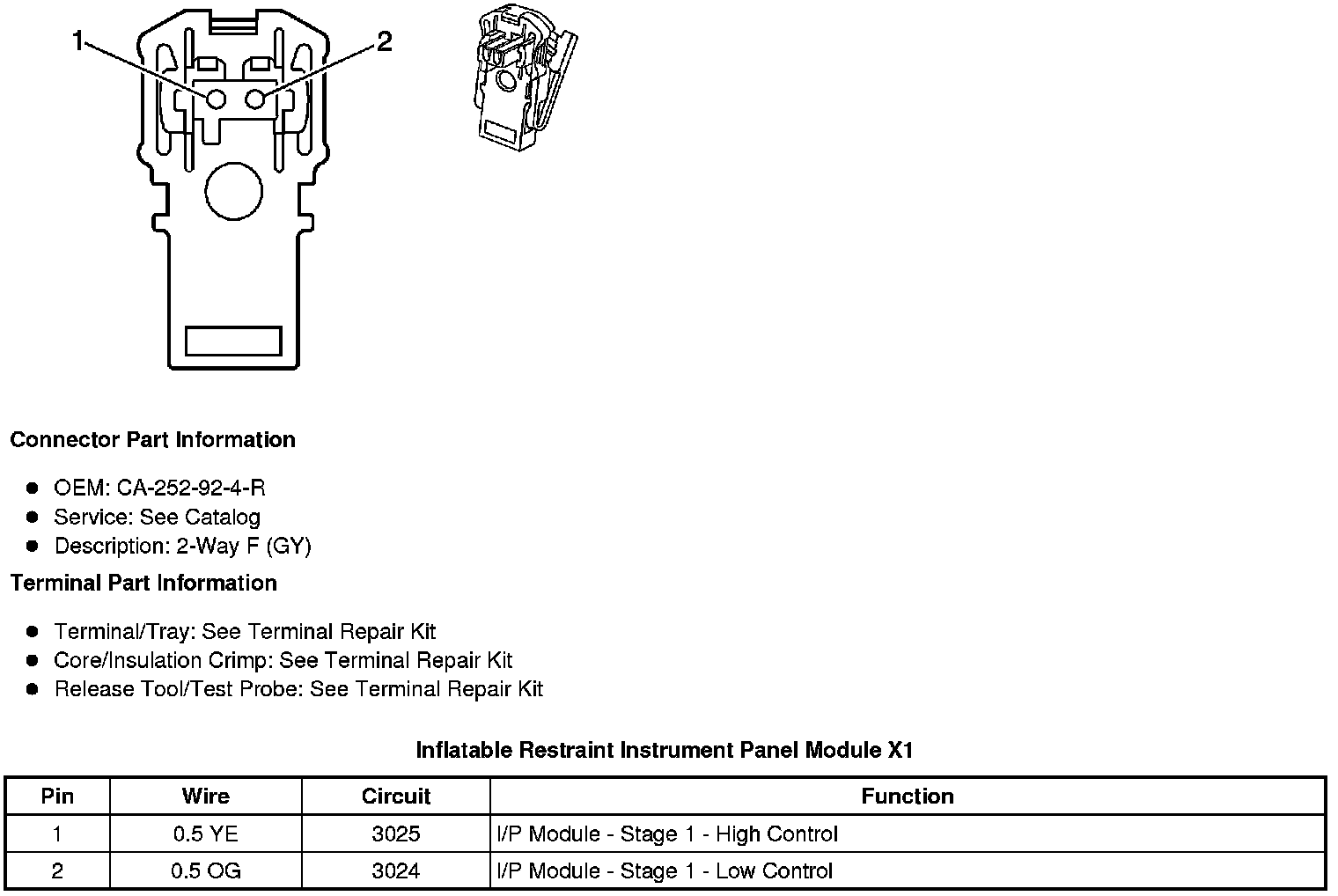

Inflatable Restraint Instrument Panel Module X1

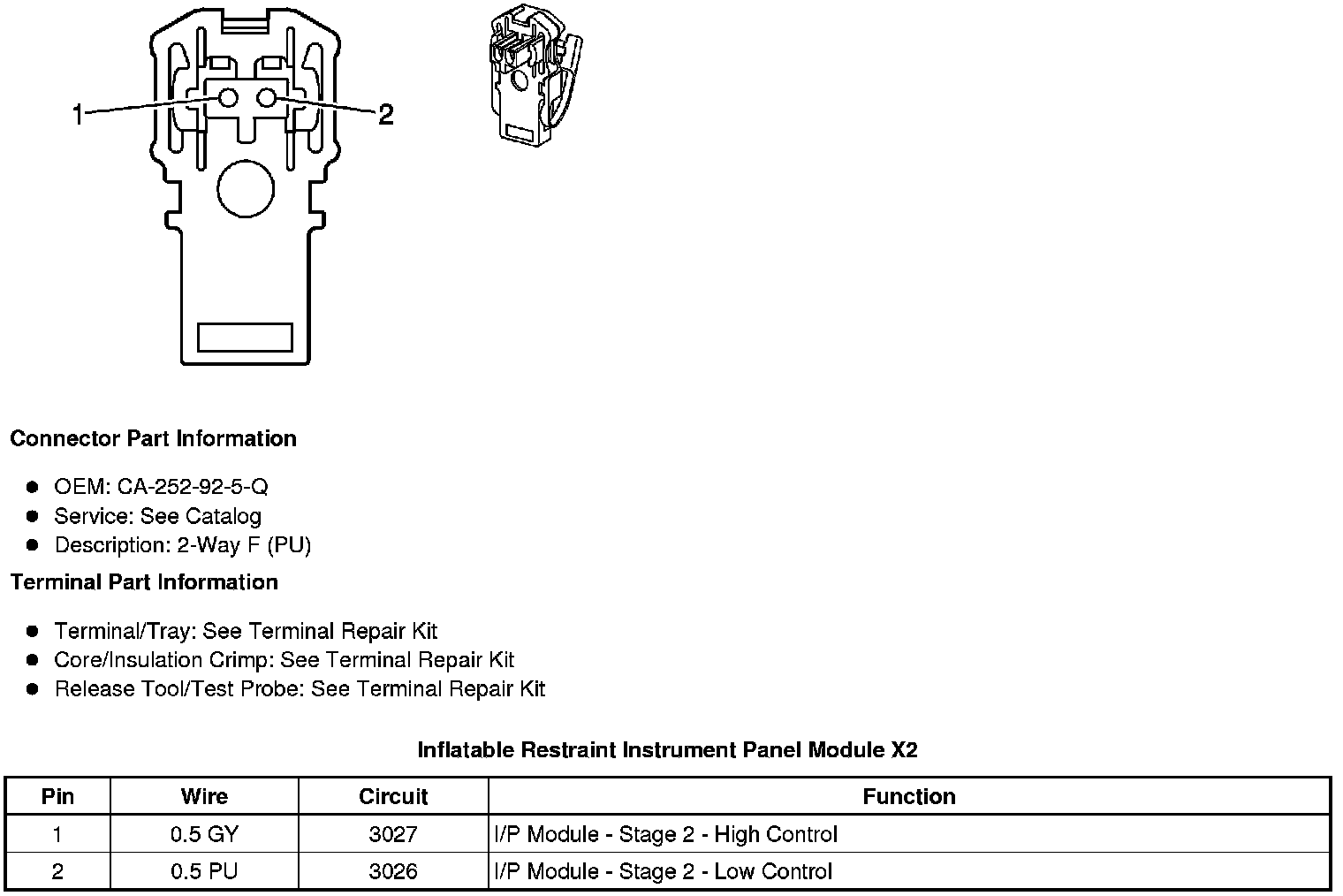

Inflatable Restraint Instrument Panel Module X2

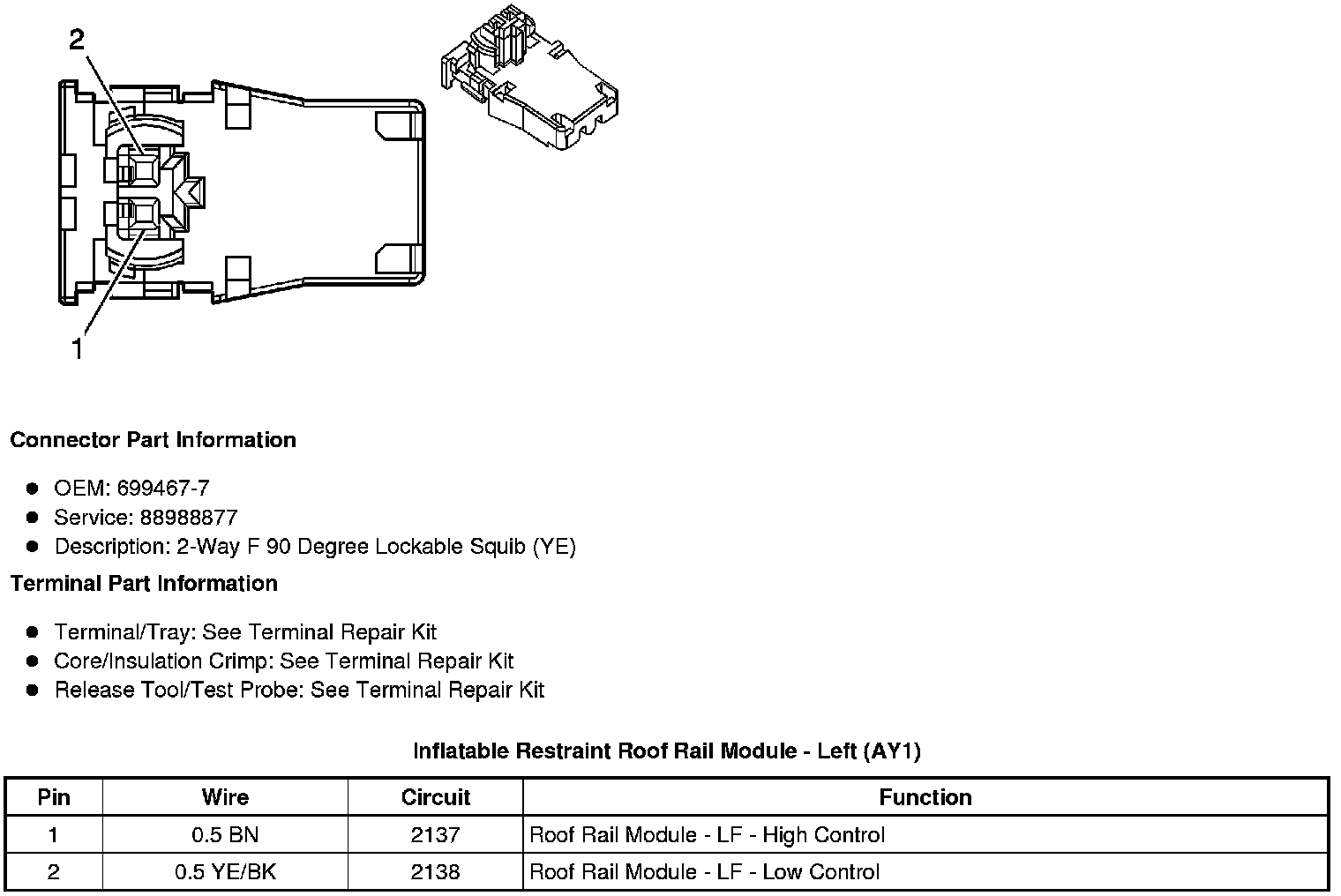

Inflatable Restraint Roof Rail Module - Left (AY1)

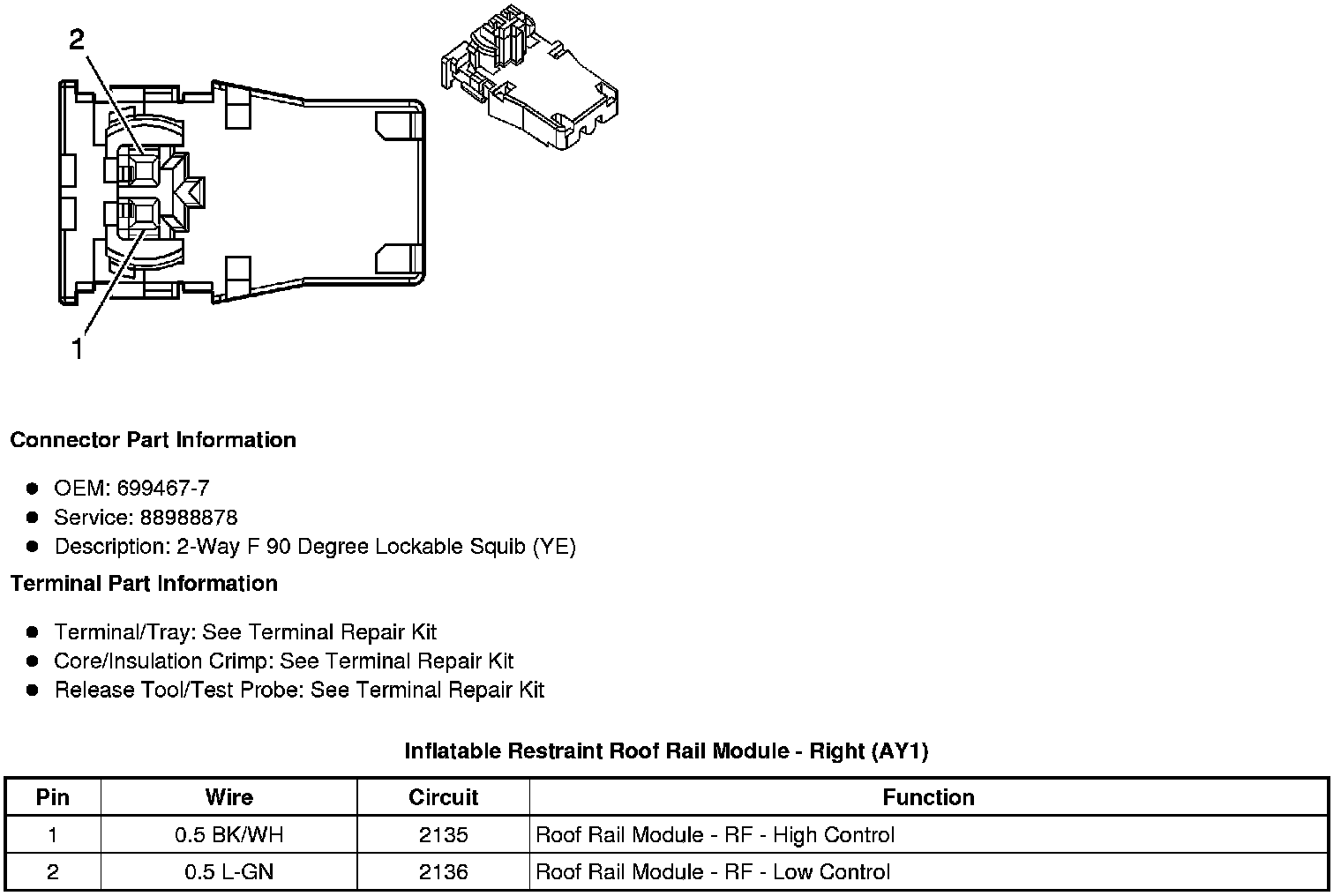

Inflatable Restraint Roof Rail Module - Right (AY1)

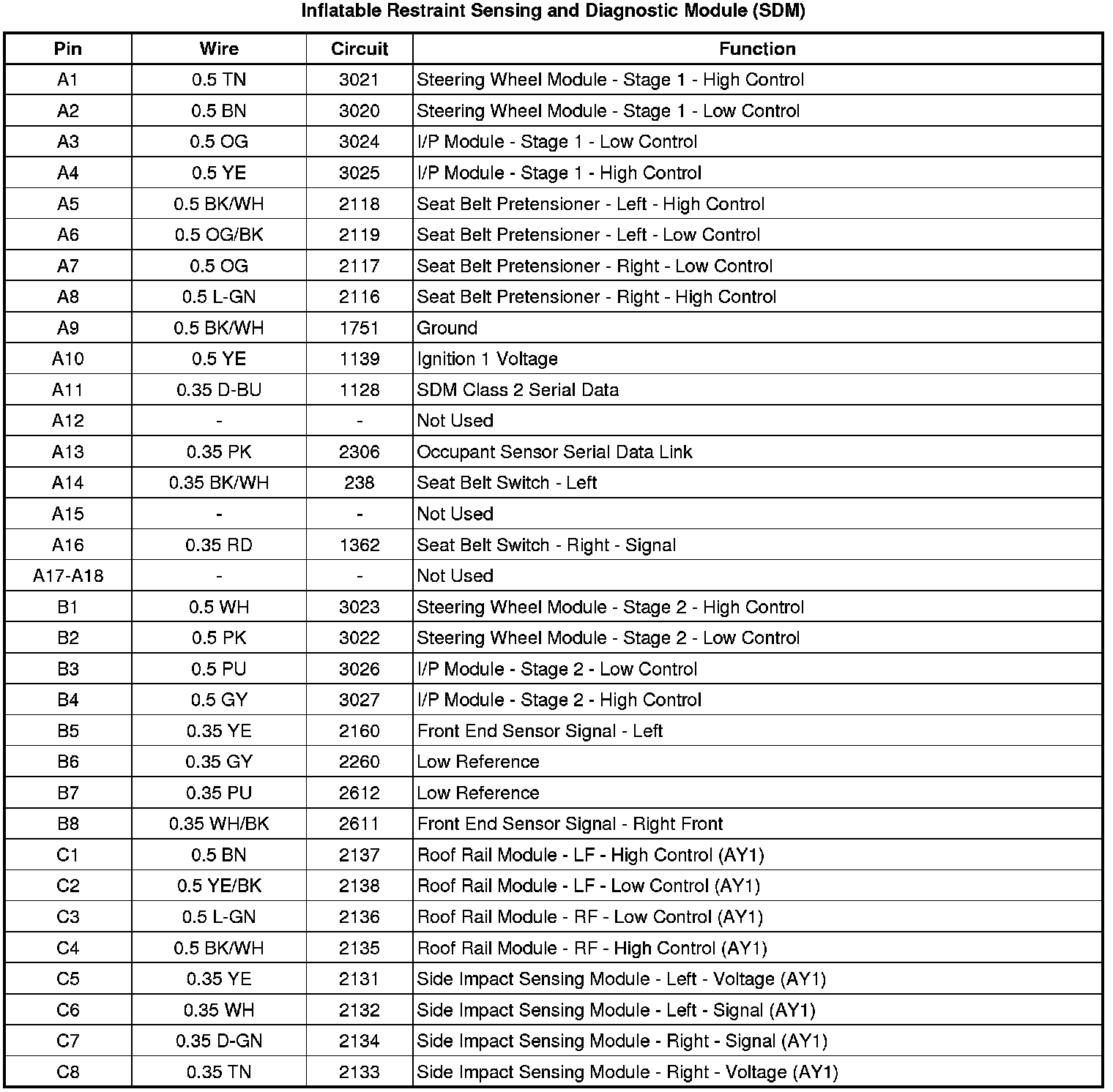

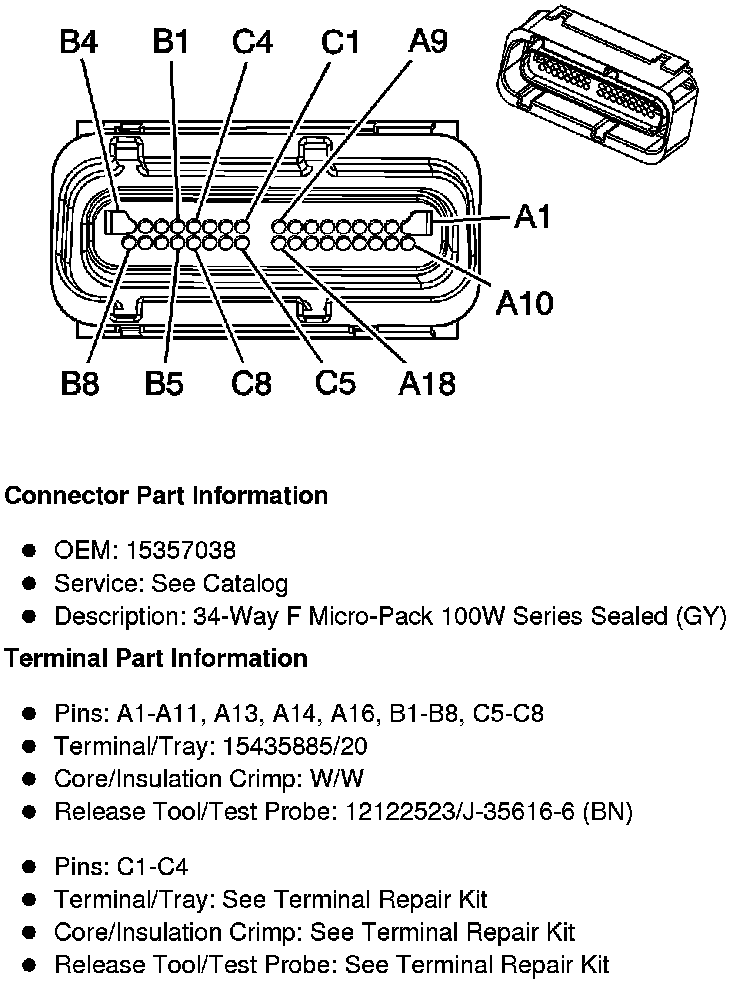

Inflatable Restraint Sensing and Diagnostic Module (SDM)








Inflatable Restraint Side Impact Sensor - Left (AY1)





Inflatable Restraint Side Impact Sensor - Right (AY1)

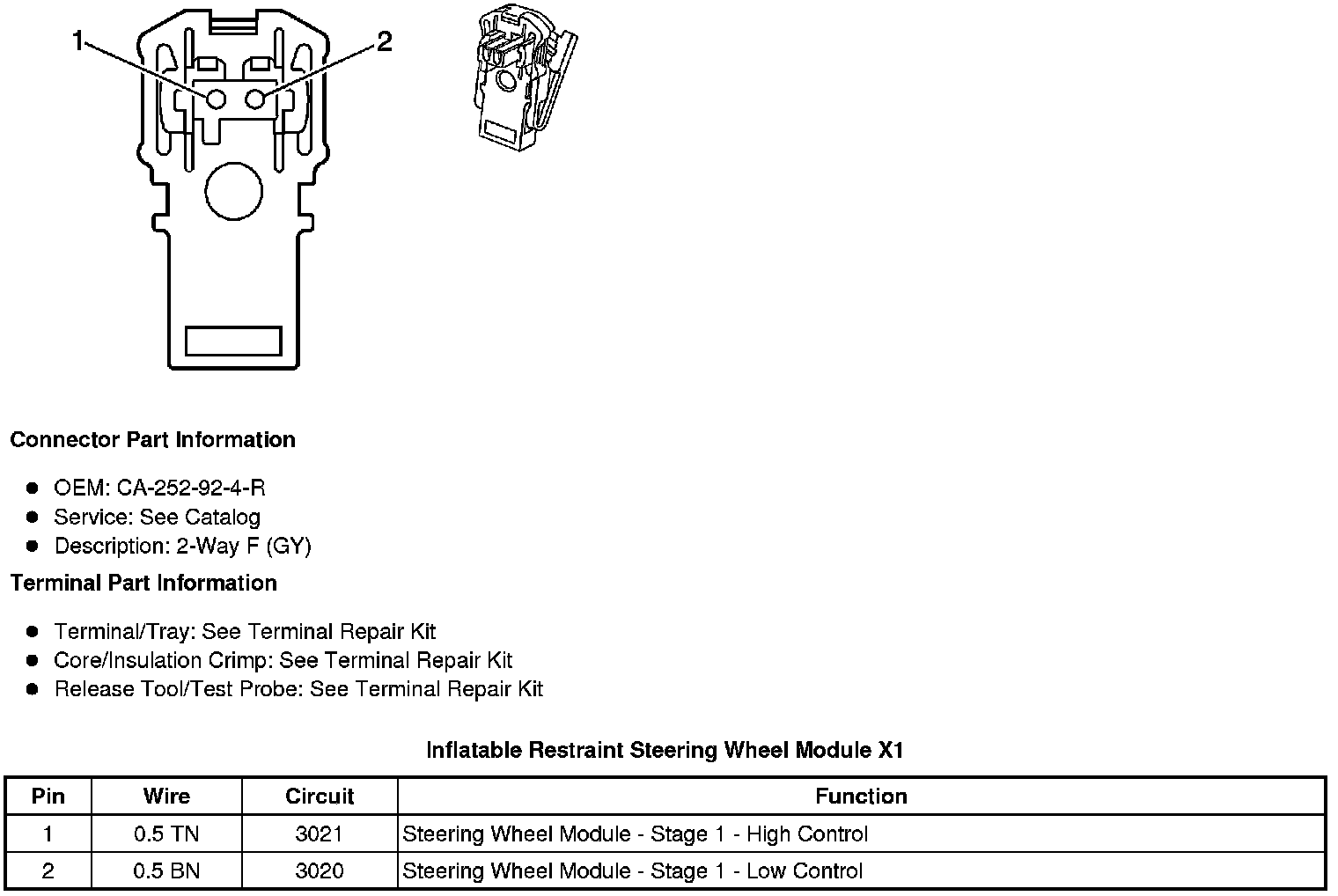

Inflatable Restraint Steering Wheel Module X1

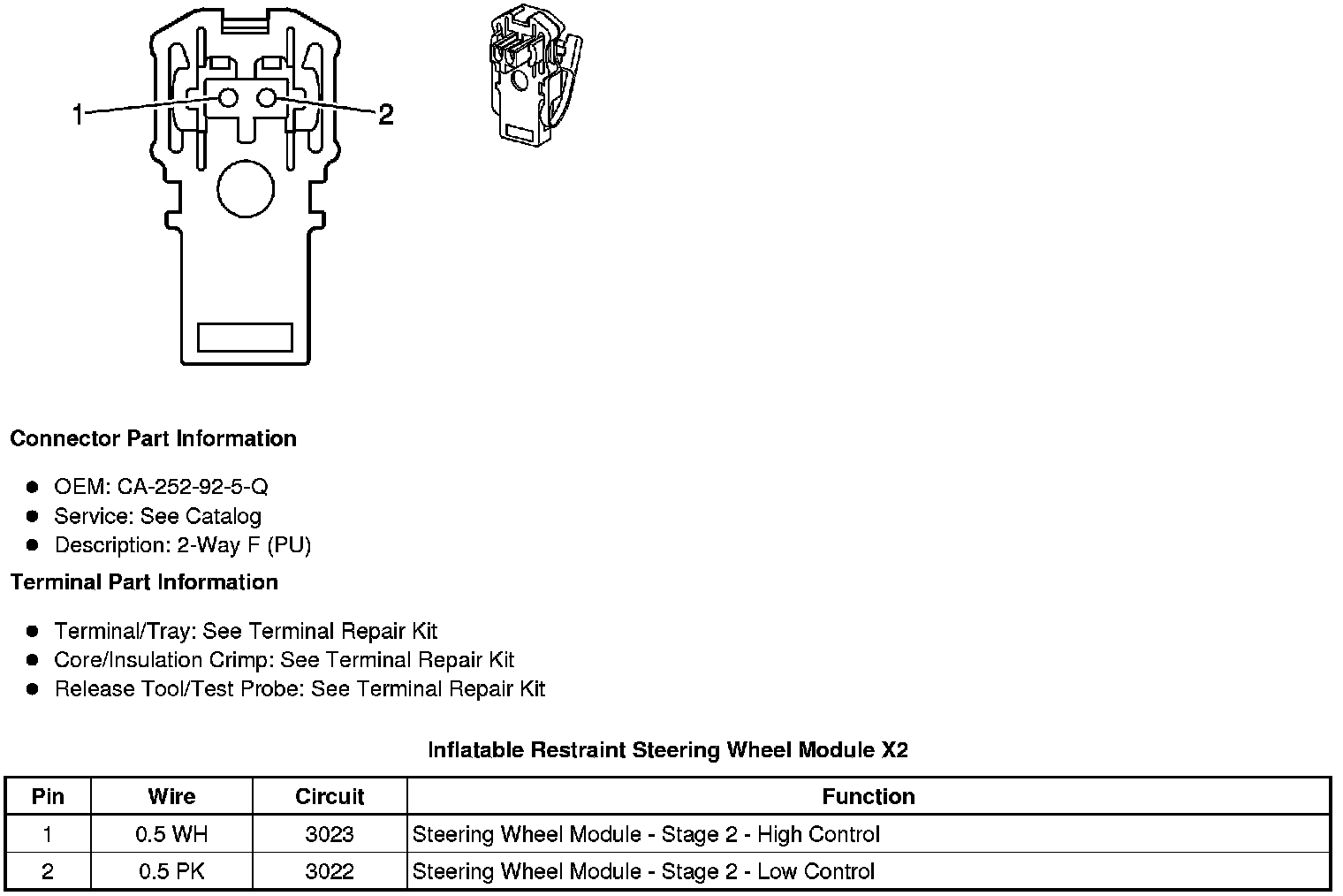

Inflatable Restraint Steering Wheel Module X2

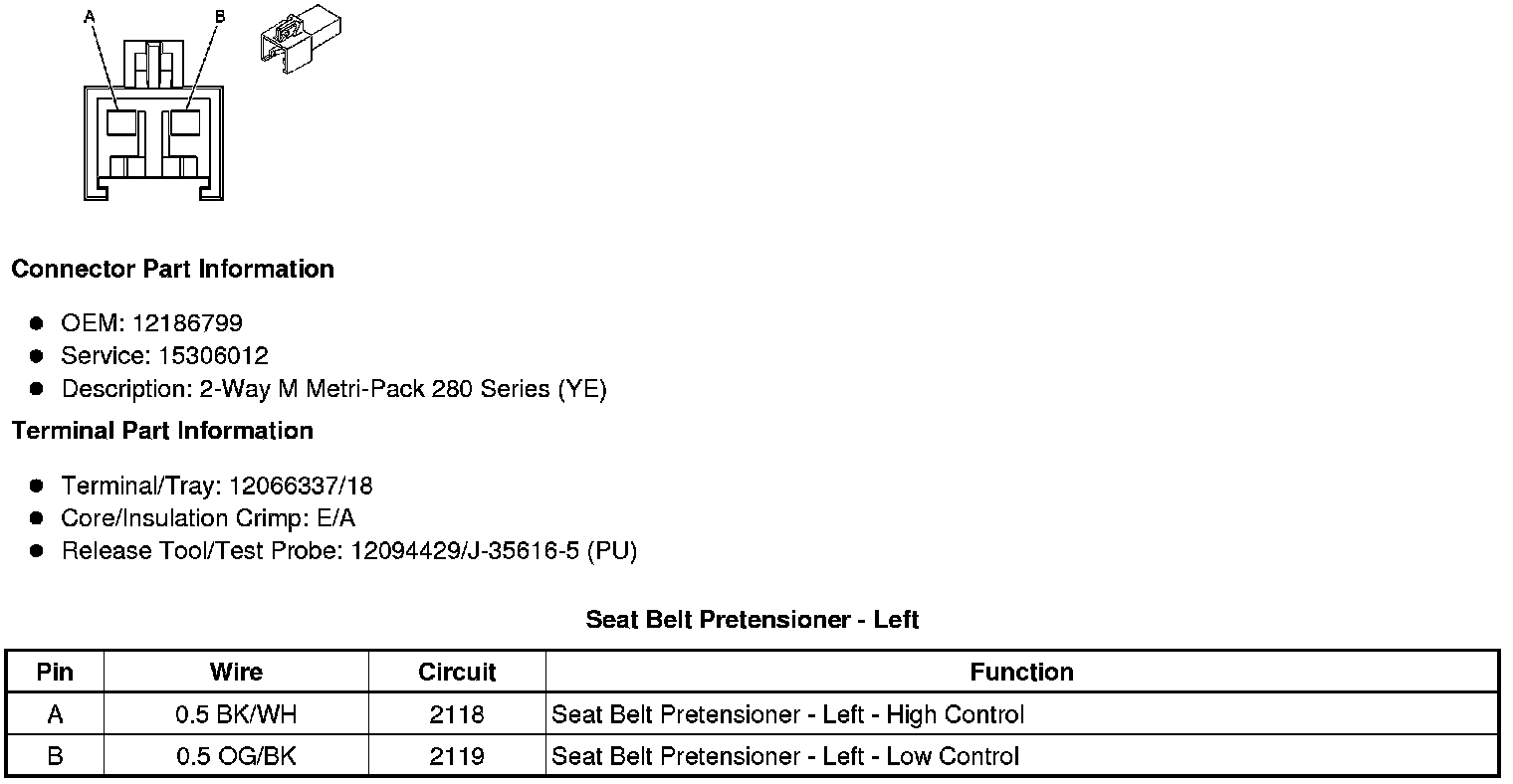

Seat Belt Pretensioner - Left

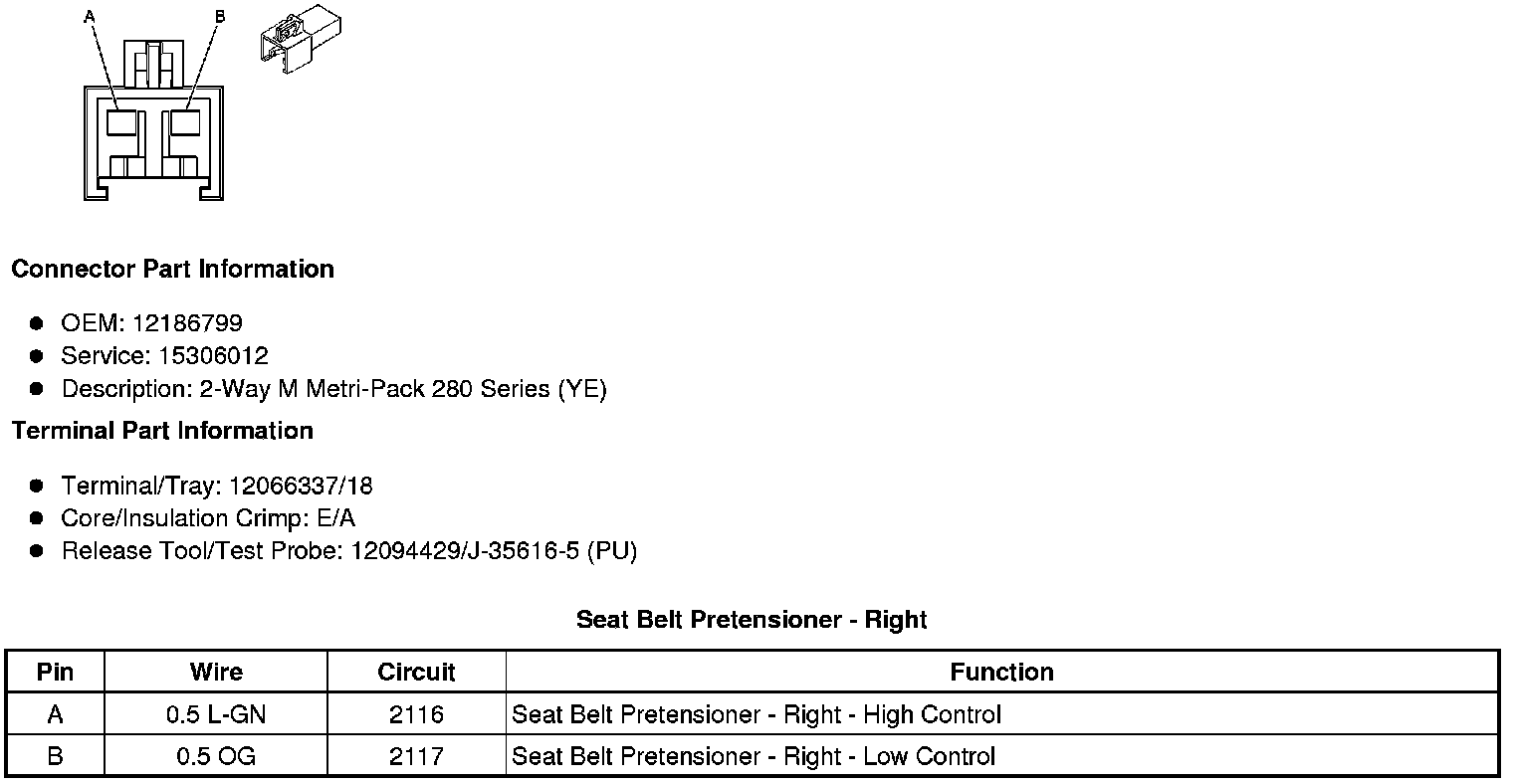

Seat Belt Pretensioner - Right

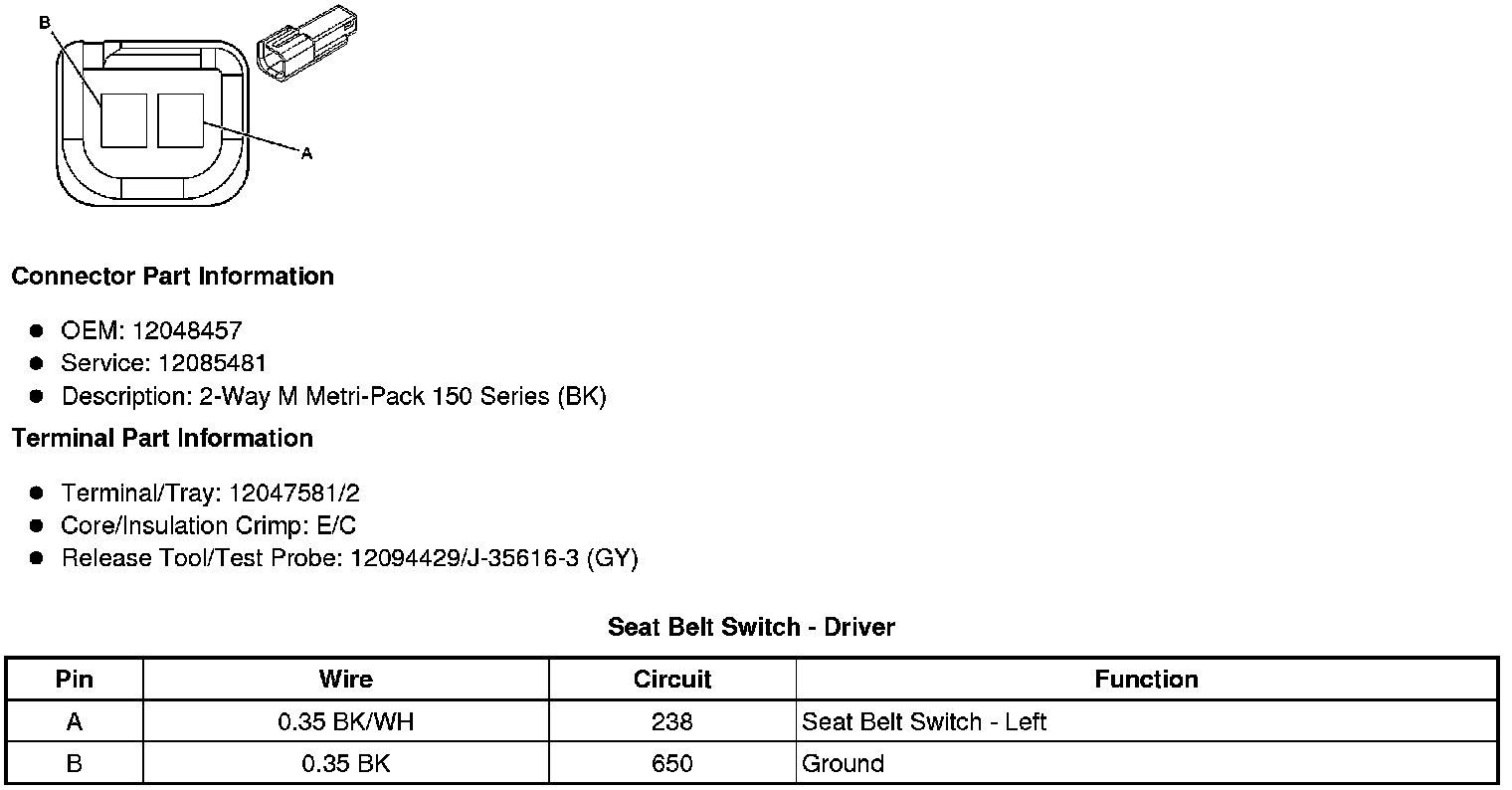

Seat Belt Switch - Driver

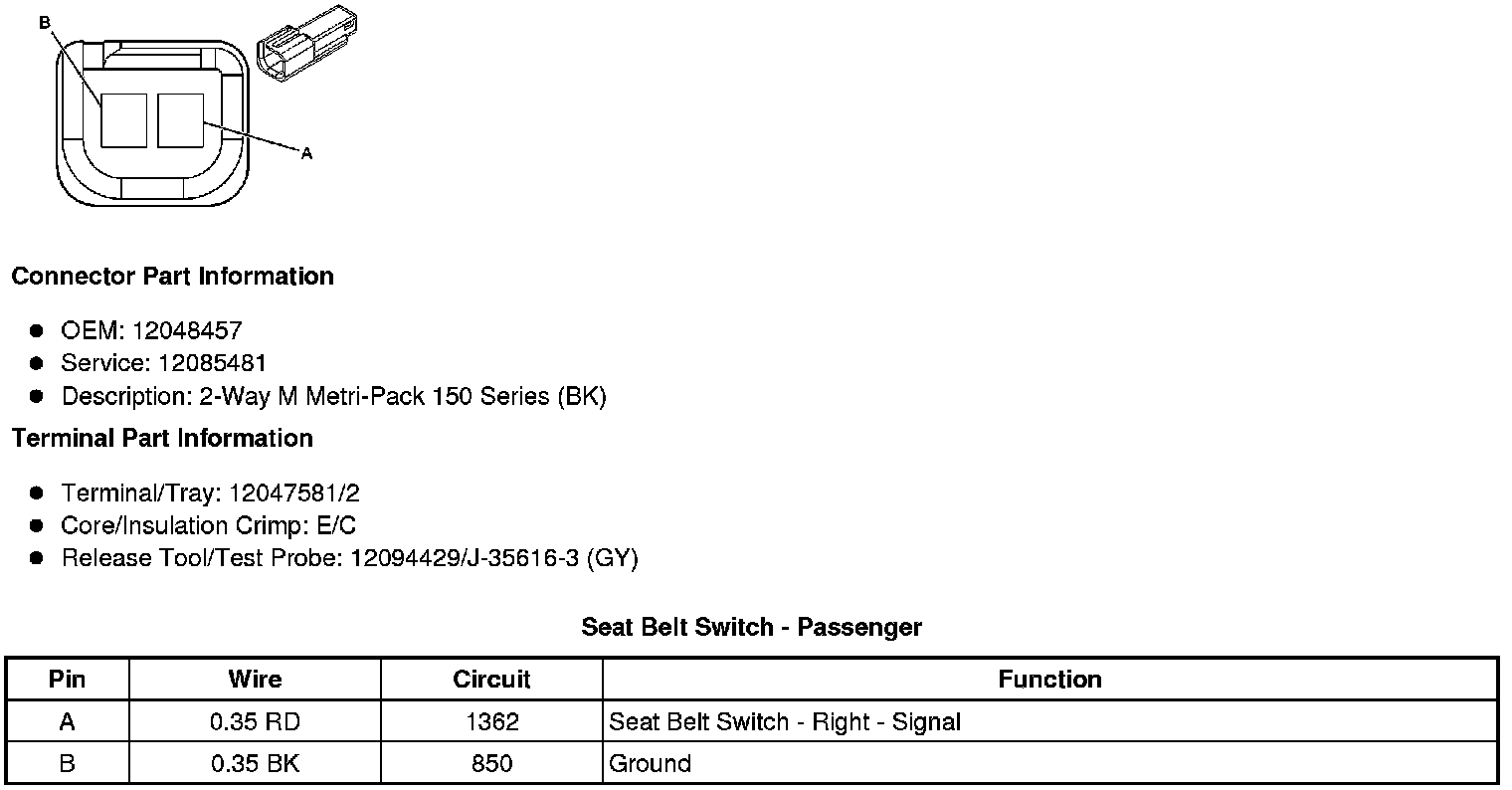

Seat Belt Switch - Passenger
