Accessories and Optional Equipment

Component Connector End Views

Audio Amplifier X1 (U88)

Audio Amplifier X2 (U88)

Audio Amplifier X3 (U88)

Cruise Control Switch

Digital Radio Antenna (U2K)

Digital Radio Receiver (U2K)

Driver Information Center (DIC)

Electronic Compass Module

Garage Door Opener

Hood Ajar Switch (AP3/AP8)

Mode Actuator (C67)

Mode Actuator (CJ2)

Object Sensor - Left Rear Corner

Object Sensor - Left Rear Middle

Object Sensor - Right Rear Corner

Object Sensor - Right Rear Middle

Radio Antenna Module

Radio X1

Radio X2

Rear Object Sensor Control Module

Rear Parking Assist (RPA) Display

Rear Parking Assist (RPA) Diagnostic Connector

Remote Control Door Lock Receiver (RCDLR)

Speaker - Center (U88)

Speaker - Left Front Door

Speaker - Left Front Tweeter

Speaker - Left Rear (UW6)

Speaker - Left Rear (U88)

Speaker - Right Front Door

Speaker - Right Front Tweeter

Speaker - Right Rear (UW6)

Speaker - Right Rear (U88)

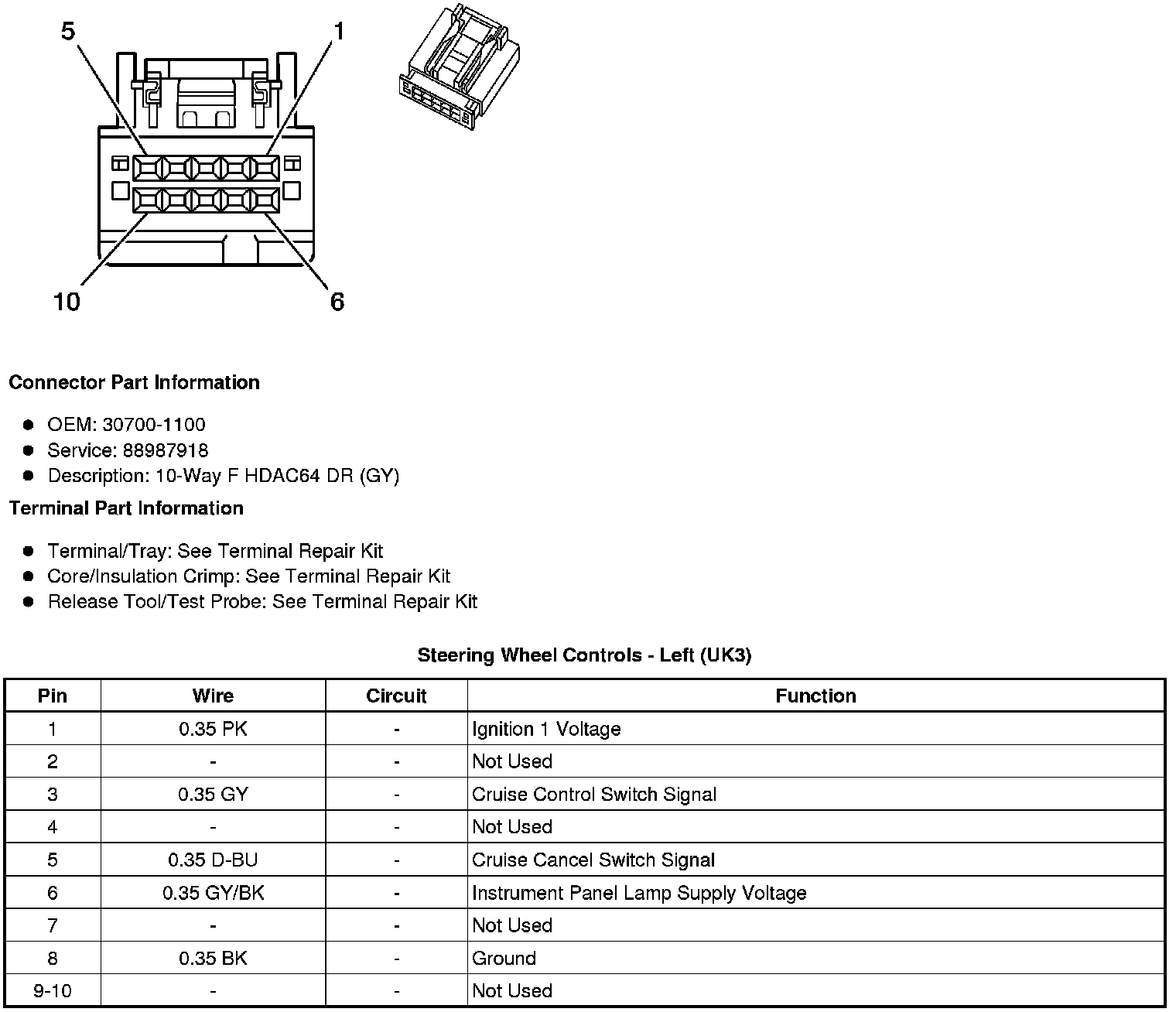

Steering Wheel Controls - Left (UK3)

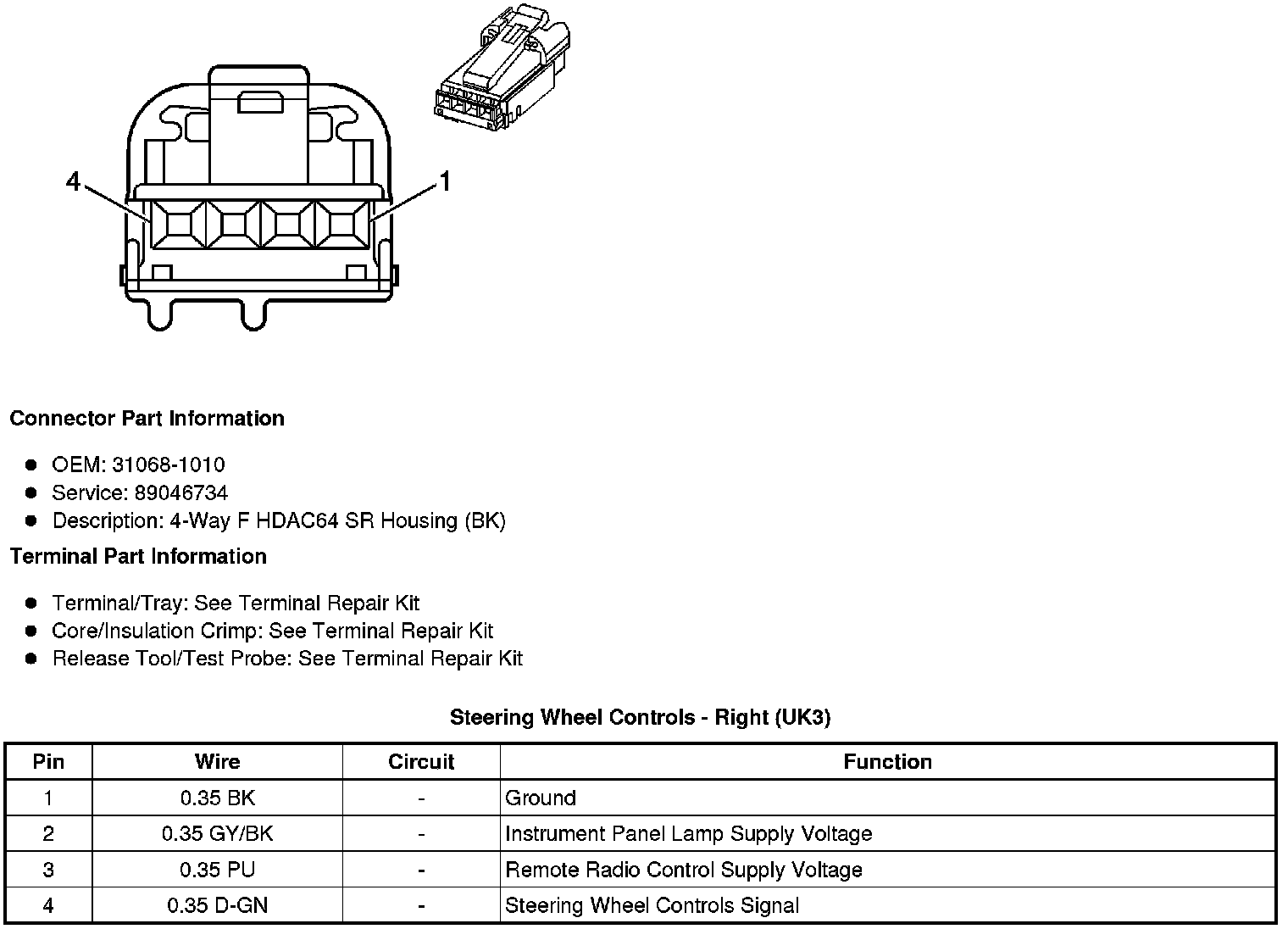

Steering Wheel Controls - Right (UK3)

Theft Deterrent Exciter Module

Theft LED

Vehicle Communication Interface Module (VCIM) X1

Vehicle Communication Interface Module (VCIM) X2

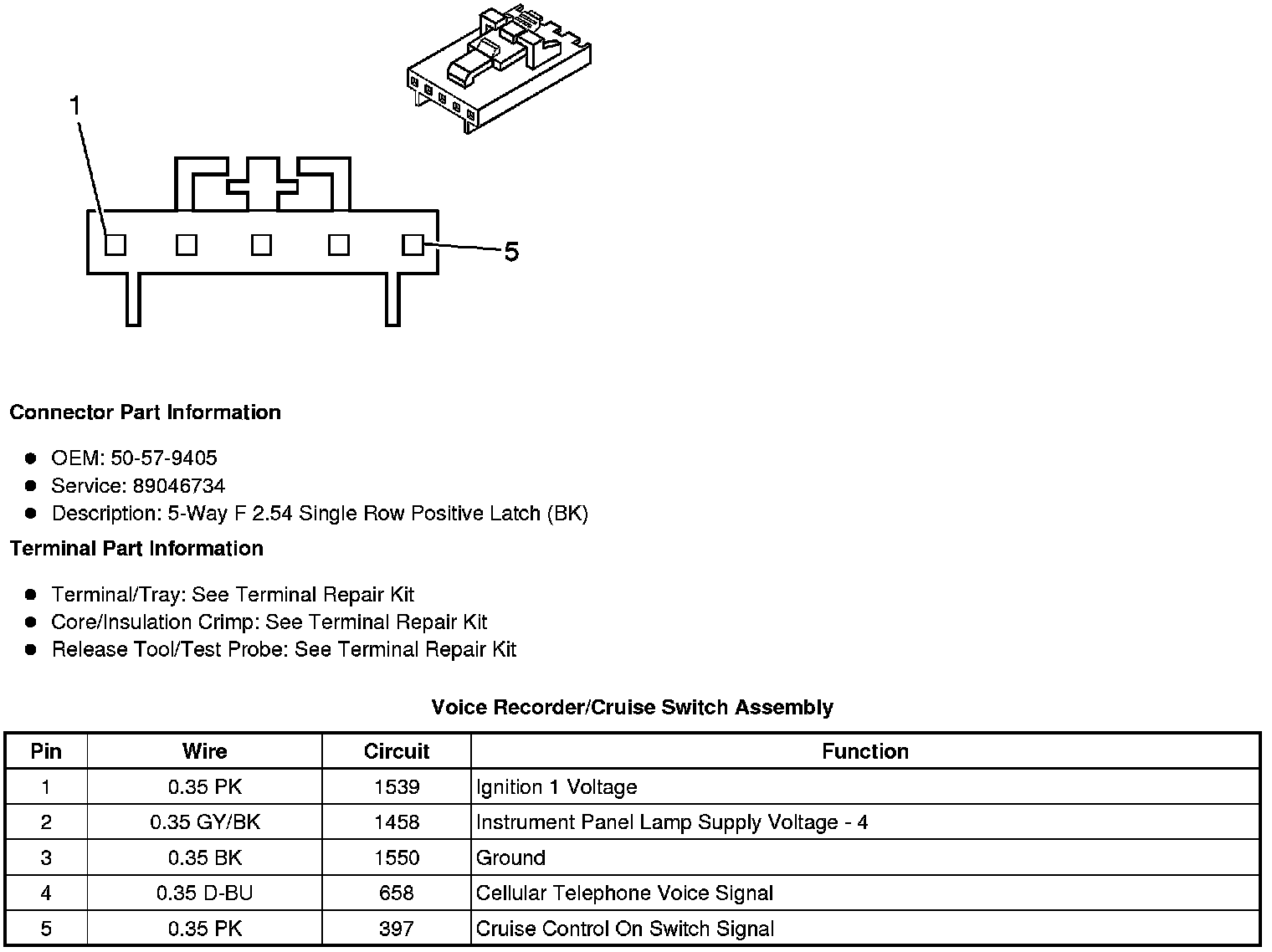

Voice Recorder/Cruise Switch Assembly
