Antilock Brakes / Traction Control Systems
Antilock Brake System Schematics

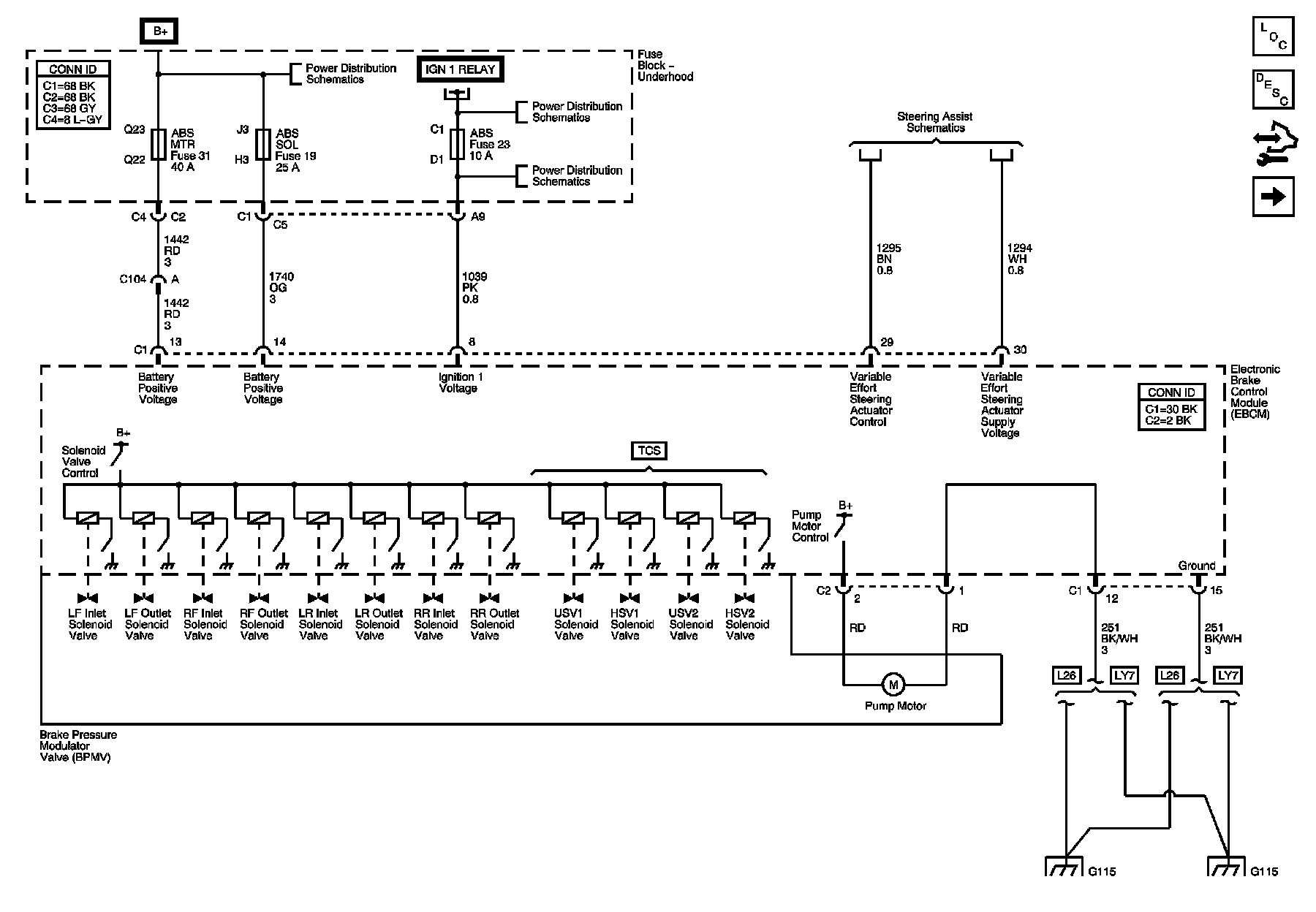

Power, Ground, and Brake Pressure Modulators Valves

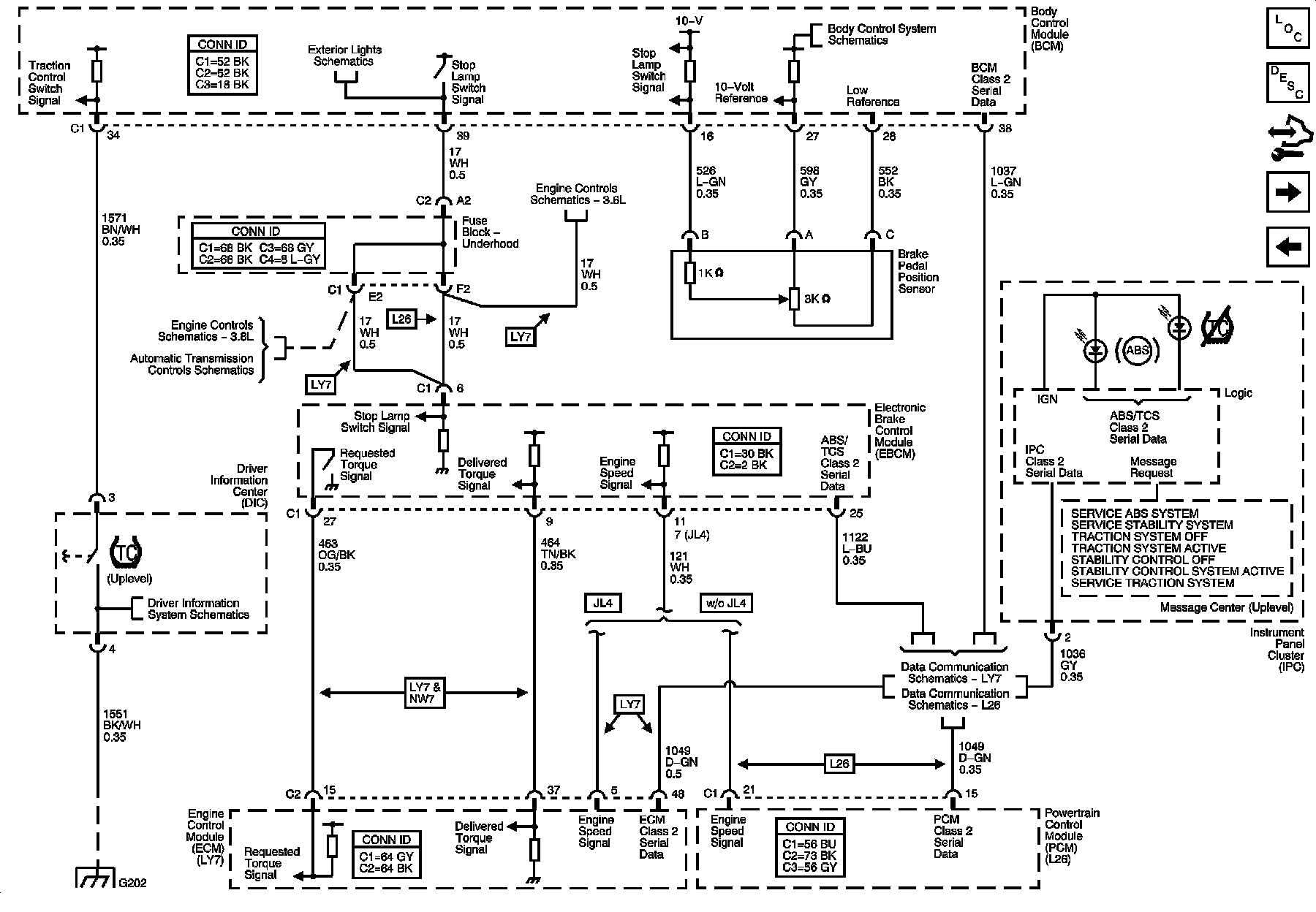

Indicators, Stop Lamp, Traction Controls, and Serial Data

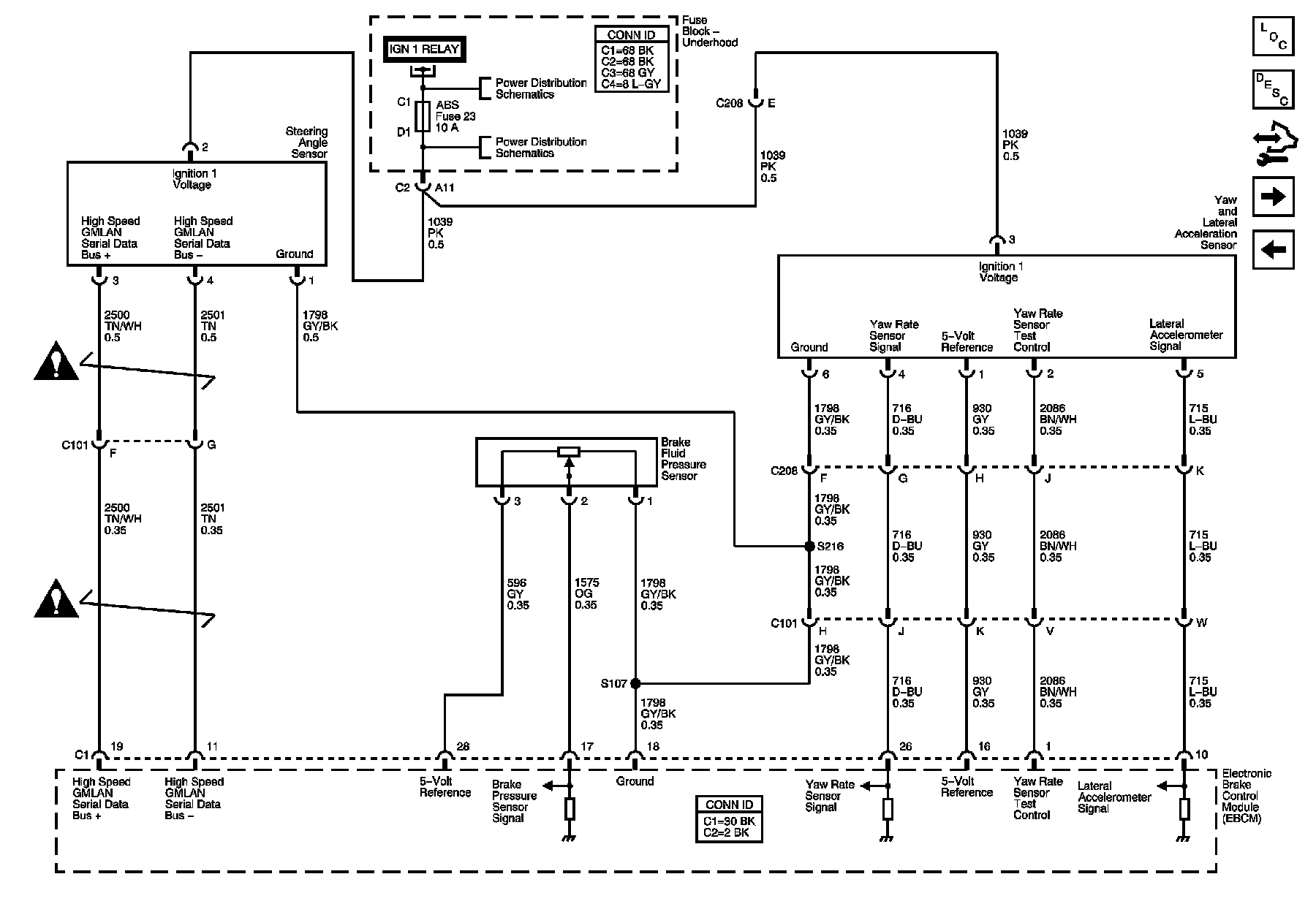

Active Brake and Stability Controls - JL4

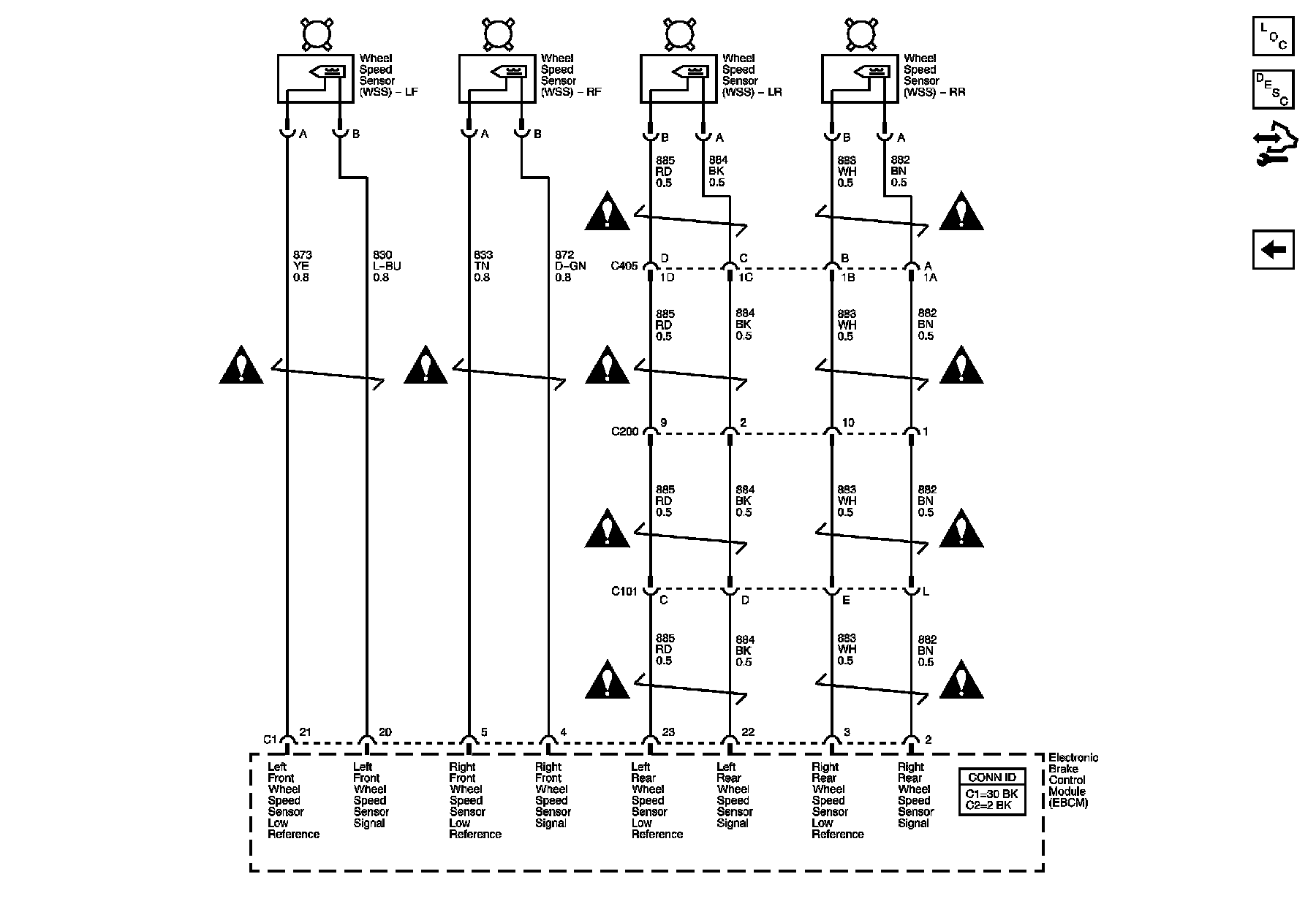

Wheel Speed Sensors
