Speaker



Component Connector End Views

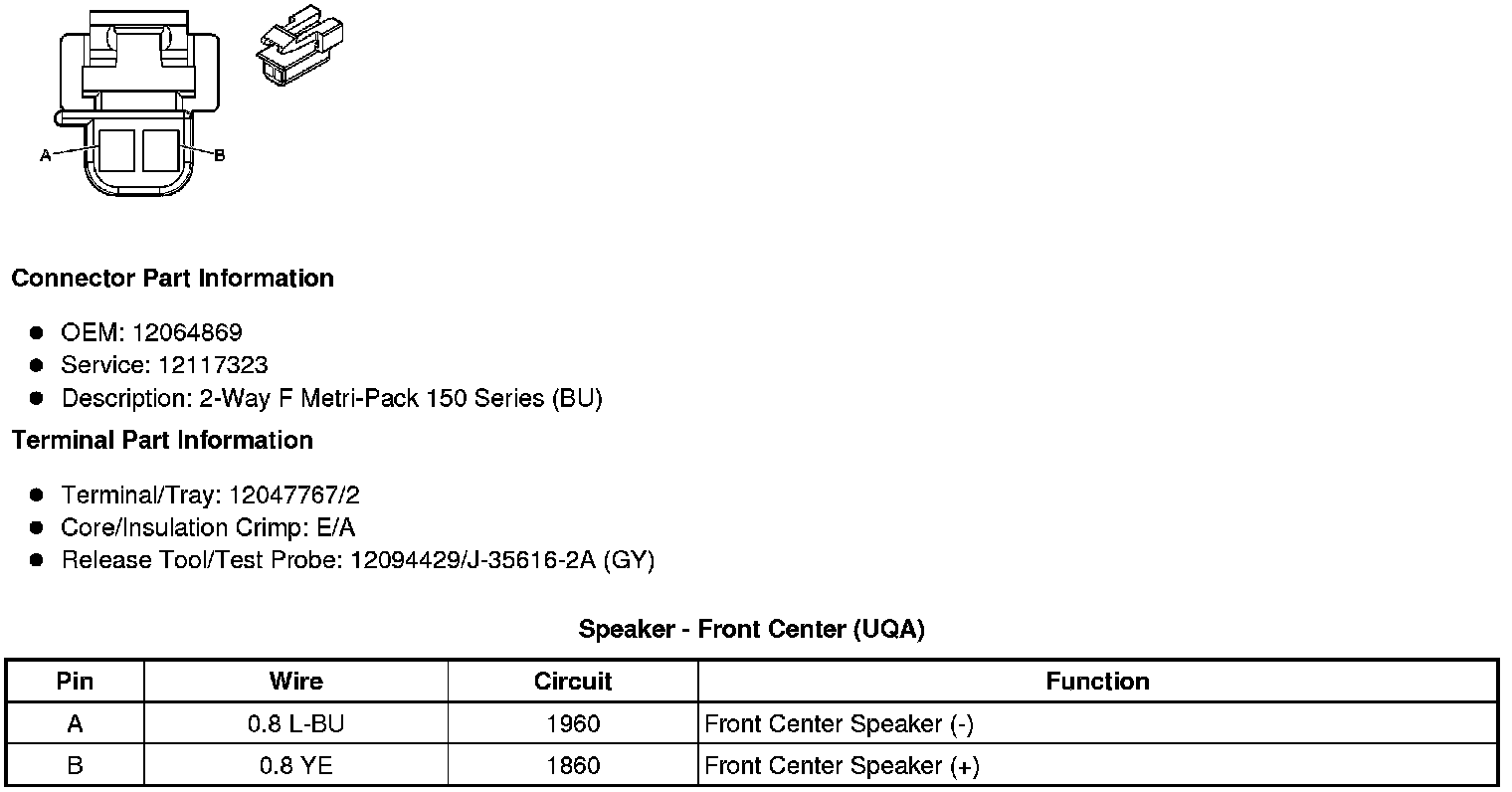

Speaker - Front Center (UQA)

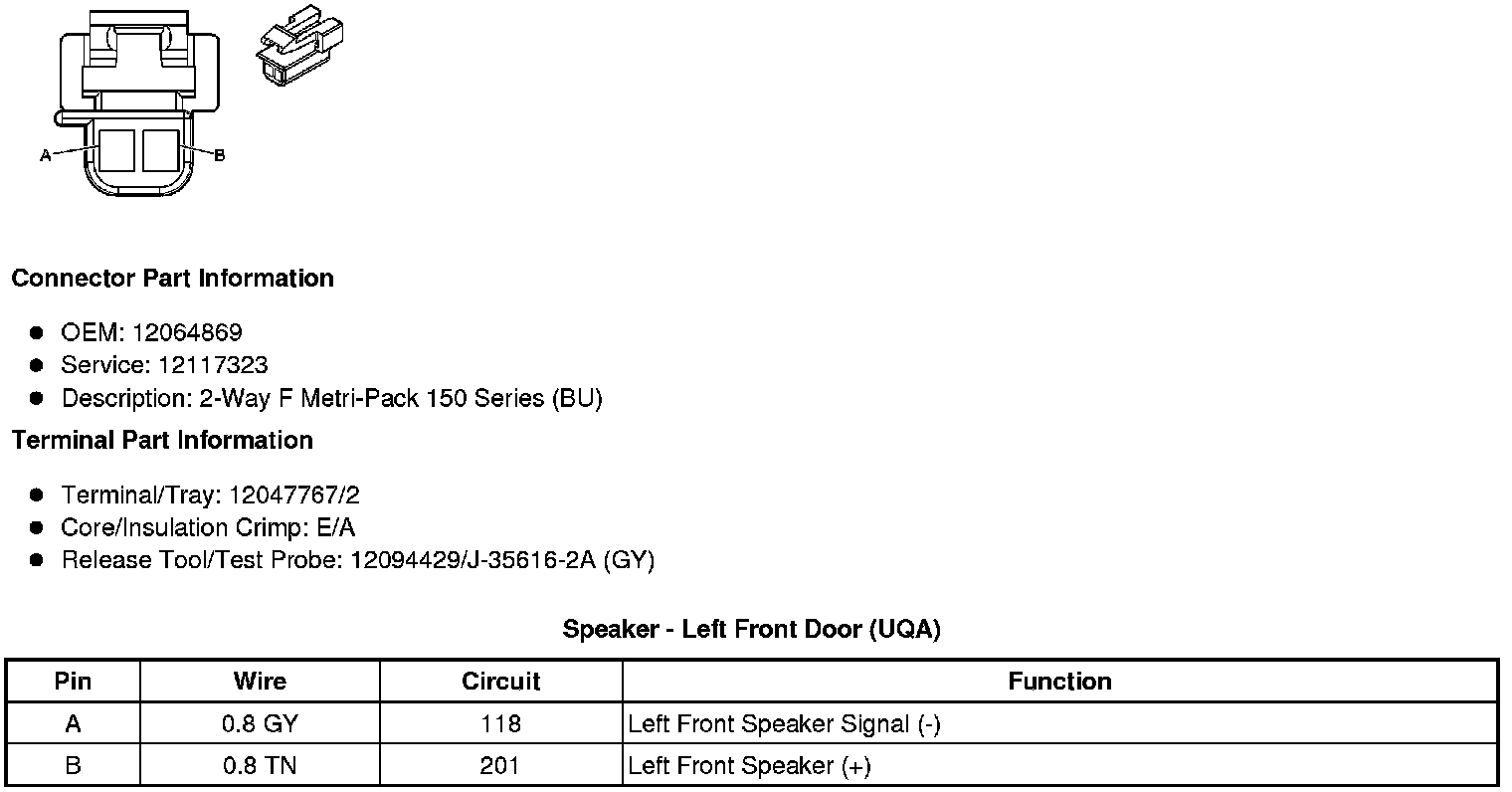

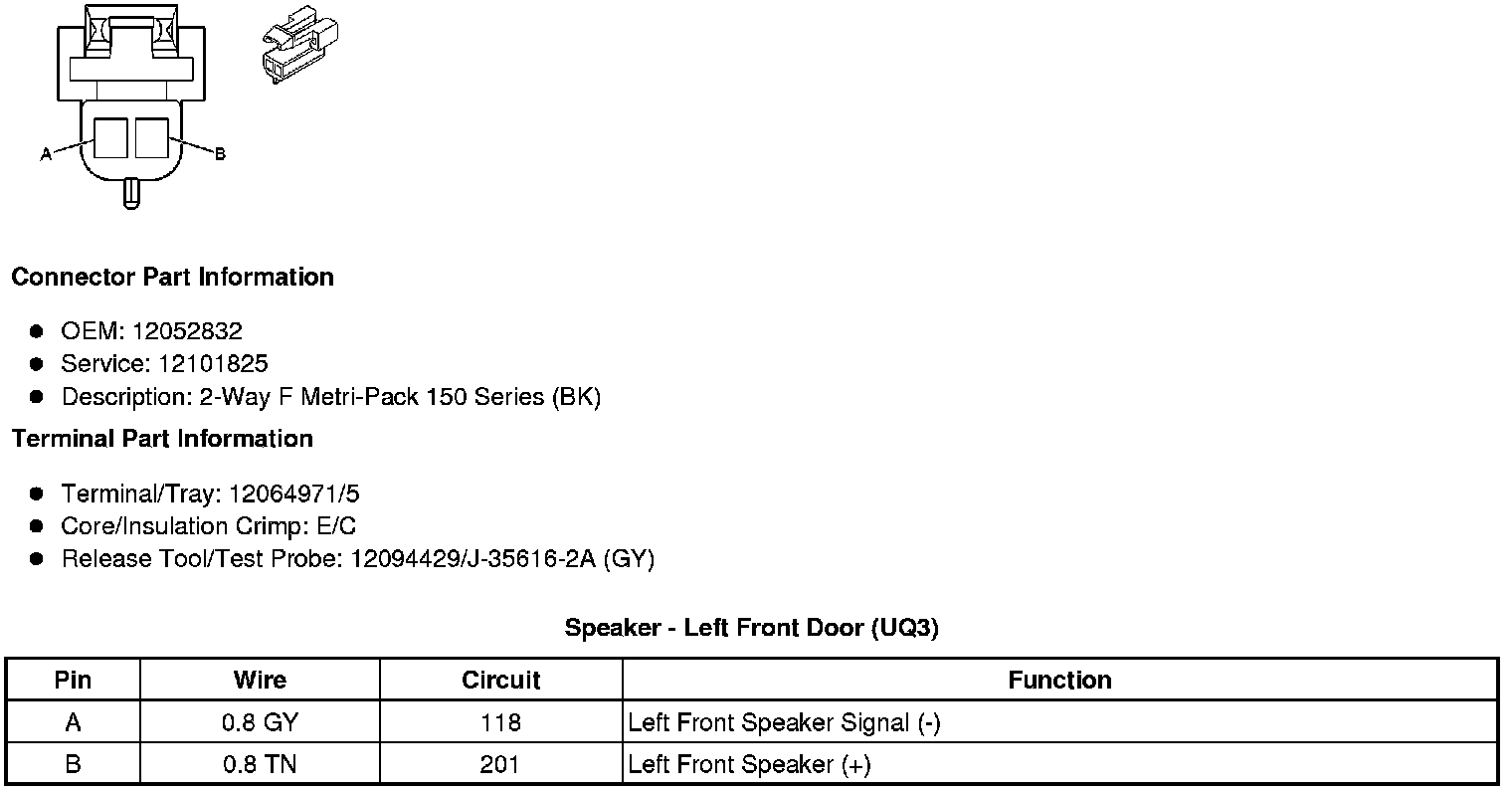

Speaker - Left Front Door (UQ3)

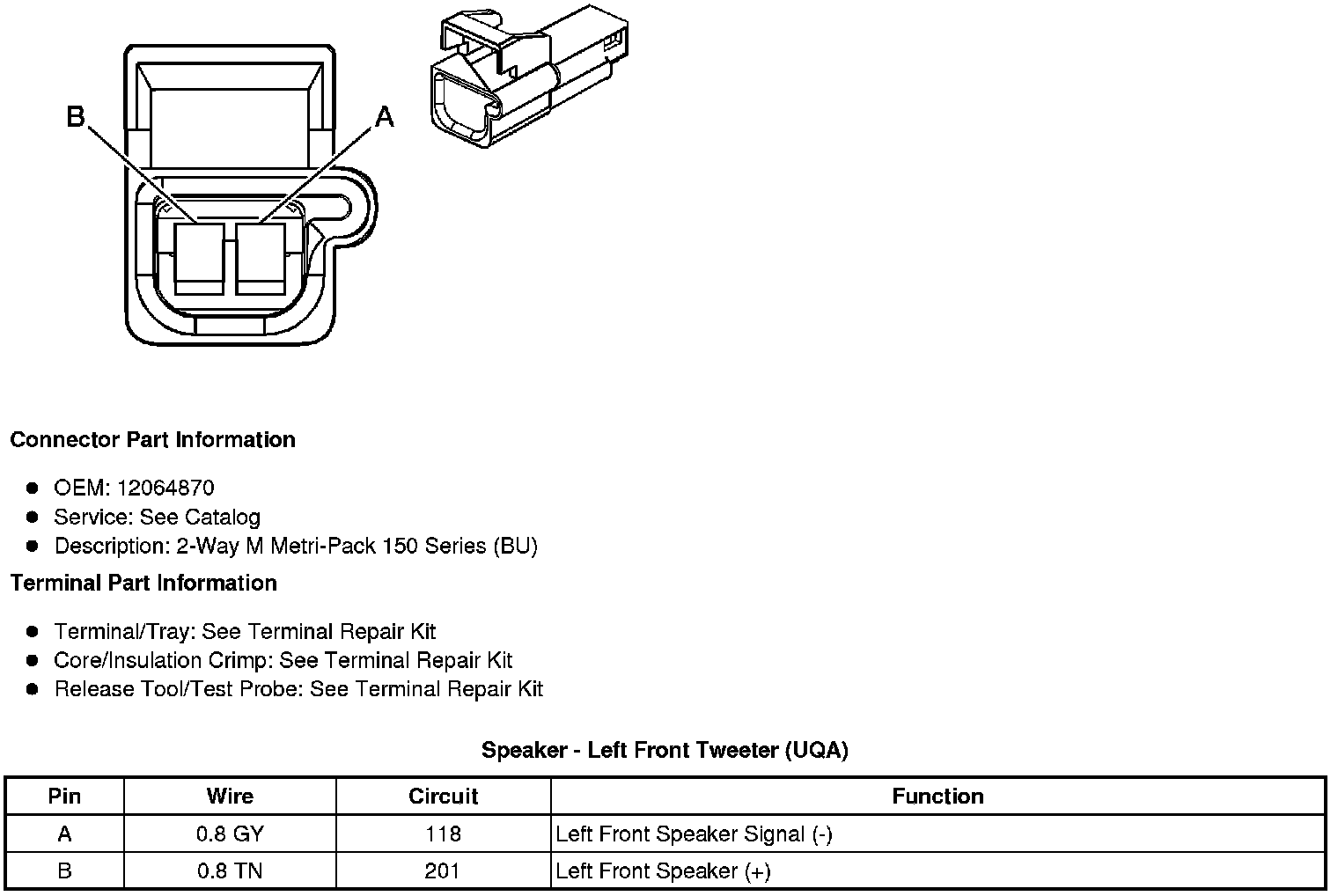

Speaker - Left Front Door (UQA)

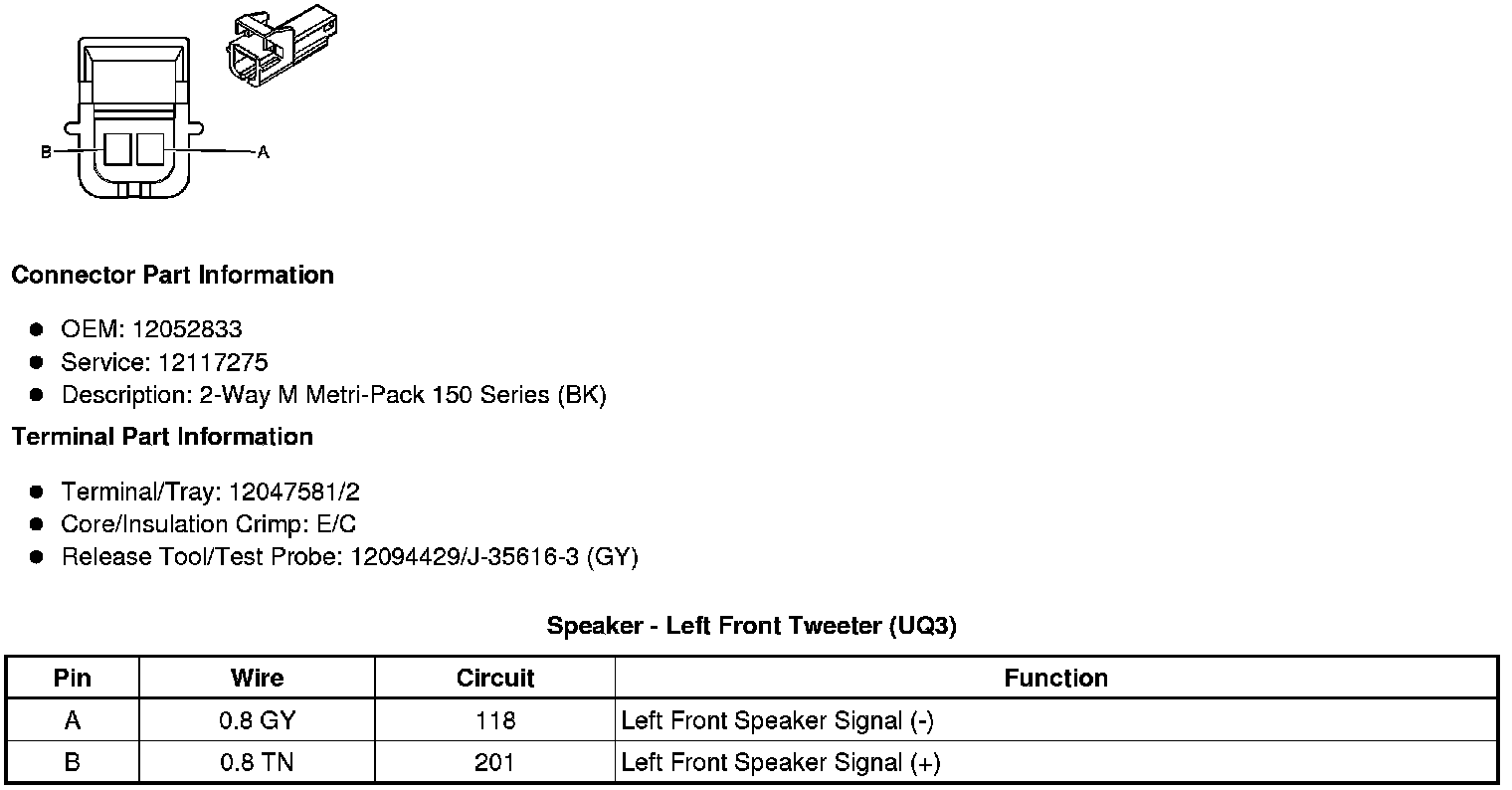

Speaker - Left Front Tweeter (UQ3)





Speaker - Left Front Tweeter (UQA)

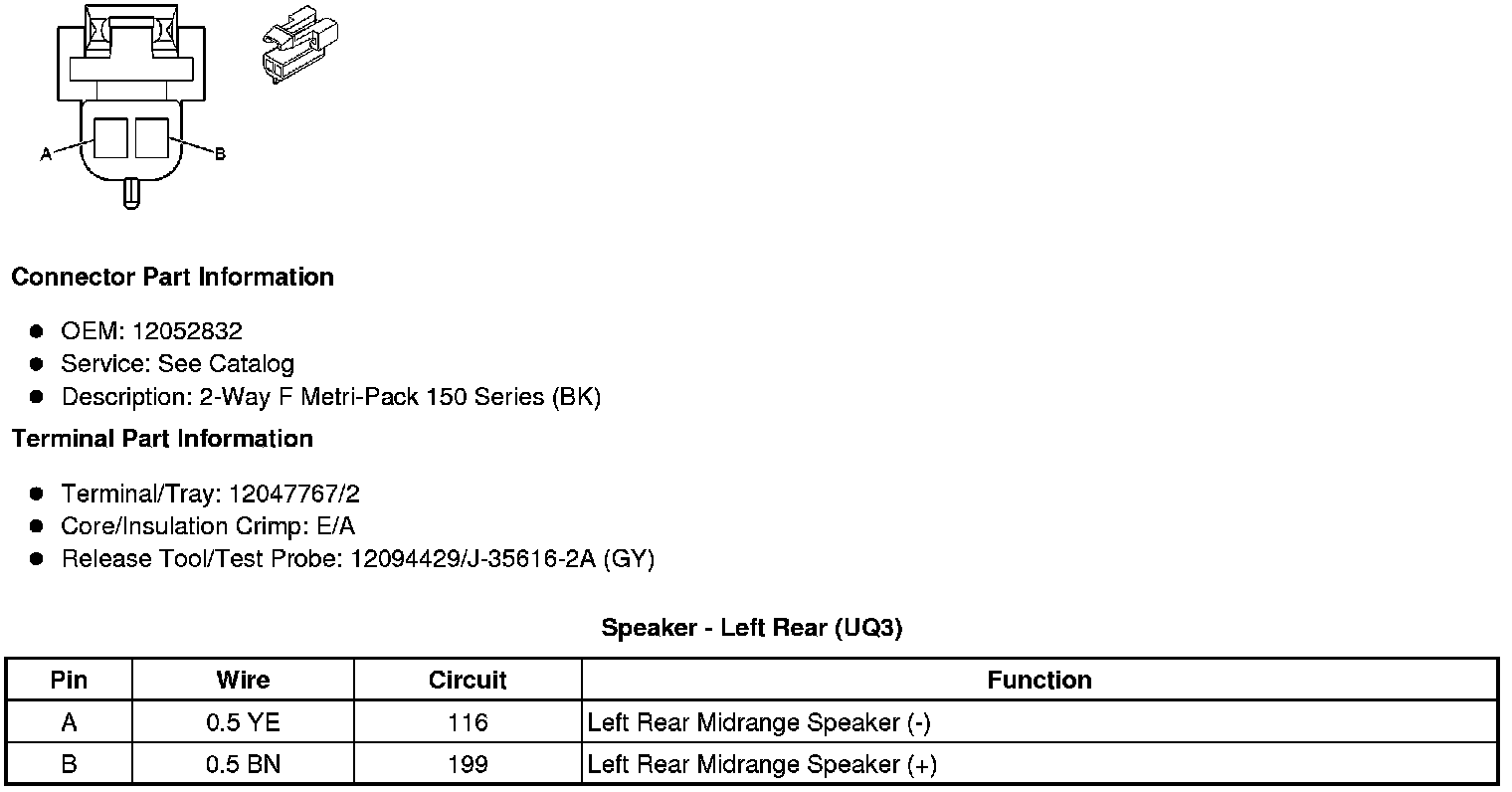

Speaker - Left Rear (UQ3)

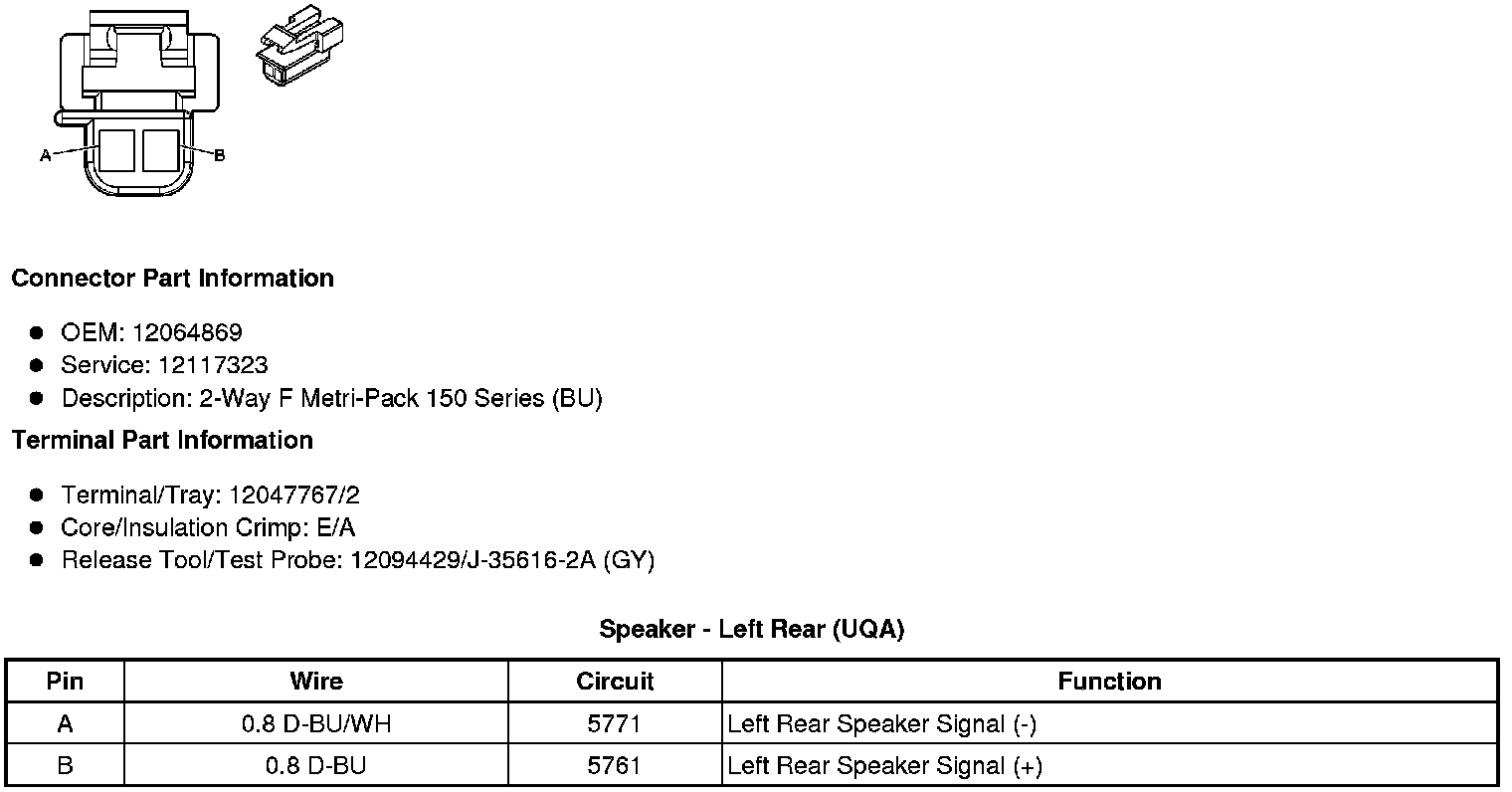

Speaker - Left Rear (UQA)





Speaker - Left Rear Door (UQA)

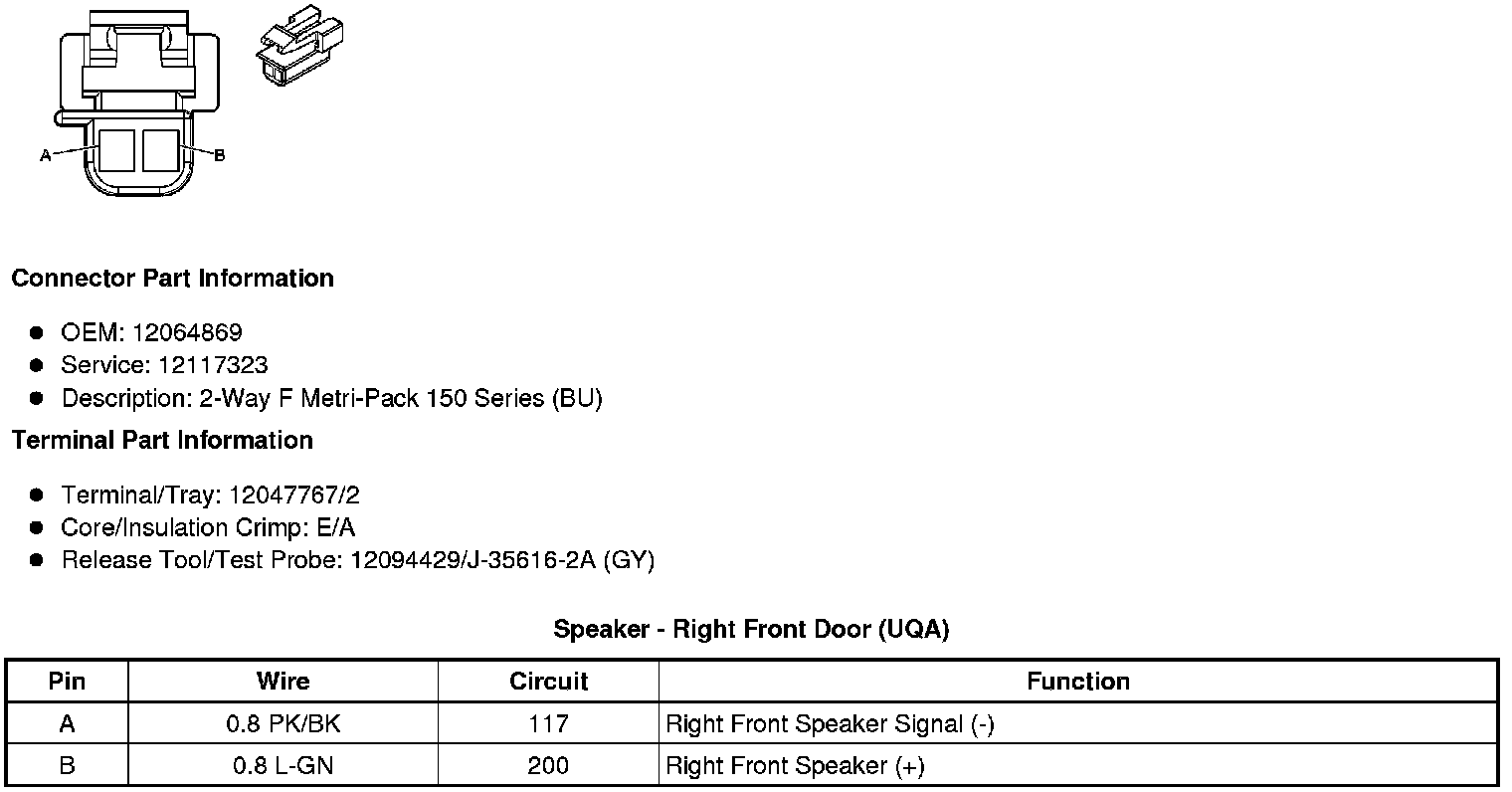

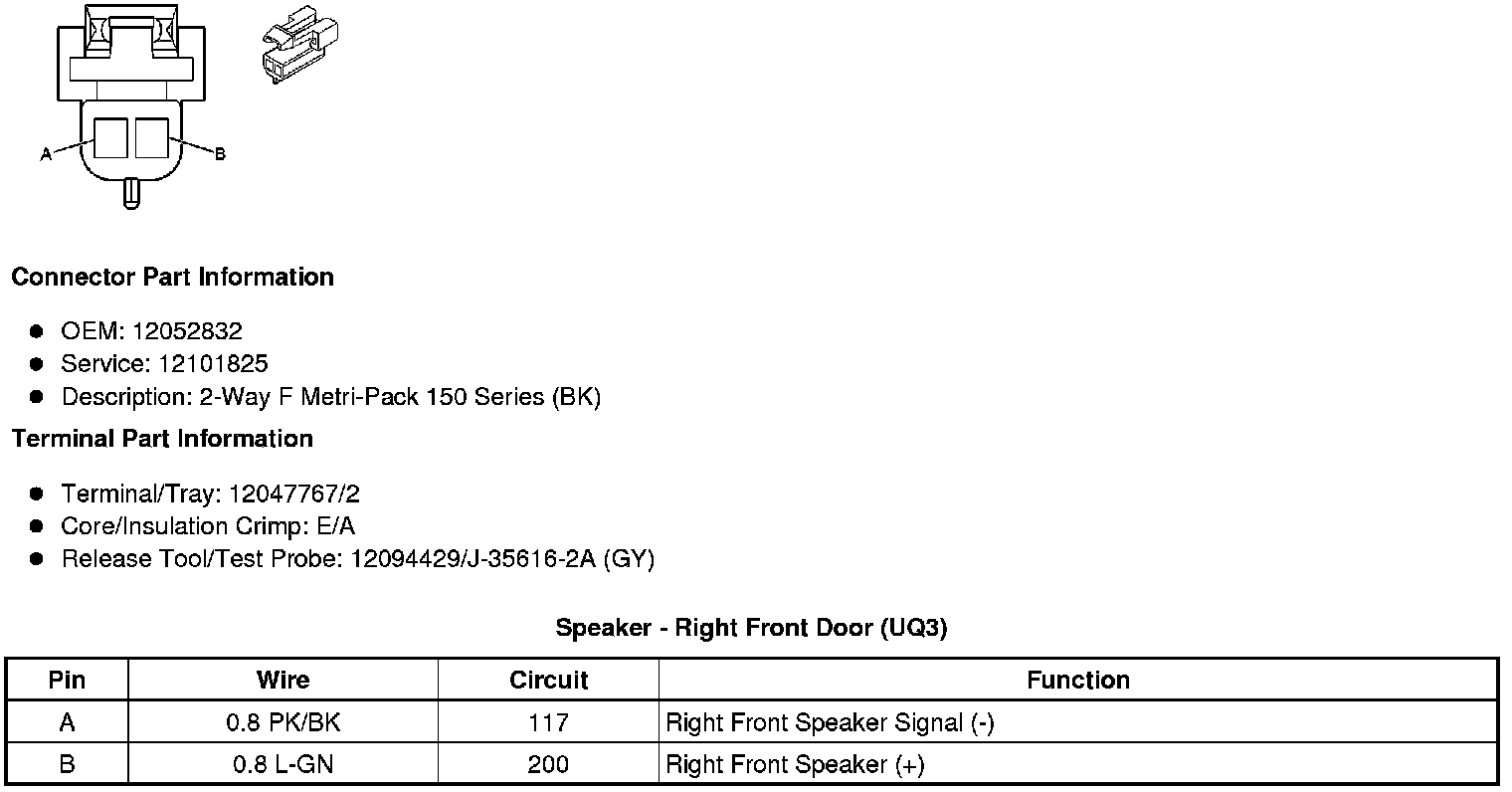

Speaker - Right Front Door (UQ3)





Speaker - Right Front Door (UQA)

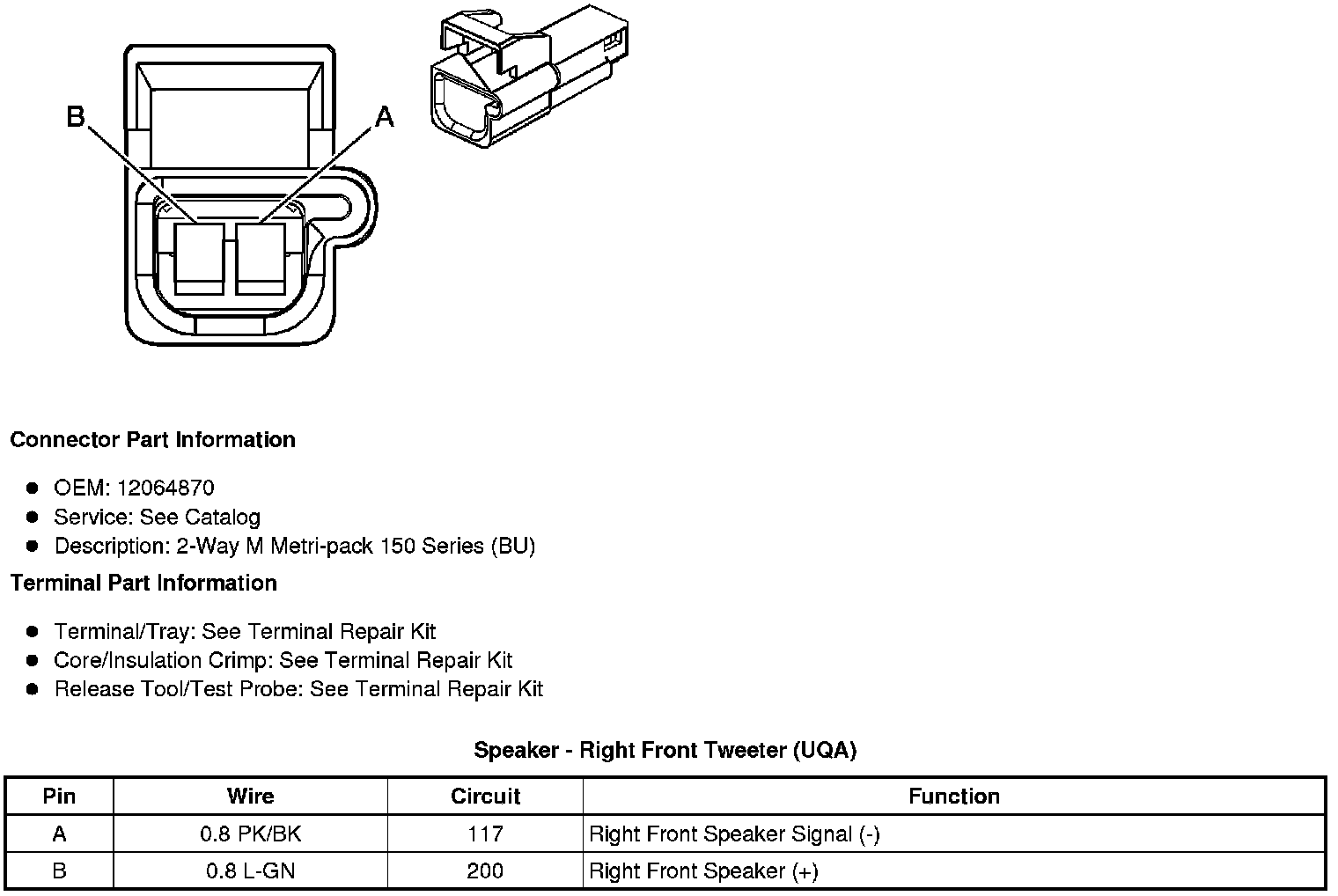

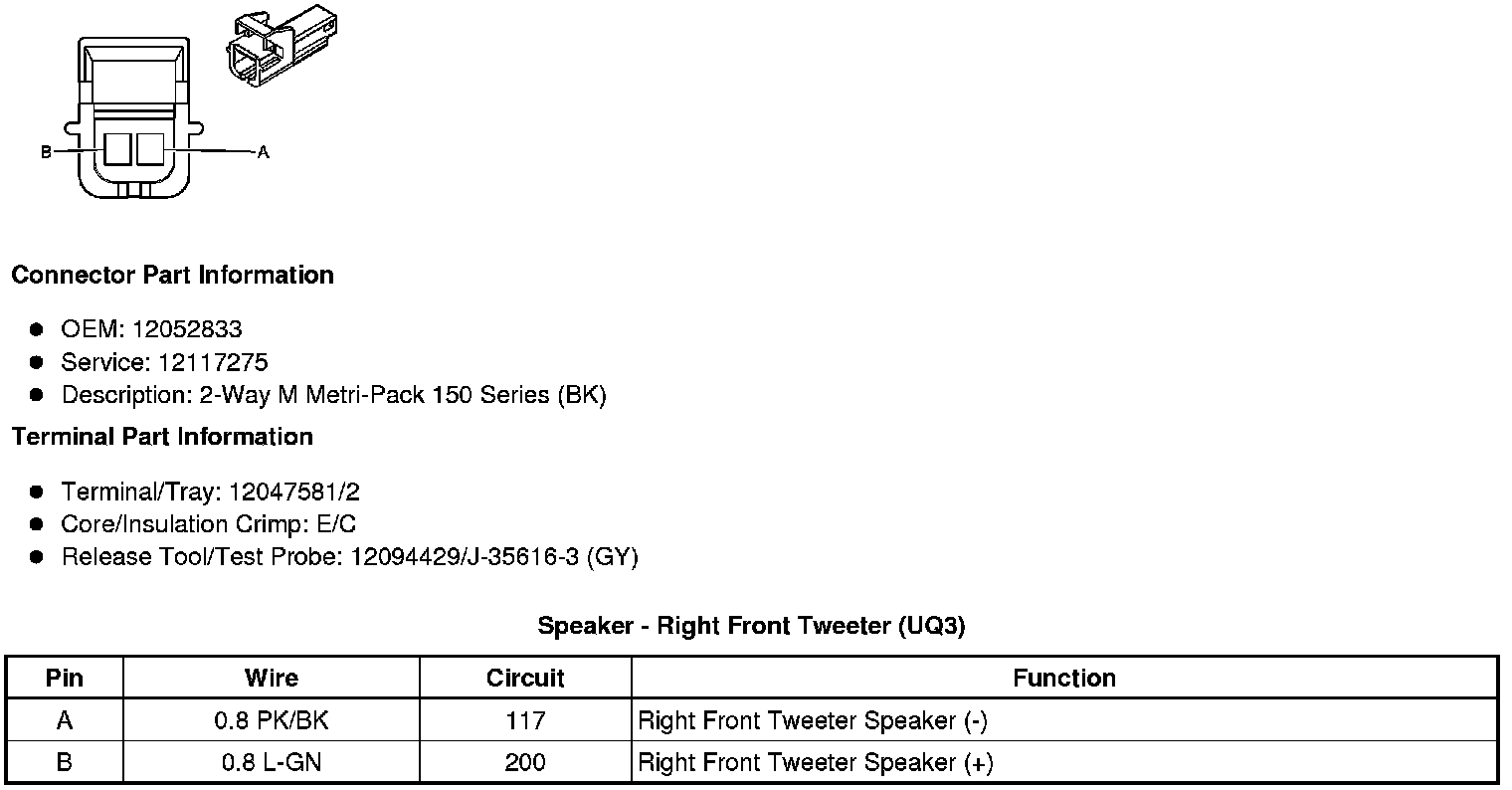

Speaker - Right Front Tweeter (UQ3)





Speaker - Right Front Tweeter (UQA)

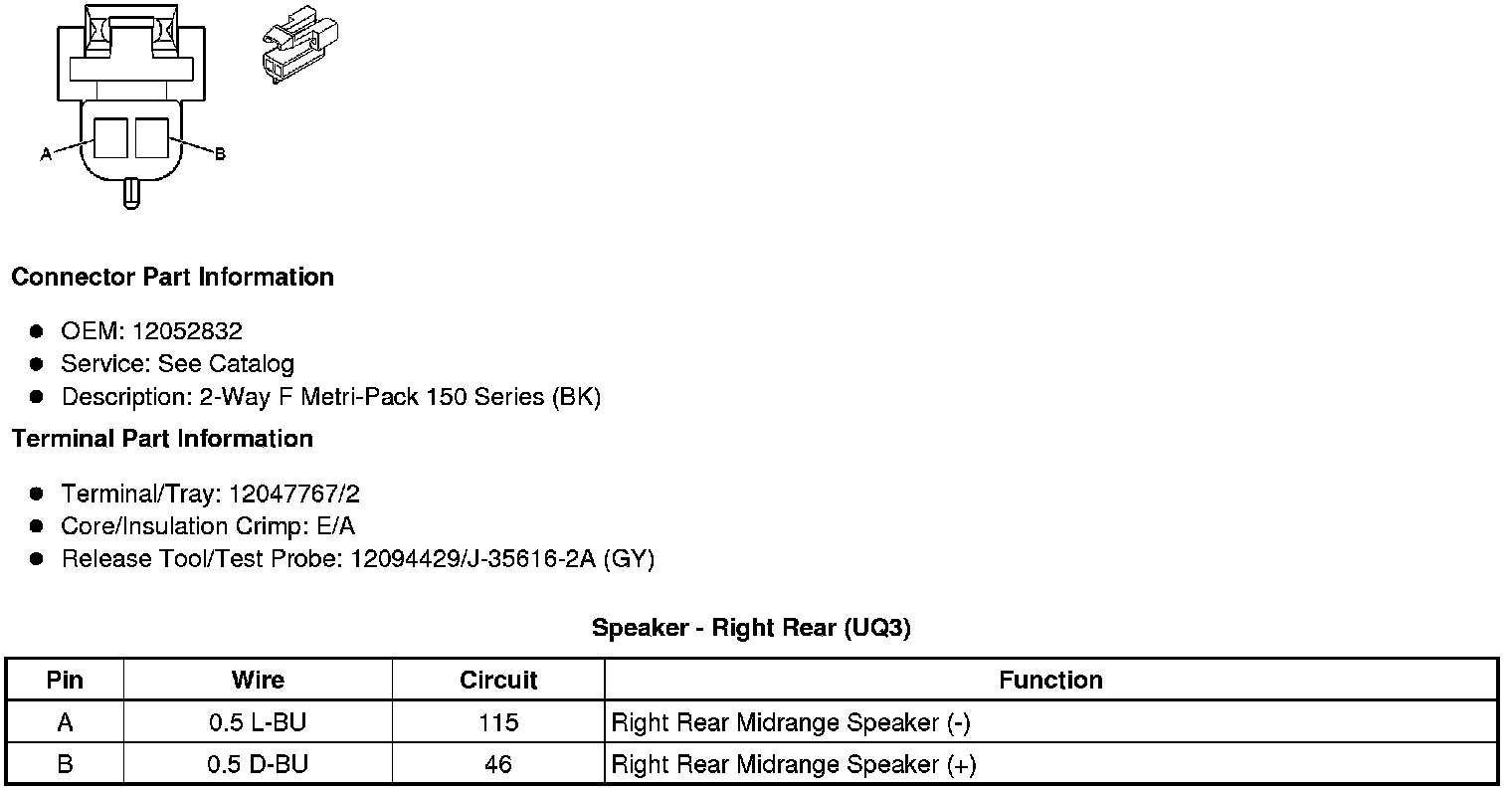

Speaker - Right Rear (UQ3)

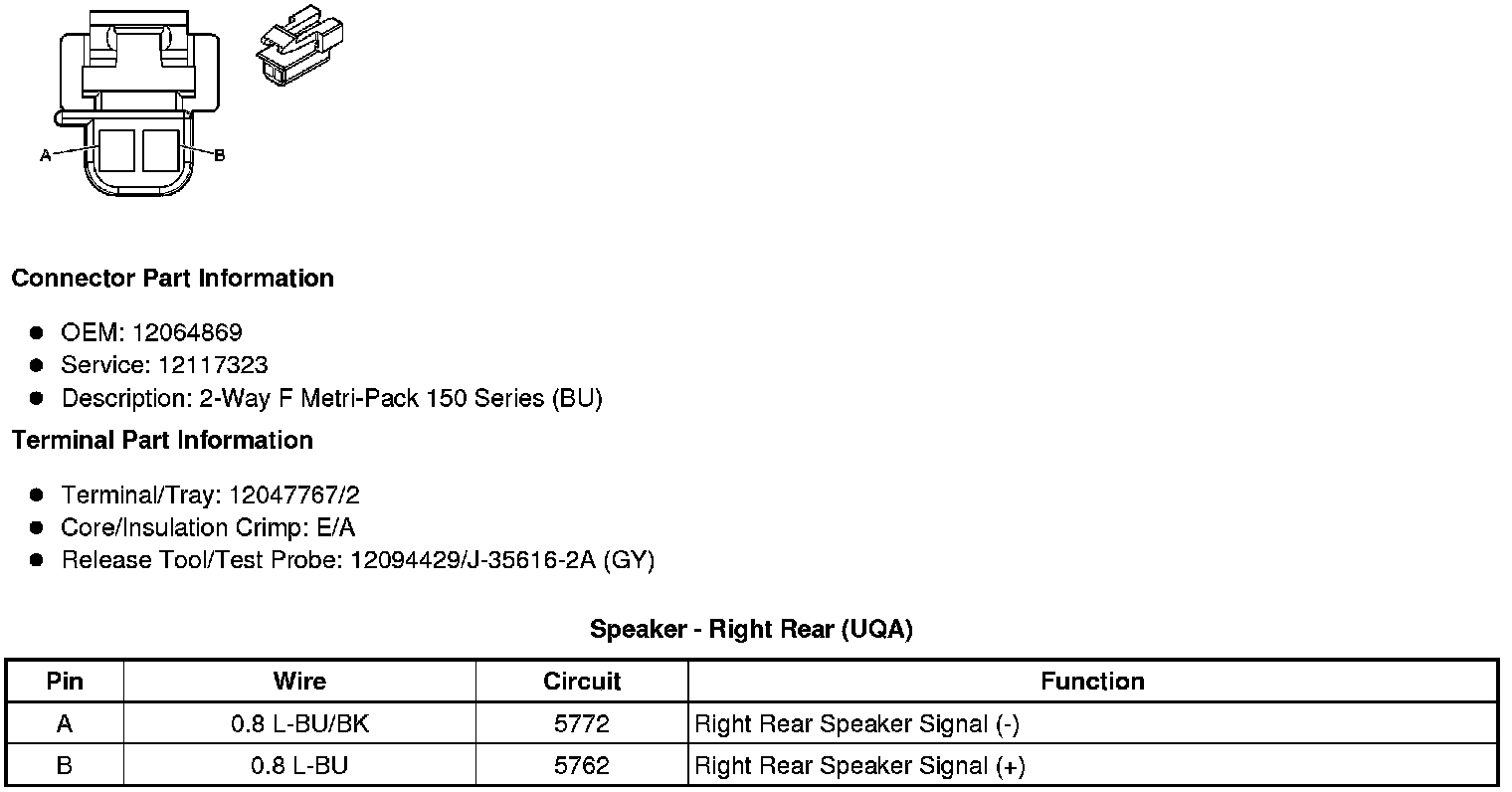

Speaker - Right Rear (UQA)





Speaker - Right Rear Door (UQA)
