Coolant Temperature Sensor/Switch (For Computer): Locations
Powertrain Component Views
Rear of the Engine (LD8/L37/4.6L)
1 - Throttle Body Assembly
2 - Manifold Absolute Pressure (MAP) Sensor
3 - Valve Cover
4 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
5 - Engine Coolant Temperature (ECT) Sensor
6 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2

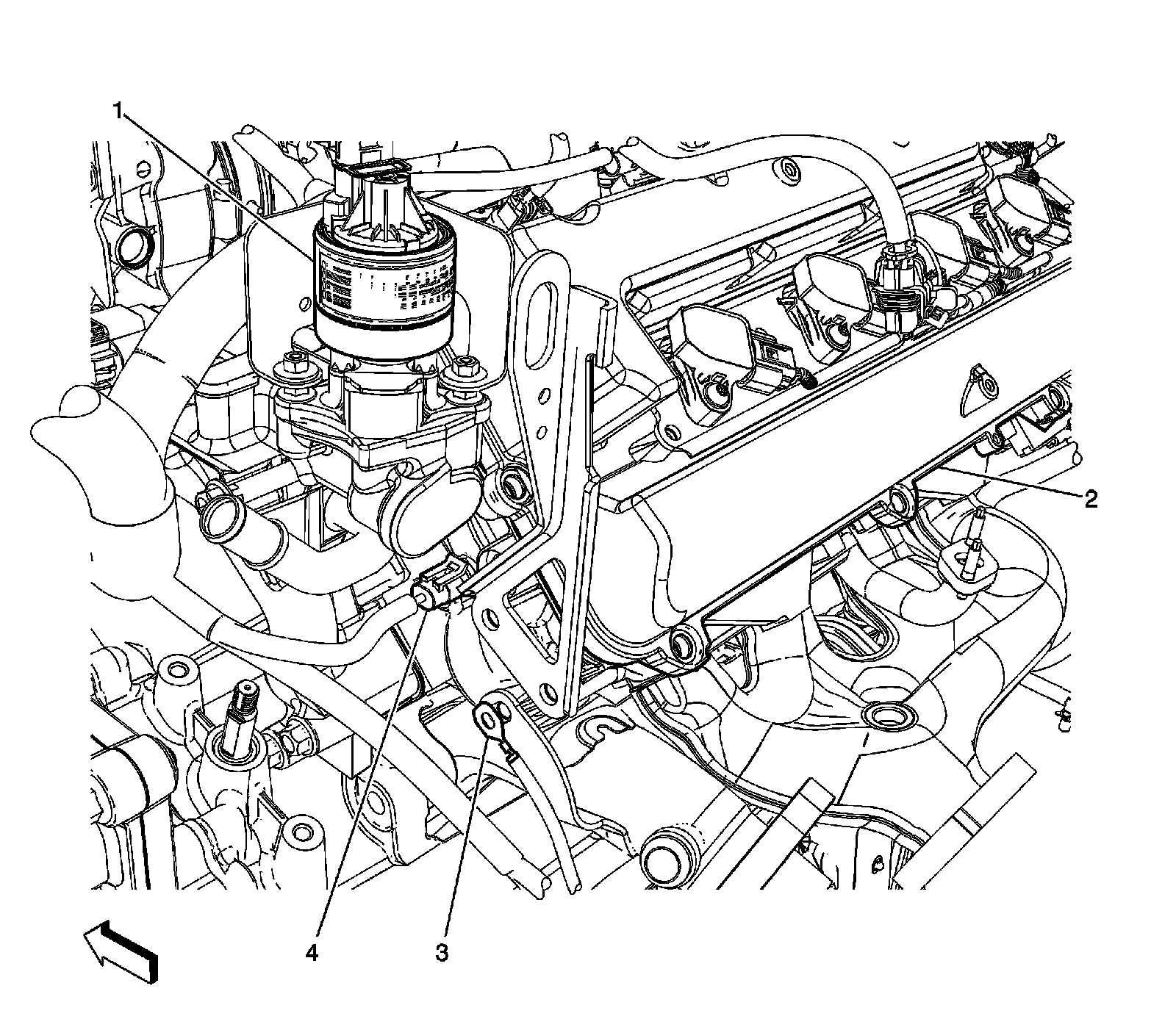

Near the Rear Cylinder Head (LD8/L37/4.6L)
1 - Exhaust Gas Recirculation (EGR) Valve
2 - Valve Cover
3 - G100
4 - Engine Coolant Temperature (ECT) Sensor
