Harness Routing Views

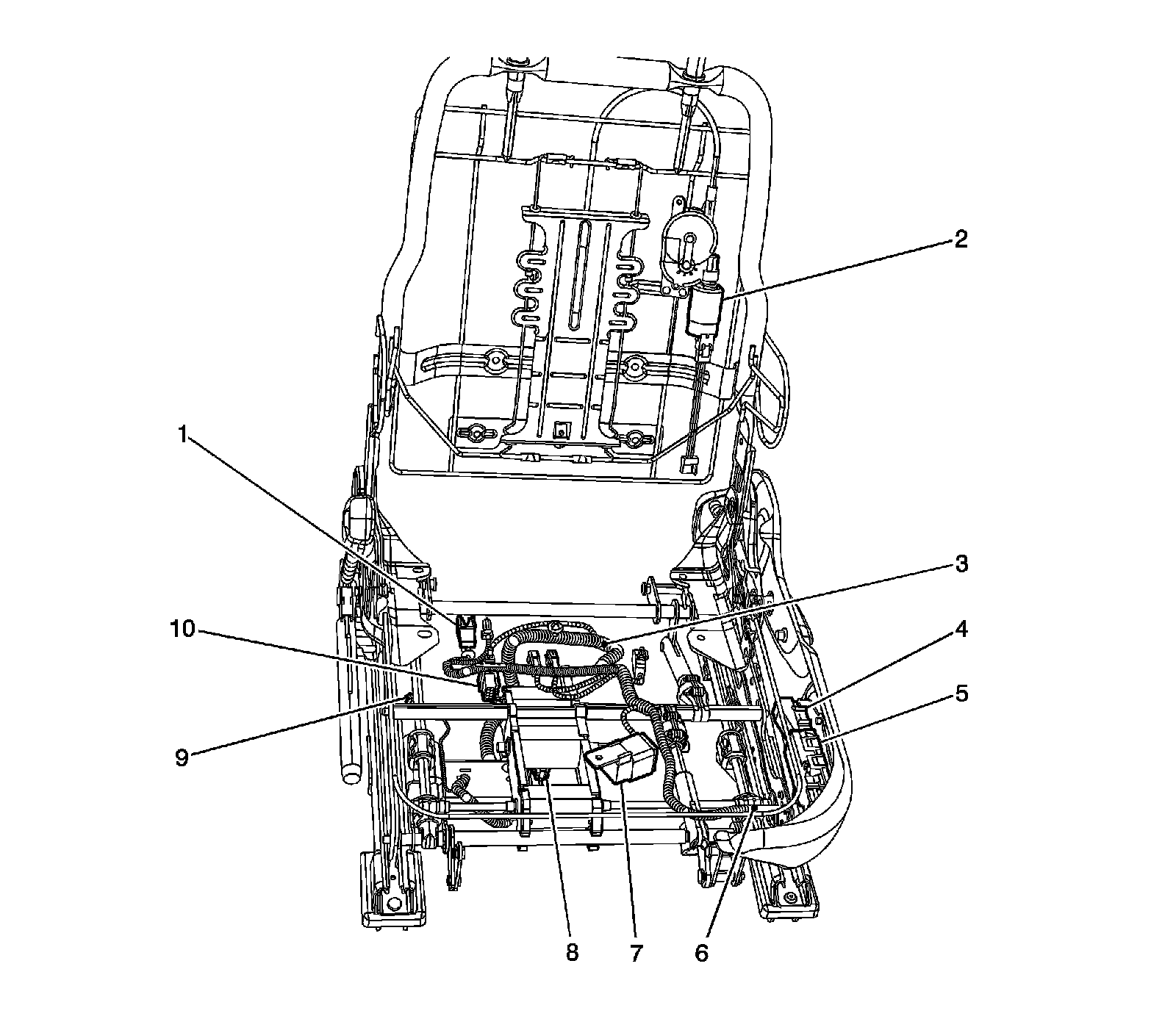

Harness Routing ViewsDriver Seat Harness Routing1 - Seat Belt Pretensioner - Driver Connector
2 - Seat Lumbar Motor - Driver (AL9)
3 - J330
4 - Seat Lumbar Switch - Driver (AL9)
5 - Seat Adjuster Switch - Driver
6 - J331 (AL9)
7 - Heated Seat Relay - Driver (KA1)
8 - X311 (AG1)
9 - X316
10 - Seat Adjuster Motor Assembly - Driver Connector
