Antilock Brakes / Traction Control Systems

Antilock Brake System Schematics

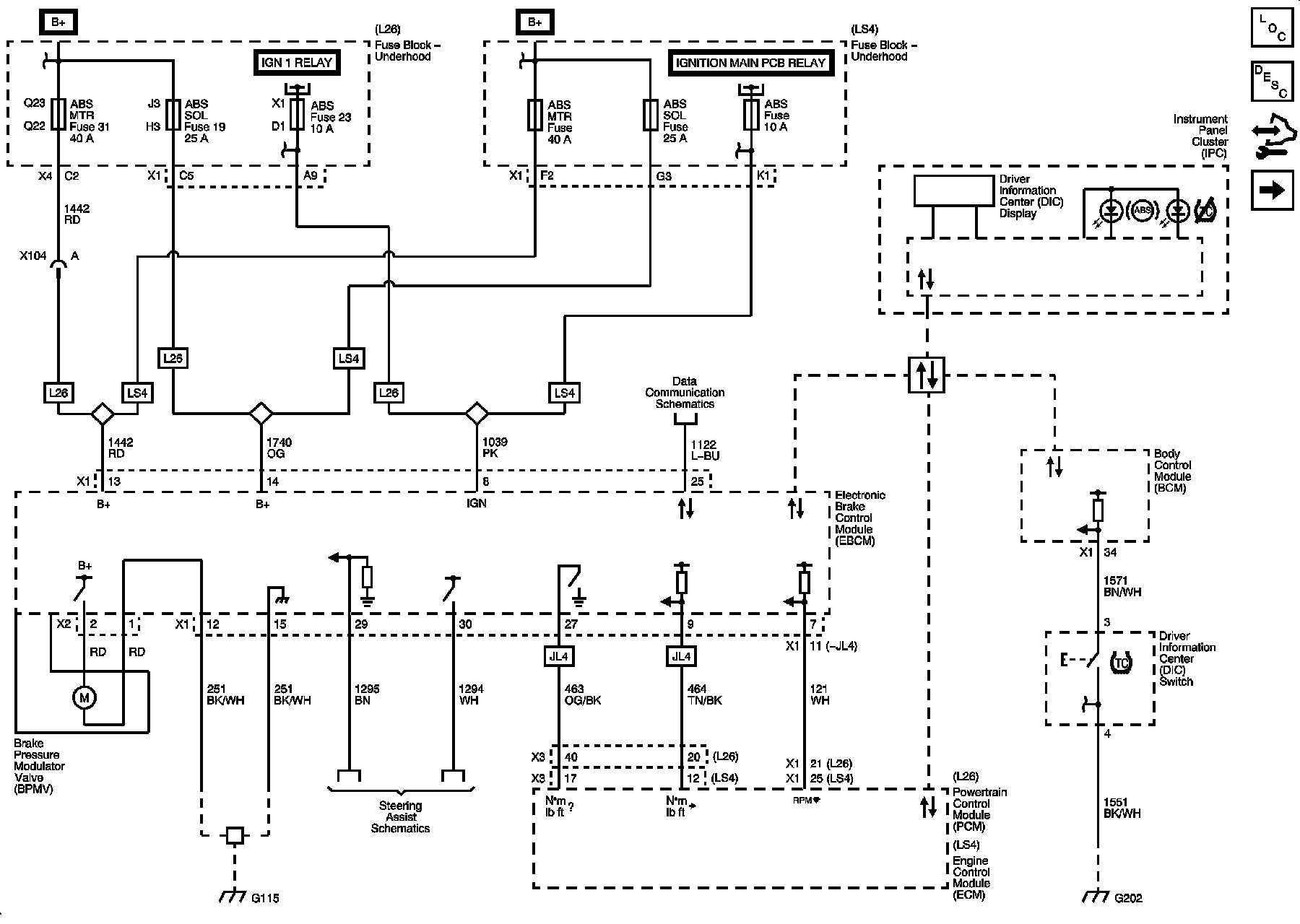

Power, Ground, Brake Pressure Modulator Valve (BPMV), Traction Control, and Serial Data

Wheel Speed Sensors (JL4)

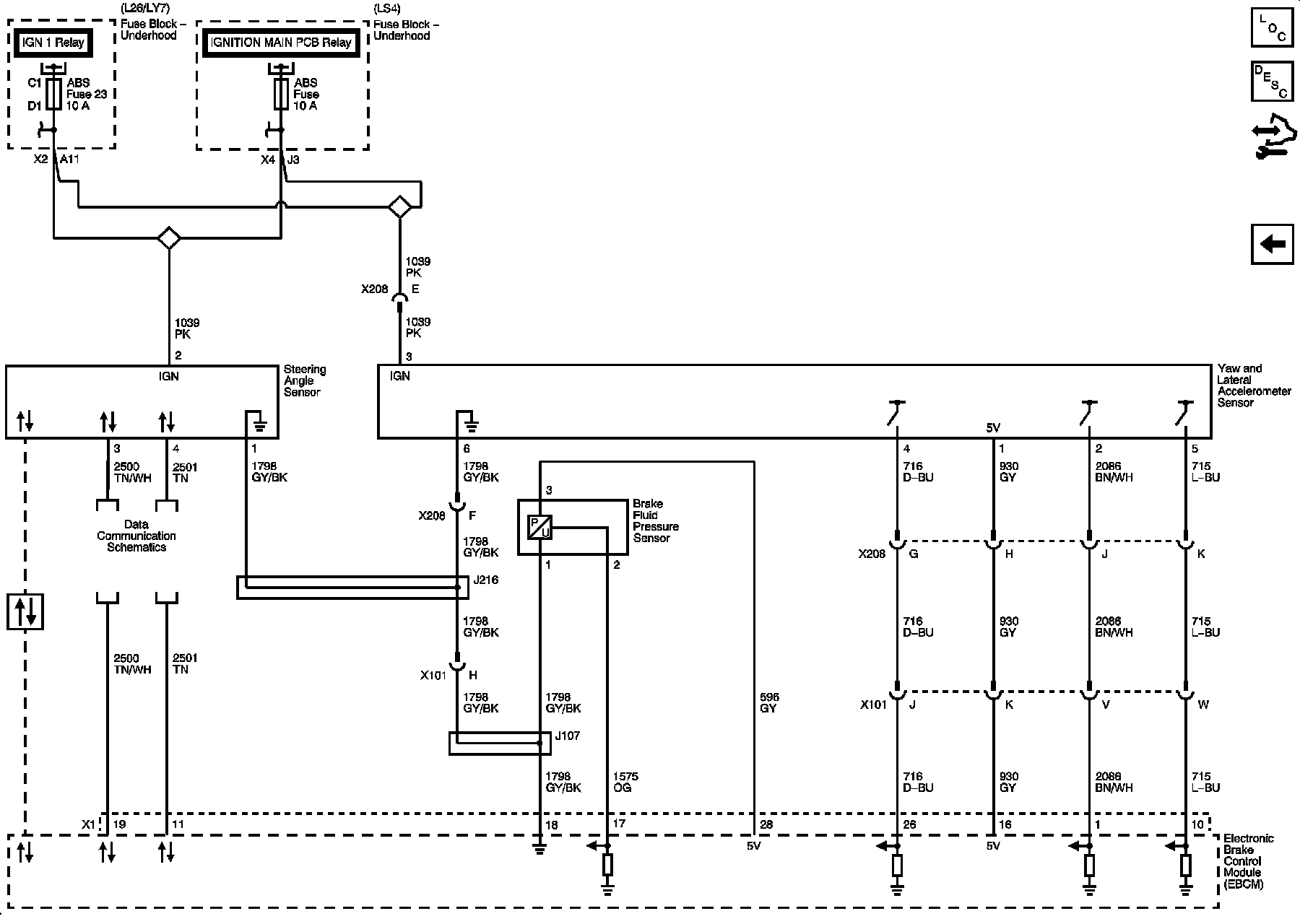

Active Brake, Stability Controls, and Brake Pedal Position (BPP) Sensor
