Intake Manifold

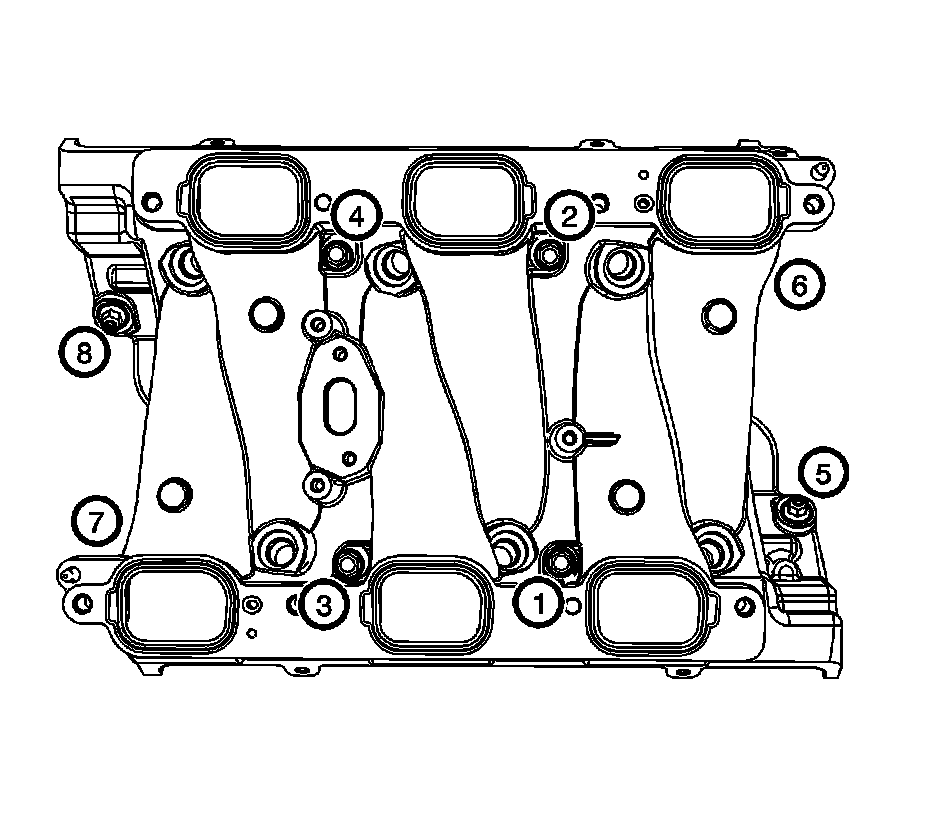

INTAKE MANIFOLDLower Intake Manifold Bolt
Center
First Pass
13 Nm (10 lb ft)
Final Pass
20 Nm (15 lb ft)
Corner
First Pass
13 Nm (10 lb ft)
Final Pass
25 Nm (18 lb ft)
Upper Intake Manifold Bolt/Stud
25 Nm (18 lb ft)
THROTTLE BODY
Throttle Body Bolt/Nut
10 Nm (89 lb in)
