A - Z Index

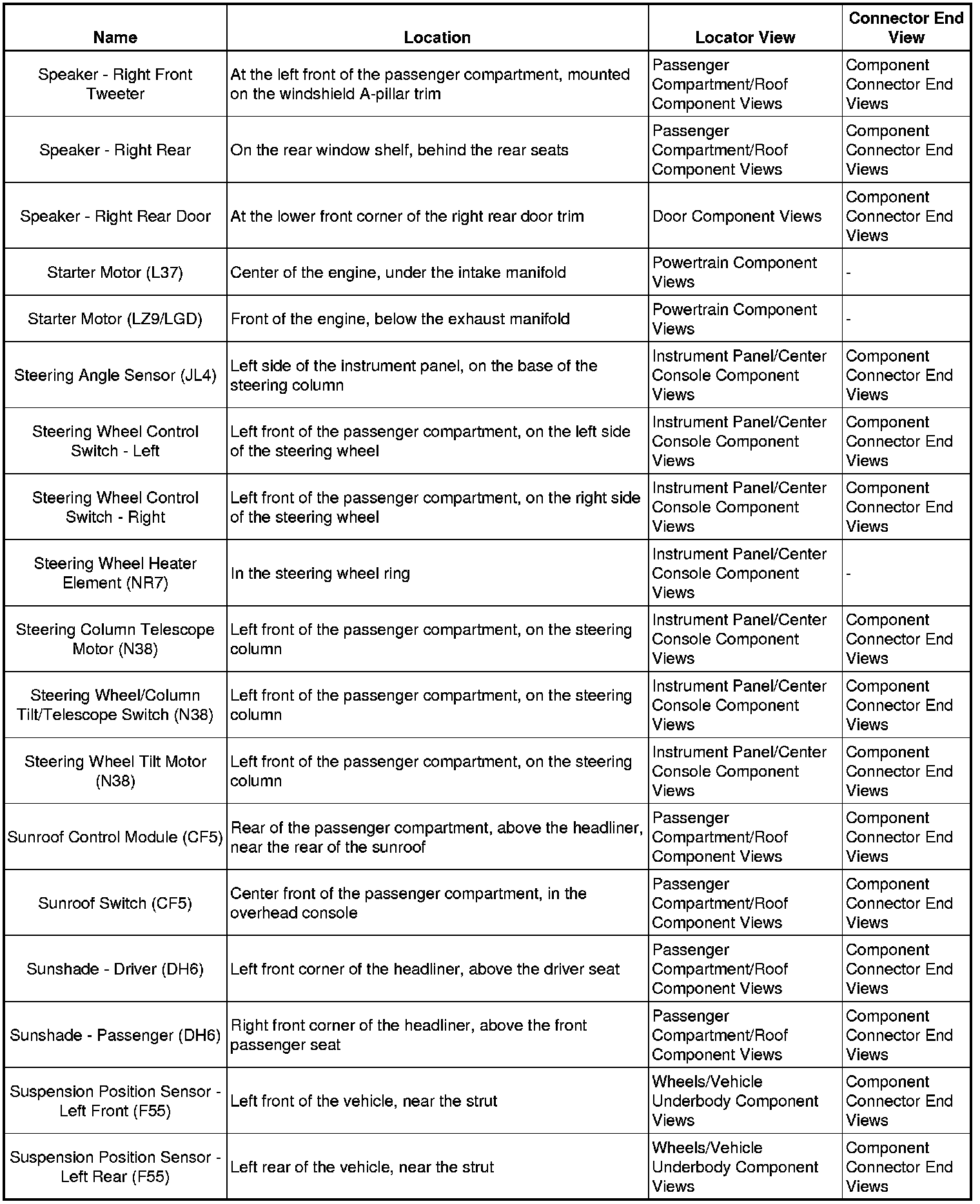

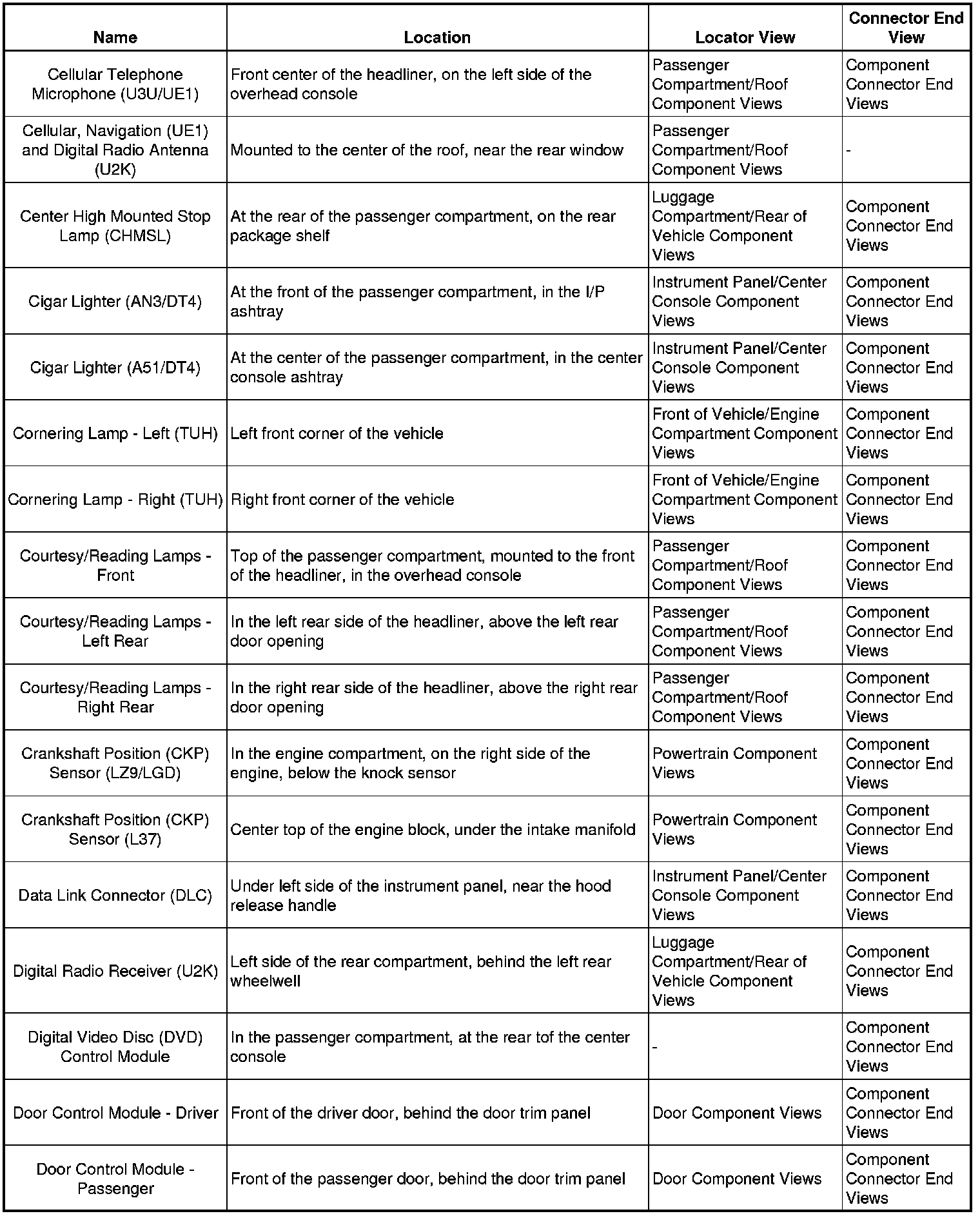

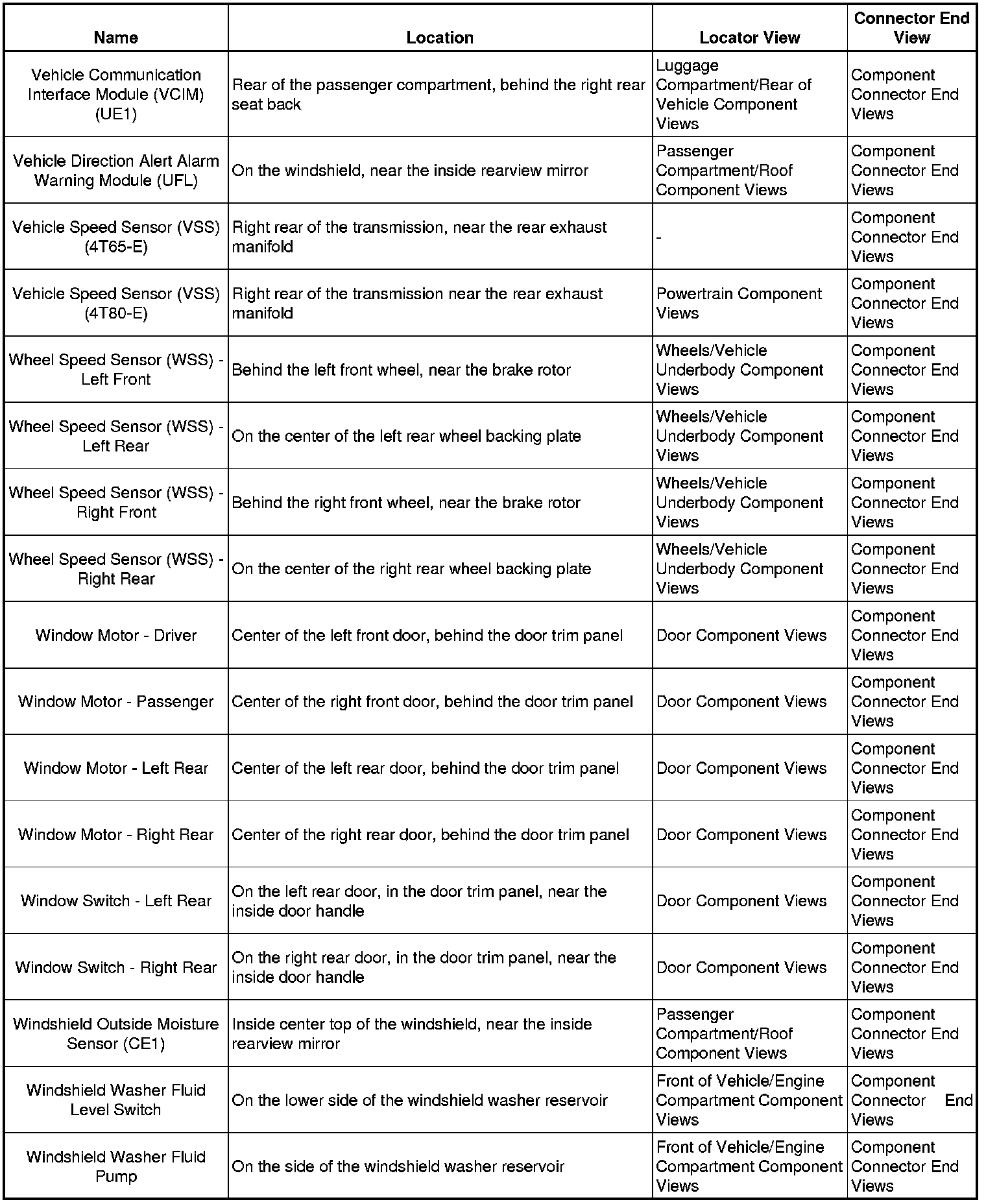

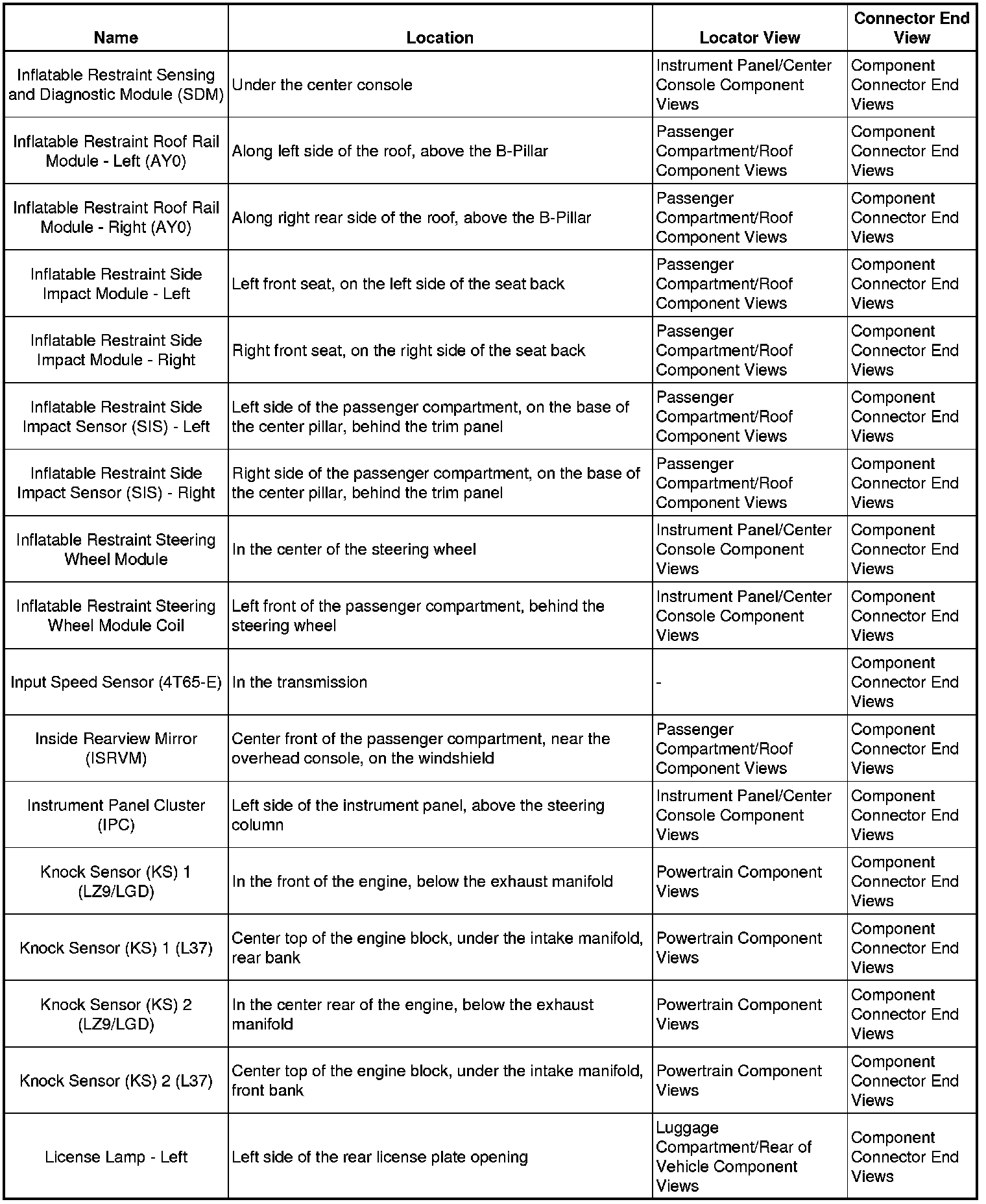

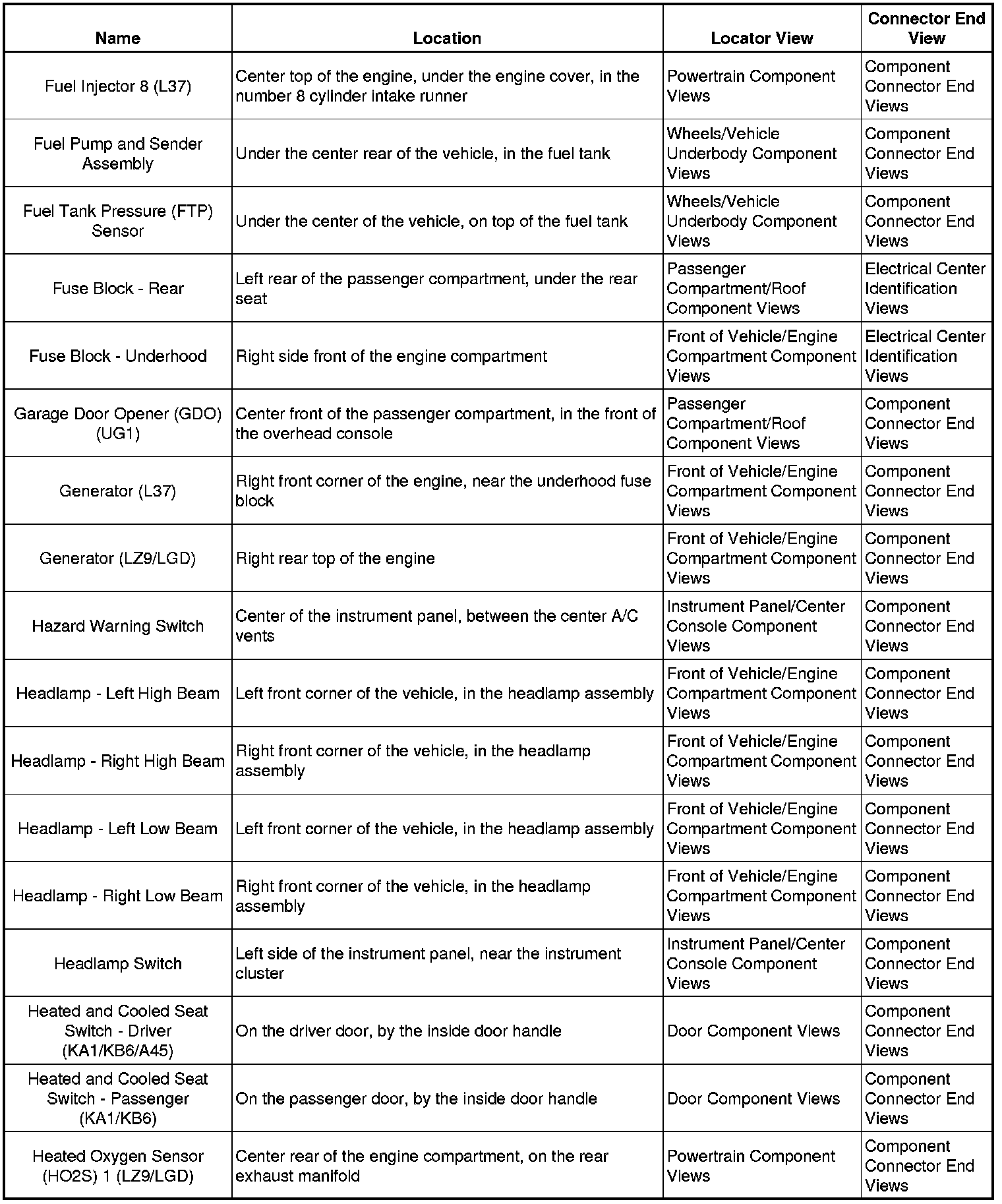

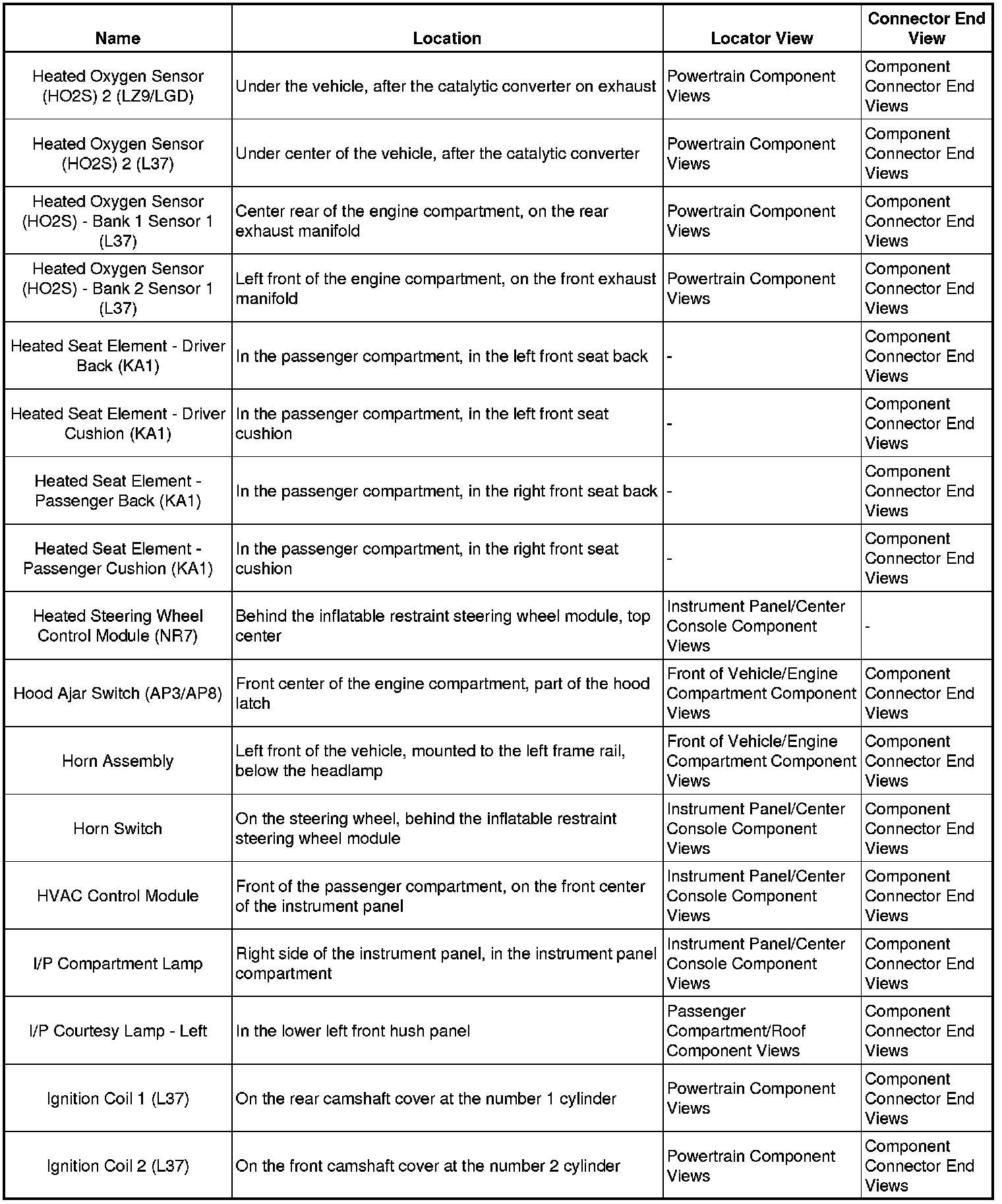

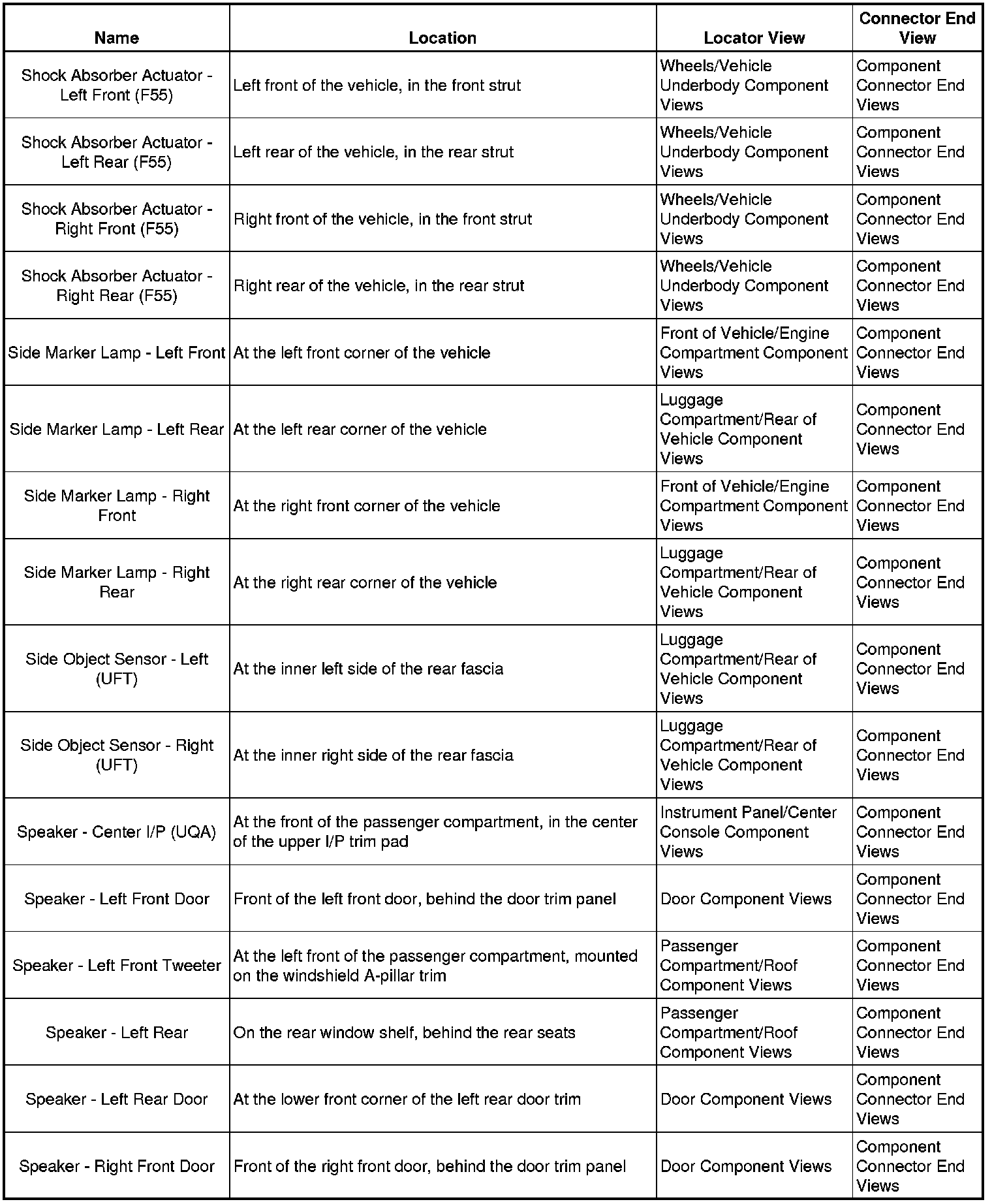

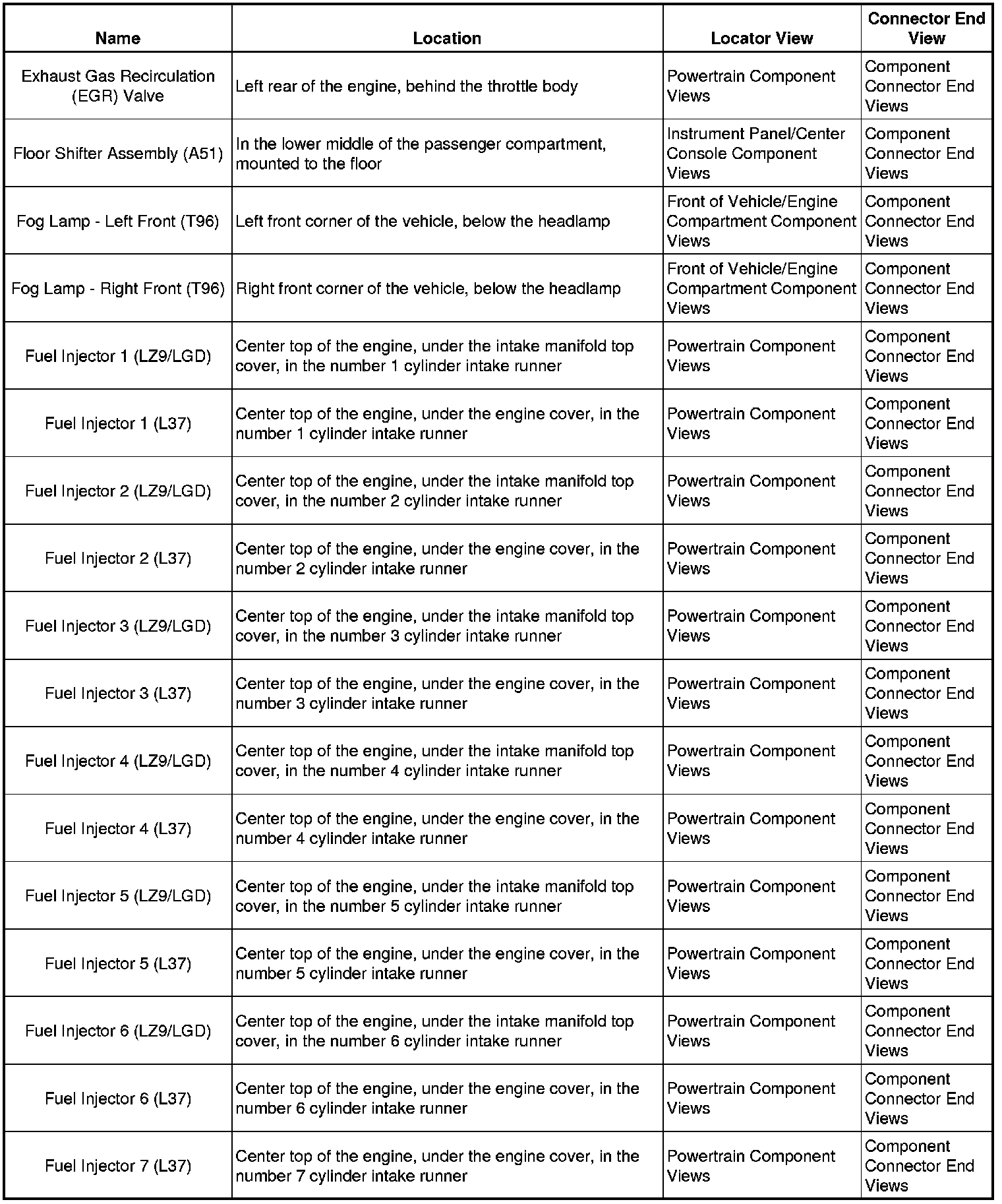

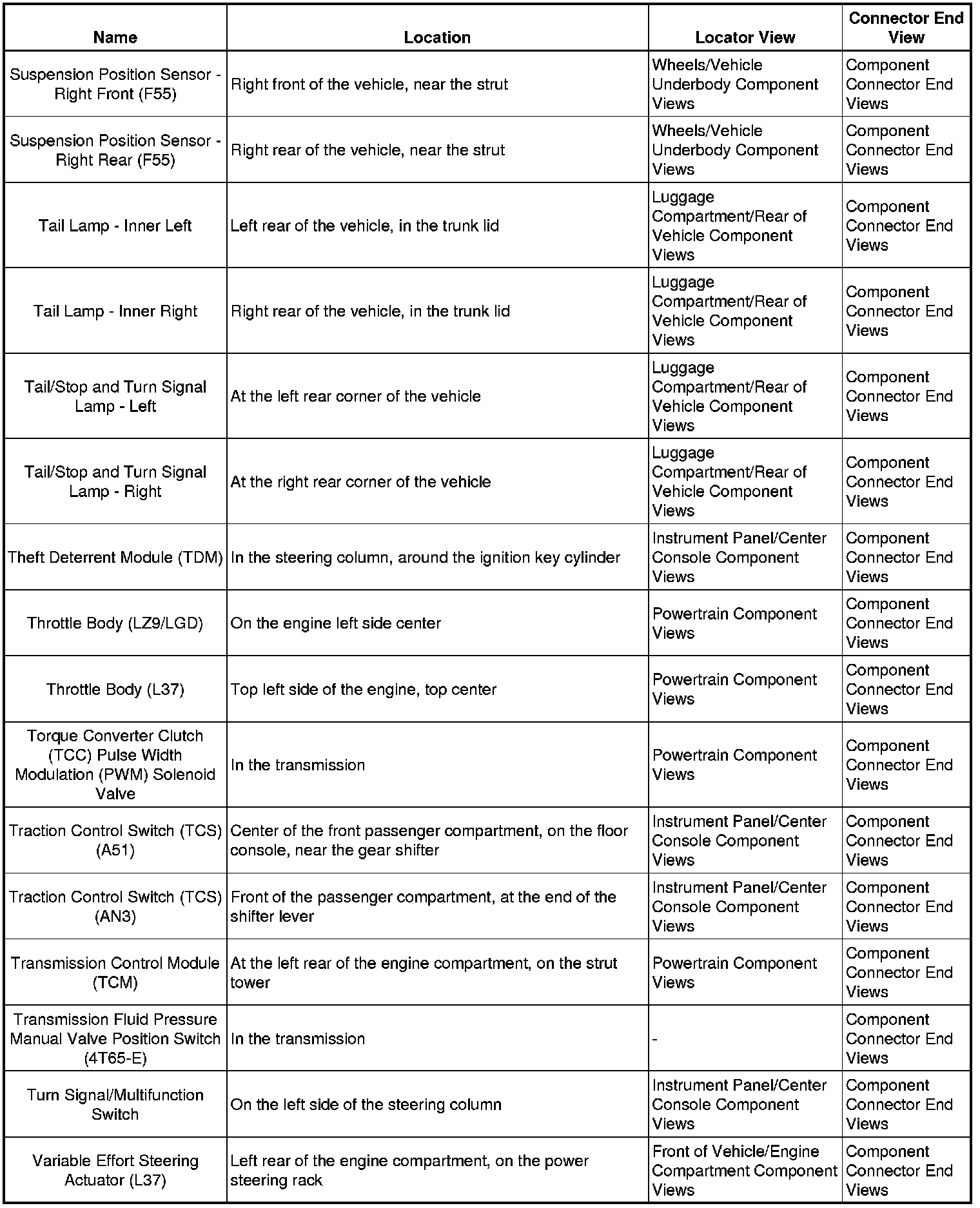

Master Electrical Component List

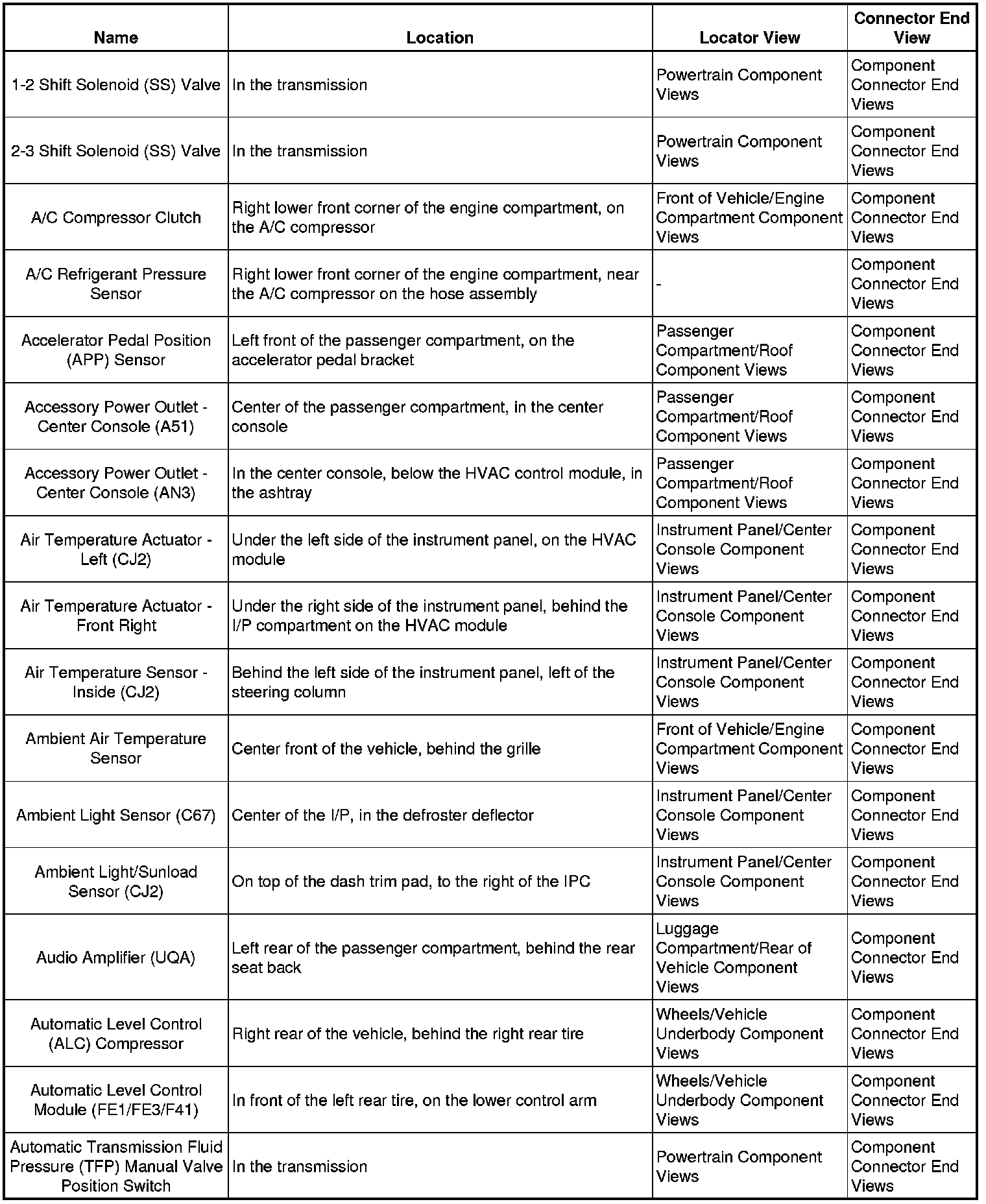

1-2 Sh - Au:

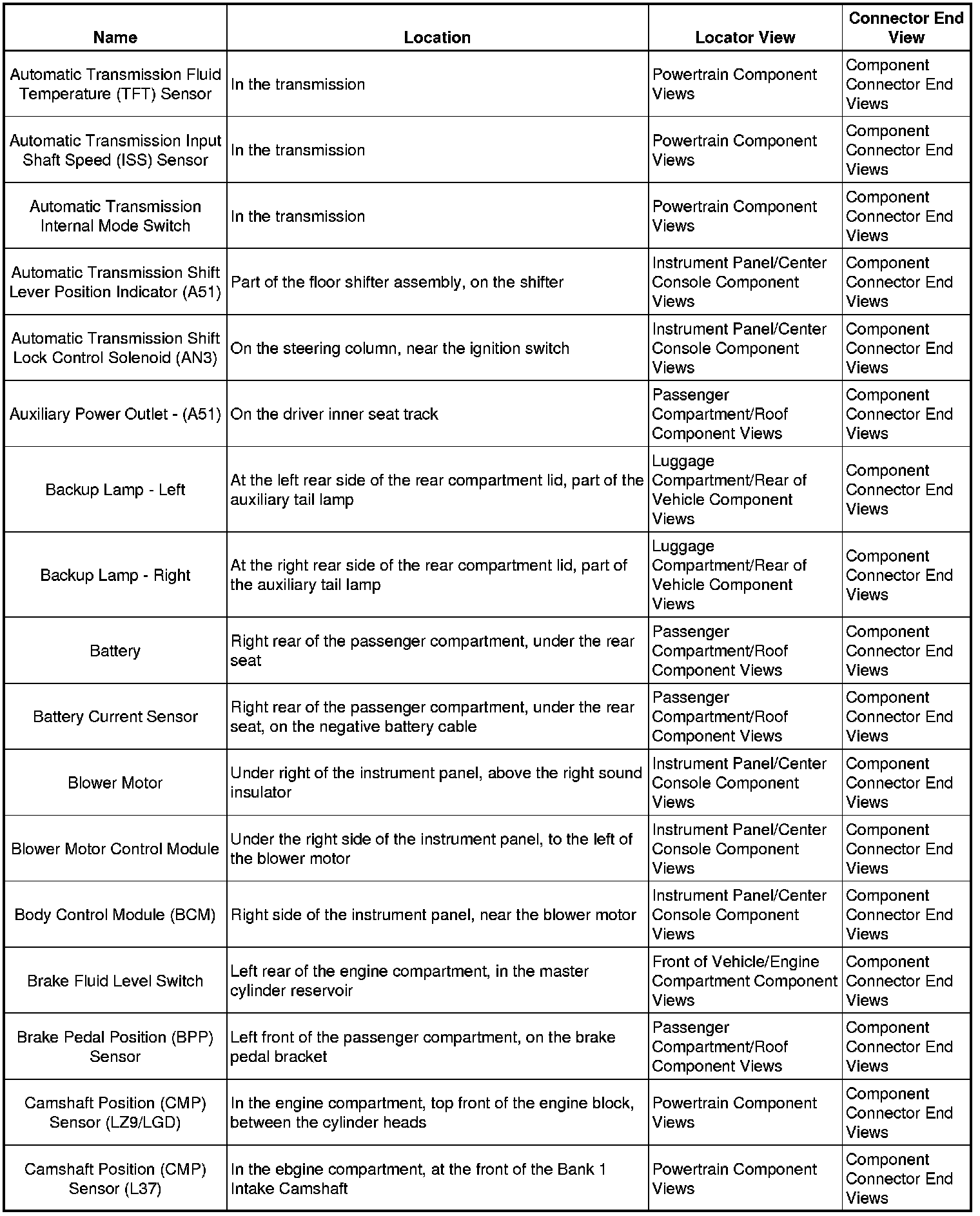

Au - Ca:

Ce - Do:

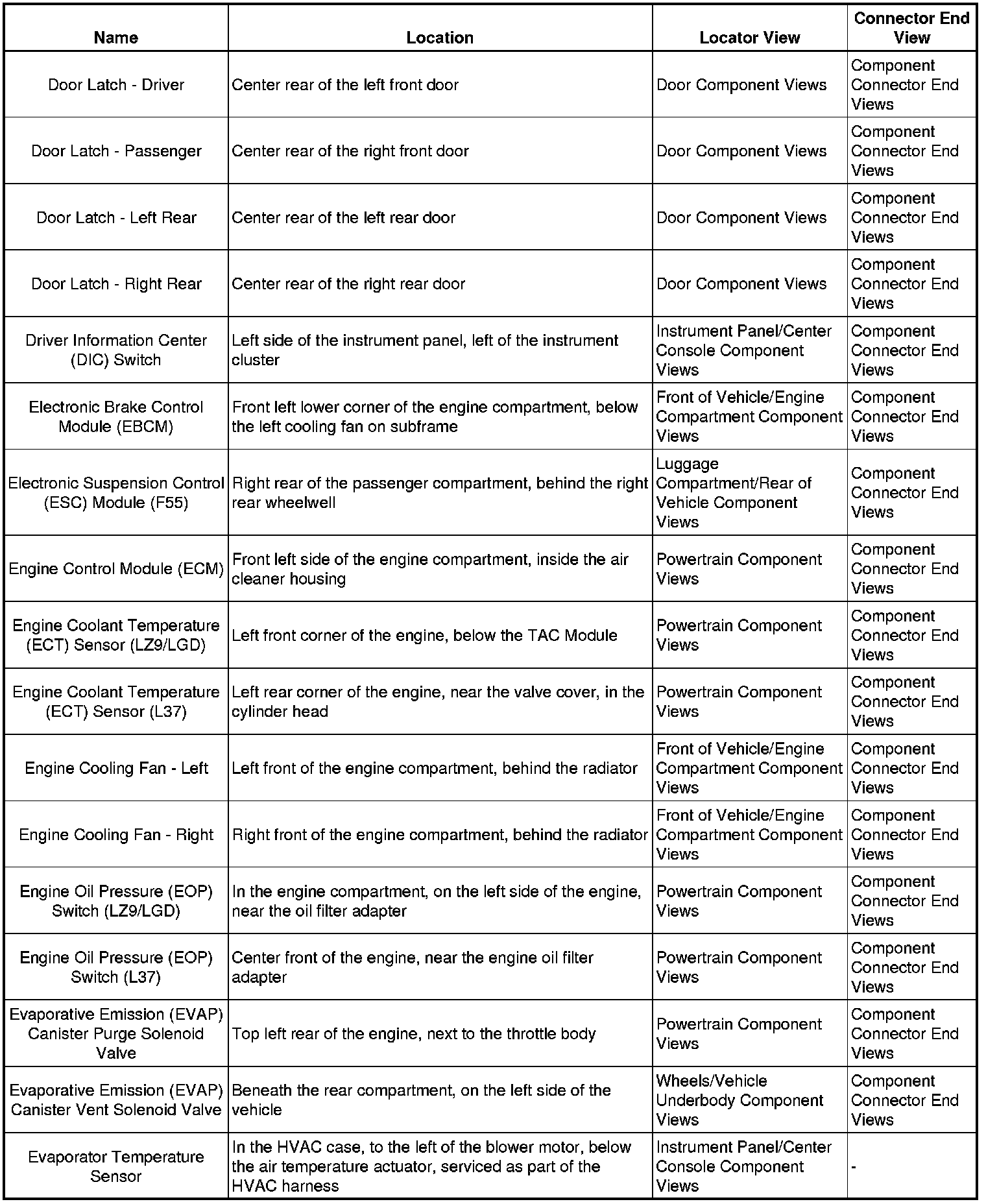

Do - Ev:

Ex - Fu:

Fu - He:

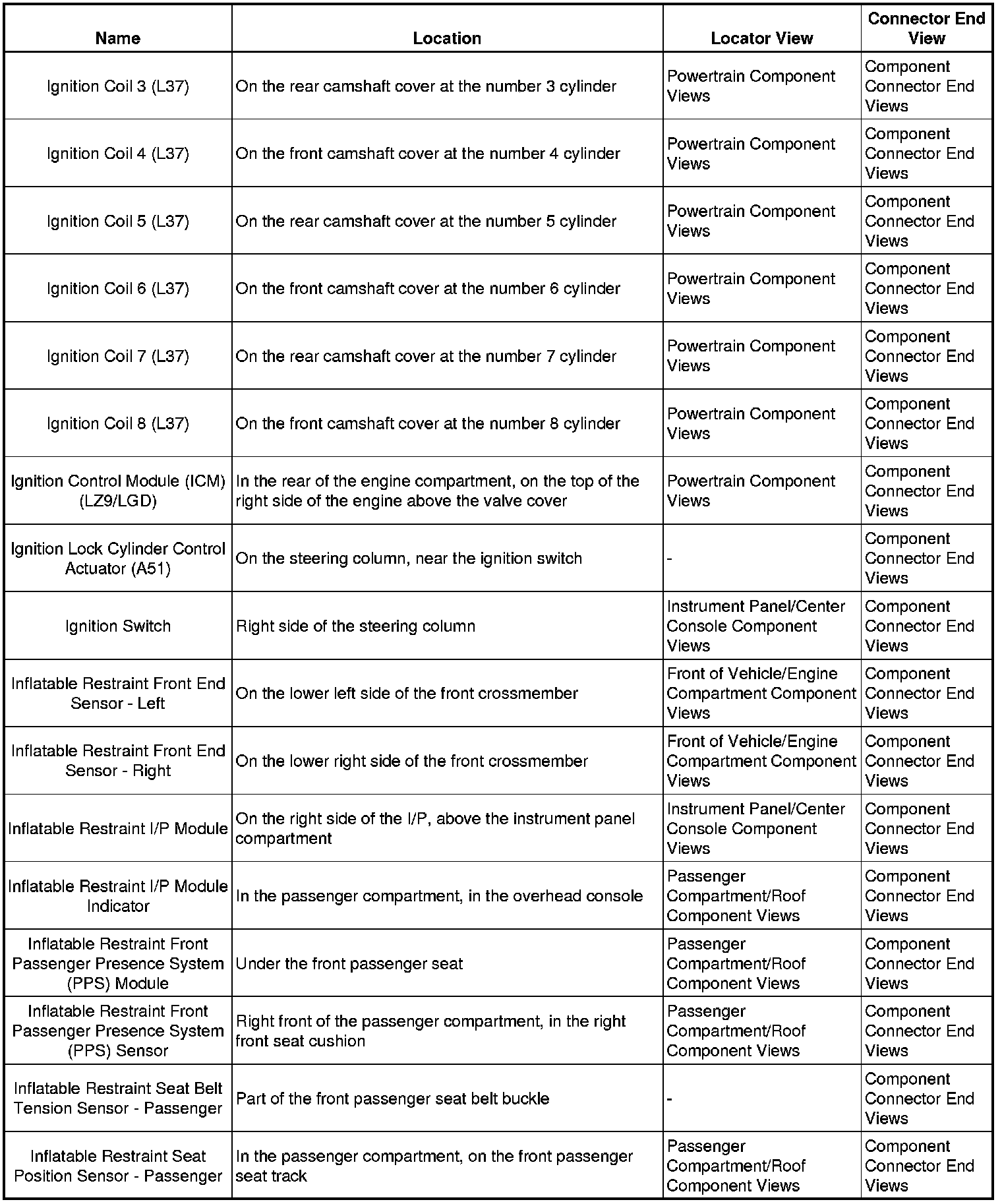

He - Ig:

Ig - In:

In - Li:

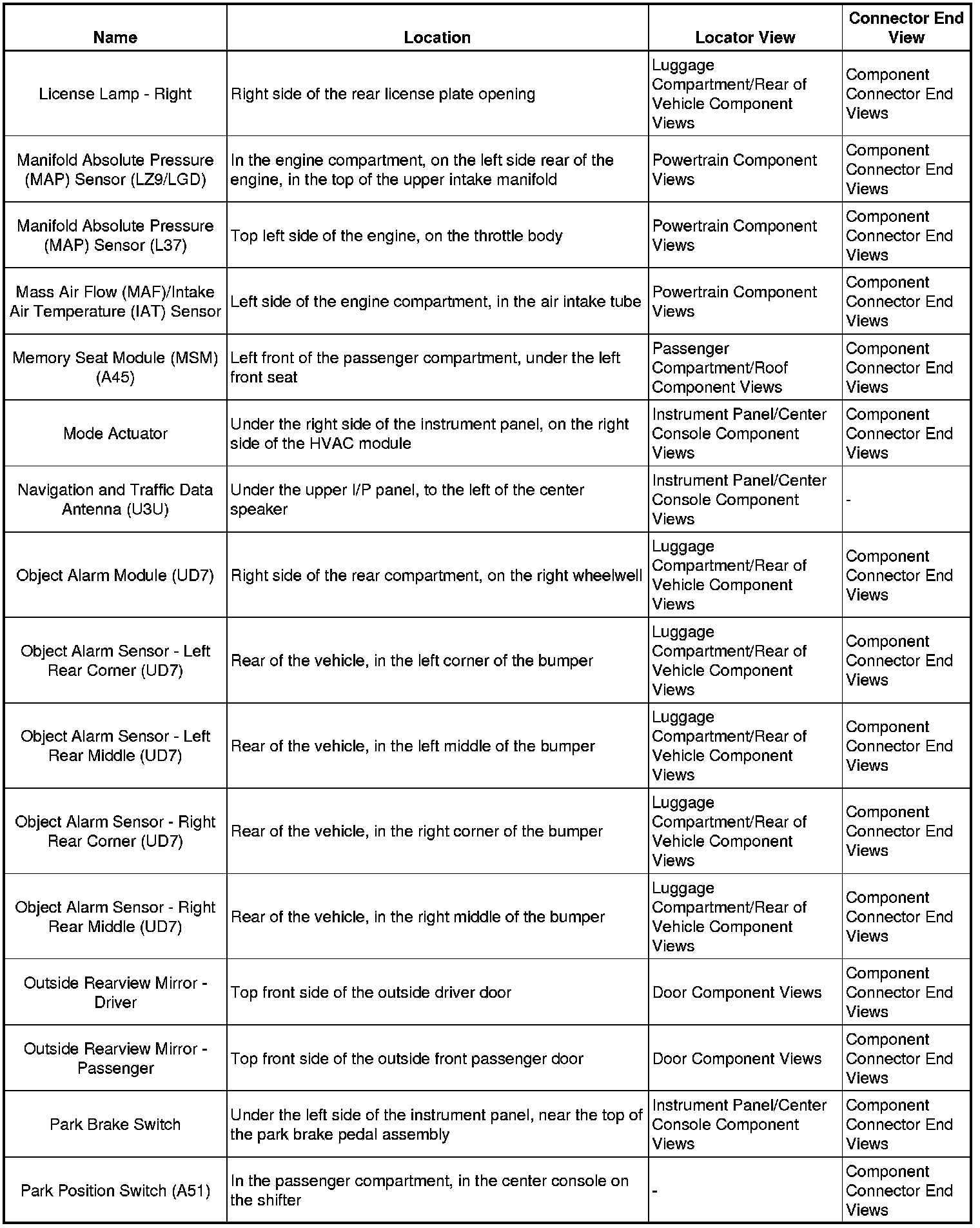

Li - Pa:

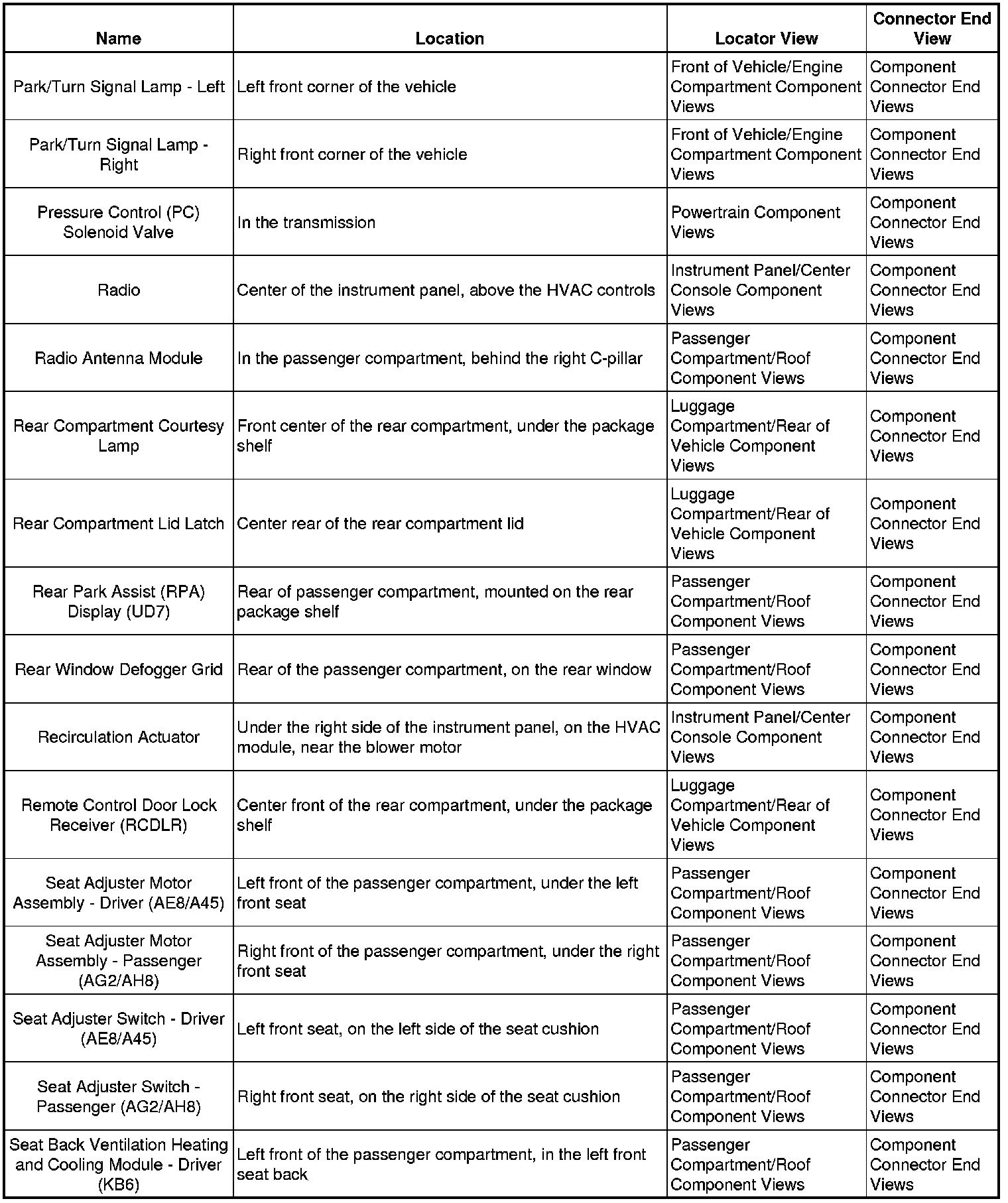

Pa - Se:

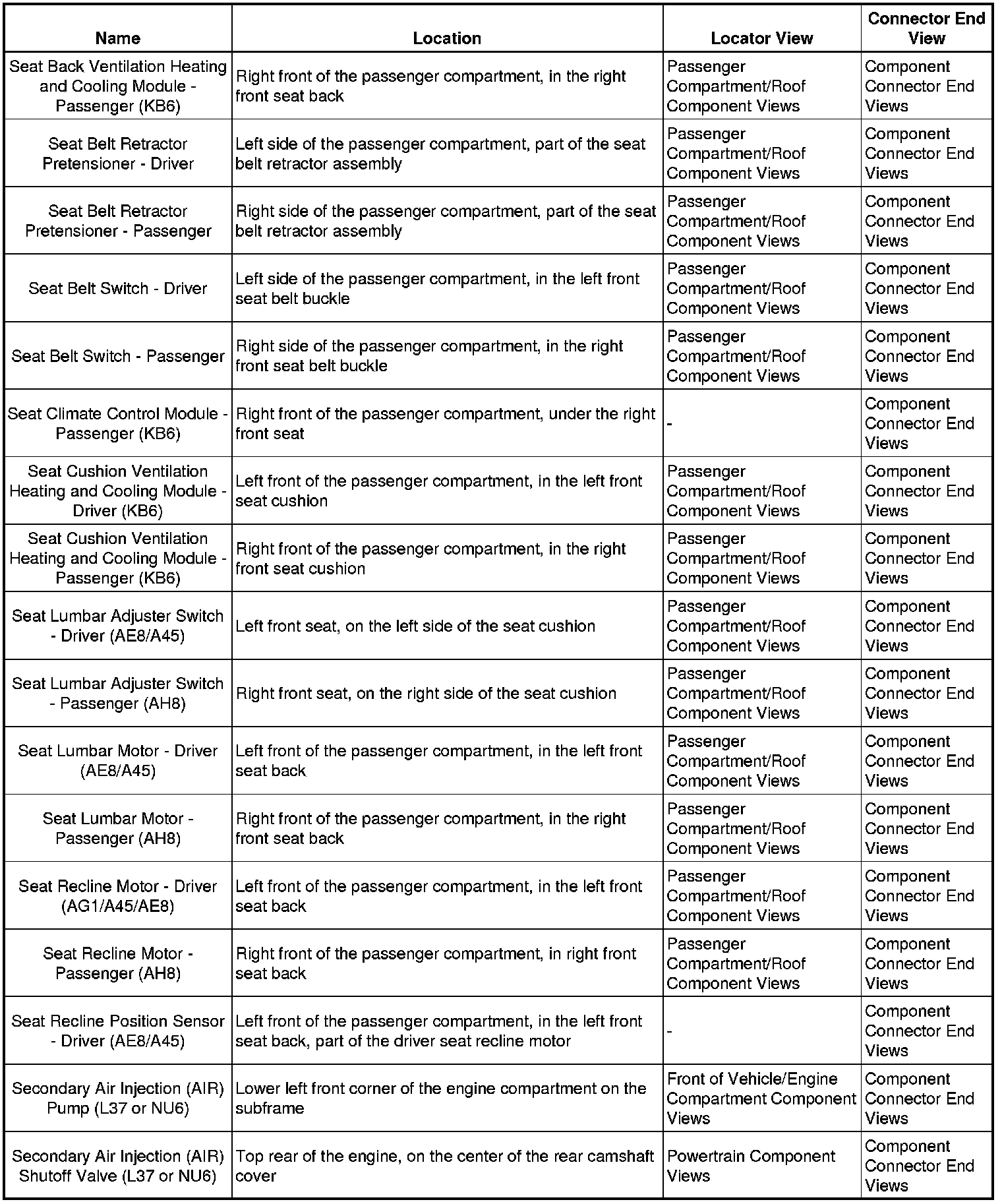

Se - Se:

Sh - Sp:

Sp - Su:

Su - Va:

Ve - Wi:

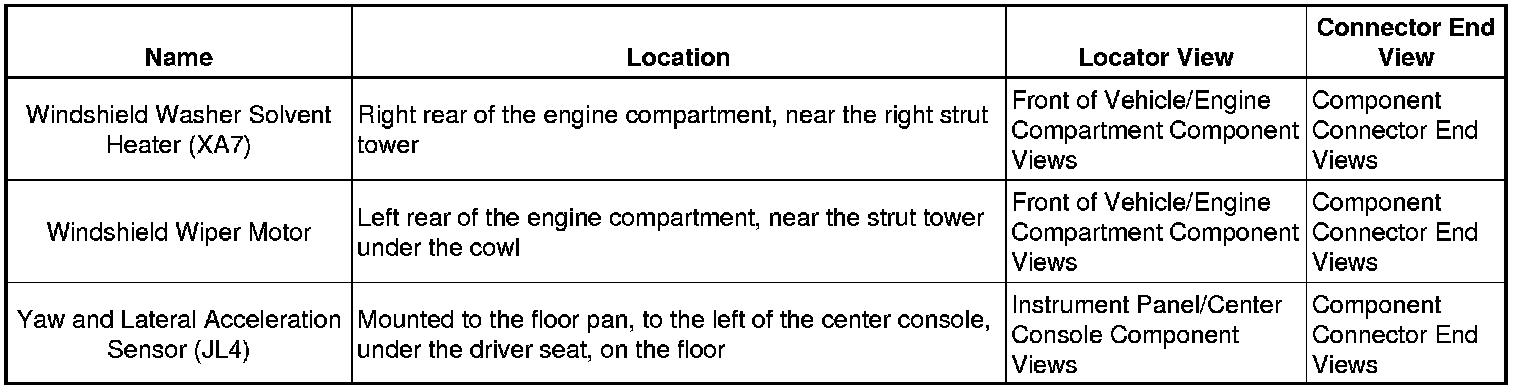

Wi - Ya:
