Hydraulic Brake Booster Pump Relay: Diagrams




Component Connector End Views

Brake Booster Pump Relay X1

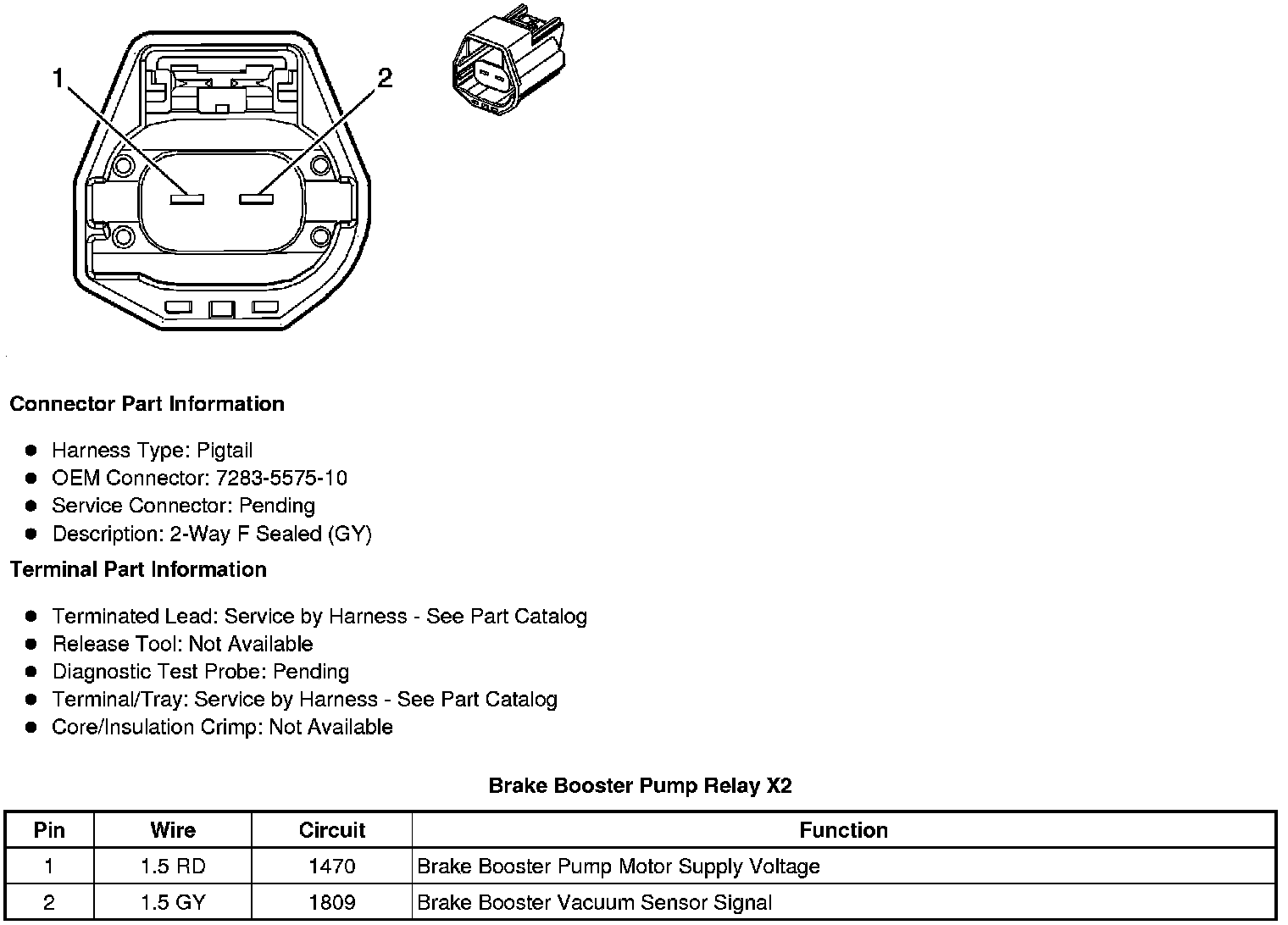

Brake Booster Pump Relay X2
