27. Forward and Coast Clutch Installation

Forward and Coast Clutch Installation

Special Tools

J 39053 - Forward and Coast Clutch Assembly Installer

For equivalent regional tools, refer to Special Tools (4T80-E - Automatic Transmission).





Warning

The forward and coast clutch assembly weighs approximately 50 lbs. Personal injury may result if you drop the assembly.

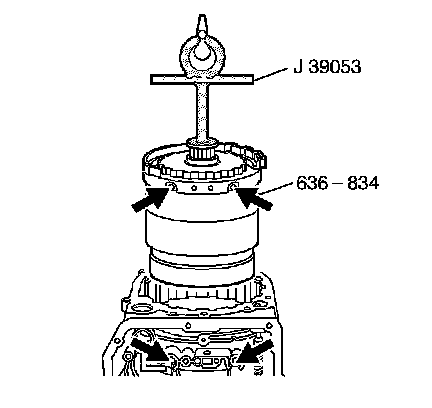

1. Install the J 39053 - clutch assembly installer into the forward and coast clutch and support assembly (636-834).
2. Using a chain hoist or suitable lifting equipment, install the forward and coast clutch and support assembly (636-834) into the barrel of the case. The two bolt holes and feed holes must line up with the holes in the bottom of the case.
