Transmission Pressure Test Port: Service and Repair

Automatic Transmission Fluid Pressure Test Hole Plug Replacement

Removal Procedure

1. Remove the throttle body air inlet duct.

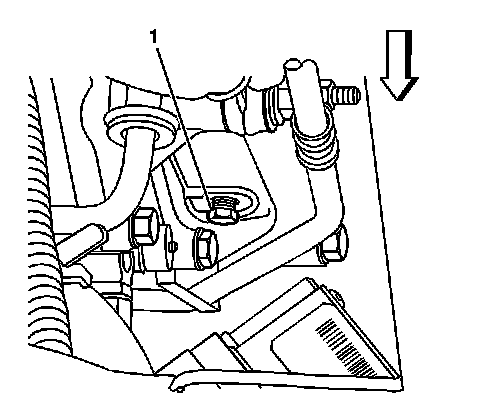

2. Remove the oil pressure test plug (1).

Installation Procedure

Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the oil pressure test plug (1).

Tighten the oil pressure test plug to 22 Nm (16 lb ft).

2. Install the throttle body air inlet duct.
