Electrical Diagrams
Engine Controls Schematics (LFX)

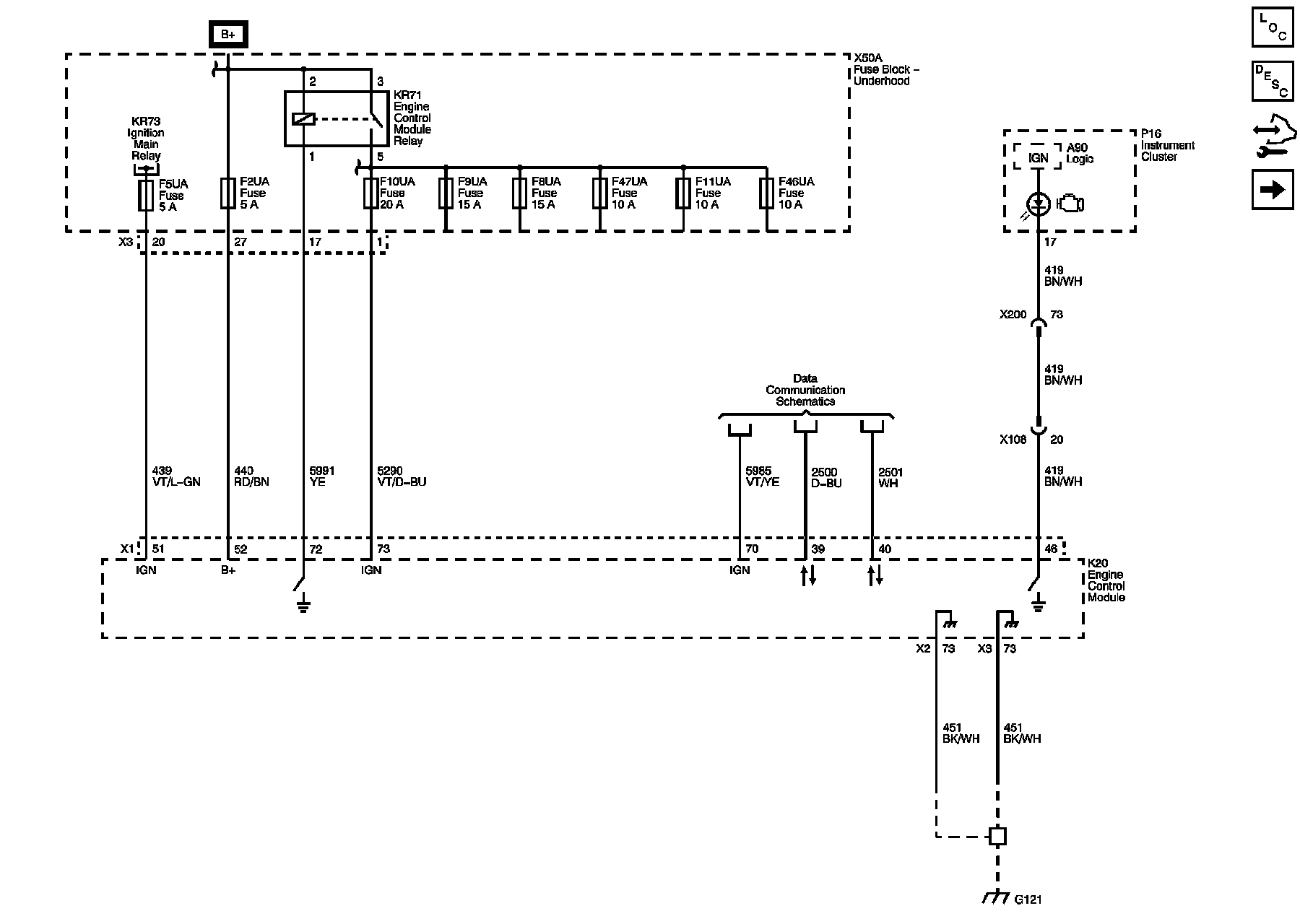

Module Power, Ground, Serial Data, and MIL

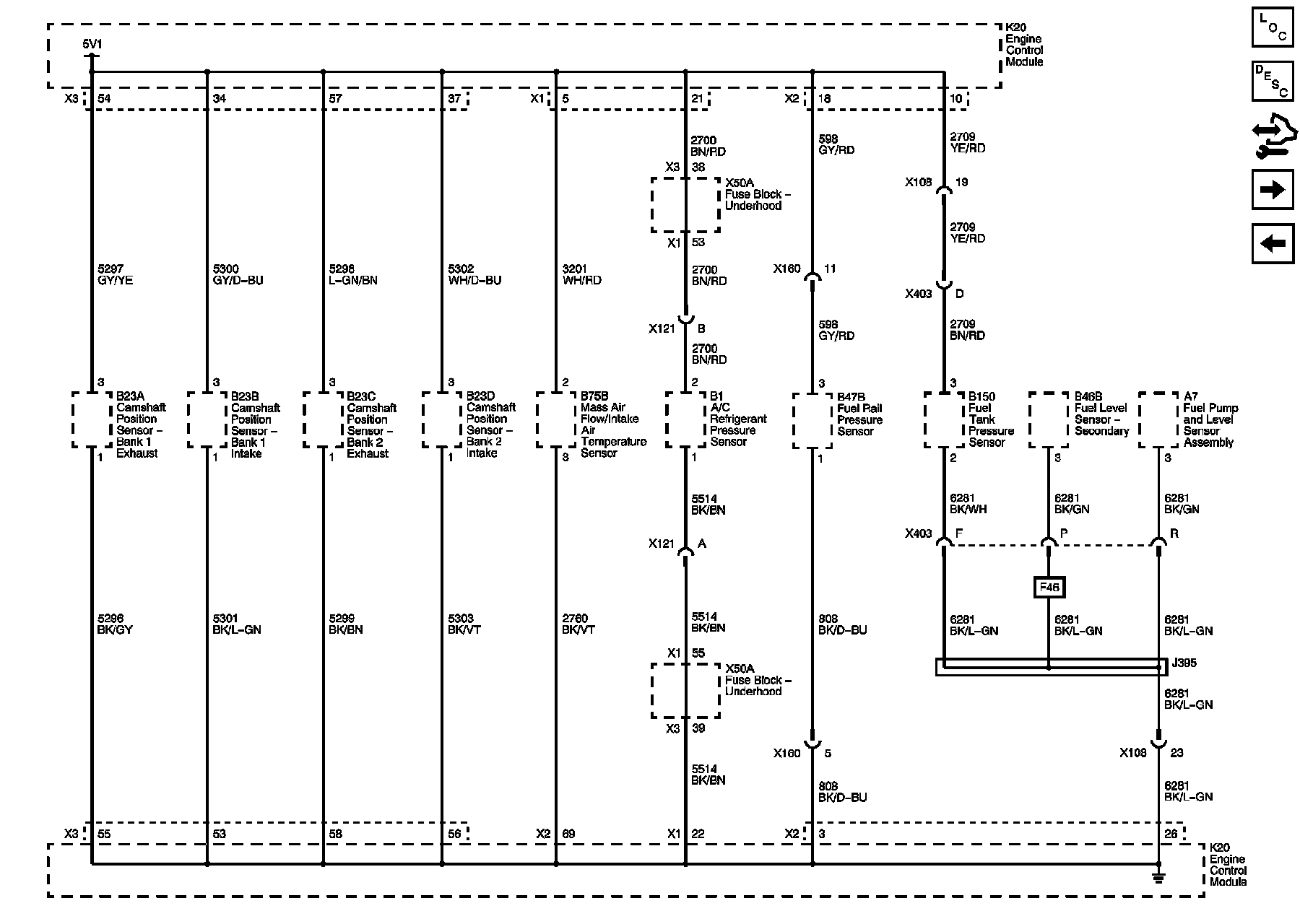

5V1, and Low Reference Bus (1 of 2)
5V2, 5V3, 5V4 and Low Reference Bus (2 of 2)
Engine Data Sensors - Pressure, Temperature, and Throttle Controls

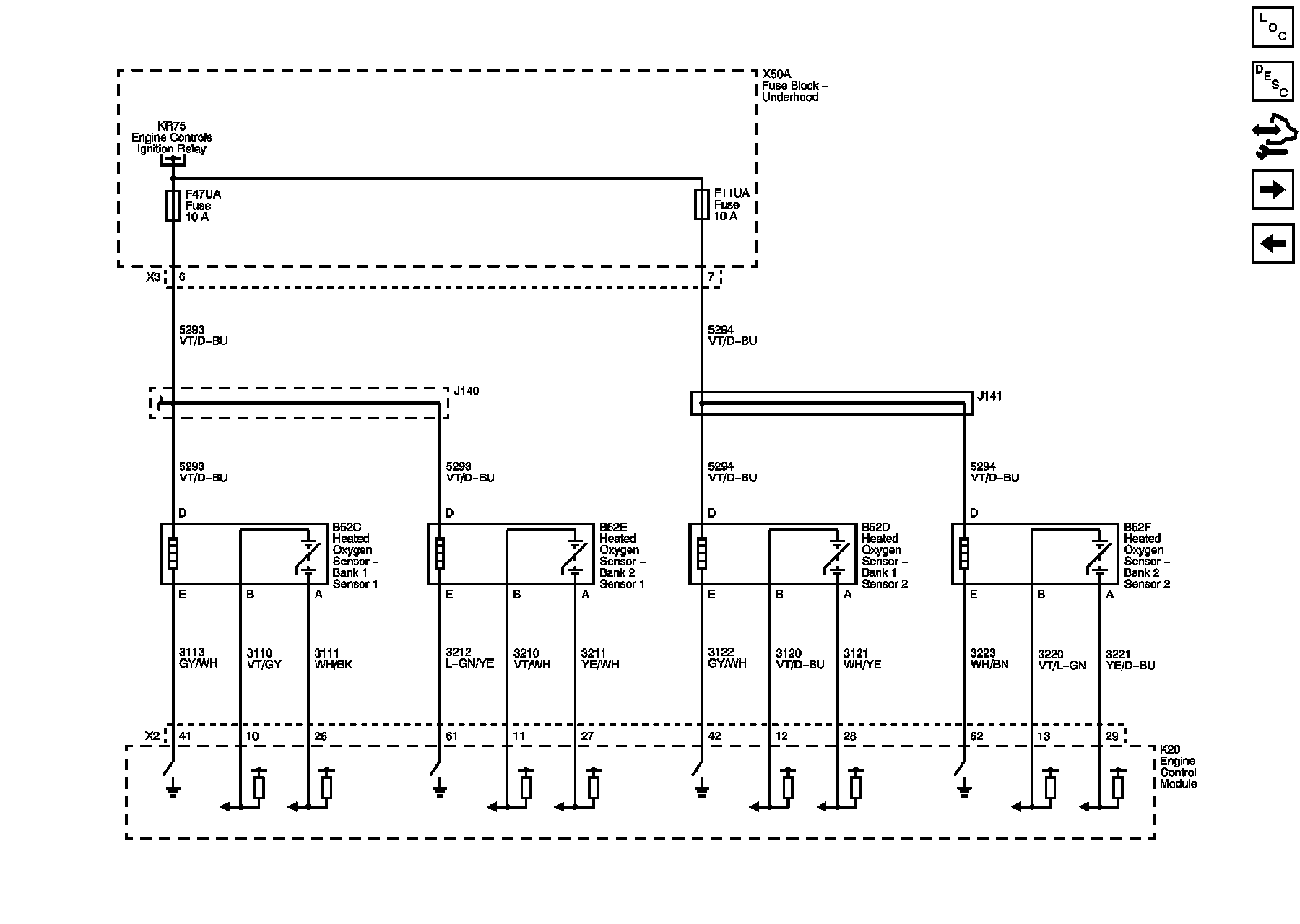

Engine Data Sensors - Oxygen Sensors

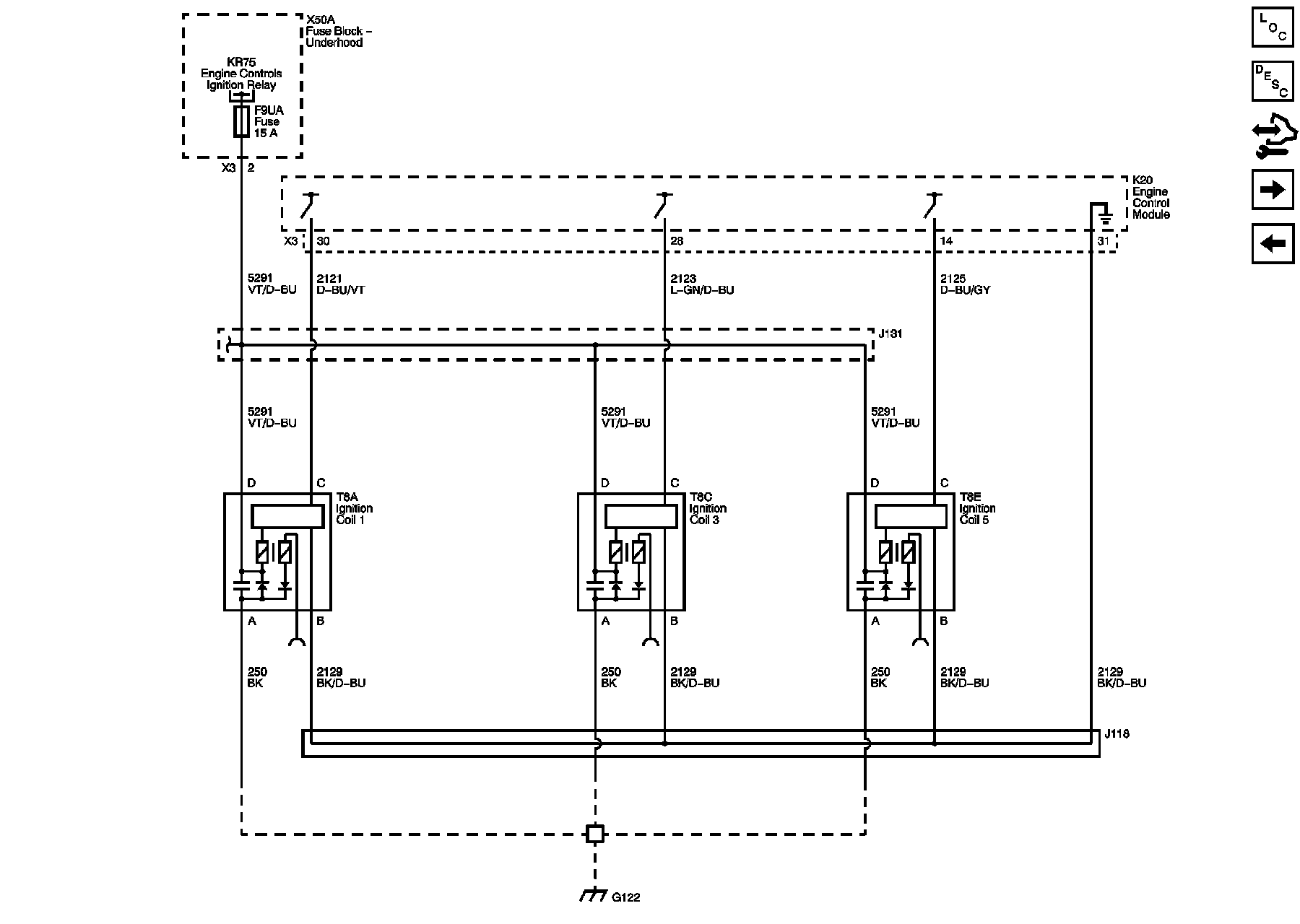

Ignition Controls - Bank 1 Ignition System
Ignition Controls - Bank 2 Ignition System

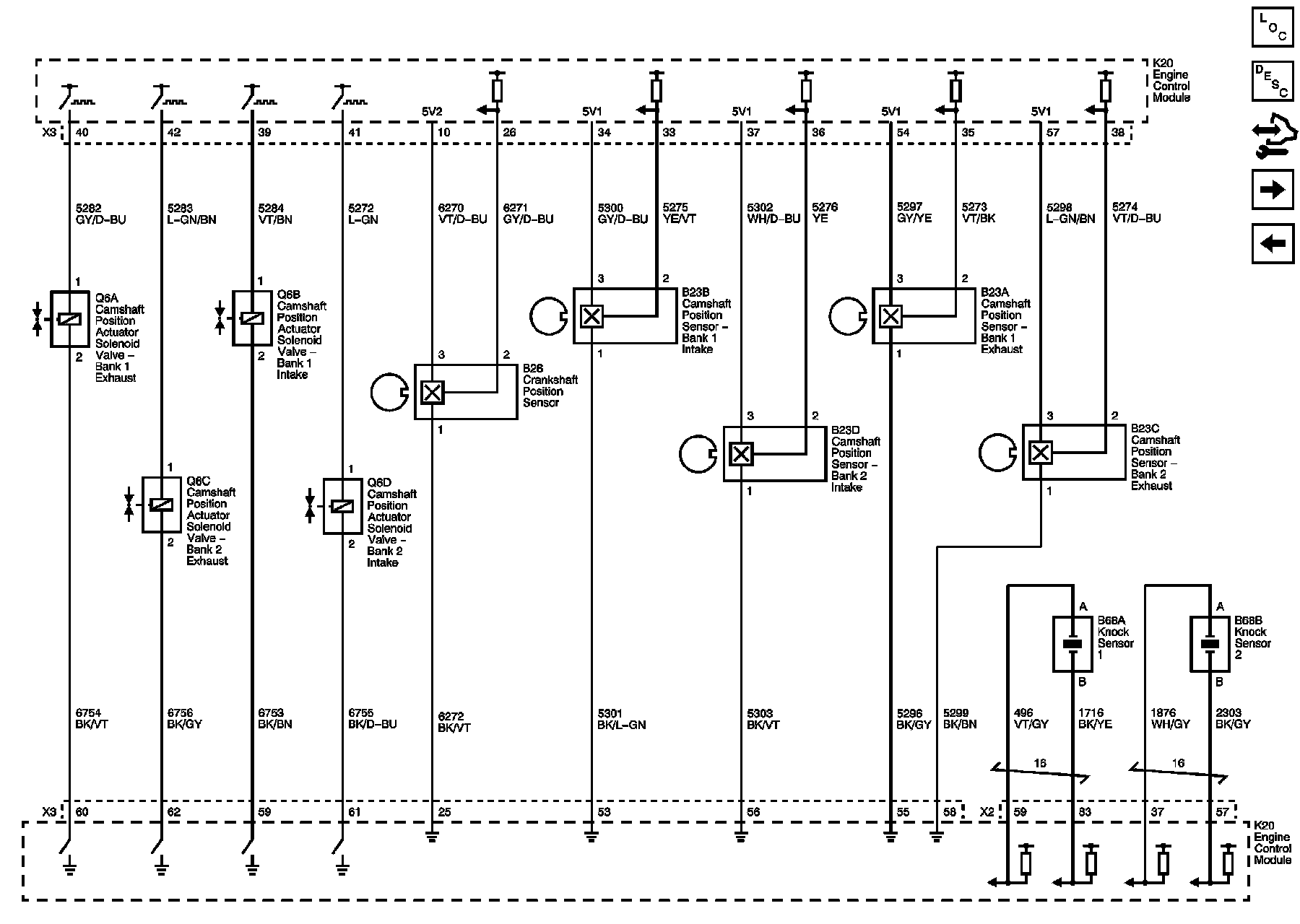

Ignition Controls - Camshaft Solenoids, Camshaft, Crankshaft and Knock Sensors

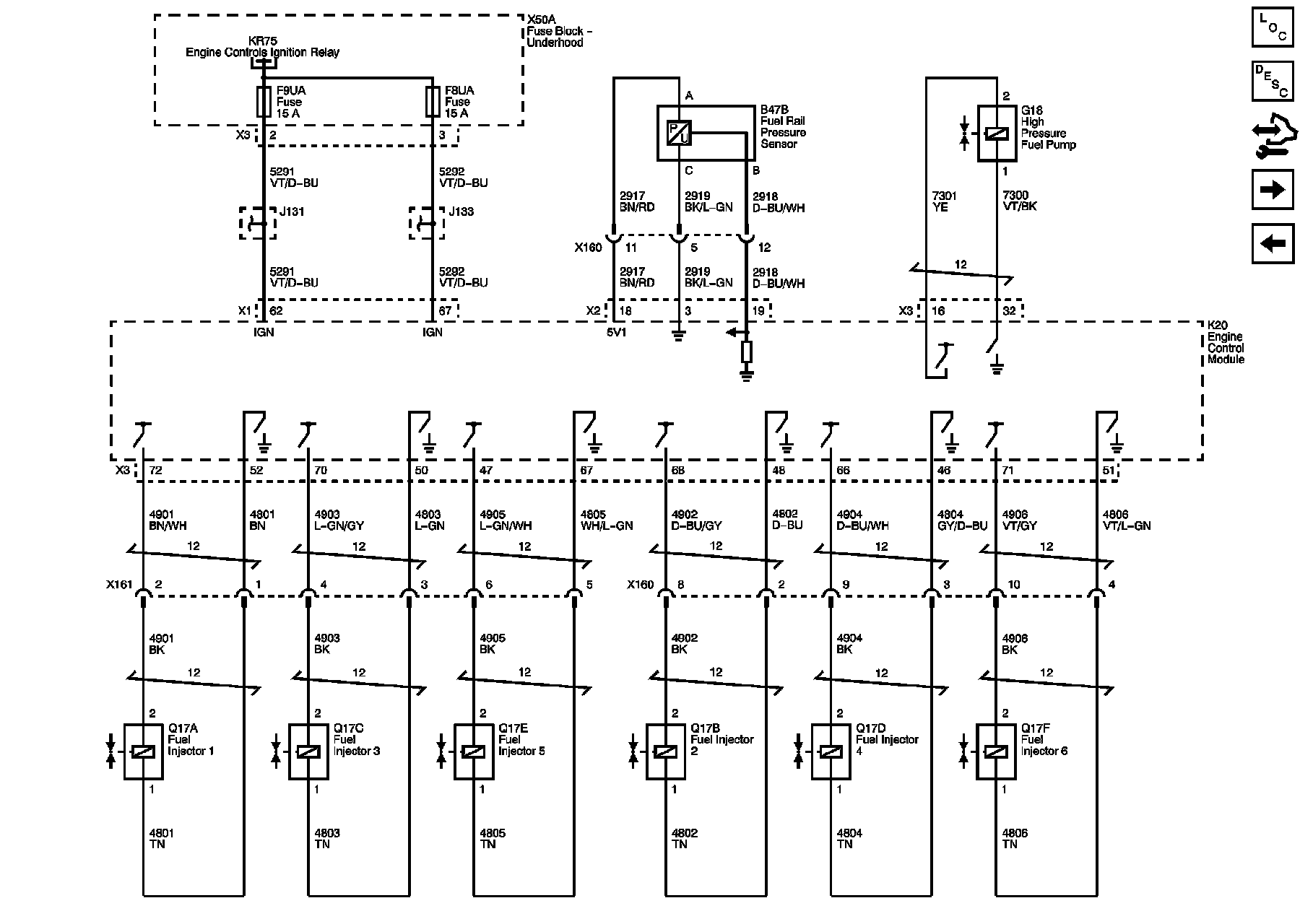

Fuel Controls - Fuel Injectors and Fuel Pressure
Fuel Controls - Fuel Pump Flow Control

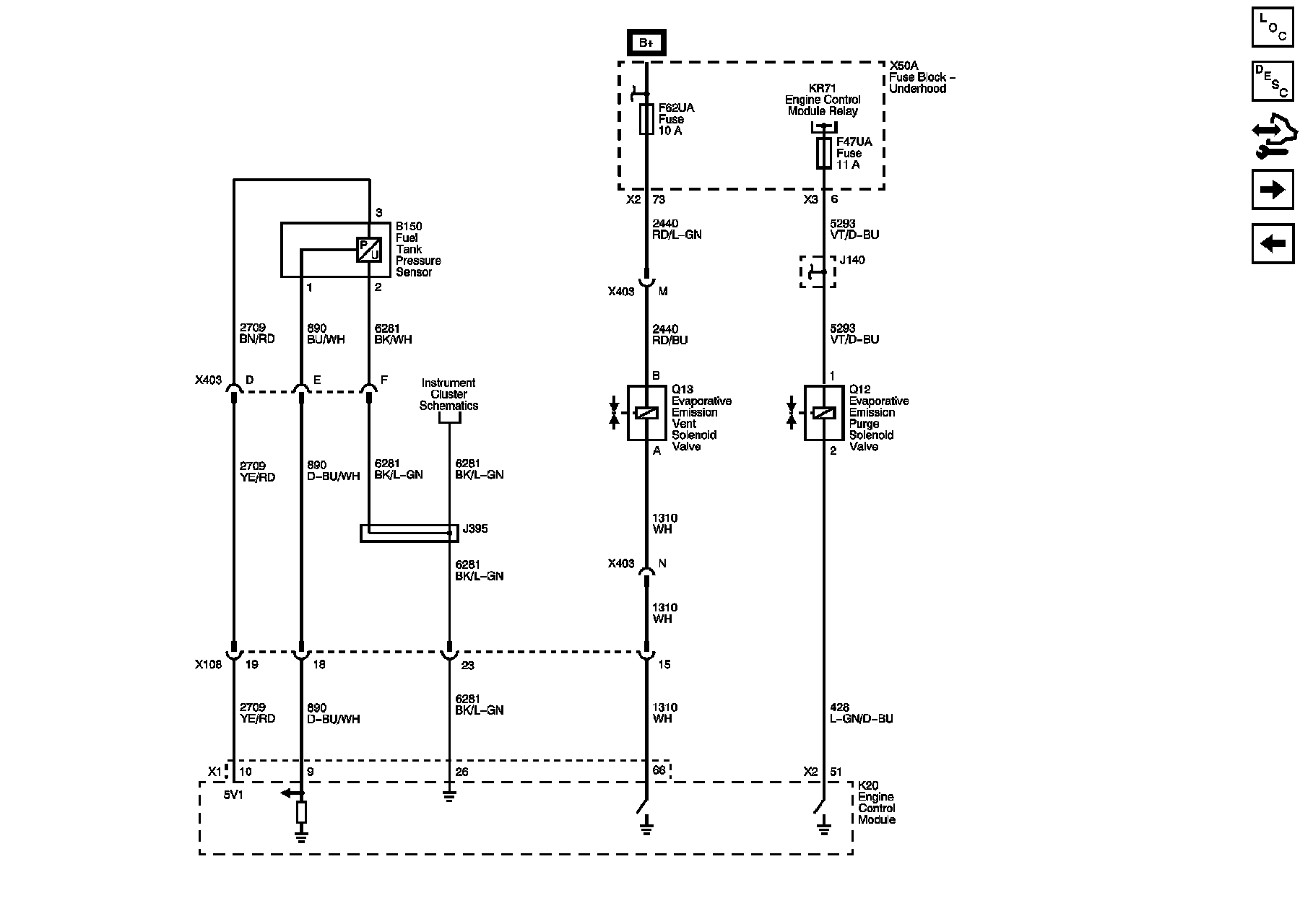

Fuel Controls - Evaporative Emission Controls

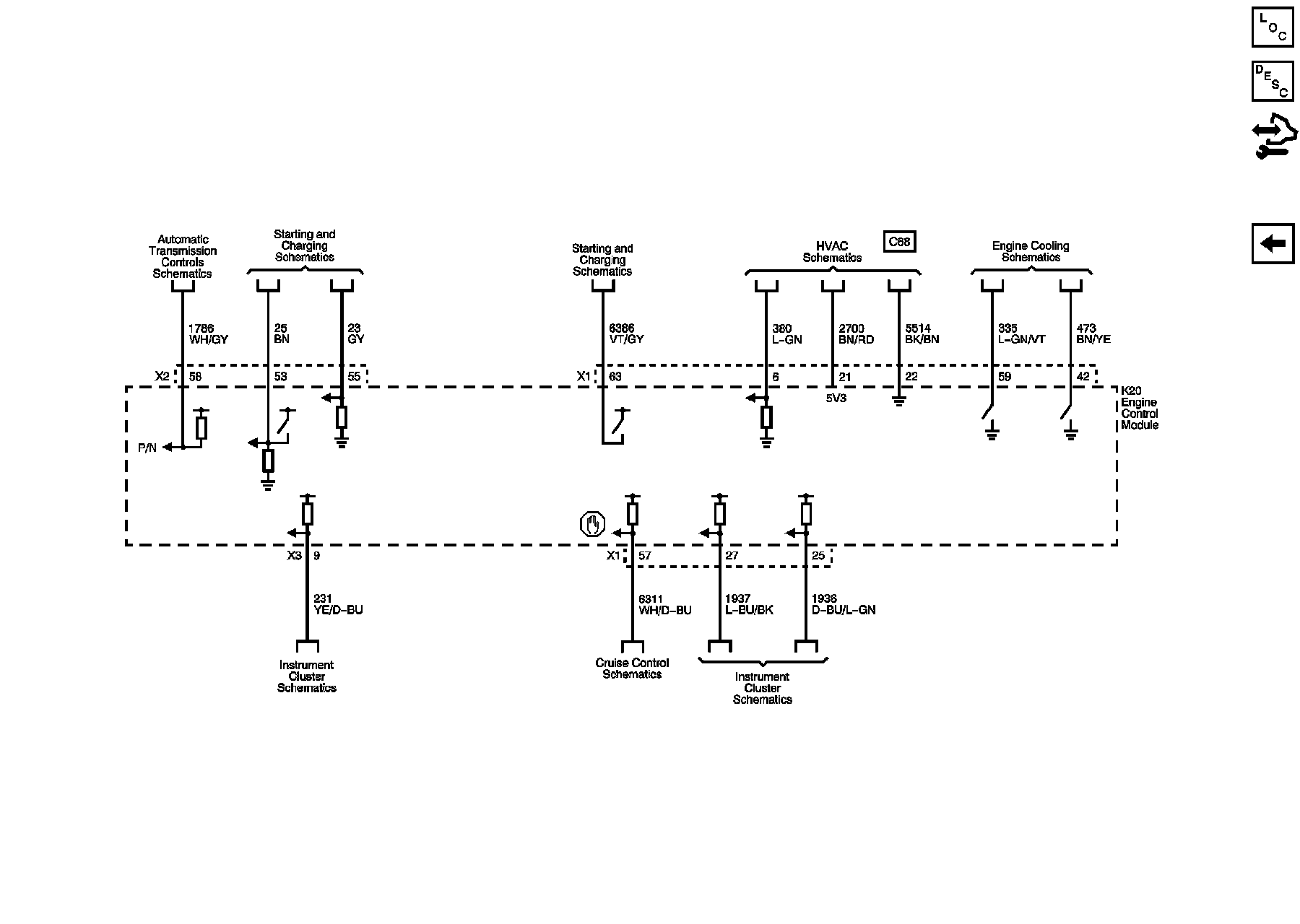

Controlled/Monitored Subsystem References
