49. Cylinder Head Installation

Cylinder Head Installation (LAF, LEA, or LUK)

Special Tools

EN 45059 - Angle Meter

For equivalent regional tools, refer to Special Tools Special Tools





Note:
Do not use any sealing material.

1. Install the cylinder head gasket to the block.

2. Install the cylinder head. Ensure the number 1 cylinder is at top dead center (TDC). The key on the crankshaft should be on top in the 12 o'clock position.





Caution:
Refer to Fastener Caution Fastener Caution.

Note:
Always use NEW cylinder head bolts.

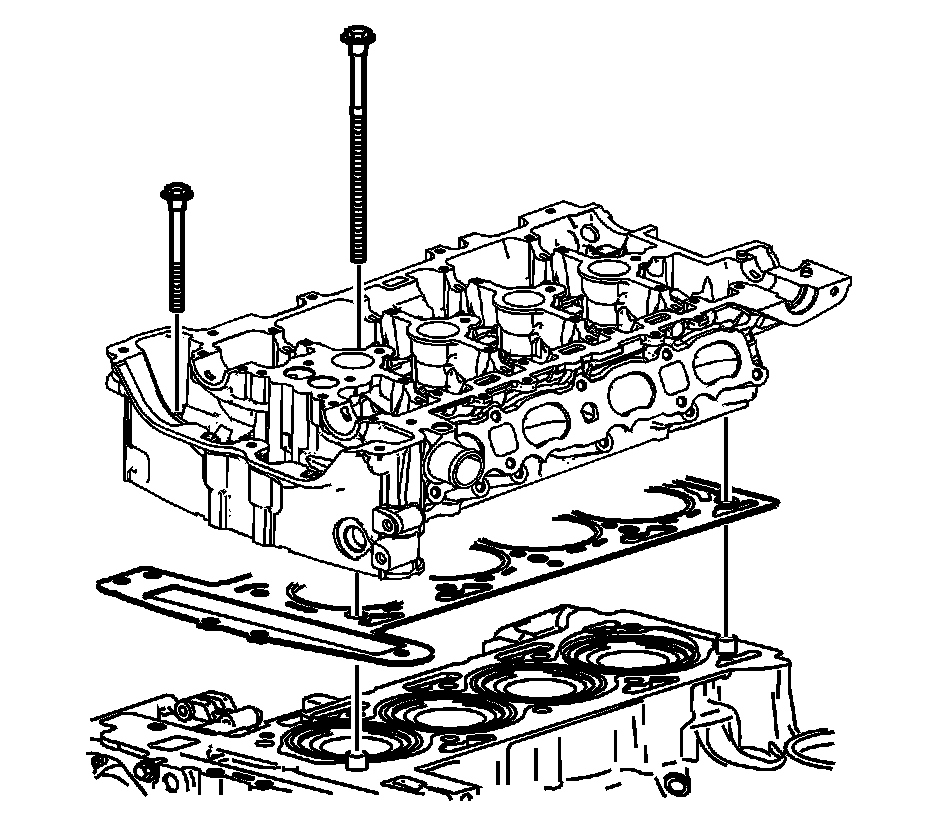

3. Install the cylinder head bolts.

1. Tighten the bolts in sequence to 30 Nm (22 lb ft).

2. Tighten the bolts an additional 155 degreesin sequence using the EN 45059 - meter.





4. Install the front cylinder head bolts and tighten to 30 Nm (22 lb ft).
