Electrical Diagrams
Engine Controls Schematics

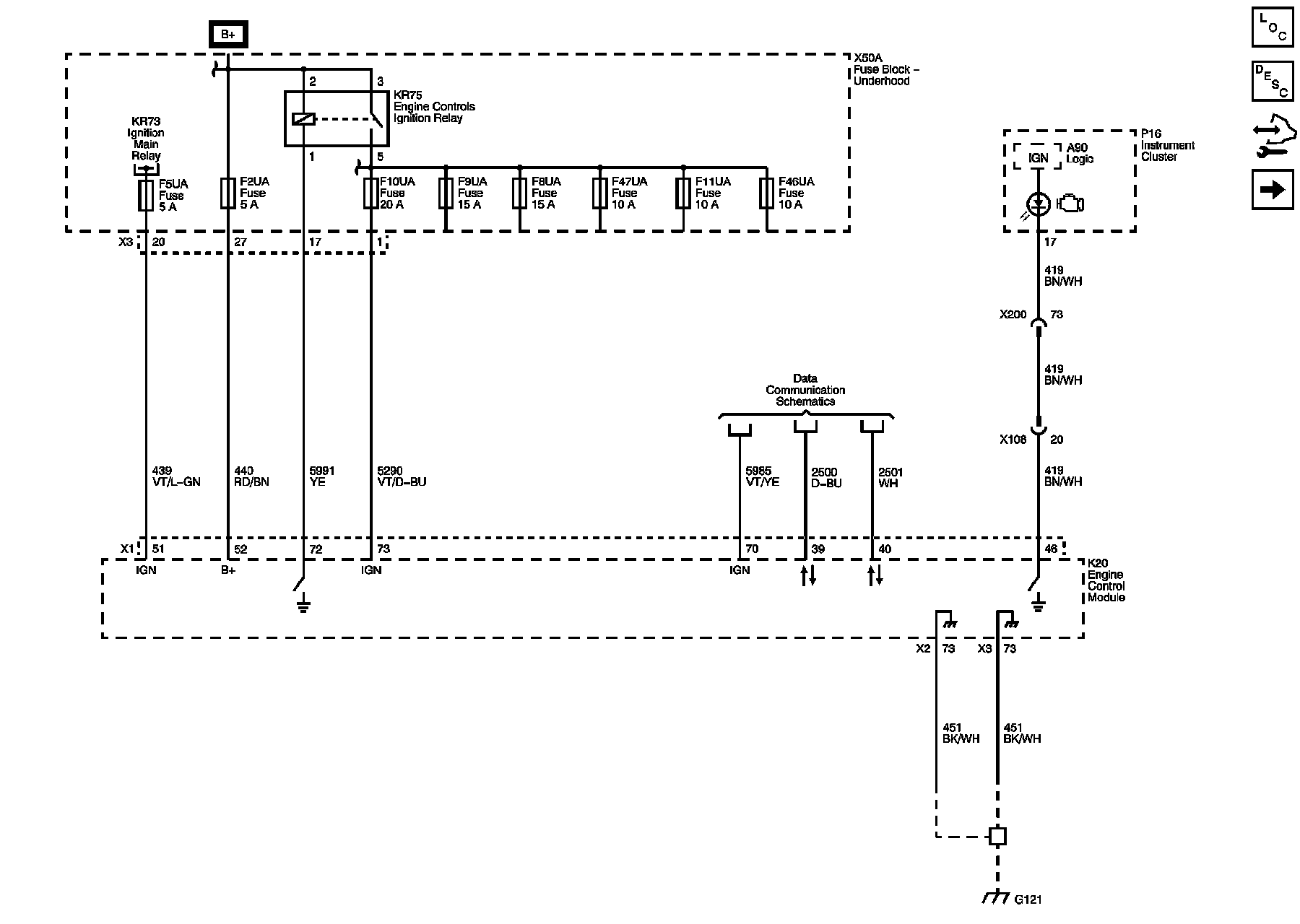

Module Power, Ground, Serial Data, and MIL

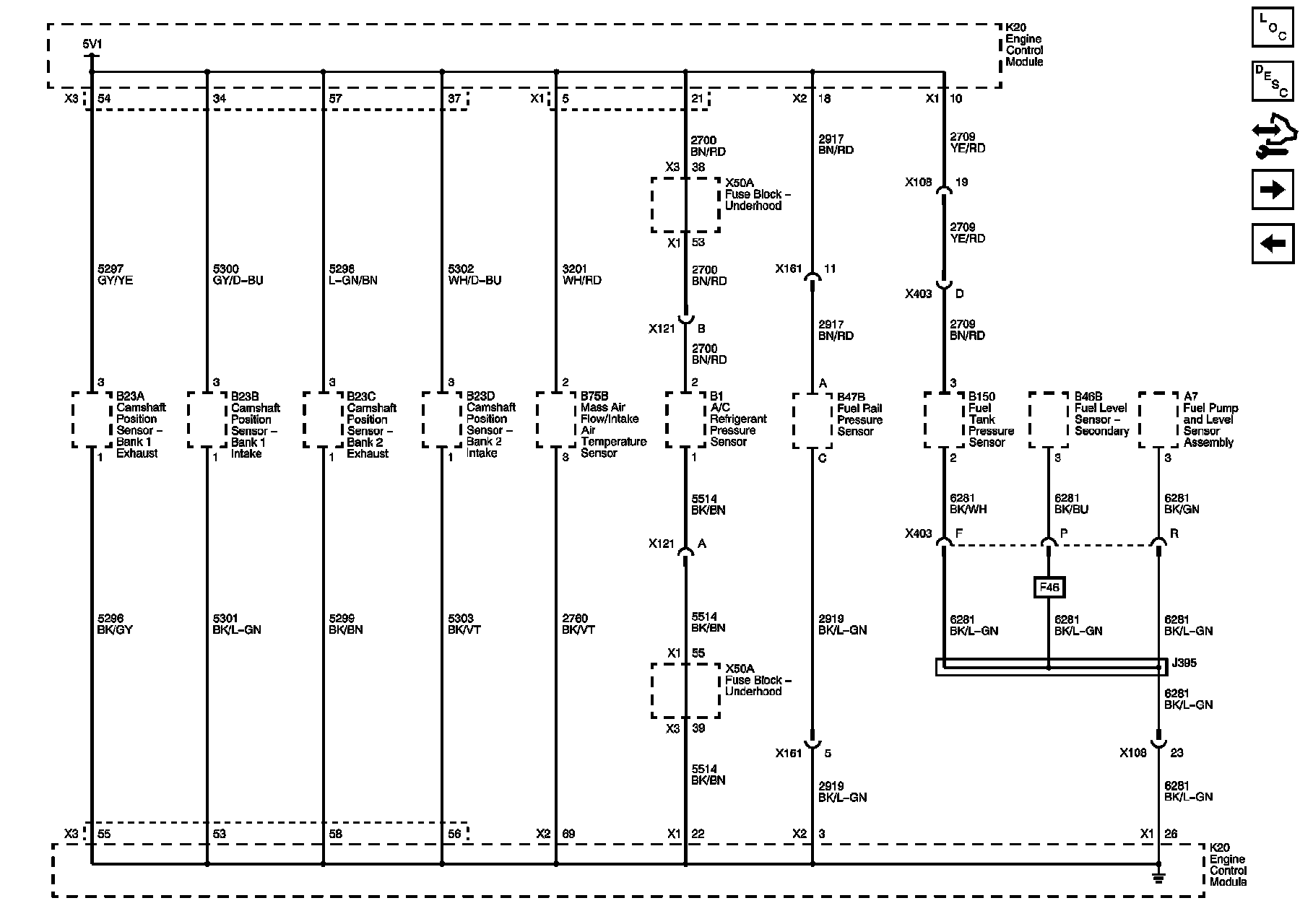

5V1, and Low Reference Bus (1 of 2)

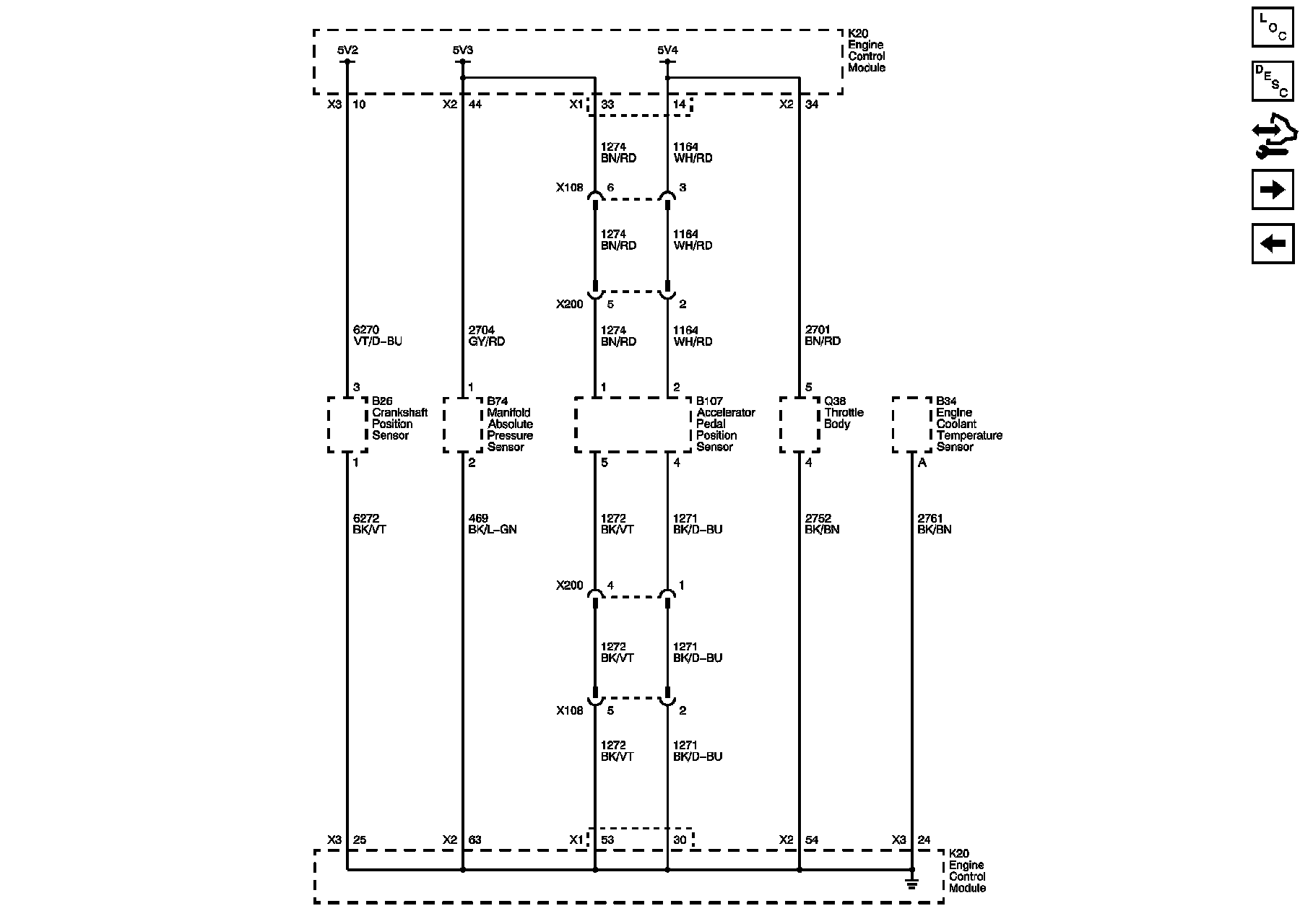

5V2, 5V3, 5V4, and Low Reference Bus (2 of 2)

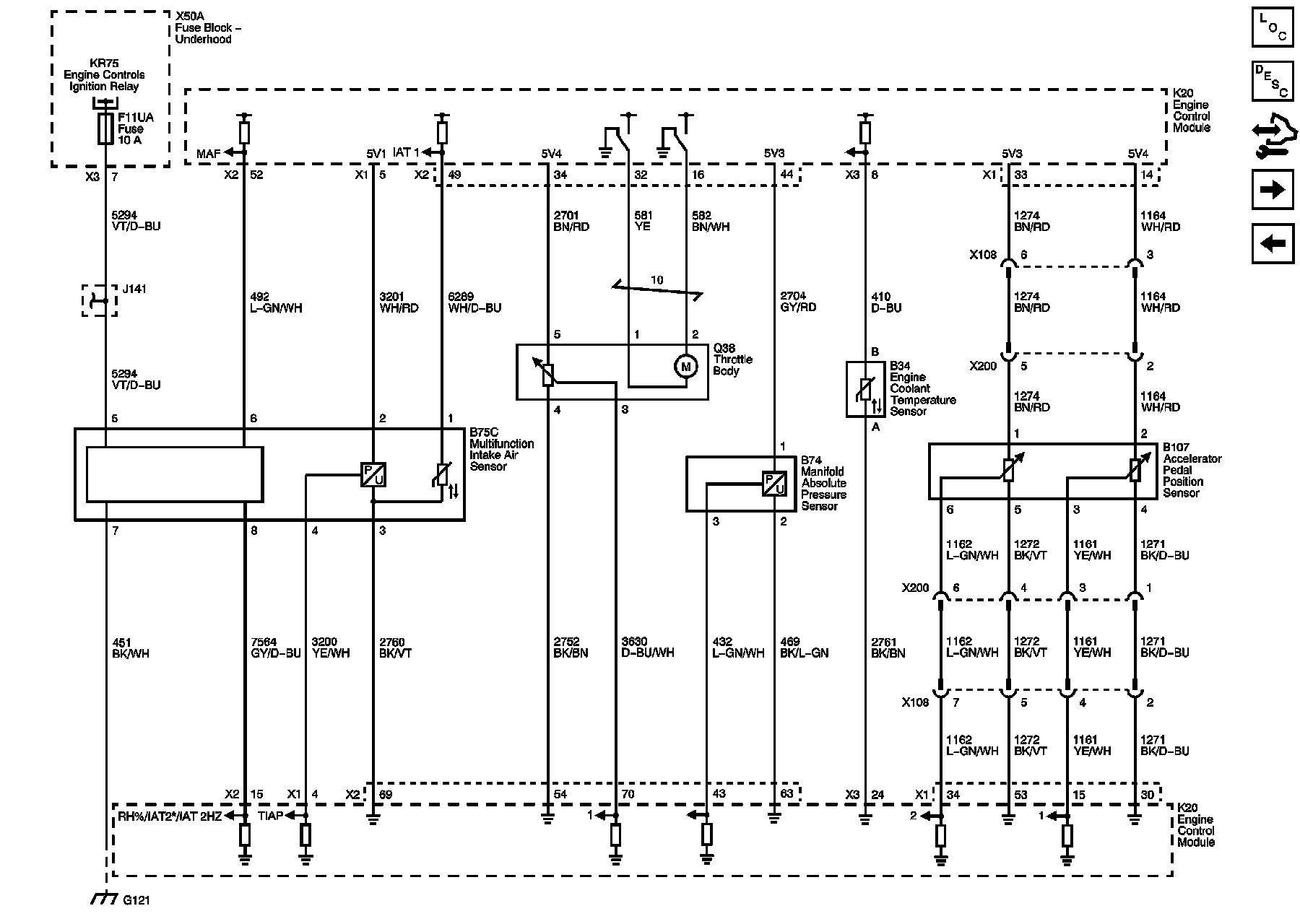

Engine Data Sensors - Pressure, Temperature, and Throttle Controls

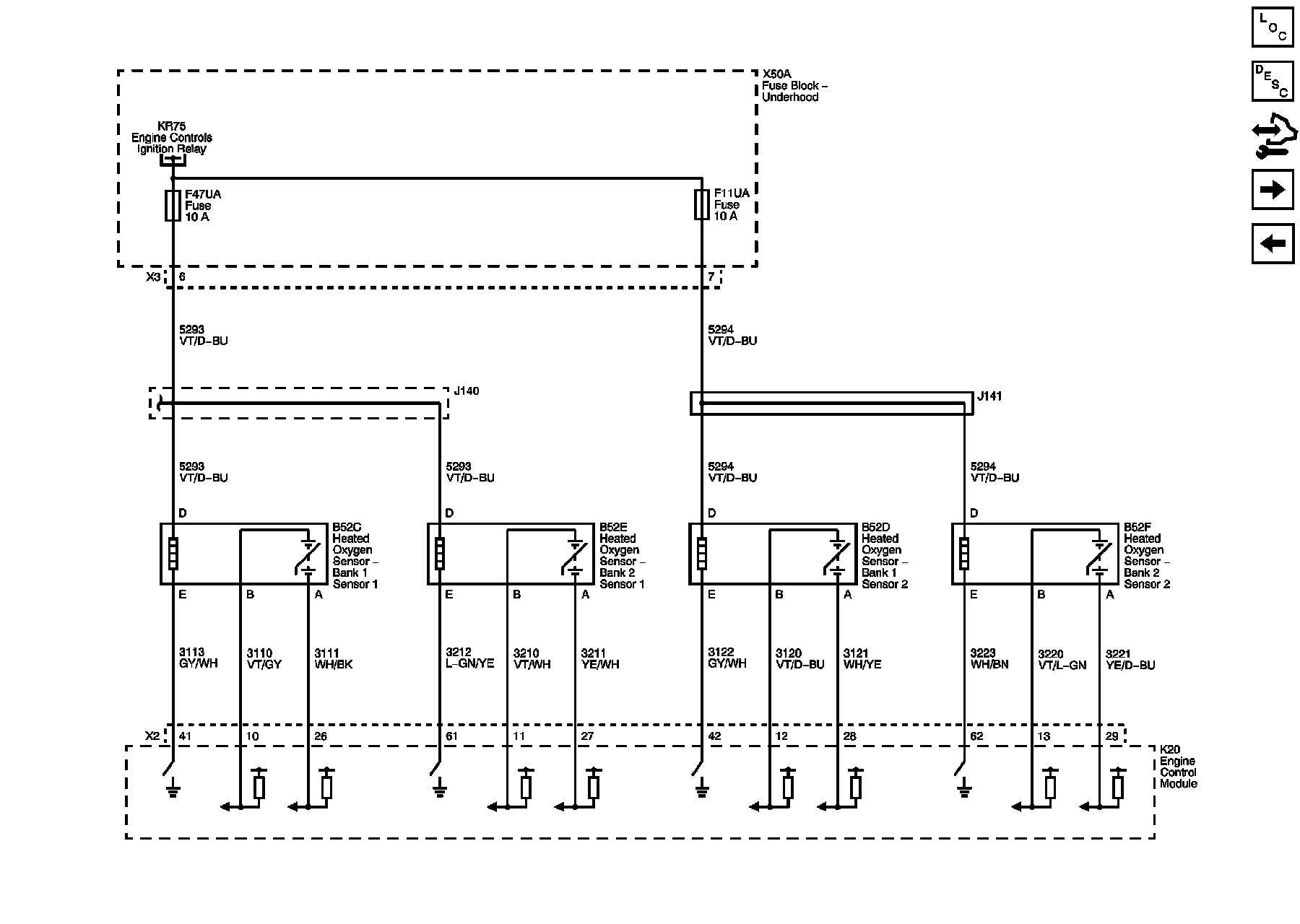

Engine Data Sensors - Oxygen Sensors

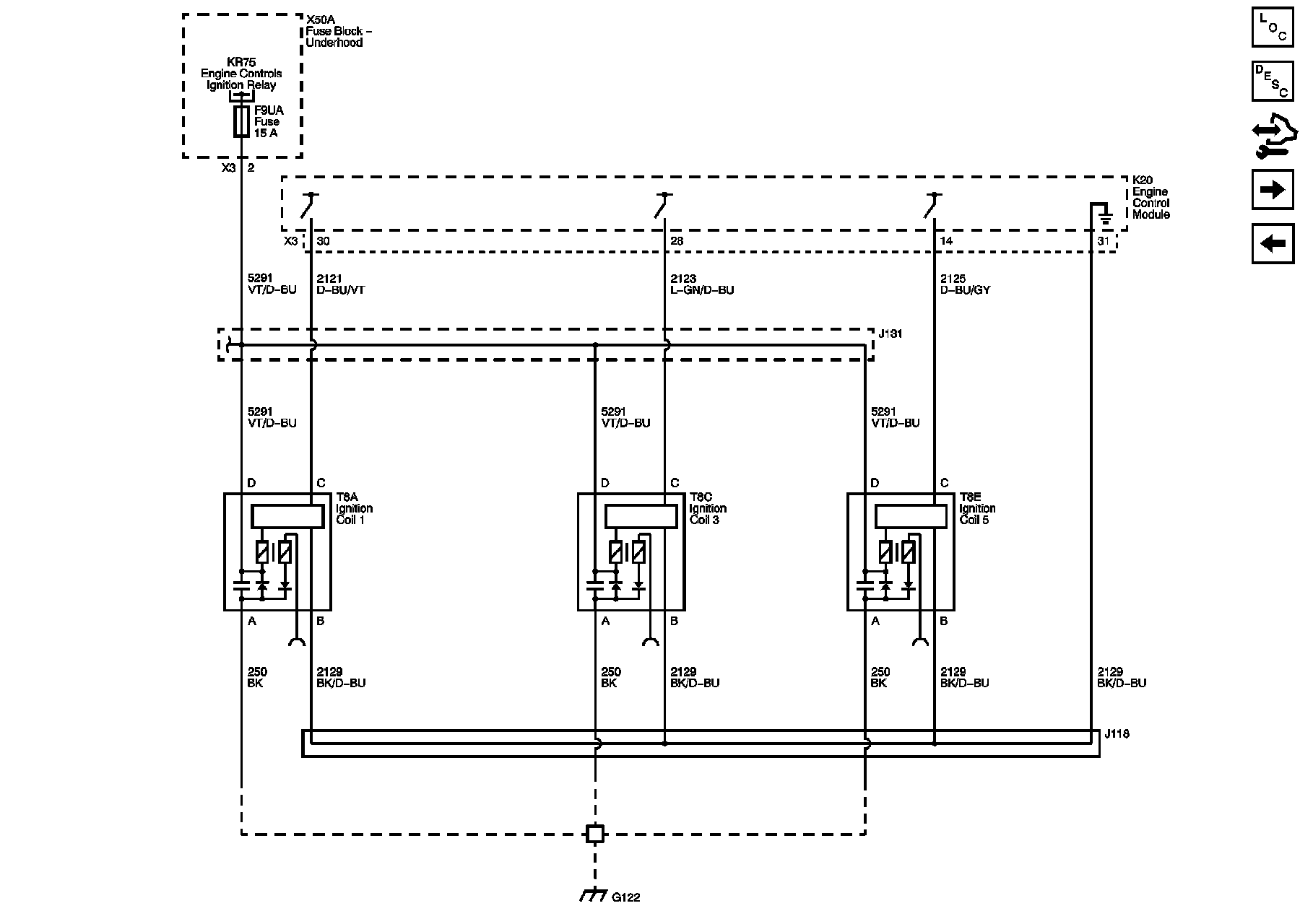

Ignition Controls - Bank 1 Ignition System

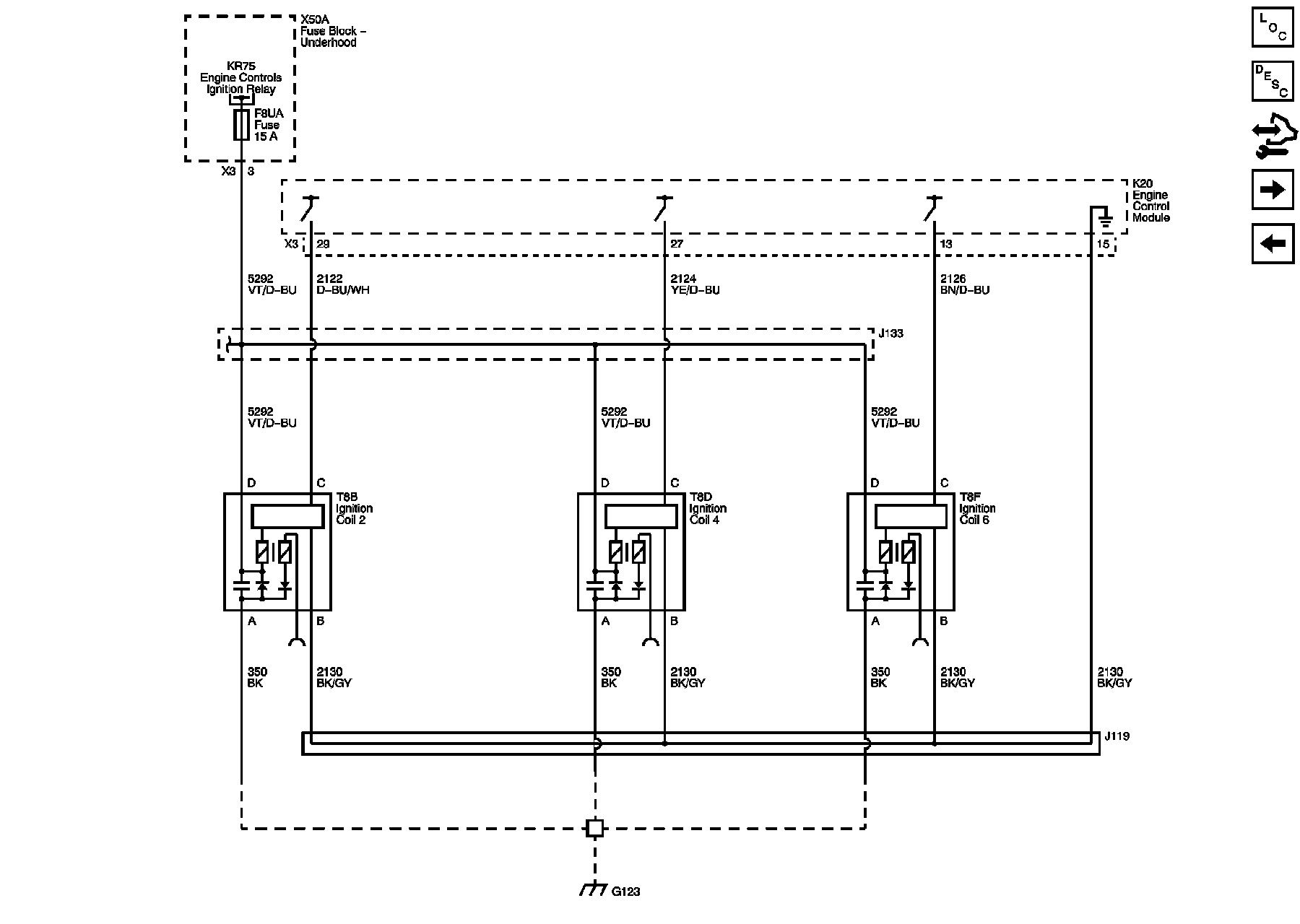

Ignition Controls - Bank 2 Ignition System

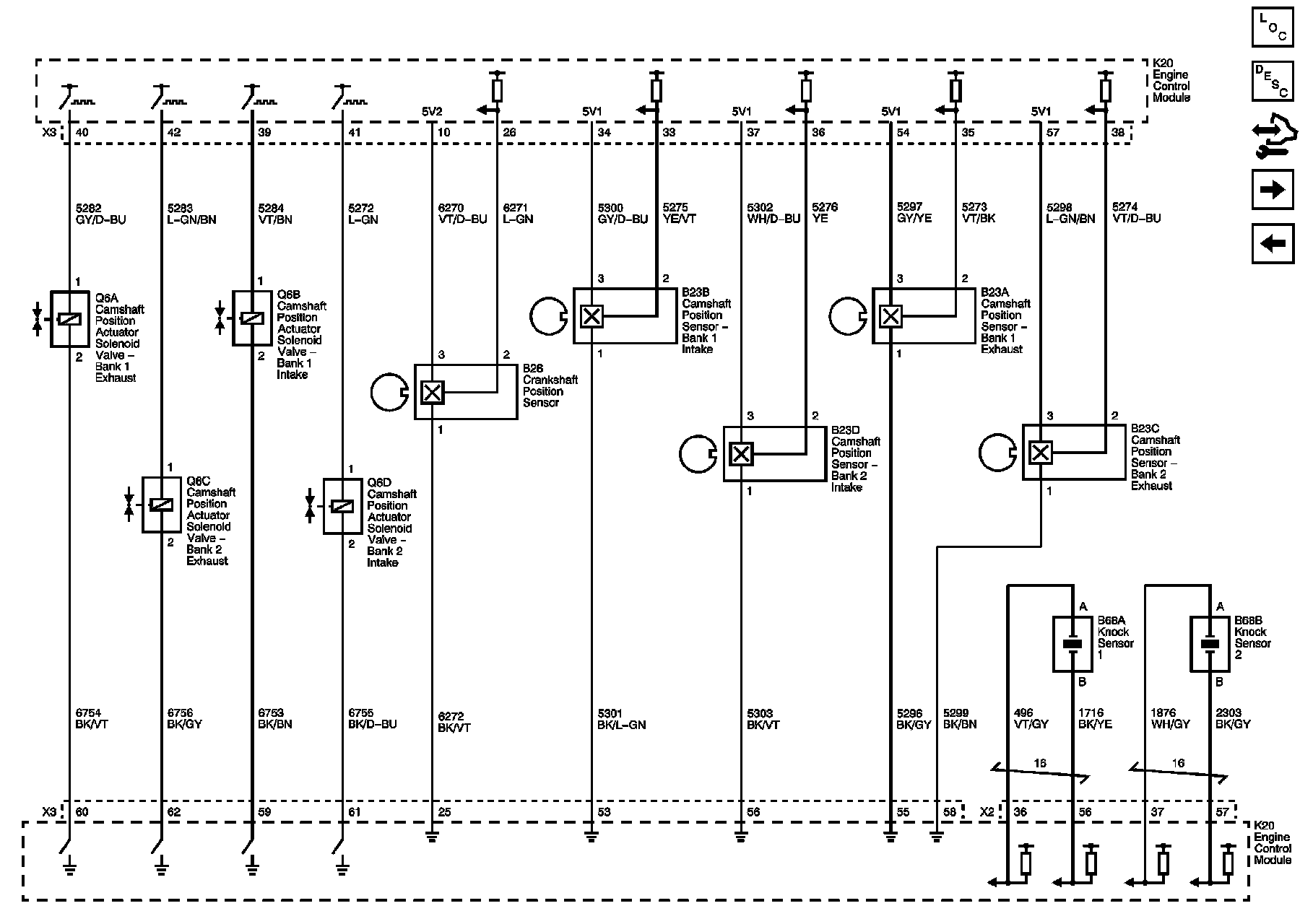

Ignition Controls - Camshaft Solenoids, Camshaft, Crankshaft and Knock Sensors

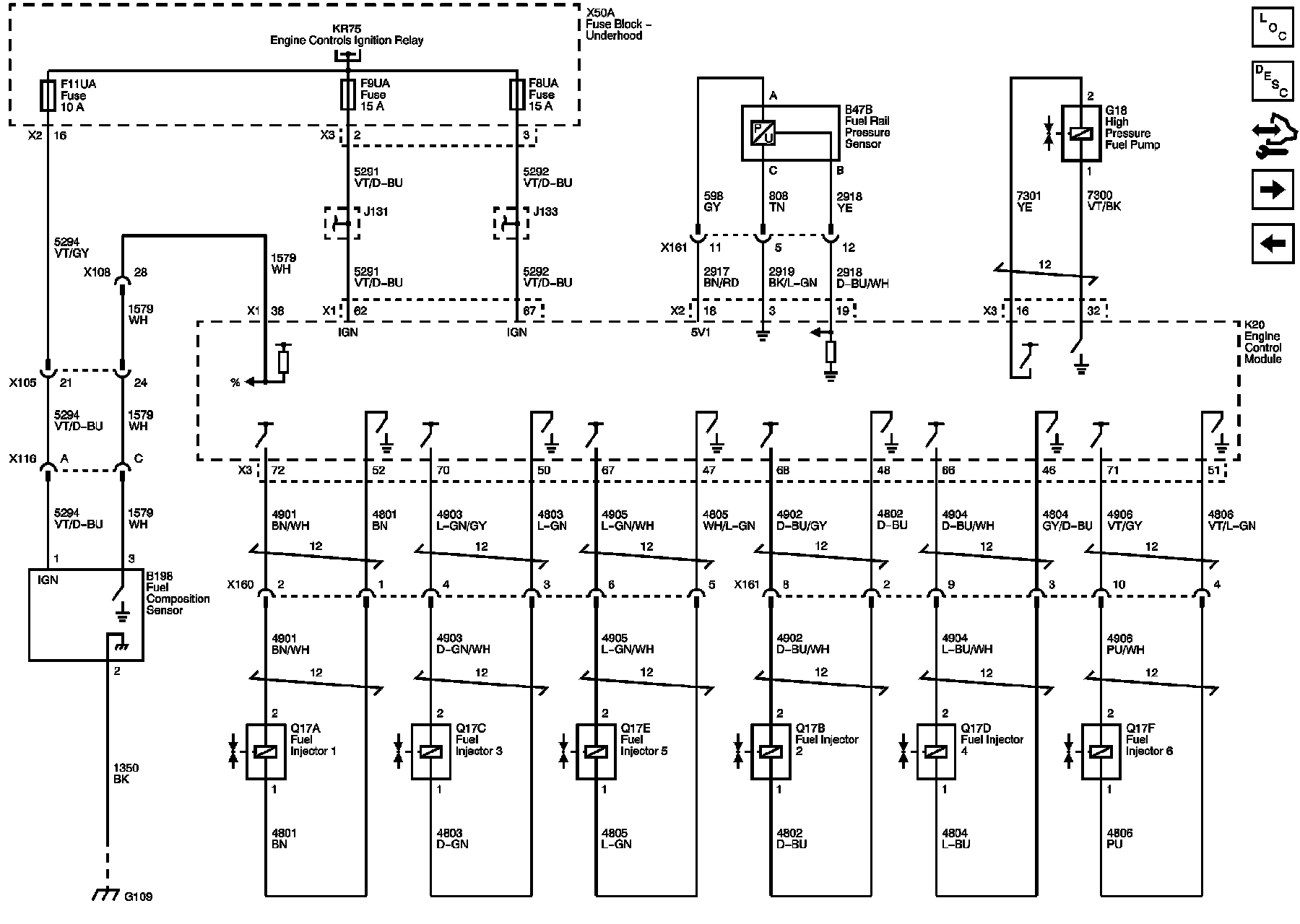

Fuel Controls - Injectors, Composition and Fuel Pressure
Fuel Controls - Fuel Pump Controls

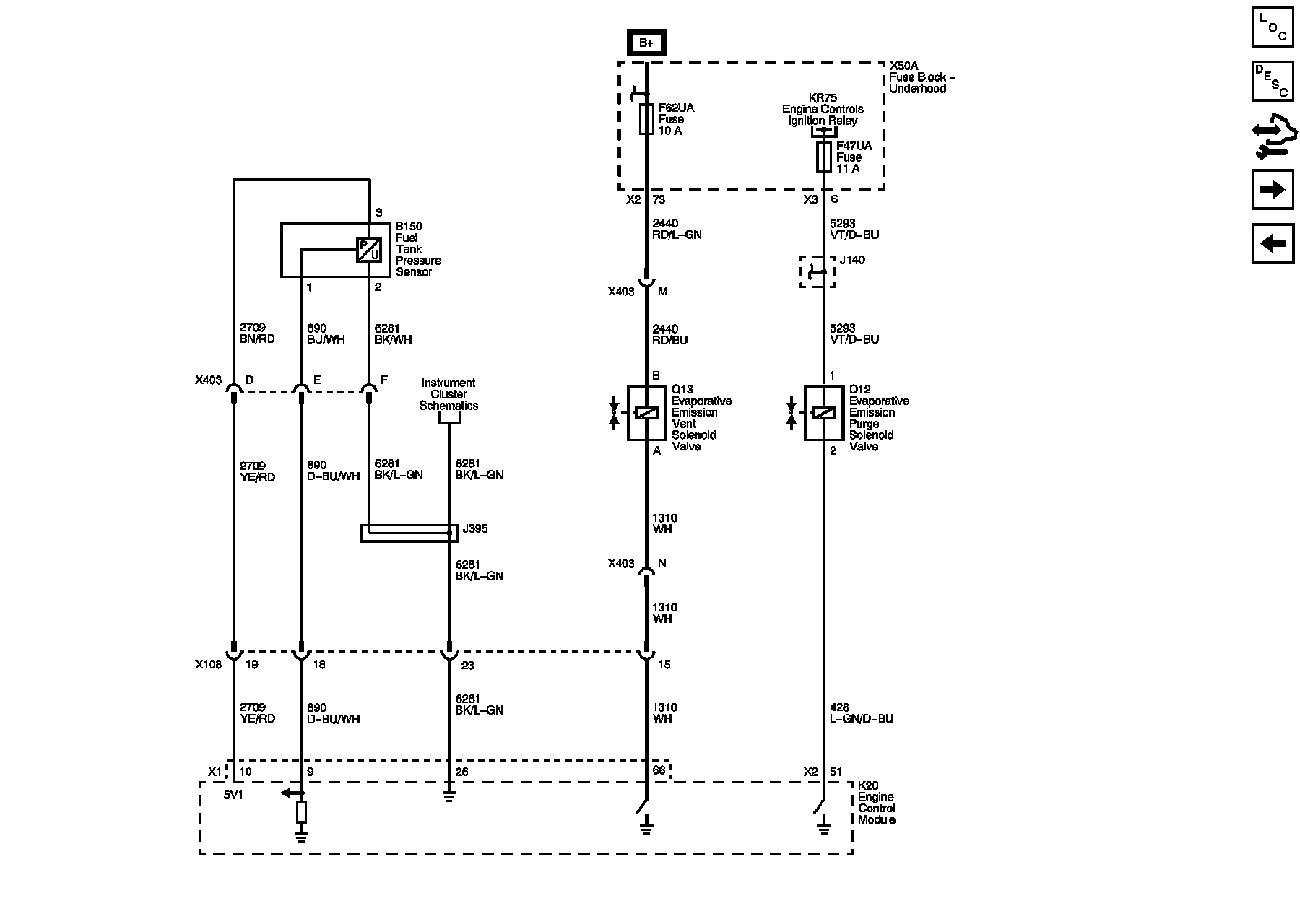

Fuel Controls - Evaporative Emission Controls

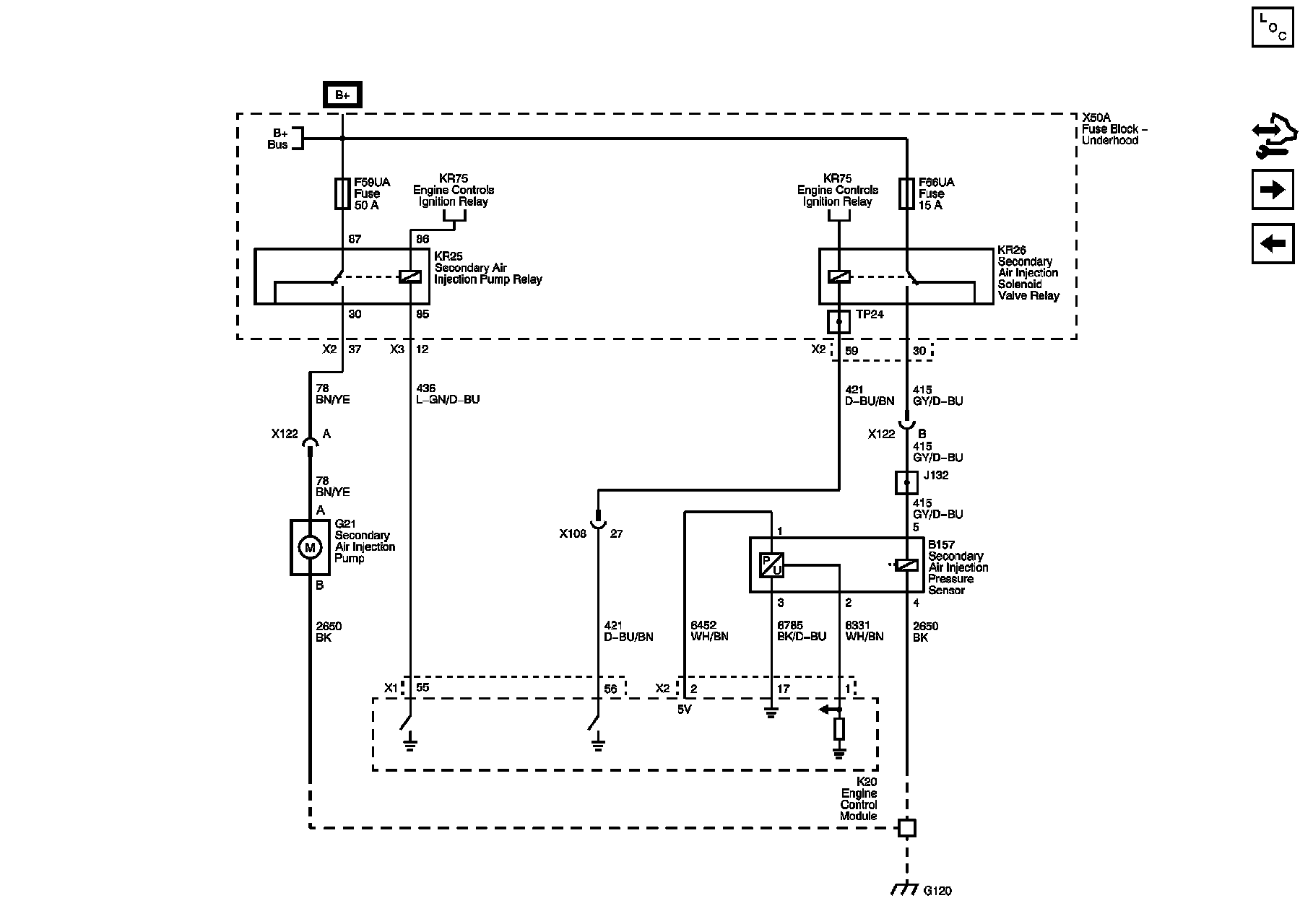

Secondary Air Injection (NU6)

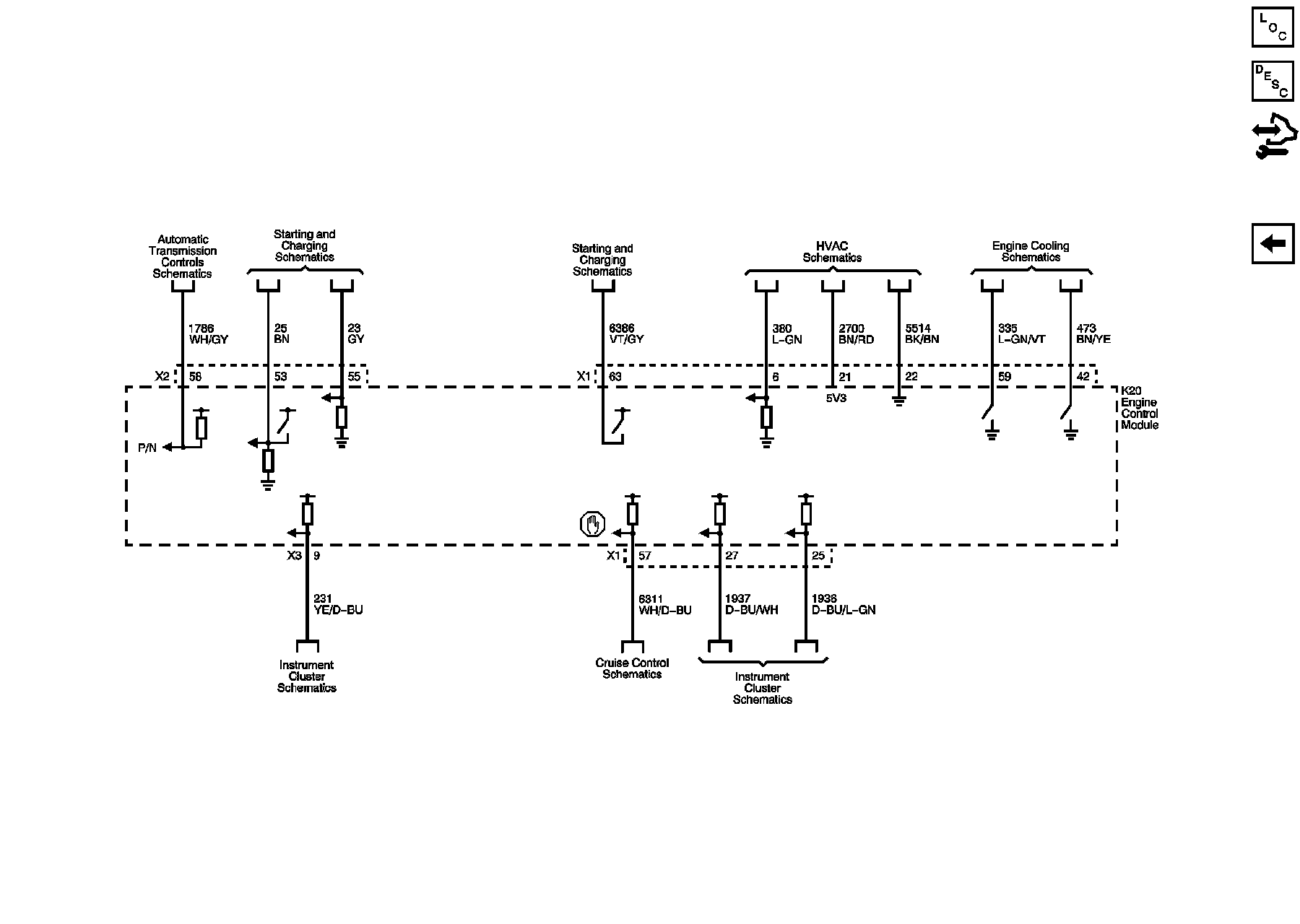

Controlled/Monitored Subsystem References
