Axle Beam: Service and Repair

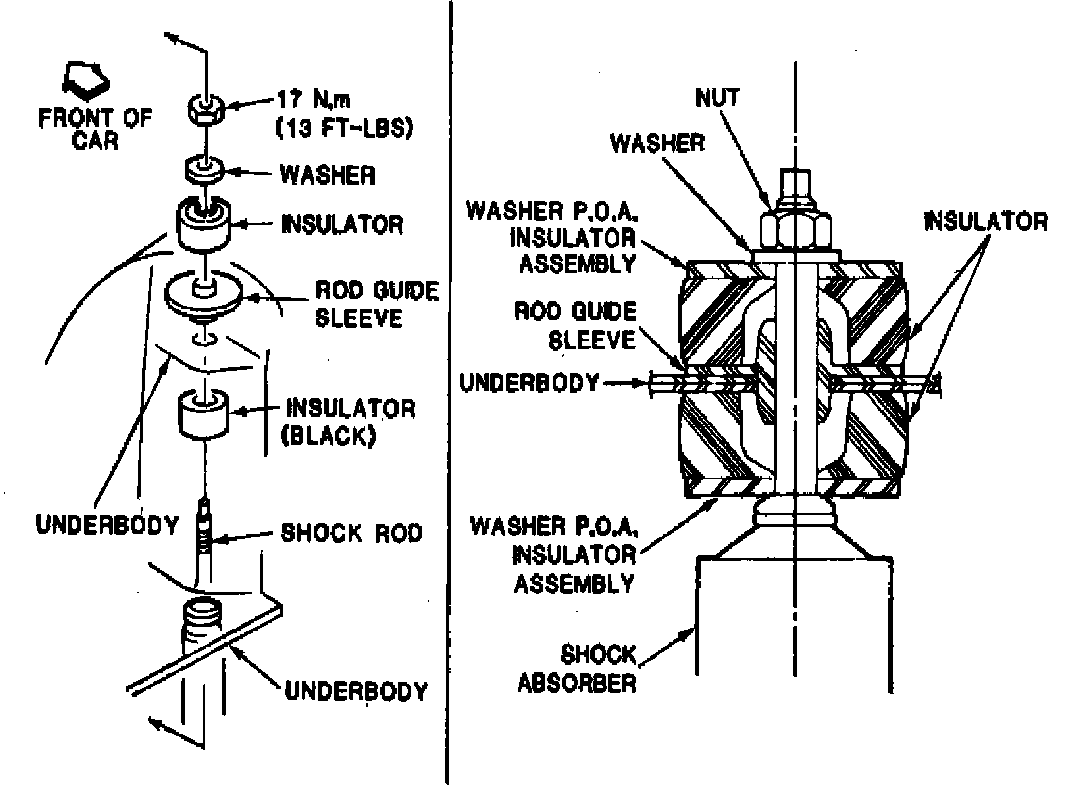

Fig. 2 Rear shock absorber upper attachment components:

Fig. 3 Stabilizer bar & shock absorber removal:

1. Raise vehicle and support vehicle. Support rear suspension with suitable jack.
2. Disconnect stabilizer bar at axle assembly, if equipped, Fig. 2.
3. Remove rear wheel assembly and brake drum. Do not hammer on brake drum since damage to bearings may result.
4. Remove shock absorber to lower mounting bracket attaching bolts, then disconnect shock absorbers from axle assembly, Figs. 2 and 3.
5. Disconnect parking brake cable and brake lines at axle brackets.
6. Carefully lower rear axle assembly and remove coil springs and insulators.
7. Remove control arm to underbody bracket bolts, then lower the axle assembly and remove from vehicle.
8. Remove hub to rear axle attaching bolts, then the hubs, bearings and backing plates from rear axle assembly.
9. Reverse procedure to install and bleed brake system.
