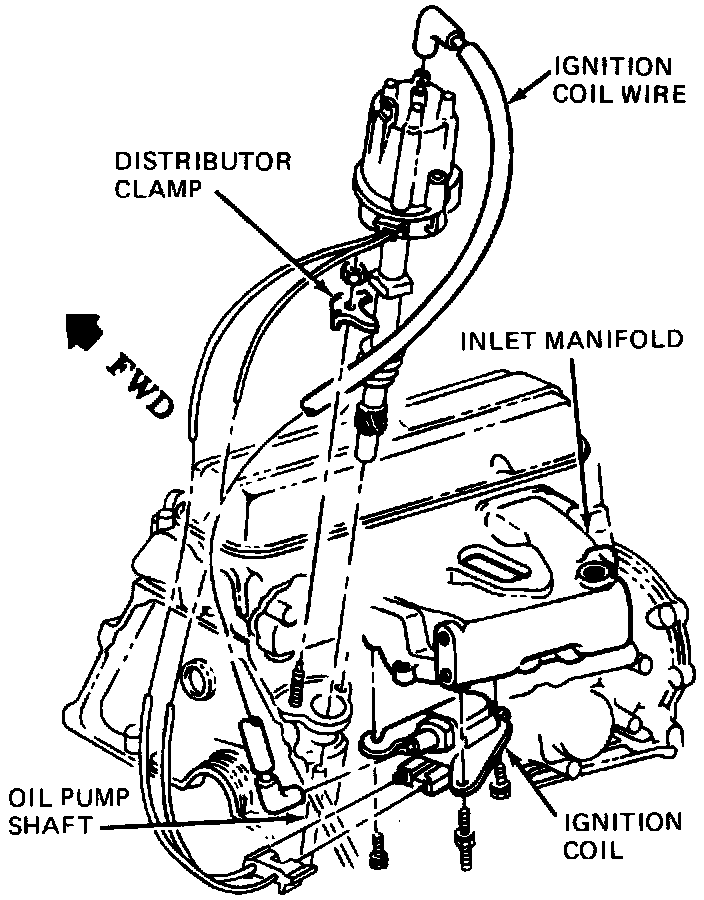

Ignition Coil: Service and Repair

Ignition Coil:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Raise vehicle on hoist.
3. Vacuum pipes from vacuum pump.
4. Vacuum pump.
5. Coil mounting bolts.
6. Electrical connectors from coil.
7. Ignition coil.

INSTALL OR CONNECT
1. Ignition coil.
2. Electrical connectors to coil.
3. Coil mounting bolts.
4. Vacuum pump.
5. Vacuum pipes to vacuum pump.
6. Lower vehicle.
7. Negative battery cable.
