Power Distribution Wiring Circuit

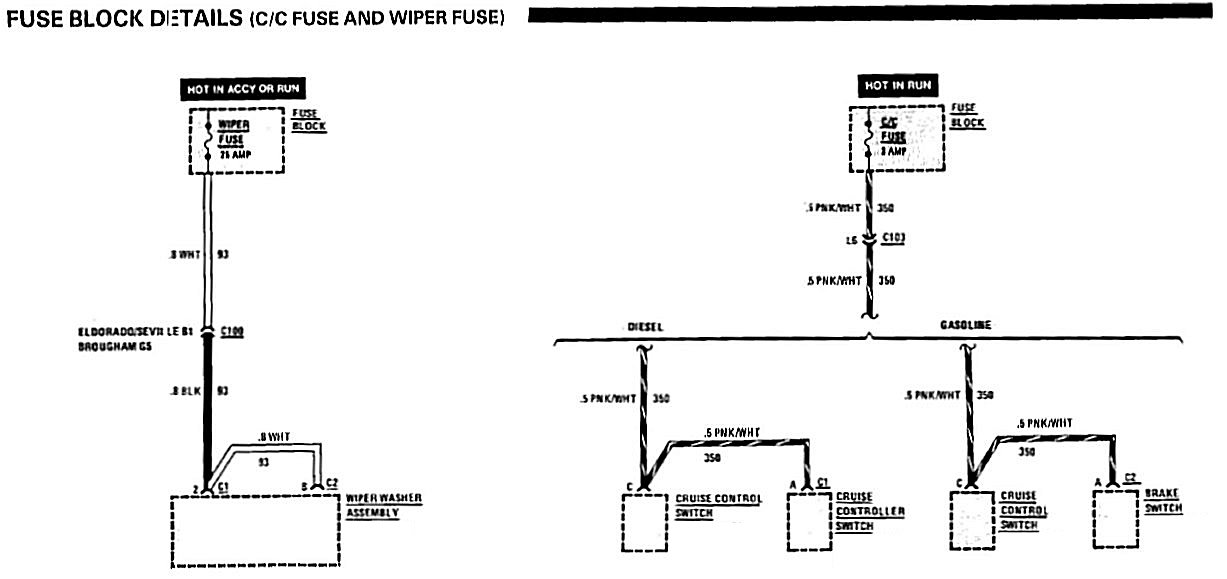

Fuse Block: Cruise Control-wiper Washer:

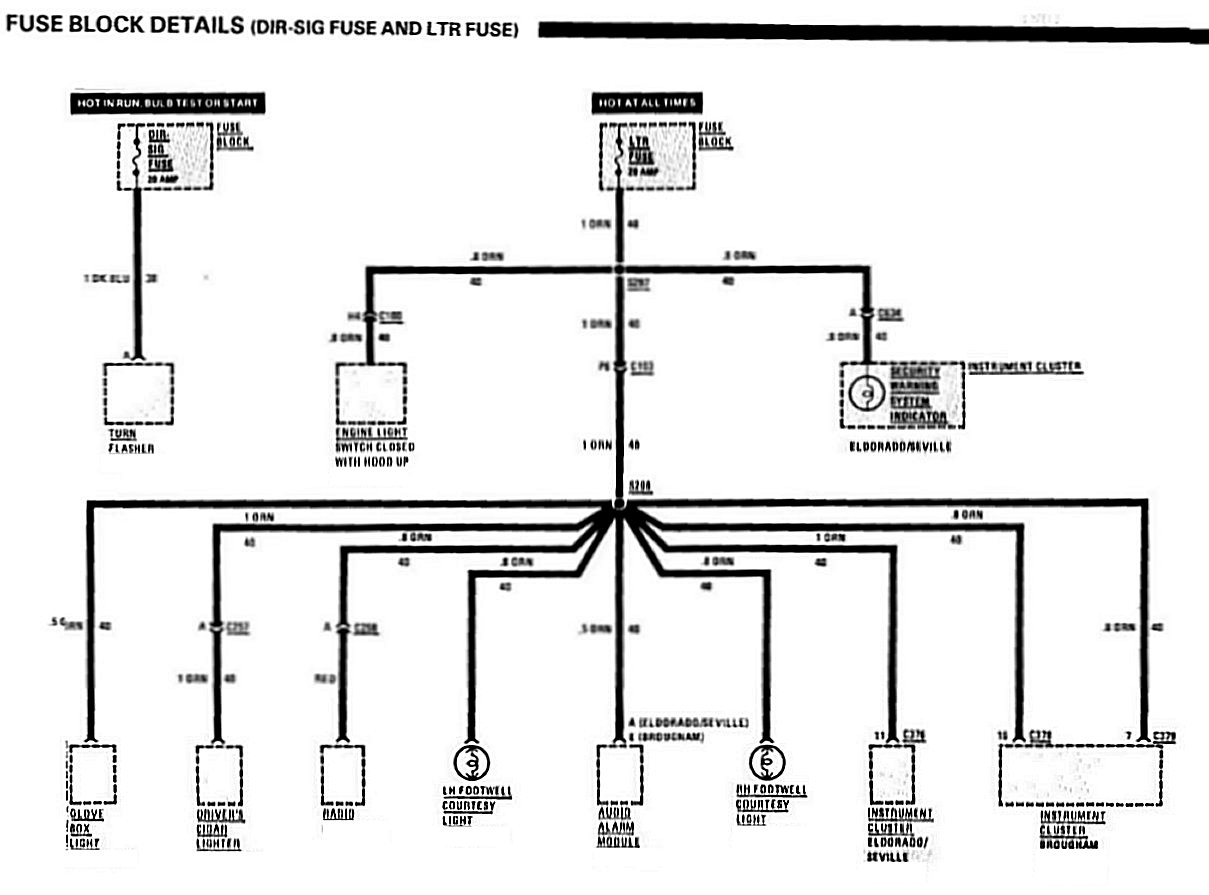

Fuse Block: Directional-signal And Left Turn:

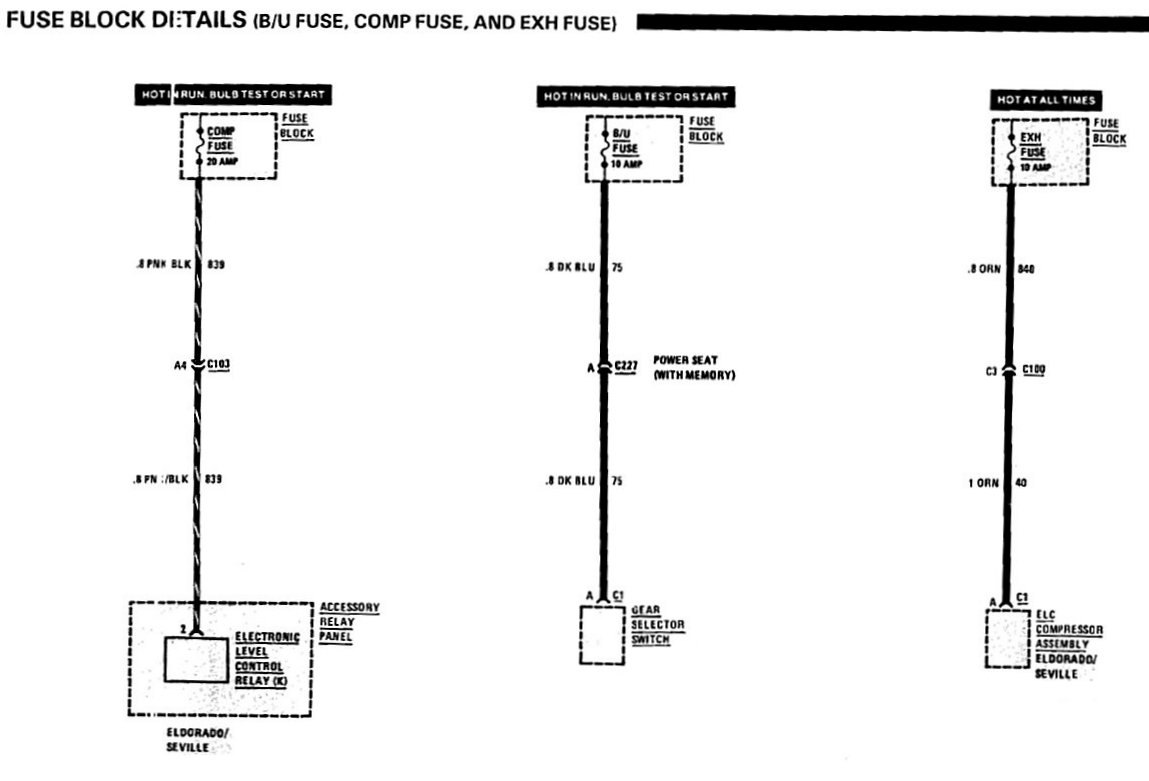

Fuse Block: Comp Fuse/B/U Fuse/Exh Fuse:

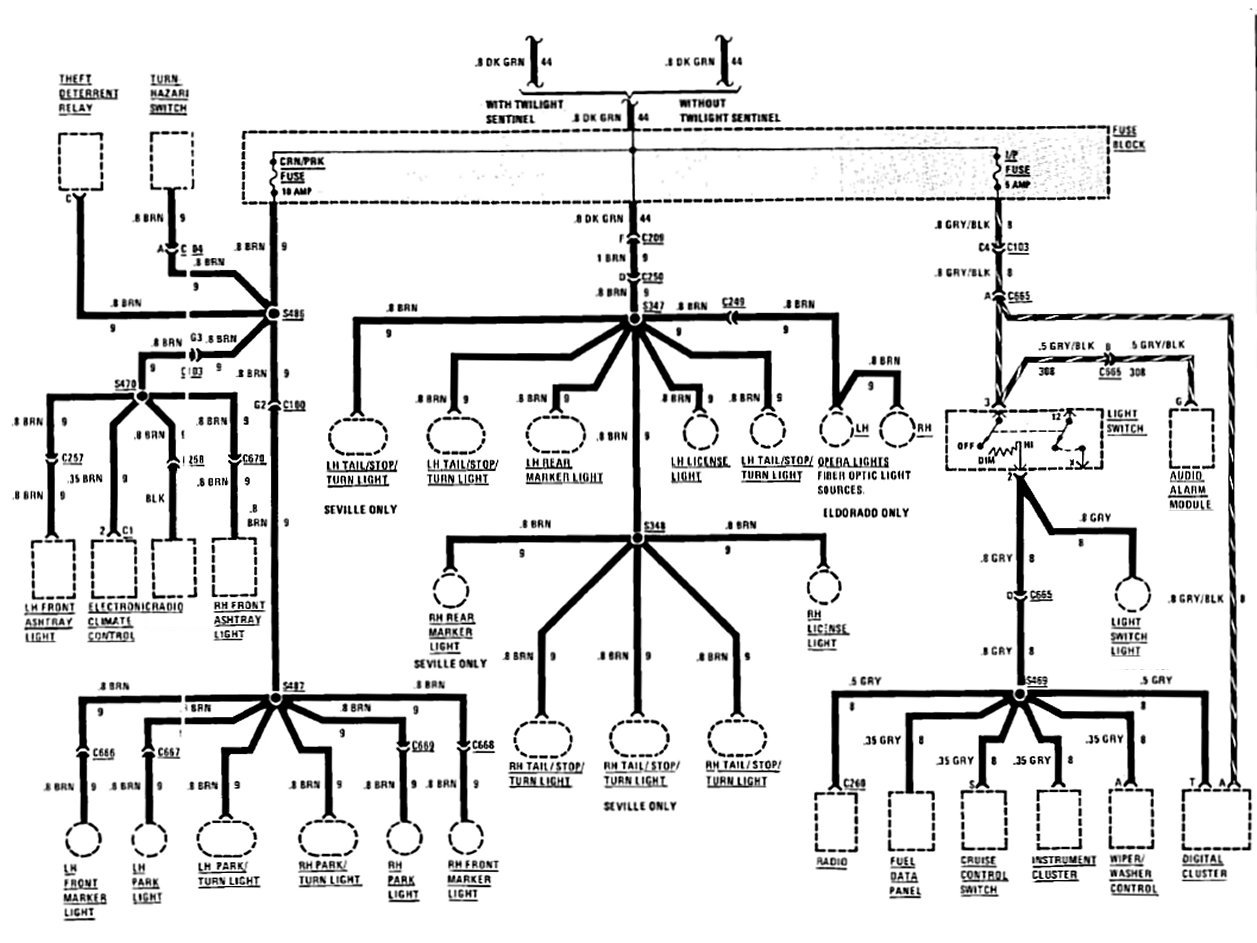

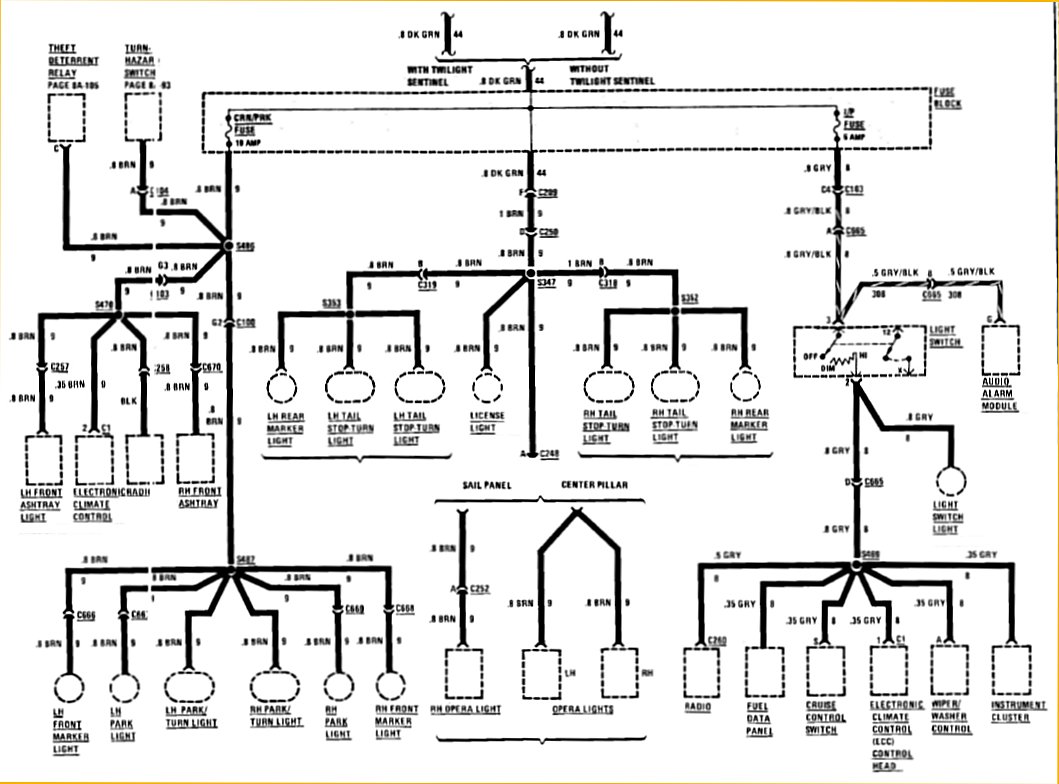

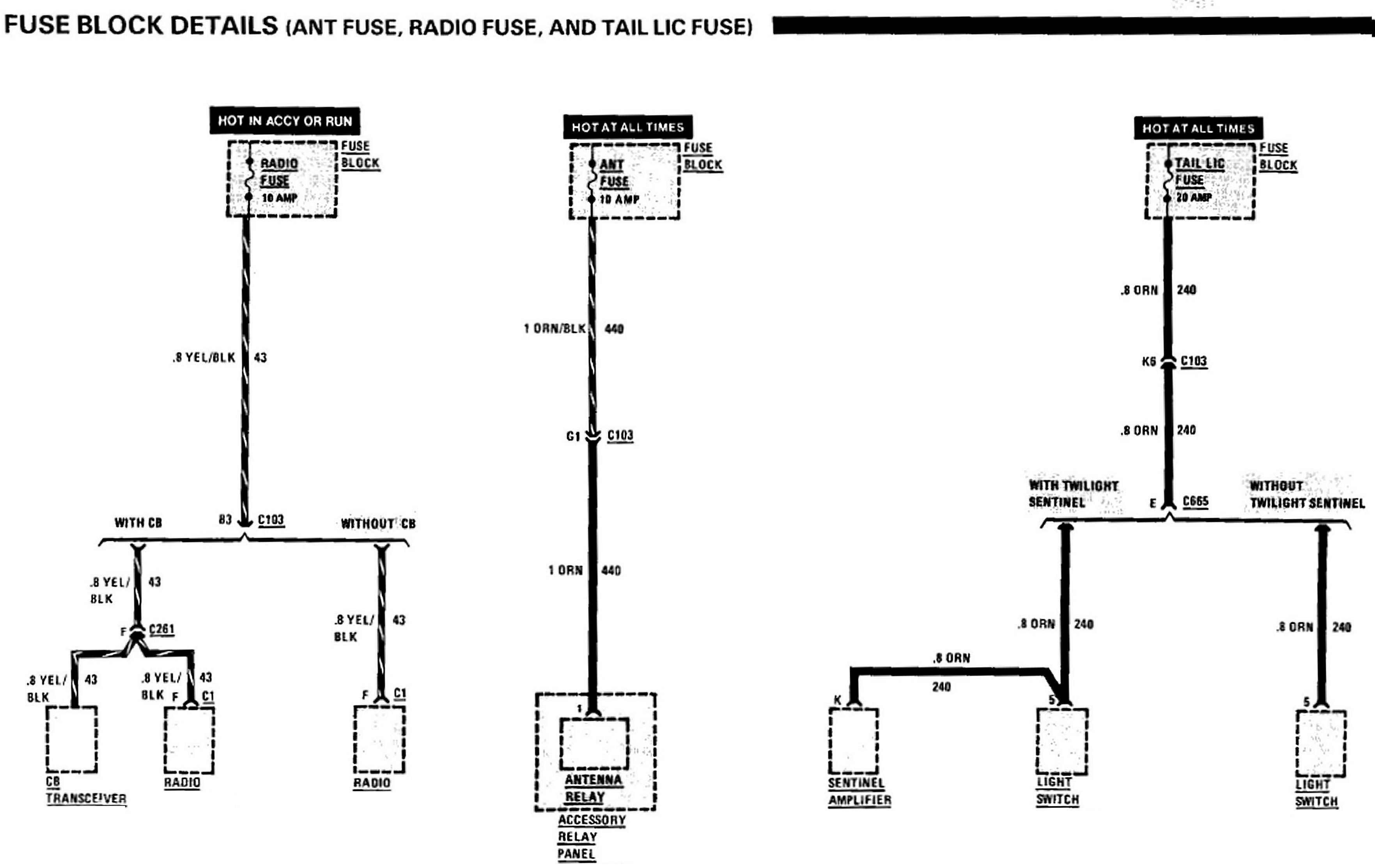

Fuse Block: Antenna/Radio/Tail And License Lamp:

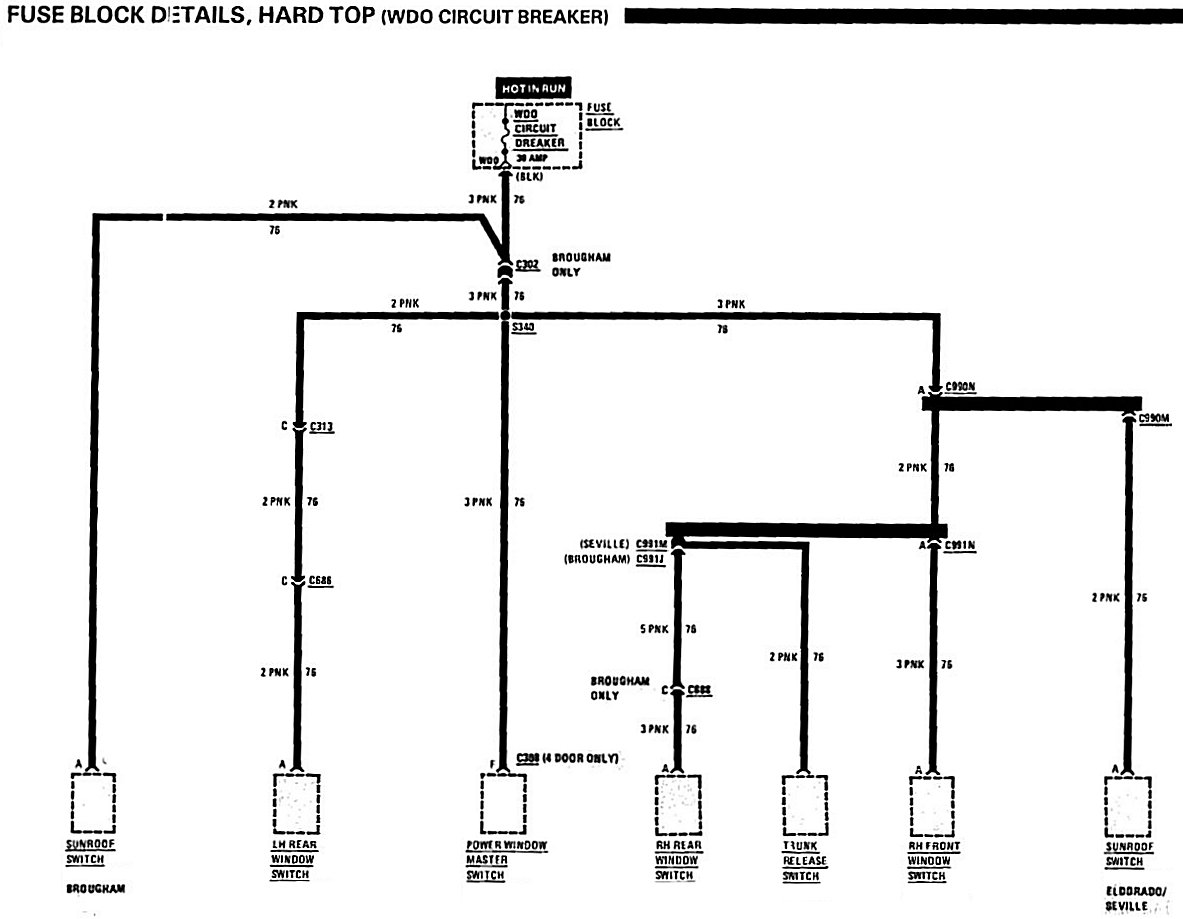

Fuse Block: Hard Top/window Circuit Breaker:

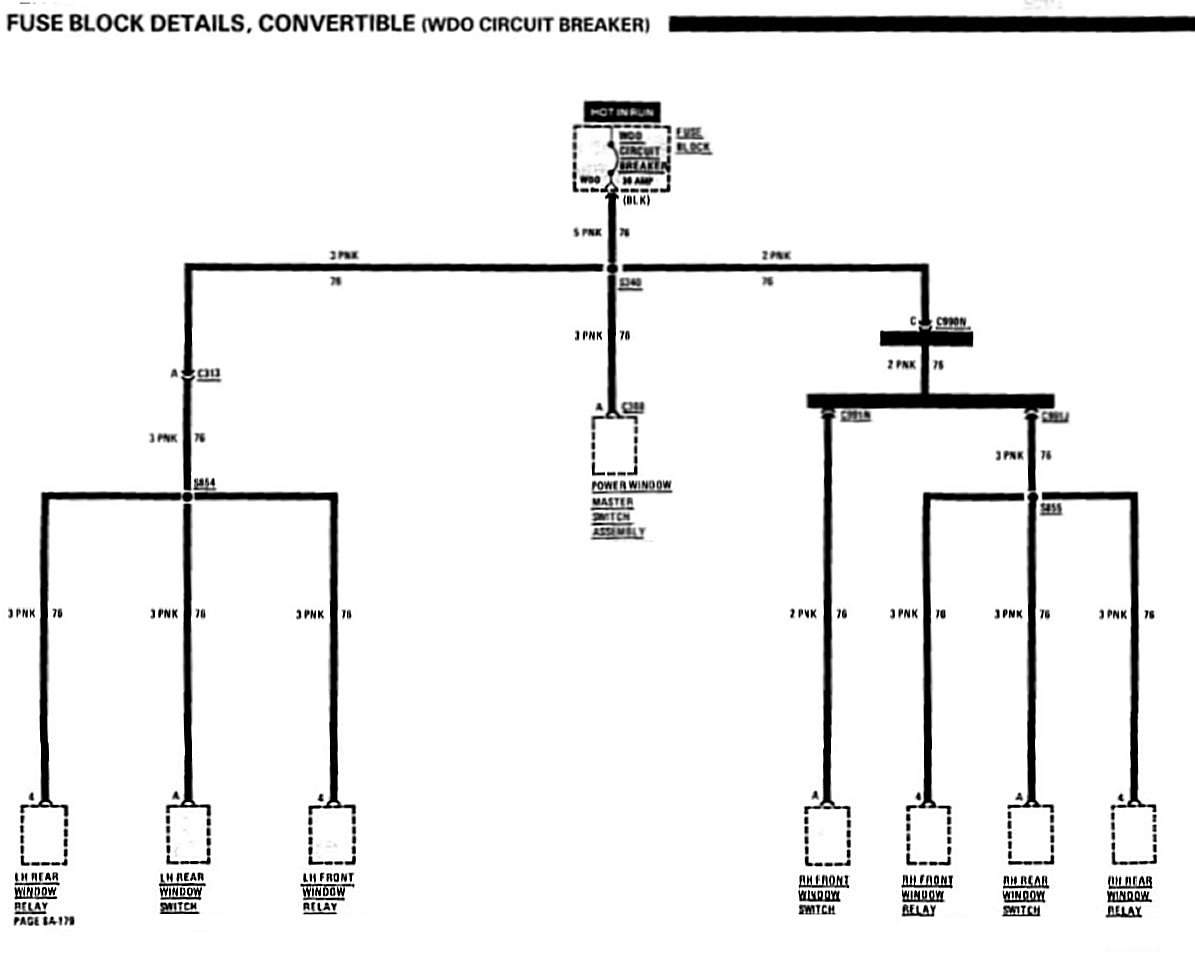

Fuse Block: Convertible/Window Circuit Breaker:

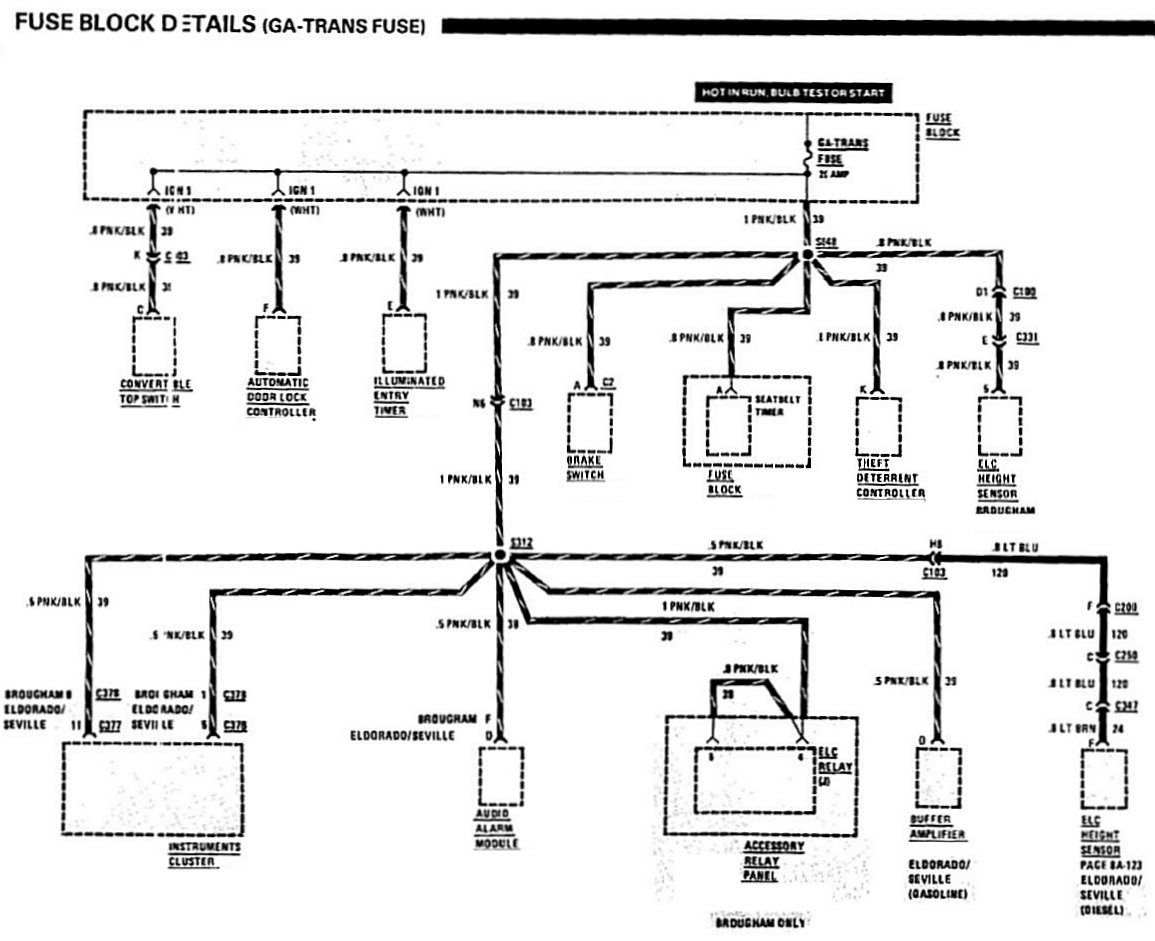

Fuse Block: GA-Trans Fuse:

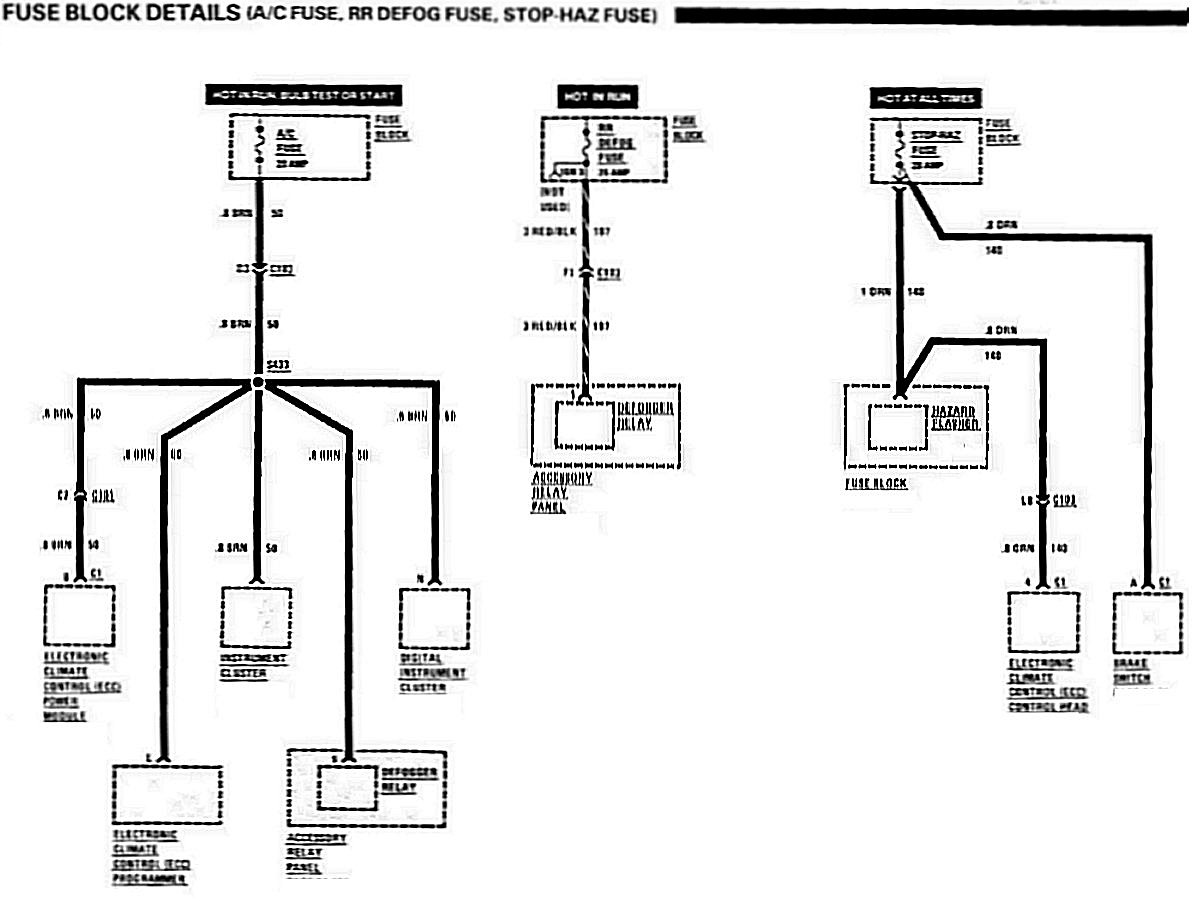

Fuse Block: A/C/RR Defog/stop-Hazard Fuse:

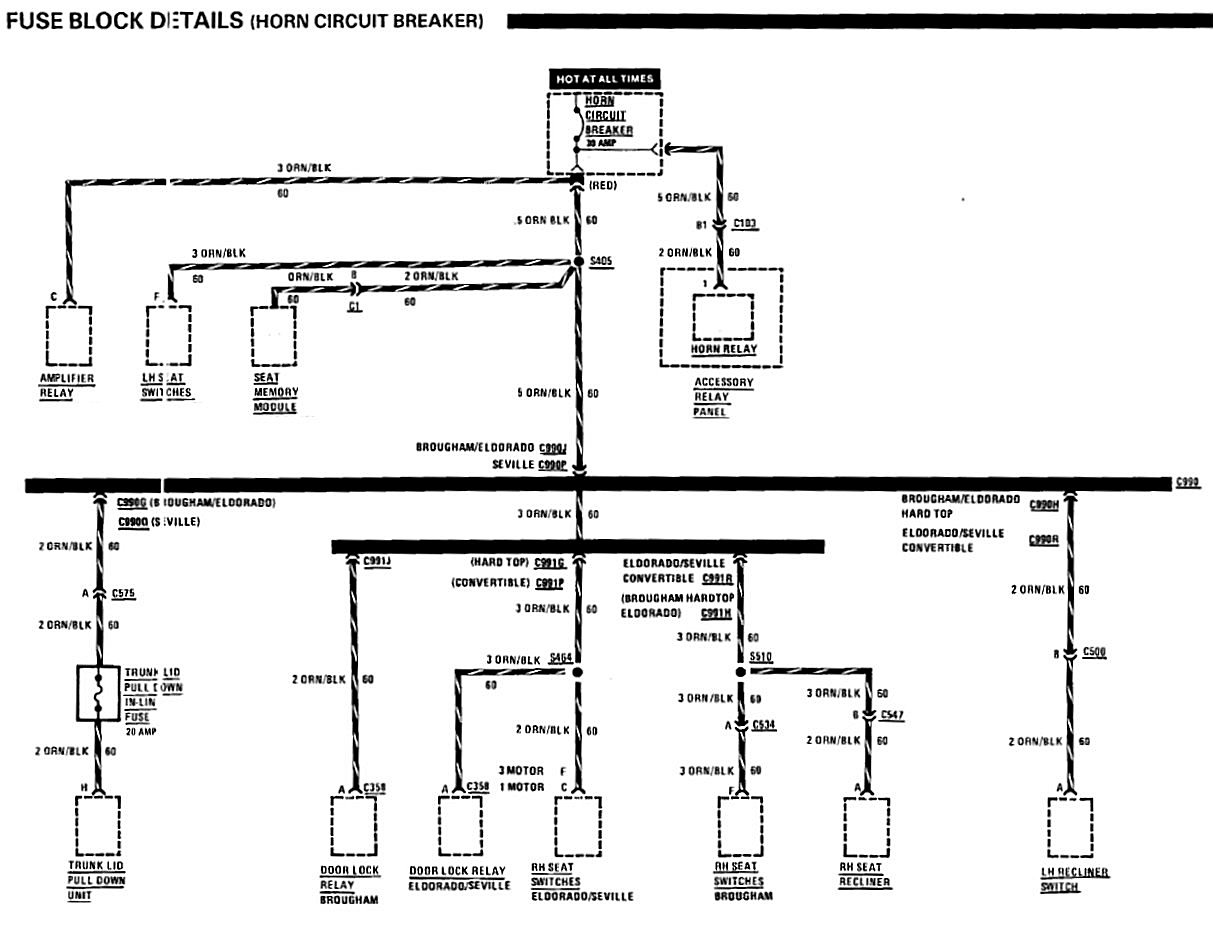

Fuse Block Horn Circuit Breaker:

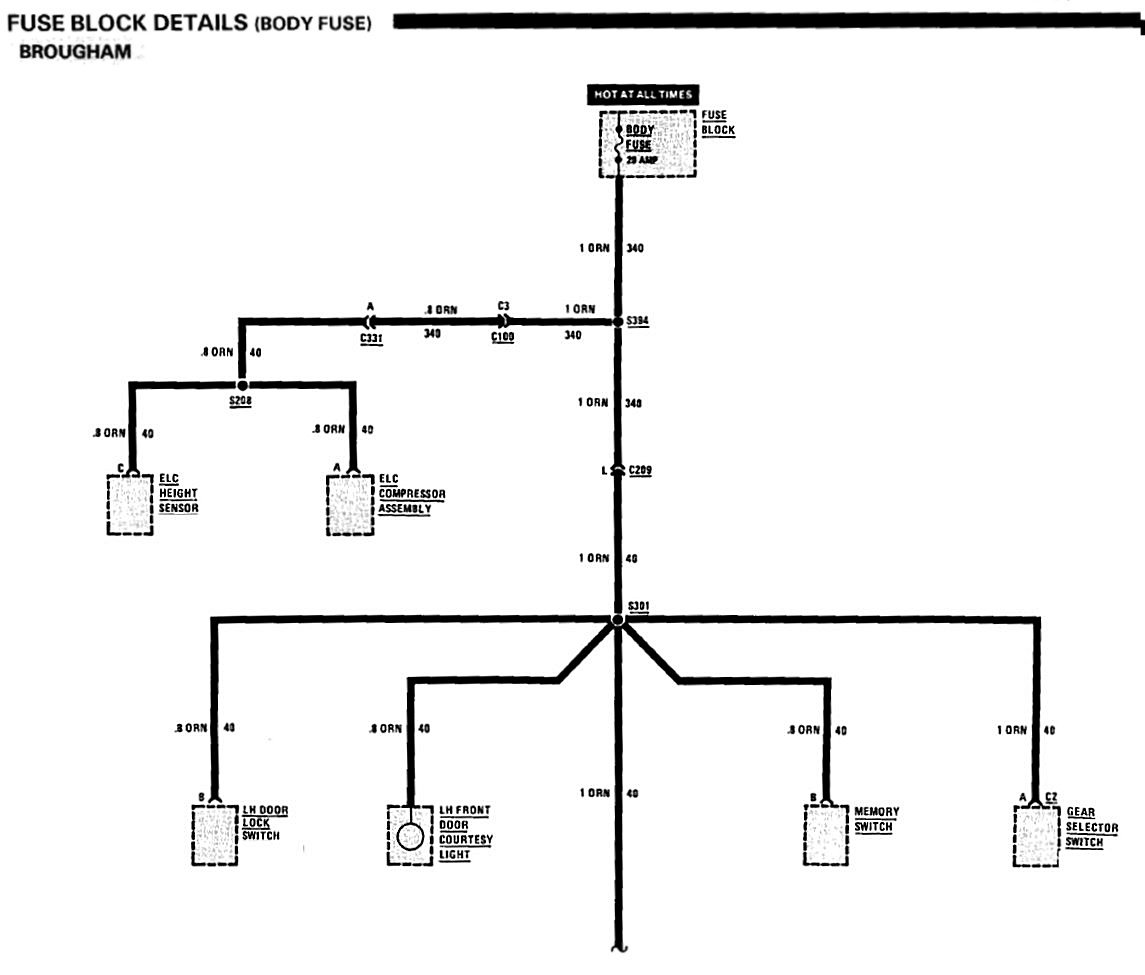

Fuse Block: Body Fuse Brougham:

Fuse Block: Body Fuse Brougham:

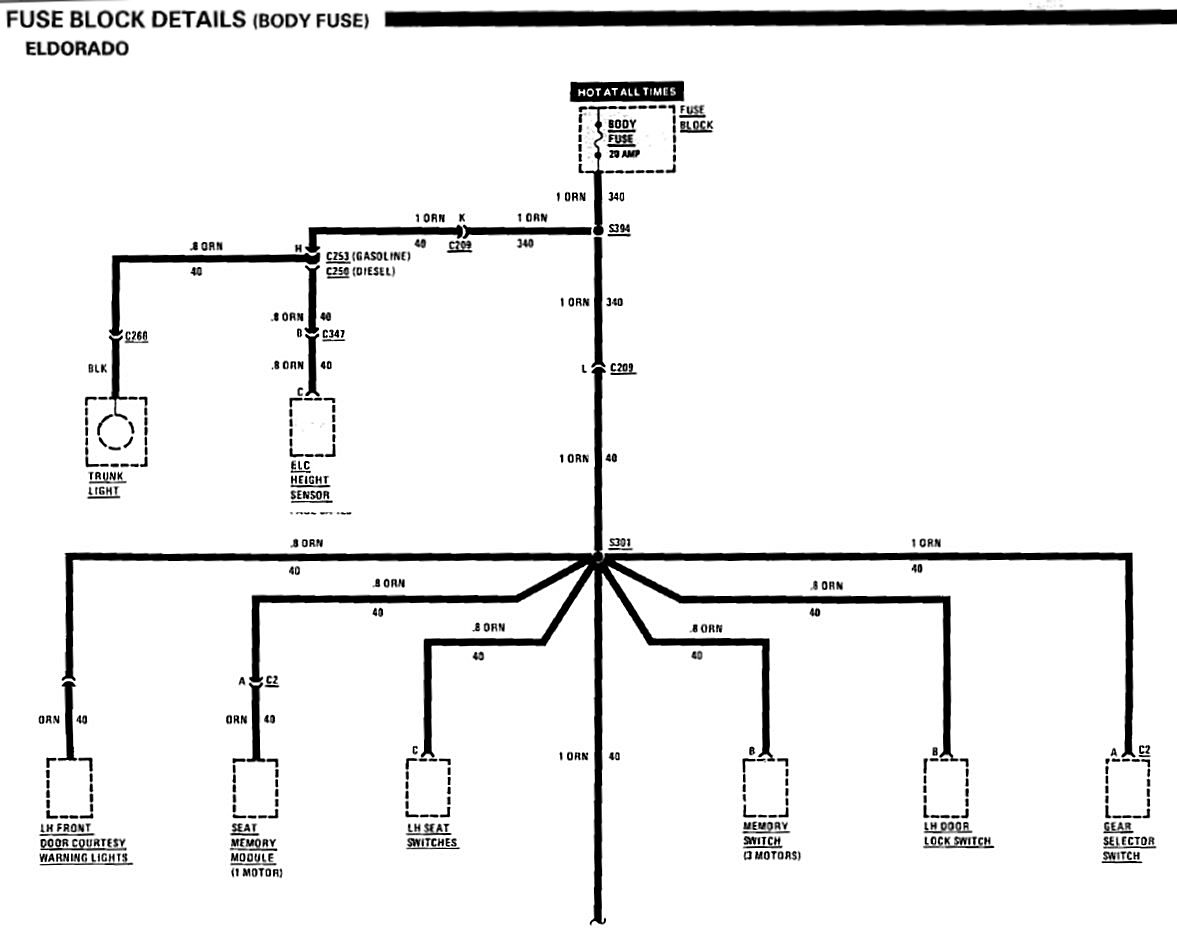

Fuse Block: Body Fuse Eldorado:

Fuse Block: Body Fuse Eldorado:

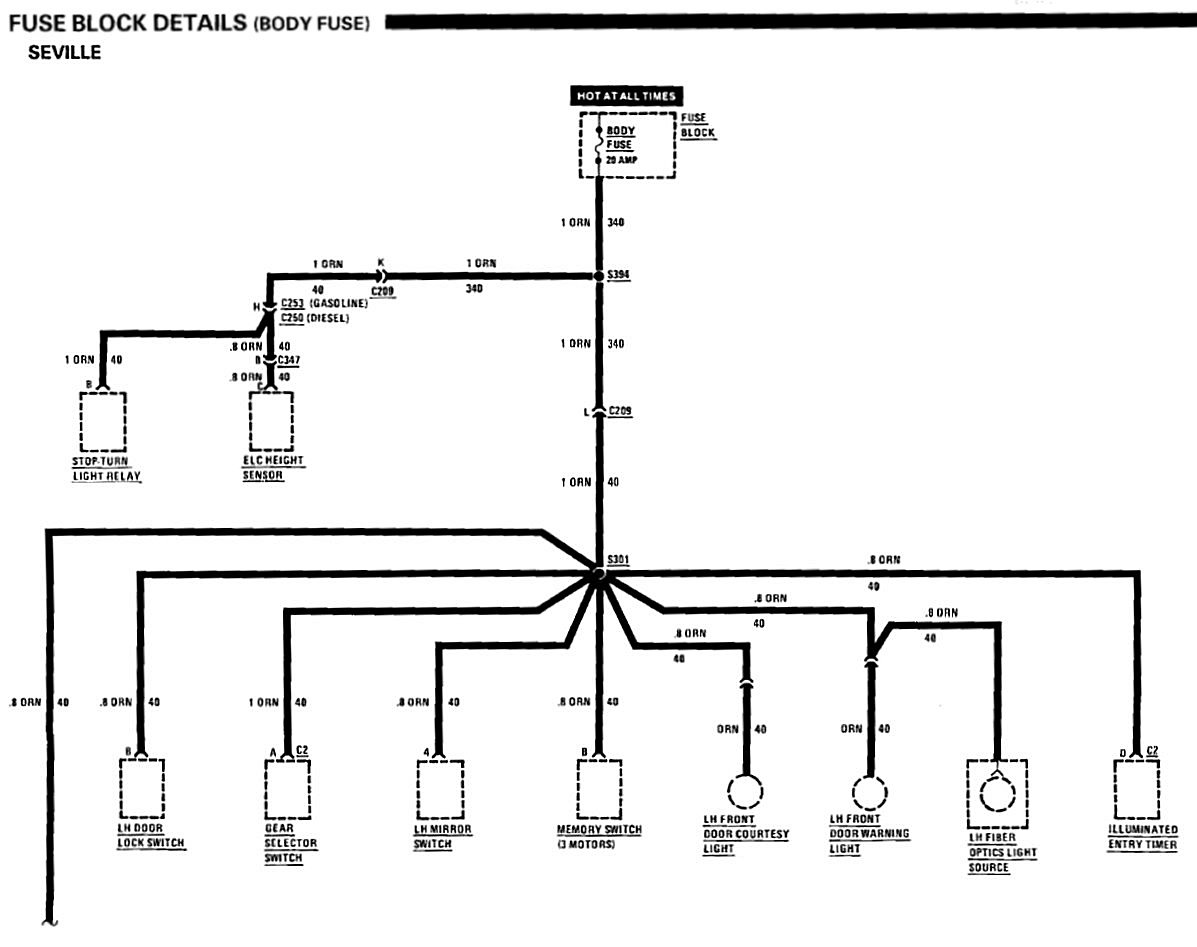

Fuse Block: Body Fuse Seville:

Fuse Block: Body Fuse Seville:

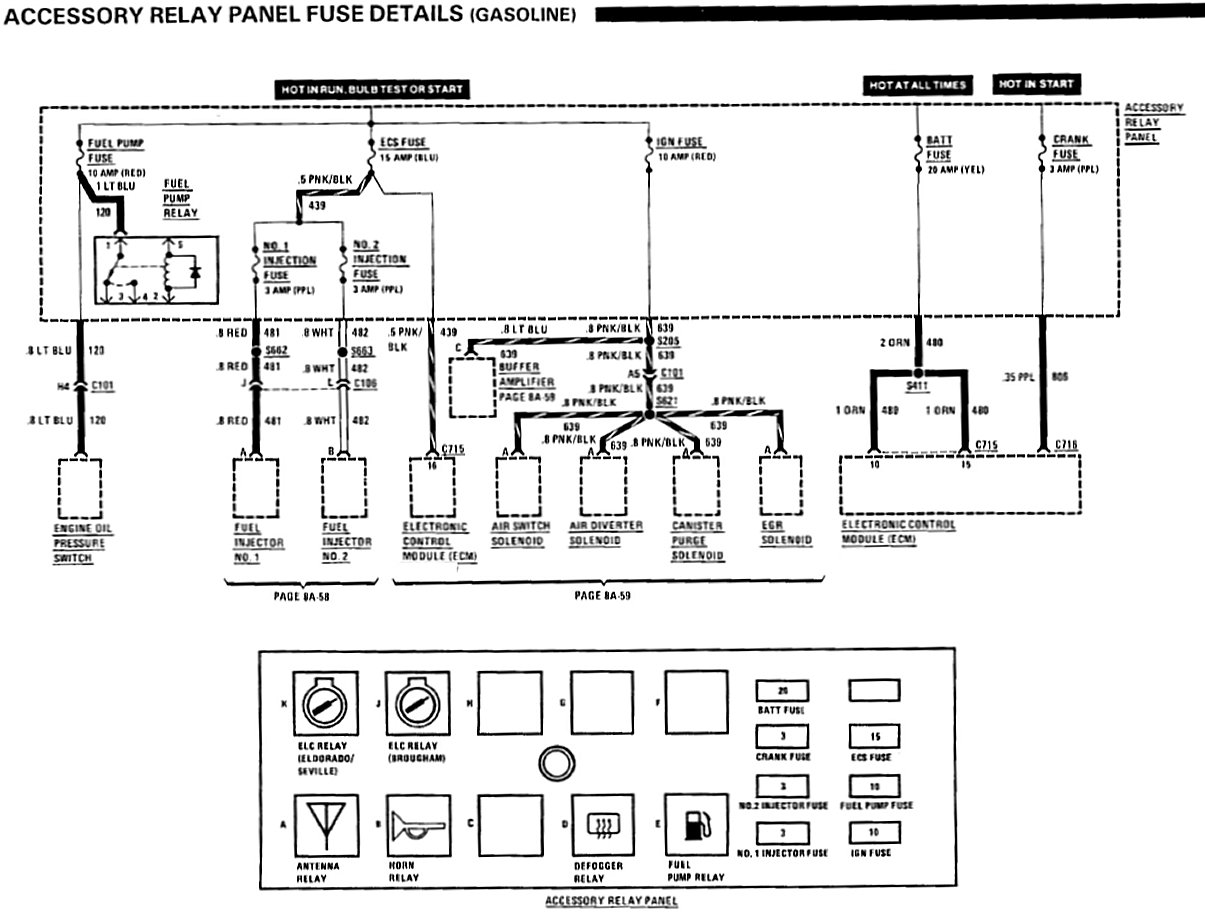

Accessory Relay Fuse Panel Gasoline:

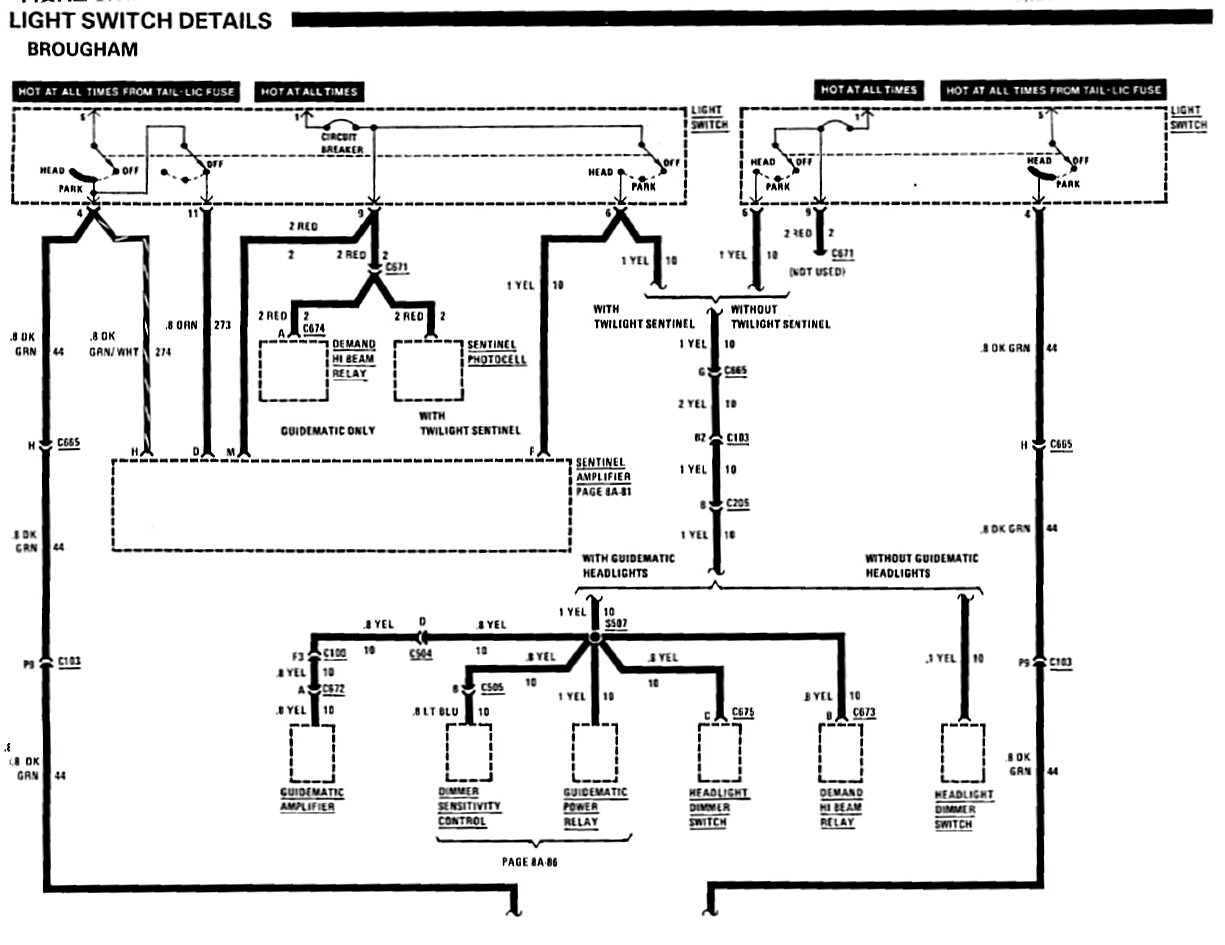

Light Switch Details Brougham:

Light Switch Details Brougham:

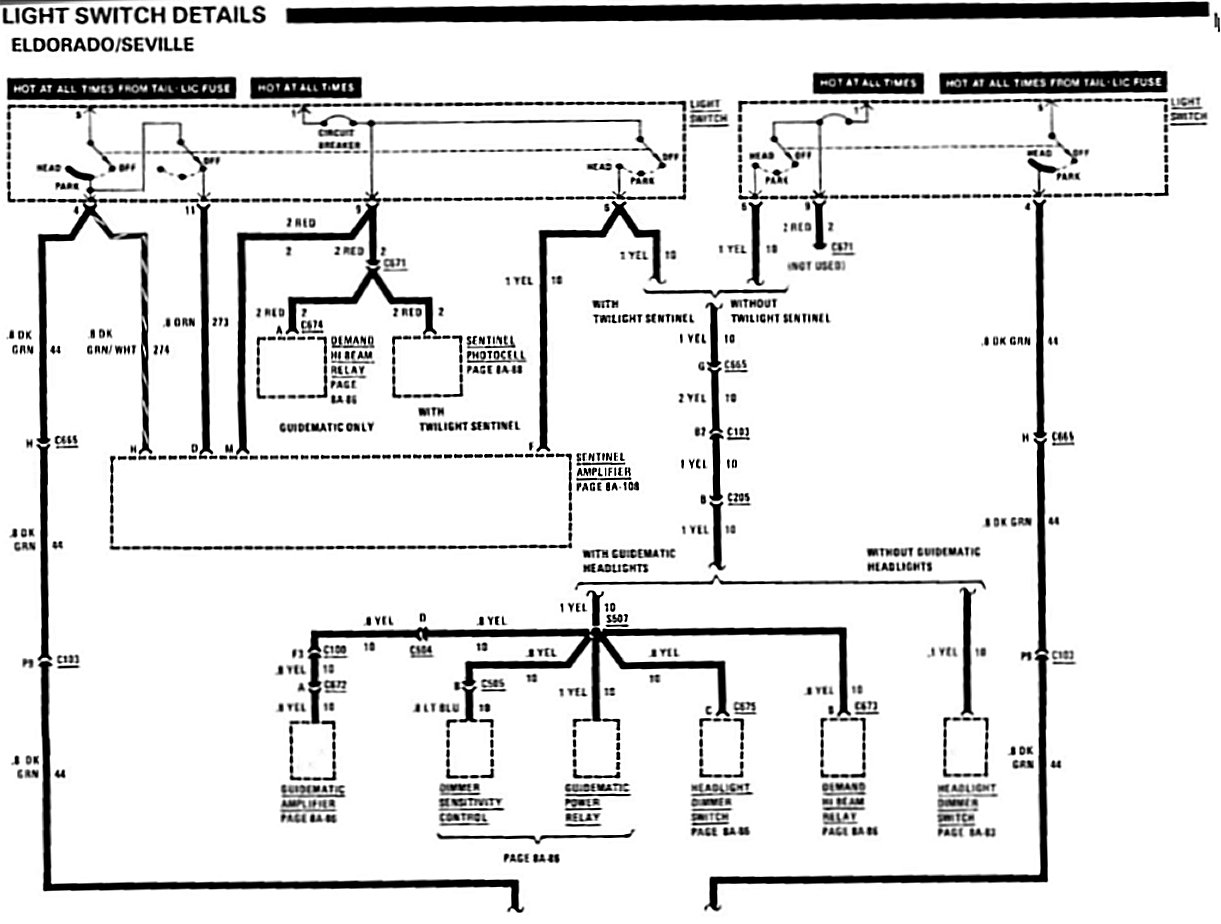

Light Switch Details Eldorado/Seville:

Light Switch Details Eldorado/Seville:
