System Specifications

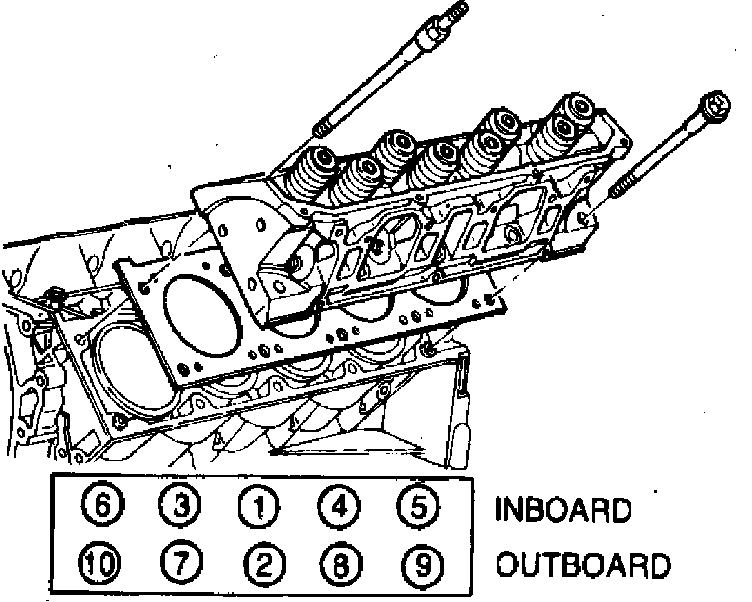

Cylinder Head Bolts(Figure 1) Cylinder Head Bolt Torque Sequence:
In the sequence shown in figure 1:
^
Torque bolts to
50 Nm (38 ft lbs) ^
Torque bolts to
90 Nm (68 ft lbs) ^
Tighten bolts 1, 3 and 4 to
120 Nm (90 ft lbs) CAUTION: It is extremely important that the above procedure, sequence and torque values are maintained to ensure proper head gasket performance.
