Caliper Installation

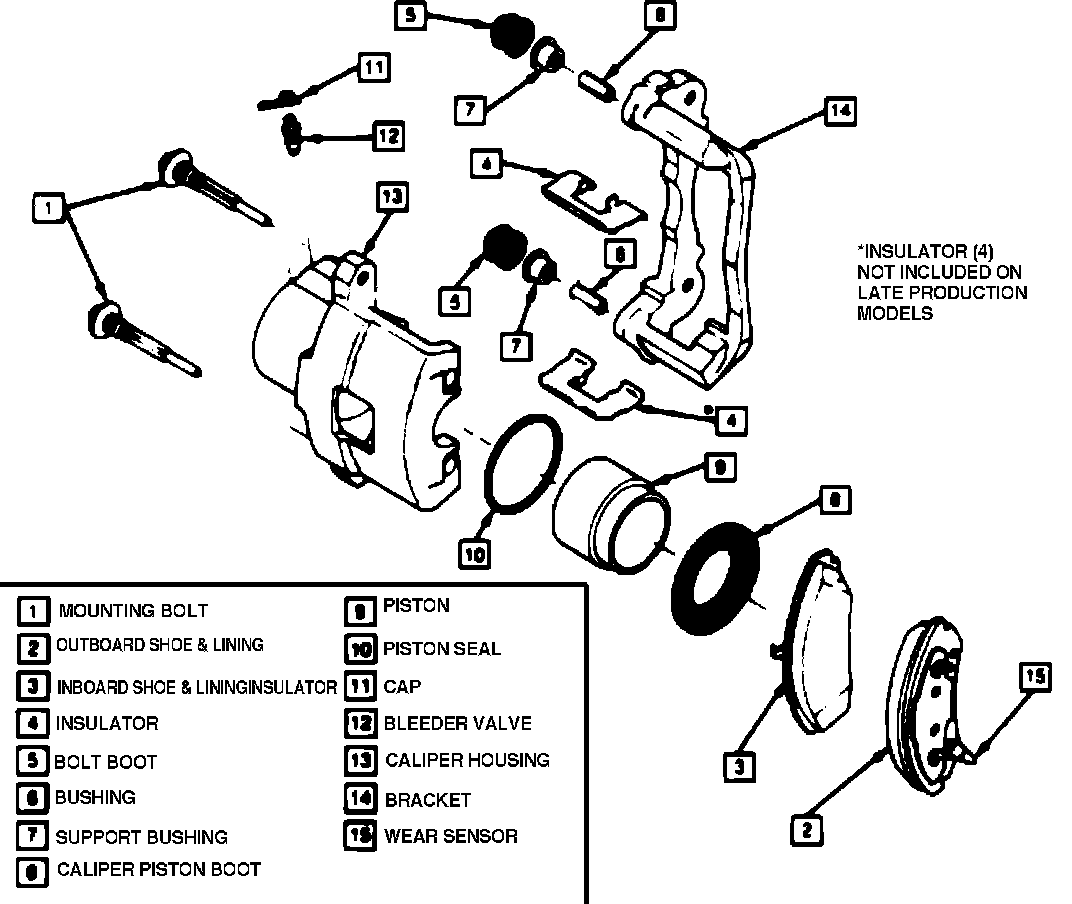

Fig. 1 Delco-Moraine Series 3264M Front Disc Brake Caliper Exploded View.:

1. If first design shoe and lining assemblies are being installed, mount insulators (4), Fig. 1, on caliper bracket.
2. Position caliper on mounting bracket, ensuring insulators, first design, and mounting bolt boots remain in place.
3. Apply thin coating of silicone grease to caliper mounting bolts, install bolts and tighten to specifications.
4. Install brake hose, if removed.
5. Install wheels and lower vehicle.
6. Fill master cylinder and bleed brakes as needed. Do not attempt to move vehicle until brake pedal has been pumped several times and a firm brake pedal has been obtained.
