Door Trim Panel

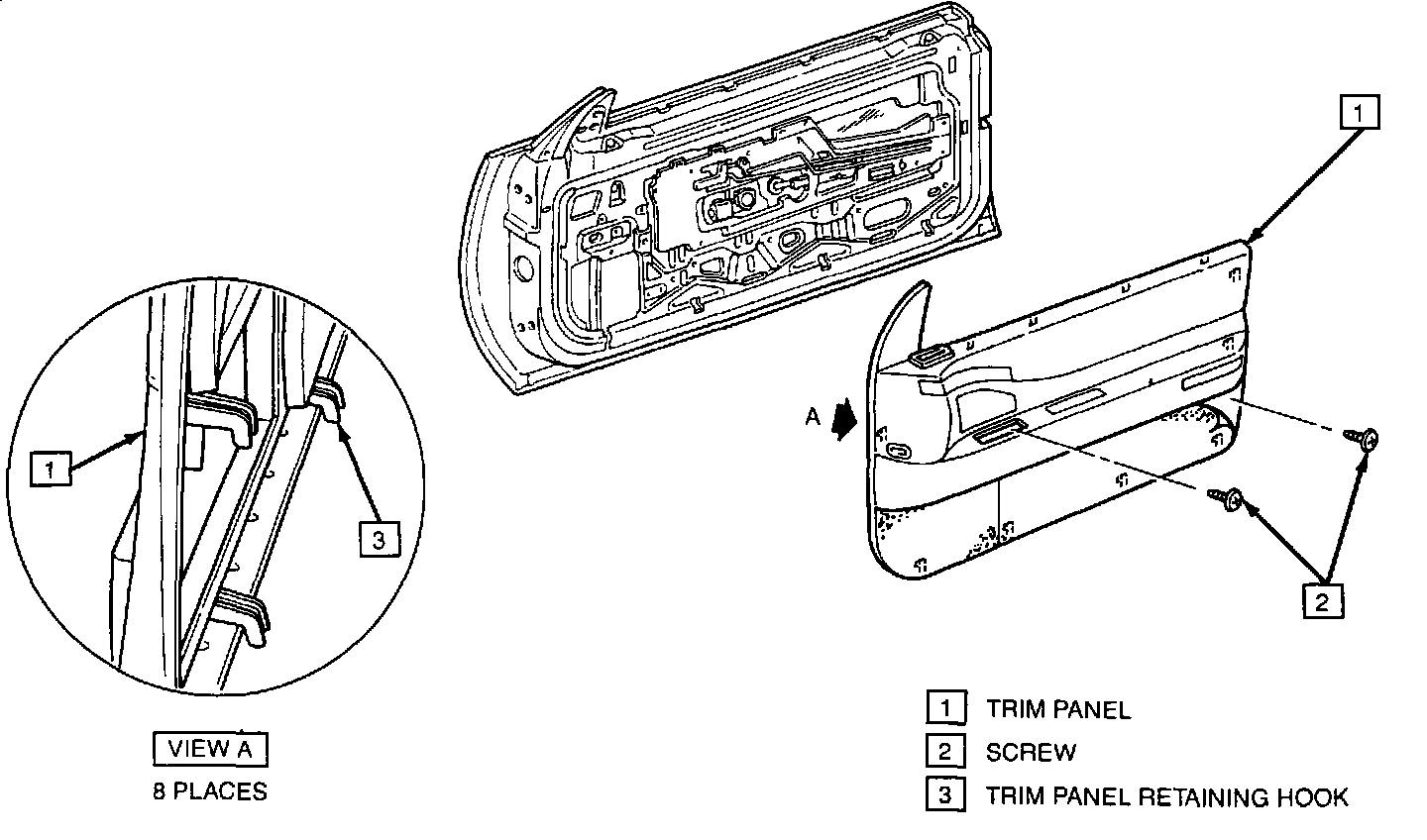

Door Trim Panel Assembly:

Remove or Disconnect

1. Switch plates.
2. One screw (2) through switch plate opening.
3. Insert flat bladed tool between upper rear corner of carpet attached to door trim panel. Disengage fastener and fold hack carpet.
4. Screw under carpet.
5. Lift trim panel up and away from door to disengage hooks (3).

Install or Connect

1. Trim panel (1). Align hooks (3) to holes indoor and push in and down on trim panel.
2. One screw (2) through switch plate opening and one screw under carpet.
3. Fold carpet flush to trim panel and engage fastener.
4. Switch plates.
