Manifold Pressure/Vacuum Sensor: Service and Repair

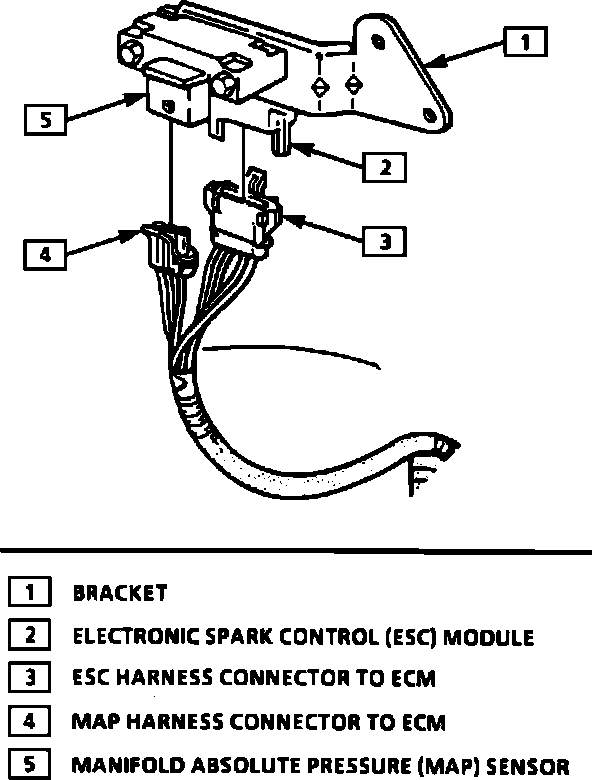

MAP Sensor:
REMOVE OR CONNECT -
MAP sensor electrical connector.
-
MAP sensor vacuum hose.
-
Screws securing
MAP sensor to the
MAP bracket.
-
MAP sensor.
INSTALL OR CONNECT -
MAP sensor and attaching screws.
-
Tighten
MAP sensor screws to 2 Nm (18 in lb).
-
MAP sensor vacuum hose.
-
Electrical connector.
LOCATION Center of engine compartment, on front of dash.
