Oil Pump Assembly

OIL PUMP ASSEMBLY 4T60-E

Oil Pump To Control Valve Body Bolts.:

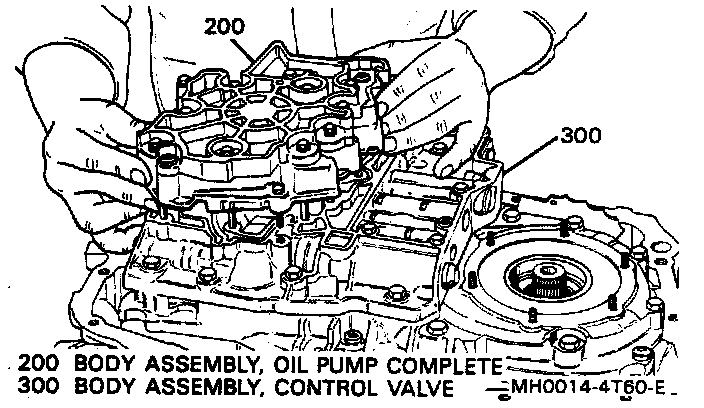

Removing Pump Assembly From Control Valve Assembly.:






OIL PUMP ASSEMBLY REMOVAL AND DISASSEMBLY
1. Case side cover.
2. Wiring harness and solenoid from pressure switches and the case connector
3. Pump assembly bolts.
^ It is not necessary to remove bolts marked "A" on pump cover.
4. Pump assembly from the control valve assembly.

CLEAN AND INSPECT:
^ Pump and control valve assembly mating surfaces.

INSTALL OR CONNECT
1. Oil pump assembly onto control valve assembly.
2. Attaching bolts. See figure for torque values.
3. Wiring harness and solenoid.
4. Case side cover pan.
