Door Trim Panel

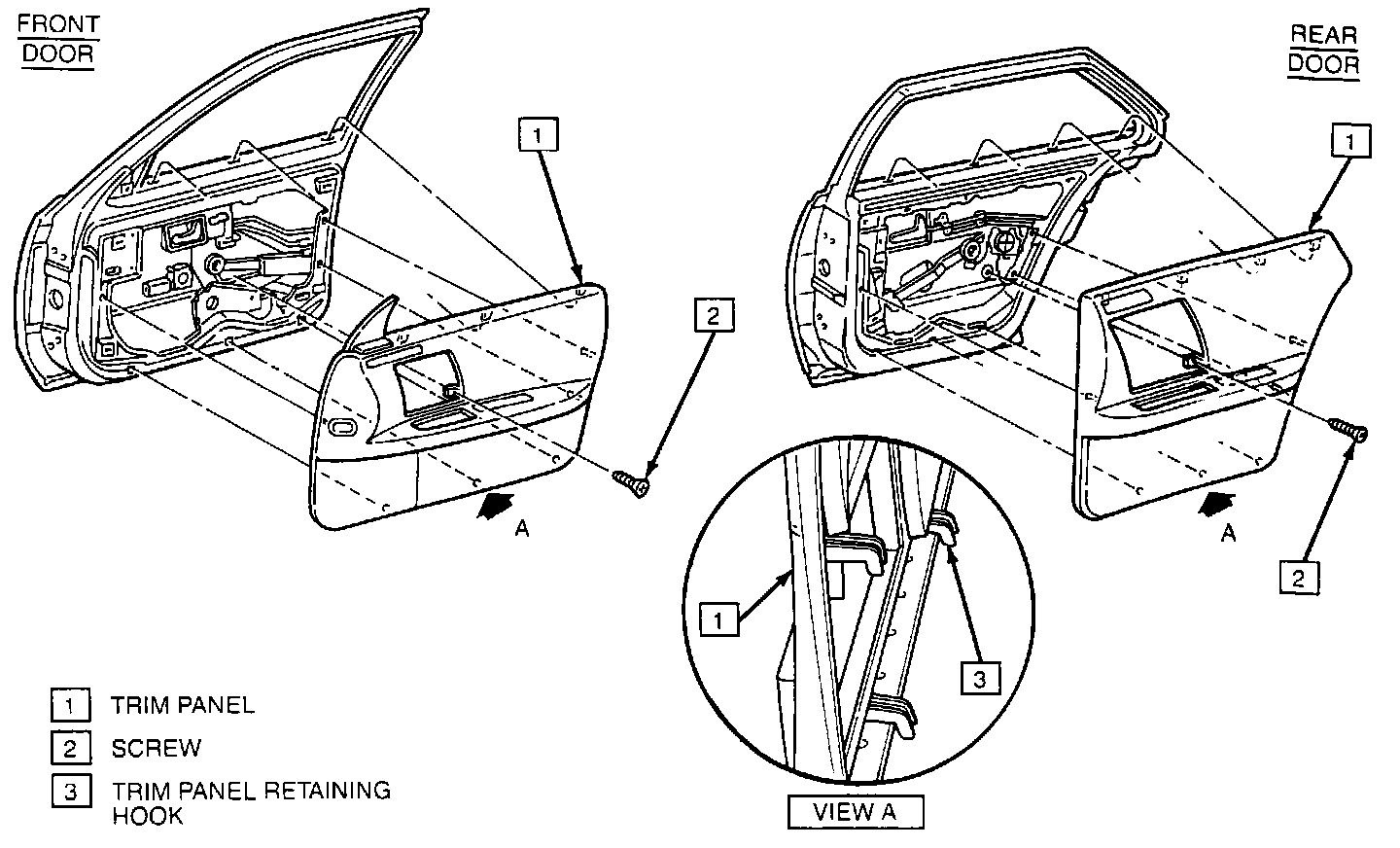

Door Trim Panel Assembly:
Remove or Disconnect 1.
Window and
door lock switch plates.
2.
One screw (2).
3.
Trim panel (1) by lifting up and out to disengage hooks (3) on trim panel from holes in door.
Install or Connect 1.
Trim panel (1). Align hooks (3) to holes in door and push in and down on trim panel.
2.
One screw(2).
3.
Switch plates.
