Manifold Pressure/Vacuum Sensor: Service and Repair

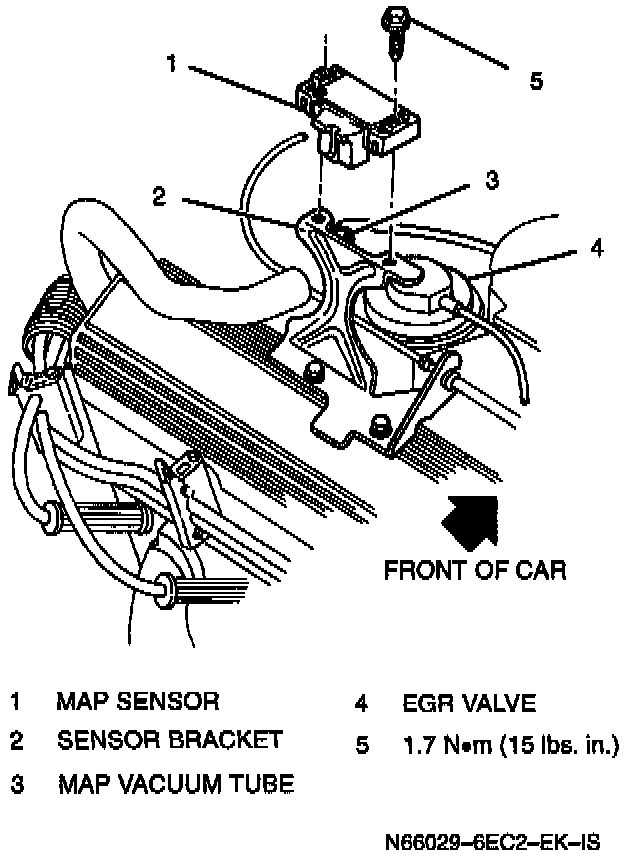

Map Sensor:
REMOVE OR DISCONNECT 1.
MAP sensor connector.
2.
MAP sensor vacuum hose.
3.
Screws securing
MAP sensor to bracket.
INSTALL OR CONNECT 1.
MAP sensor to bracket with attaching screws. Tighten screws to
1.7 Nm (15 lb. in.). 2.
MAP sensor vacuum hose.
3.
MAP sensor connector.
