Oil Pressure Sensor: Service and Repair

Oil Pressure Sensor:

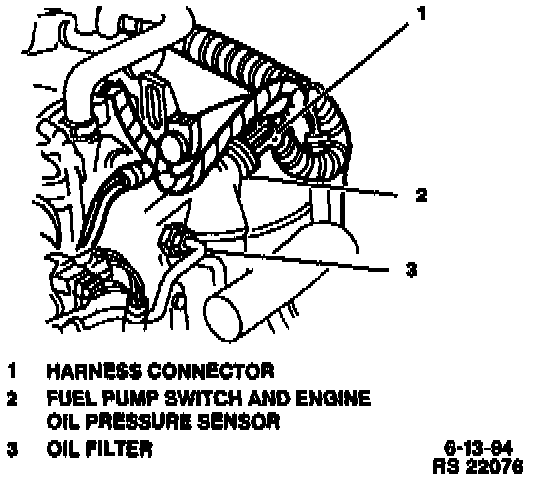

The fuel pump switch and engine oil pressure sensor is mounted on the rear of the engine on the oil filter adapter.

REMOVE OR DISCONNECT

1. Air cleaner and housing.
2. Locking collar.
3. Electrical connector.
4. Fuel pump switch and engine oil pressure sensor.

INSTALL OR CONNECT

1. Make sure fittings are properly aligned to allow sensor installation.
2. Fuel pump switch and engine oil pressure sensor.
3. Electrical connector.
4. Locking collar.
5. Air cleaner and housing.
