Accelerator Cable Less V4U Coachbuilder Option

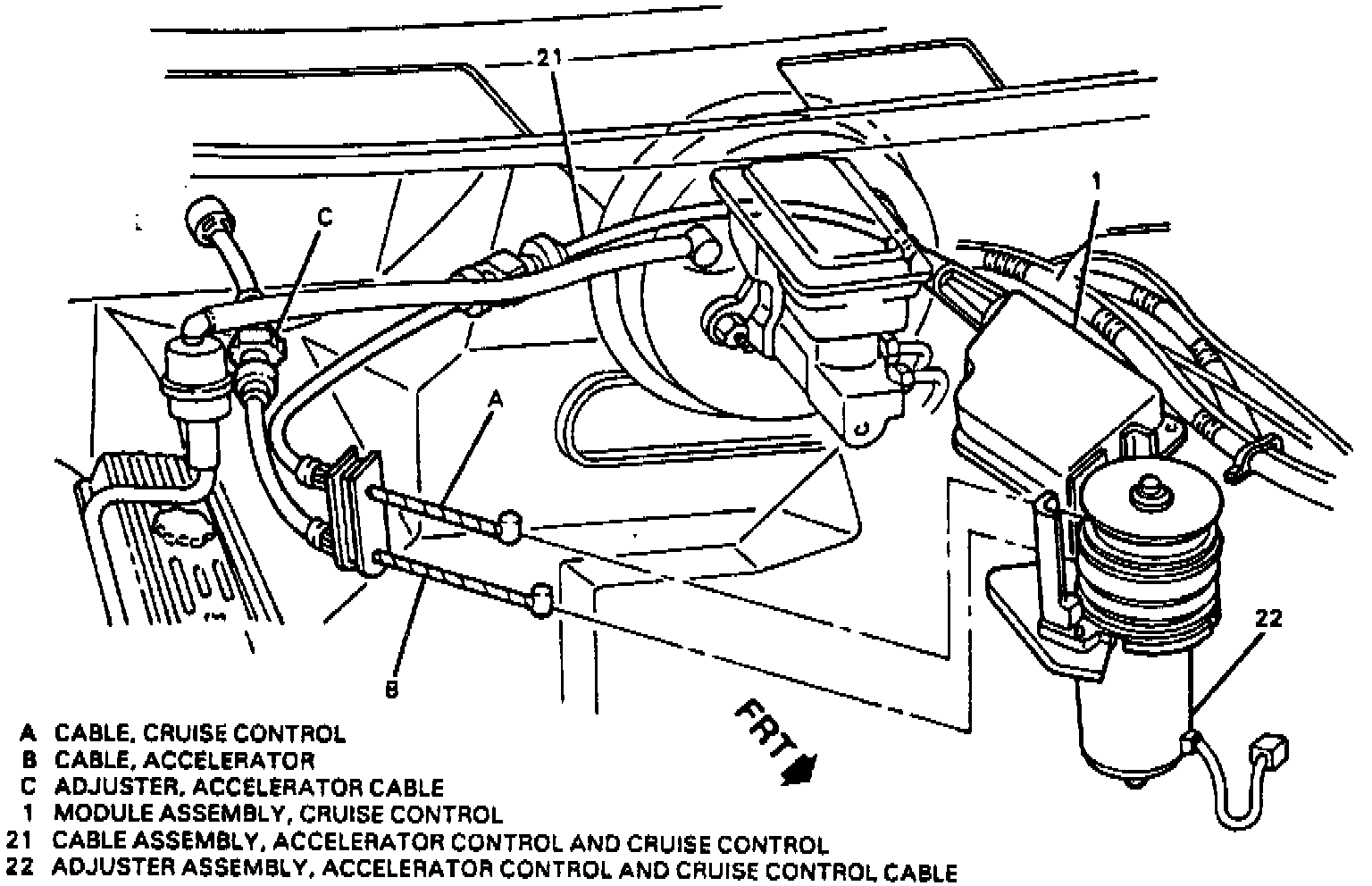

Fig. 1 Accelerator Control And Cruise Control Cable Assembly:

The accelerator control and cruise control assembly is serviced as an assembly. The cruise control cable is a non-adjustable but the accelerator cable requires adjustment after installation.
1. Press accelerator cable adjuster button and hold.
2. Position accelerator cable adjuster in non-adjusted position, Fig. 1. Pull cable casing away from adjuster so that casing will be at its longest position.
3. Release accelerator cable adjuster button.
4. Using moderate foot pressure (approximately 50 ft. lbs. of force), press accelerator pedal down to wide open throttle position; several clicks of the accelerator cable should be heard.
