Functional Test

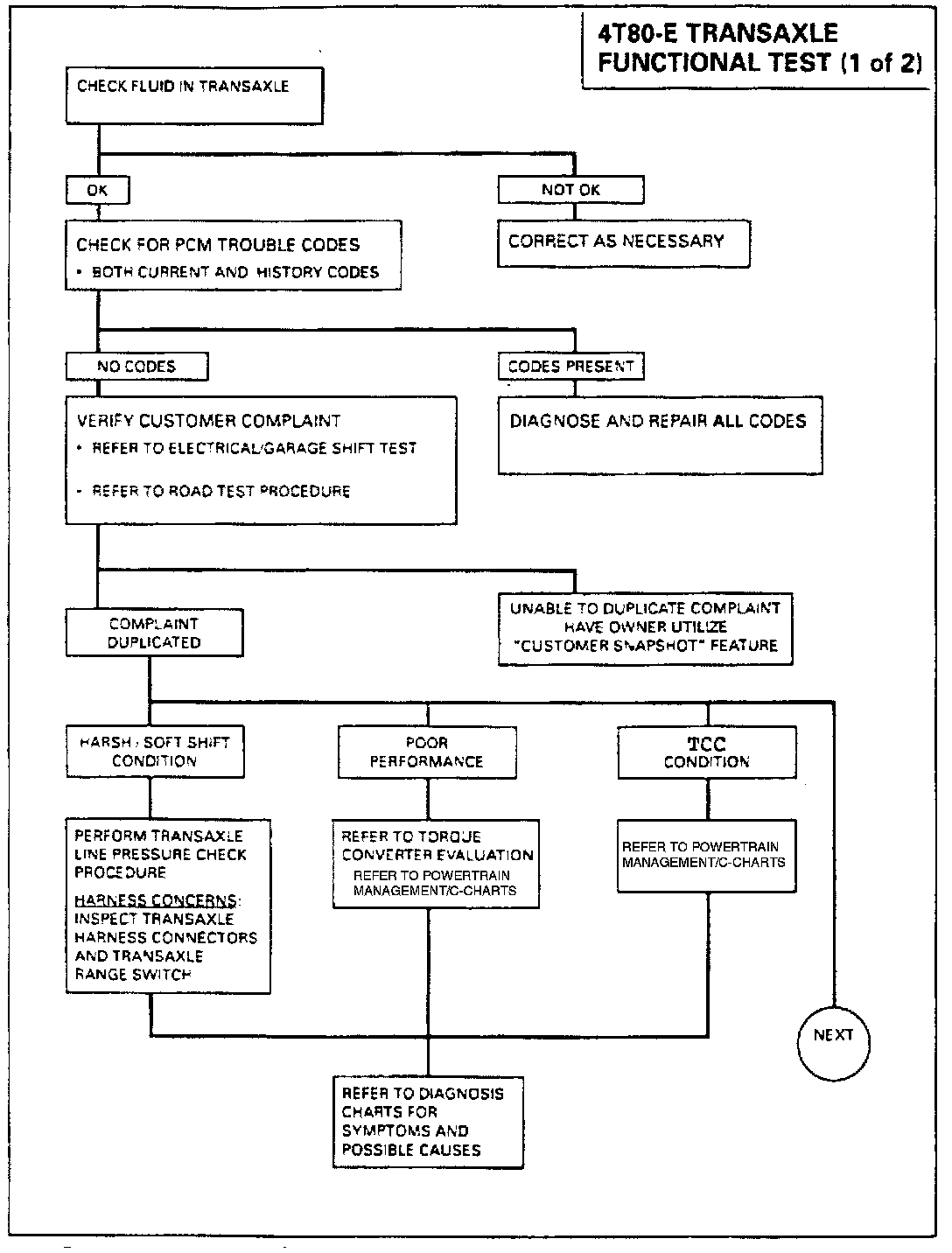

When diagnosing transaxle related conditions, always begin with the functional test procedure above. The functional test will indicate the correct path for diagnostics.

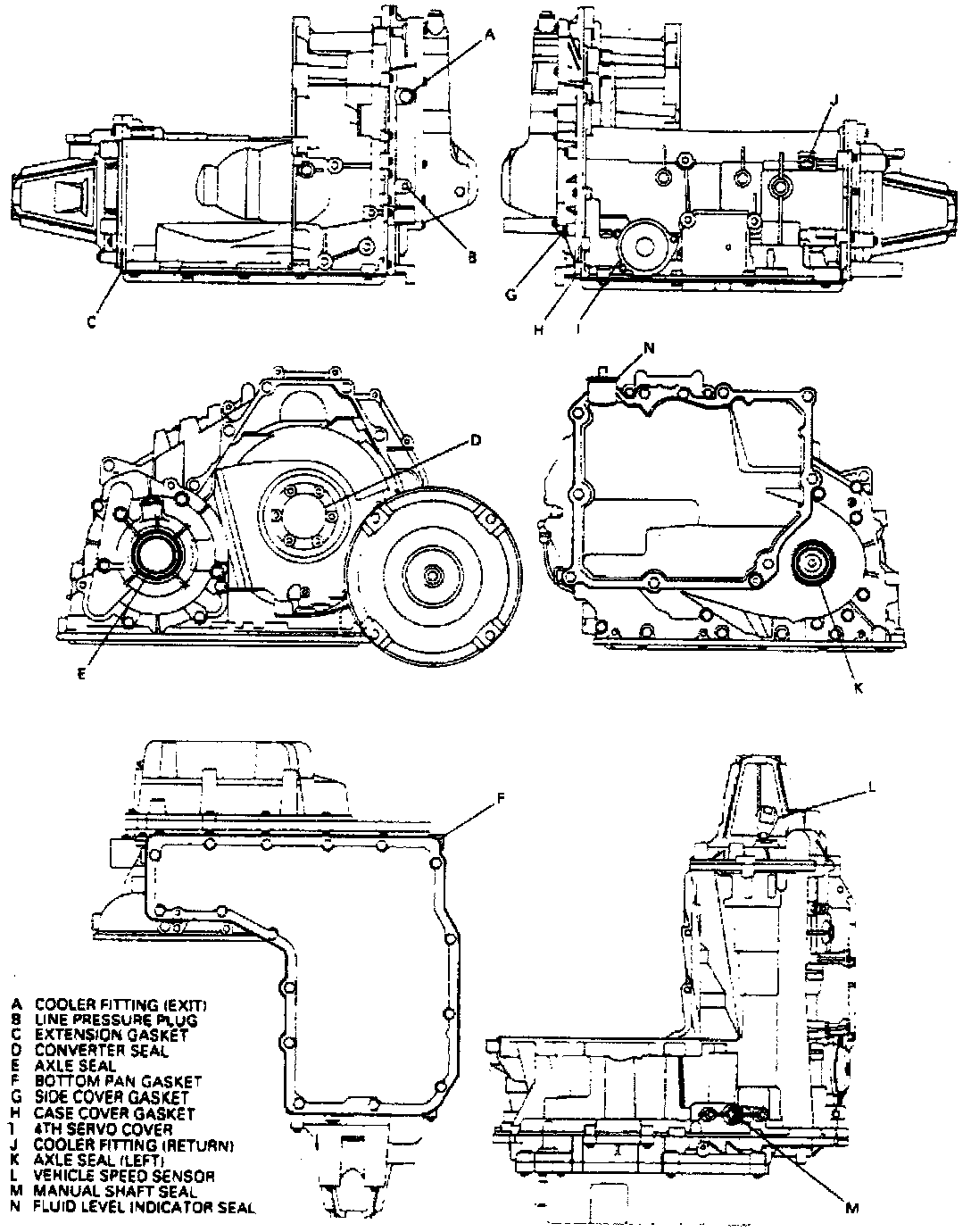

Refer to the image for leak inspection points.
When diagnosing transaxle related conditions, always begin with the functional test procedure above. The functional test will indicate the correct path for diagnostics.
Refer to the image for leak inspection points.
