Door Trim Panel

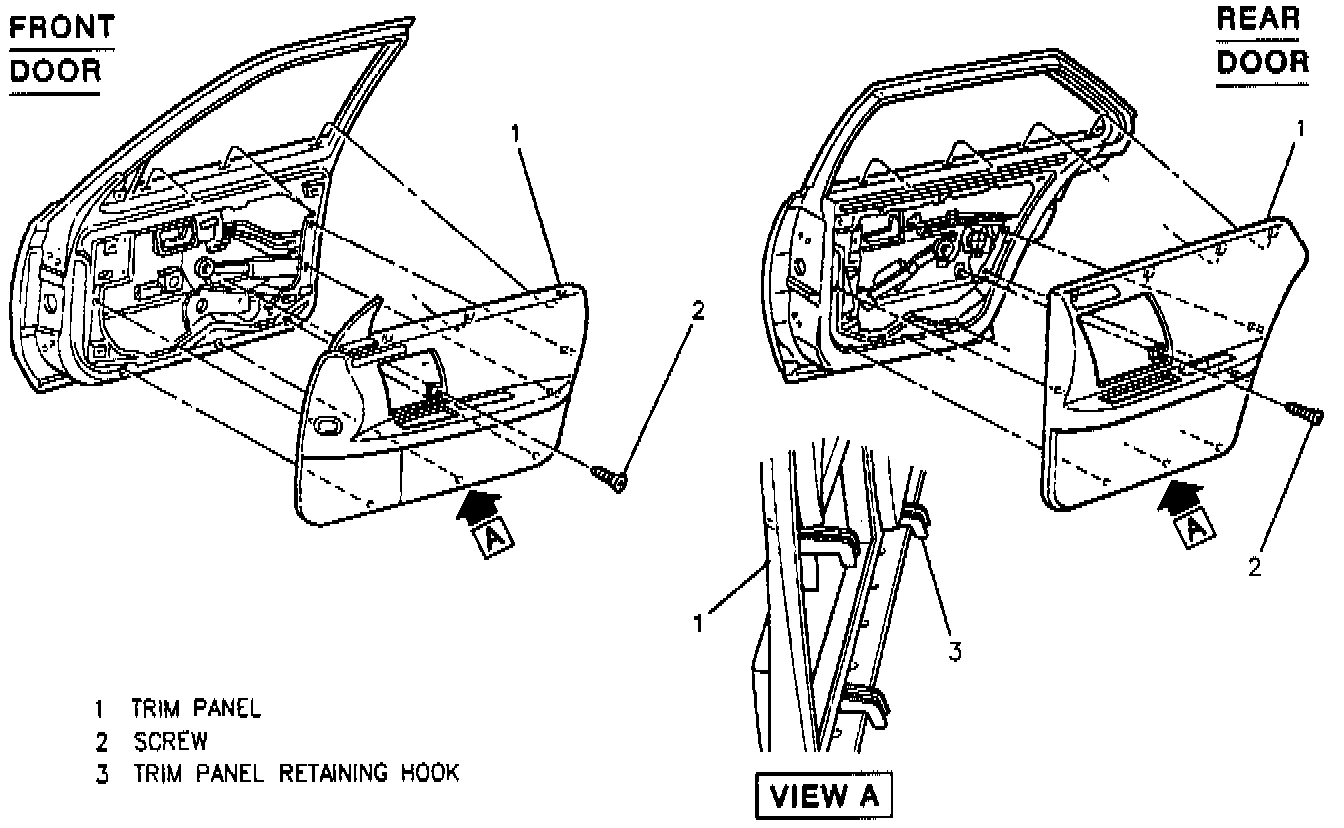

DOOR TRIM PANEL - SEVILLE

Door Trim Panel:






REMOVE OR DISCONNECT
1. Window and door lock switch trim plates.
2. One screw in door lock switch plate area.
3. Insert flat bladed tool between upper rear corner of carpet attached to door trim panel. Disengage fastener and fold back carpet. Screw under carpet.
4. Screw in center of carpet area.
5. Trim panel by lifting up and out to disengage hooks on trim panel from holes in door.

INSTALL OR CONNECT
1. Trim panel. Align hooks to holes in door and push in and down on trim panel.
2. One screw and two screws.
3. Fold carpet flush to trim panel and engage fastener.
4. Switch plates.
