Fuel Pressure: Specifications

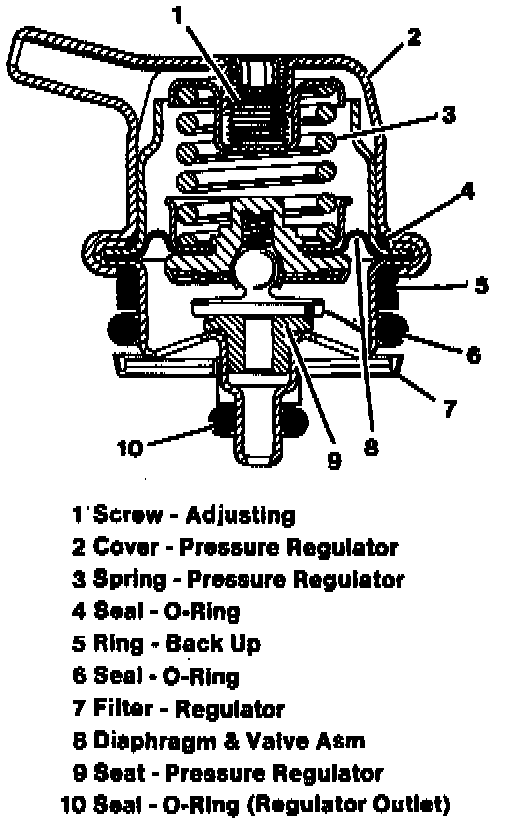

Fuel Pressure Regulator:
FUEL PRESSURE SPECIFICATIONS With the ignition 'ON,' and engine 'OFF' (zero vacuum), system fuel pressure at the pressure test connection should be
284-325 kPa (41-47 psi). If the pressure regulator supplies fuel pressure which is too low or too high, a driveability condition will result.
