Transmission Speed Sensor: Service and Repair



Input Speed Sensor and Wiring Harness

Removal






NOTE: This is part of the transaxle disassembly.

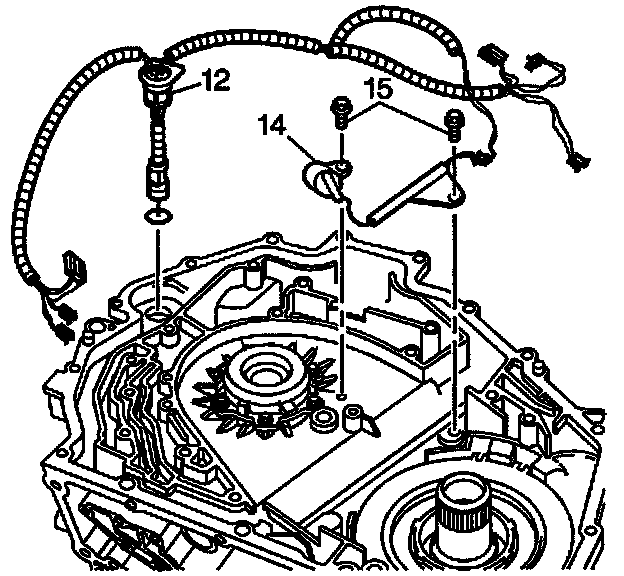

1. Remove the two 8mm bolts (15) from the automatic transmission input(shaft) speed (A/T ISS) sensor and the retainer.
2. Disconnect the A/T 155 (14) and the harness.
3. Remove the pass through connector and the automatic transmission wiring harness assembly (12) from the case. Remove by pushing the three tabs inward from the outside of the case.

Install






1. Reverse procedure to install.
