With Center Console

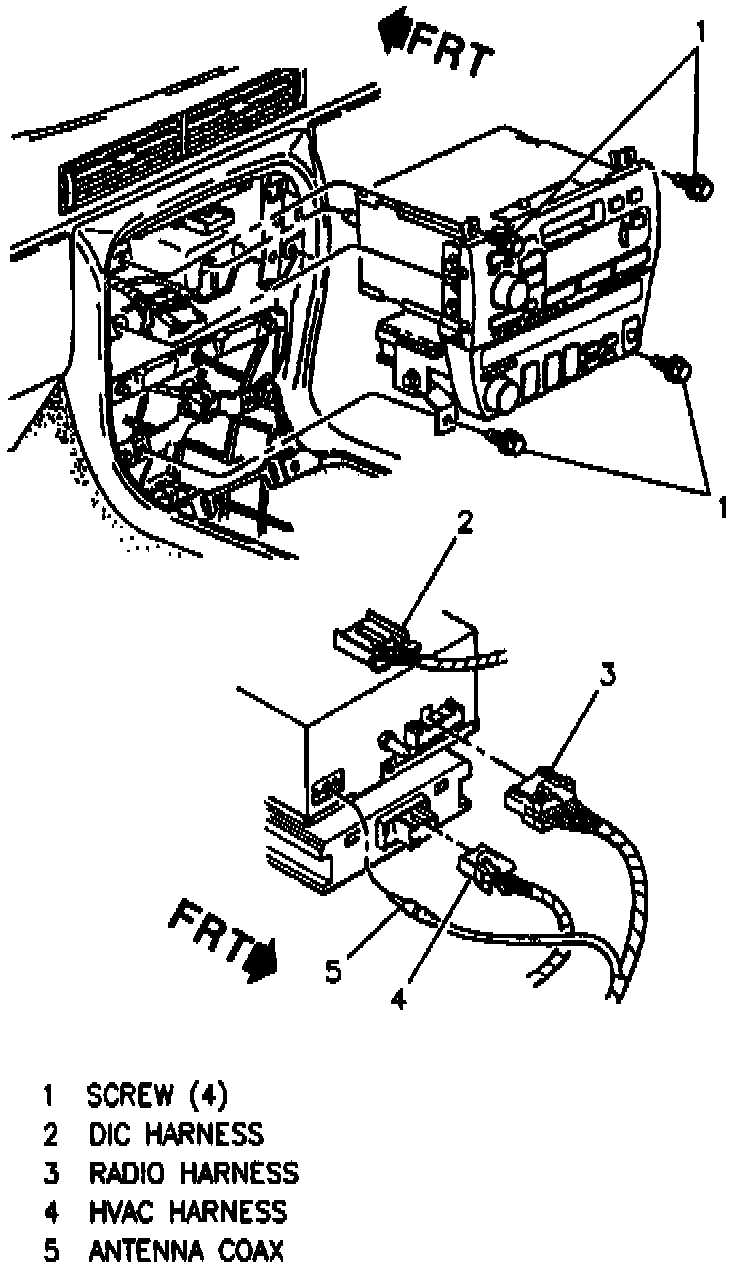

Fig. 12 Radio Replacement:

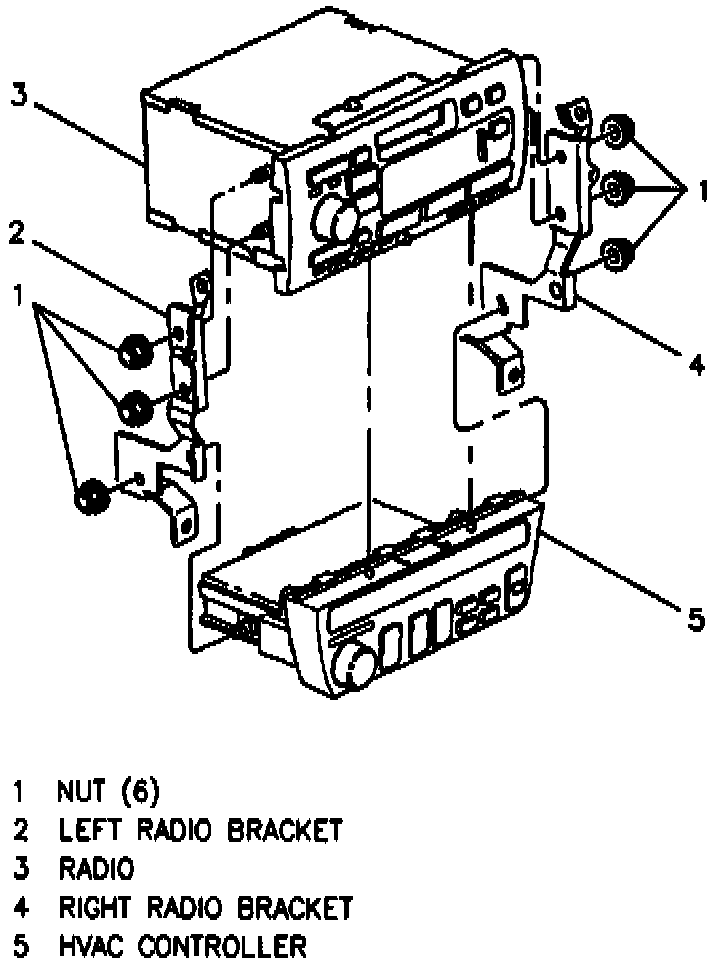

Fig. 13 Radio Bracket Replacement:

Console Shift
1. Remove shifter trim plate.
2. Remove ashtray assembly.
3. Disconnect Driver Information System (DIS).
4. Disconnect electrical connector.
5. Remove screws from radio/HVAC assembly.
6. Disconnect electrical harness, Fig.12.
7. When installing another radio, proceed as follows:
a. Remove both brackets, Fig.13, from each side of radio.
b. Remove 16mm plastic loading pin and clip stud from rear of radio.
8. Remove radio.
9. Reverse procedure to install.
