Automatic Climate Control

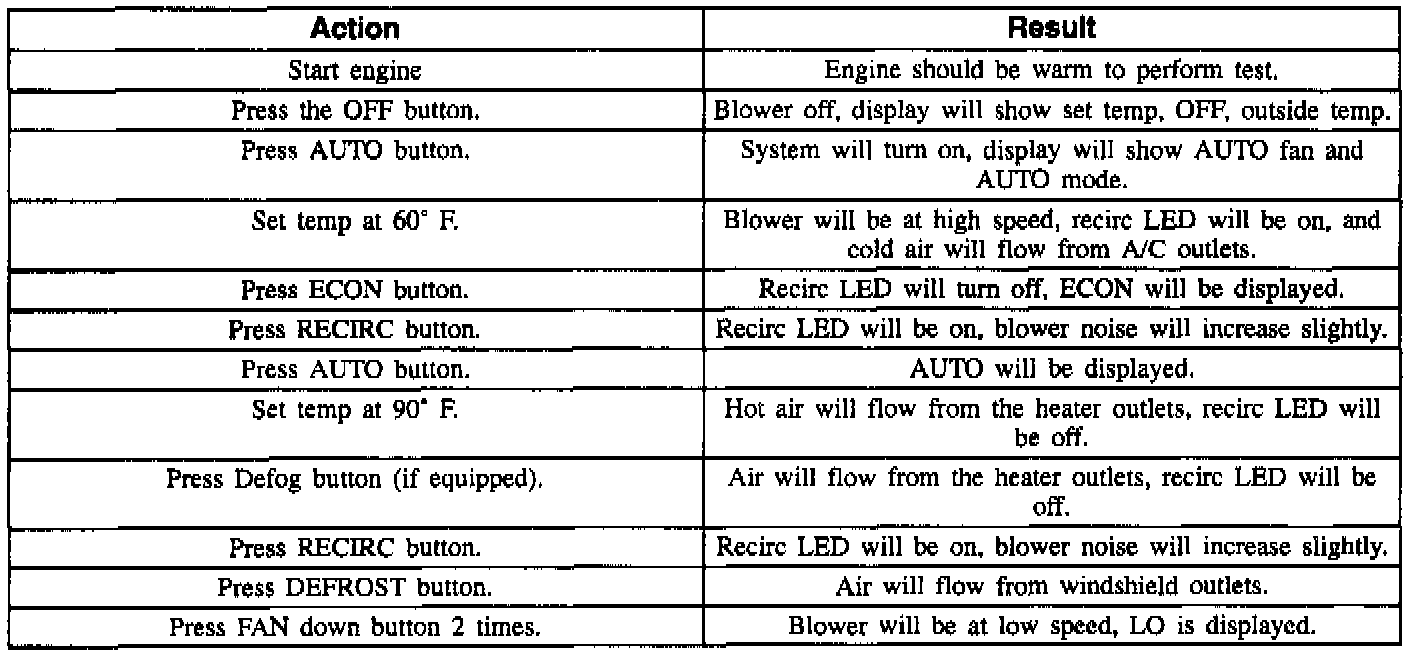

The operational test sequence (see chart) will aid in determining whether the HVAC system electrical, air distribution, vacuum or refrigeration systems are functioning properly. The outside air temperature should be above 4°C (40°F); the engine should be warmed to normal operating temperature.
