Clearing Diagnostic Trouble Codes

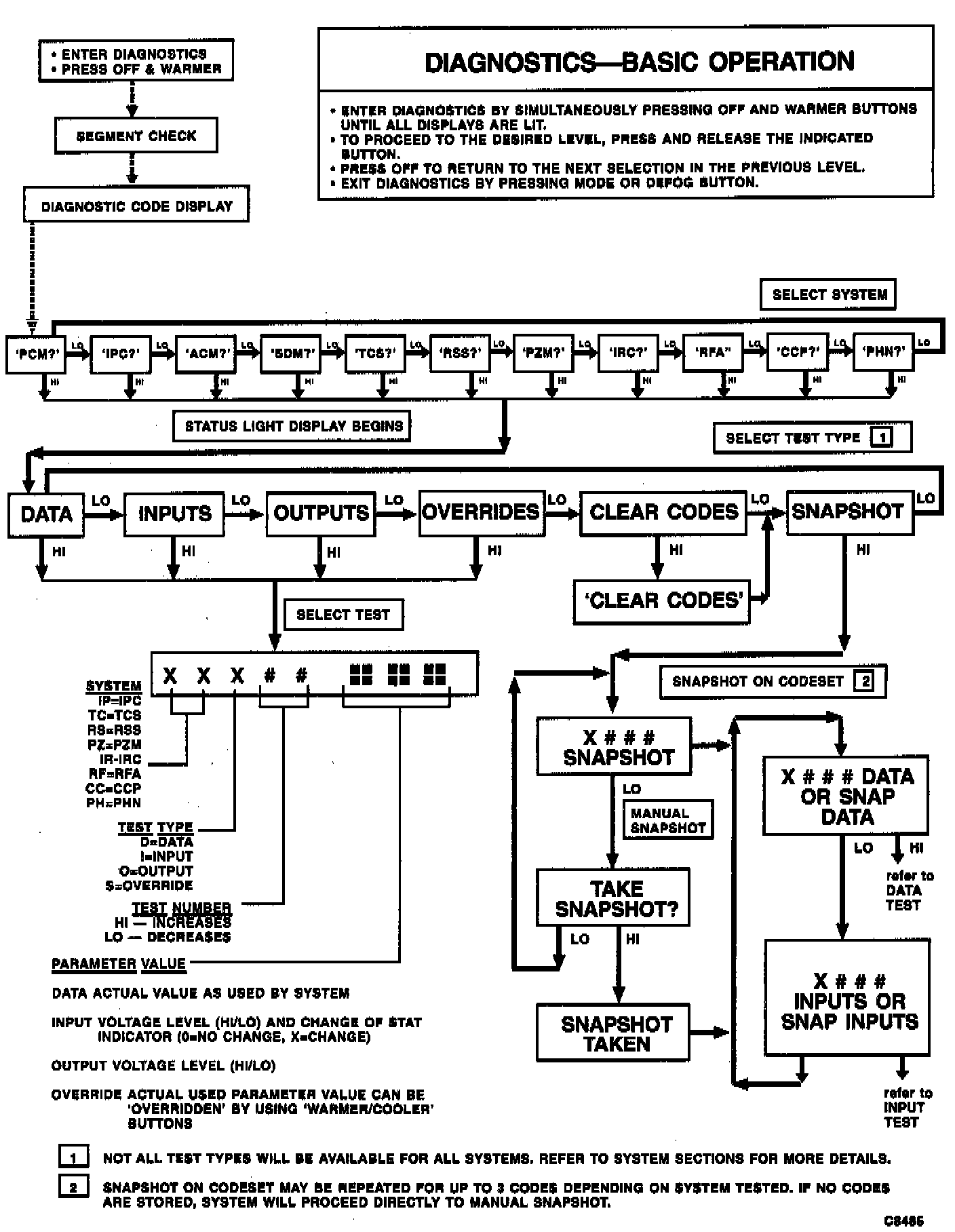

Diagnostic Flow Diagram:
PZM Status Lights:
PZM Status Lights:
CLEAR CODESSelection of the "CLEAR CODES?" test will result in the message "CODES CLEAR" being displayed along with the selected system name. This message will appear for 3 seconds and then return to the next available test type.
