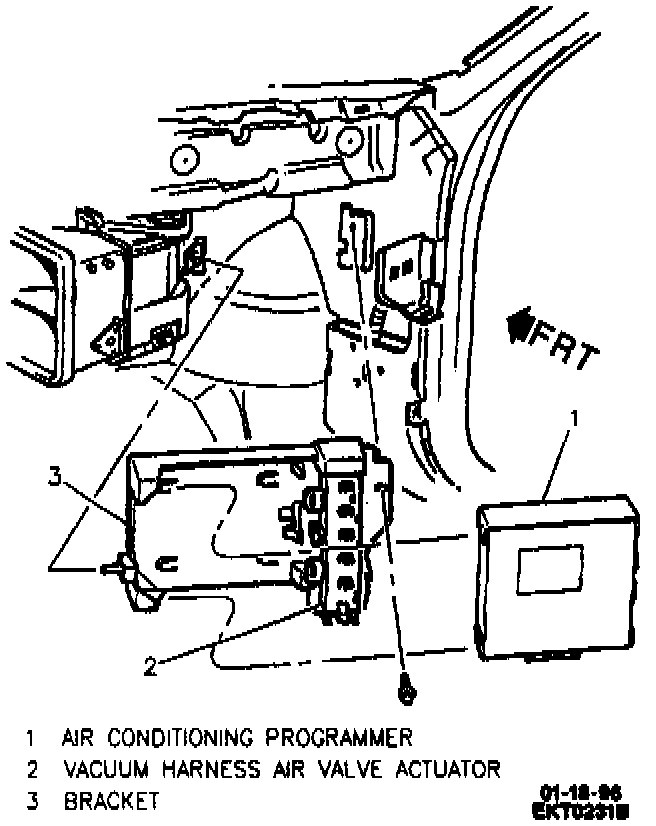

Control Module HVAC: Service and Repair
Remove or Disconnect 1.
Negative battery cable.
2.
Right-side sound insulator and glove box unit.
3.
Vacuum and electrical connectors from programmer.
4.
Programmer from vehicle.
Install or Connect 1.
Programmer to vehicle.
2.
Vacuum and electrical connectors to programmer.
3.
Right-side sound insulator and glove box unit.
4.
Negative battery cable.
