Positive: Service and Repair

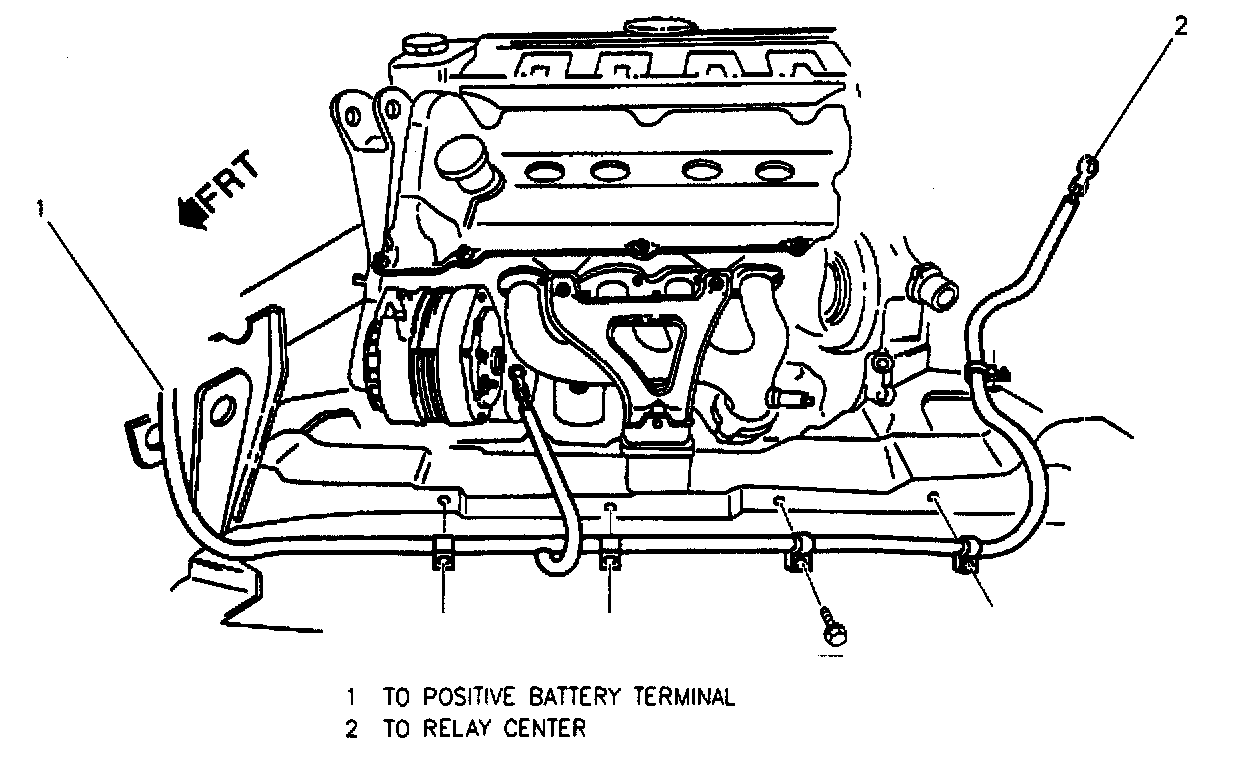

Positive Battery Cable Assembly






Remove or Disconnect

1. Negative battery cable.
2. Positive battery cable.
3. Clips at bottom of battery tray.
4. Clips along cable to relay center and generator.
5. Cable from relay center.
6. Cable from generator.

Install or Connect

1. Cable from generator. Tighten to 20 Nm (15 ft. lbs.).
2. Cable from relay center.
3. Clips along cable to relay center and generator.
4. Clips at bottom of battery tray.
5. Positive battery cable. Tighten to 15 Nm (11 ft. lbs.).
6. Negative battery cable. Tighten to 15 Nm (11 ft. lbs.).
