Side Impact System Remove or Disconnect

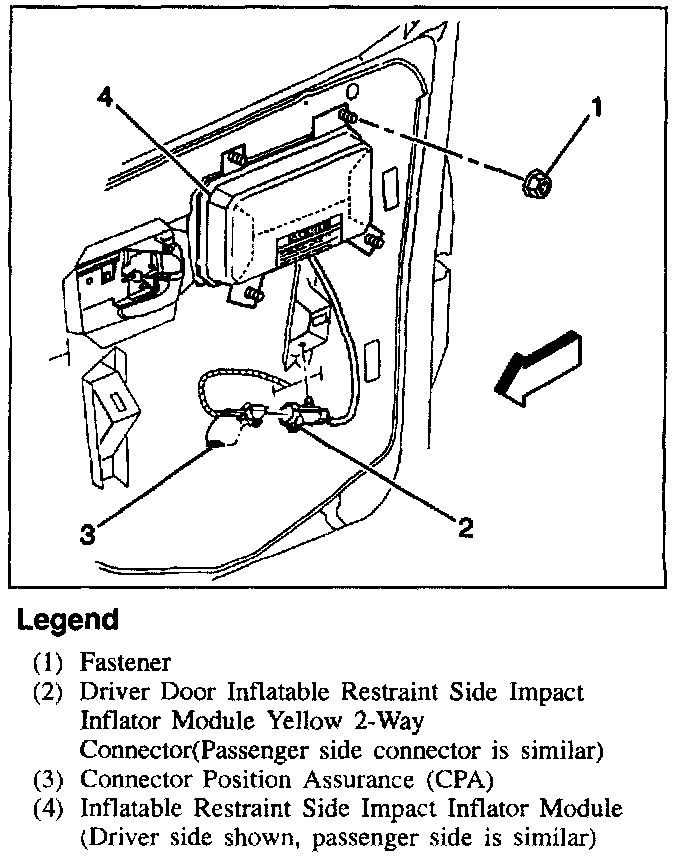

Remove or DisconnectDisable the Side Air Bag system, Refer to Disabling the Side Air Bag System.
1.

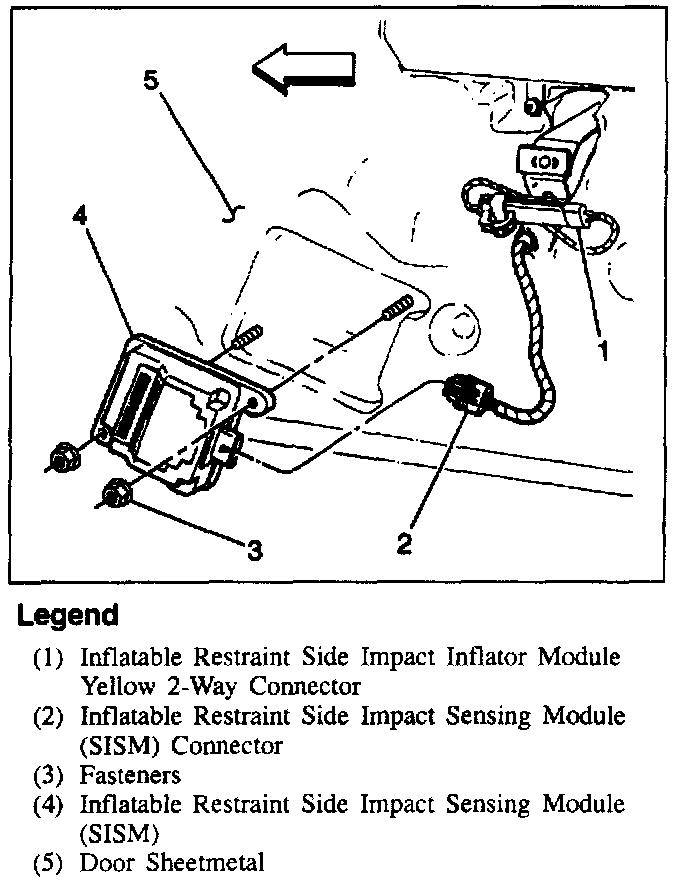

The Connector Position Assurance (CPA) and the SISM connector.
2.
The fasteners attaching the SISM to the door sheetmetal.
3.
The SISM from the vehicle.
