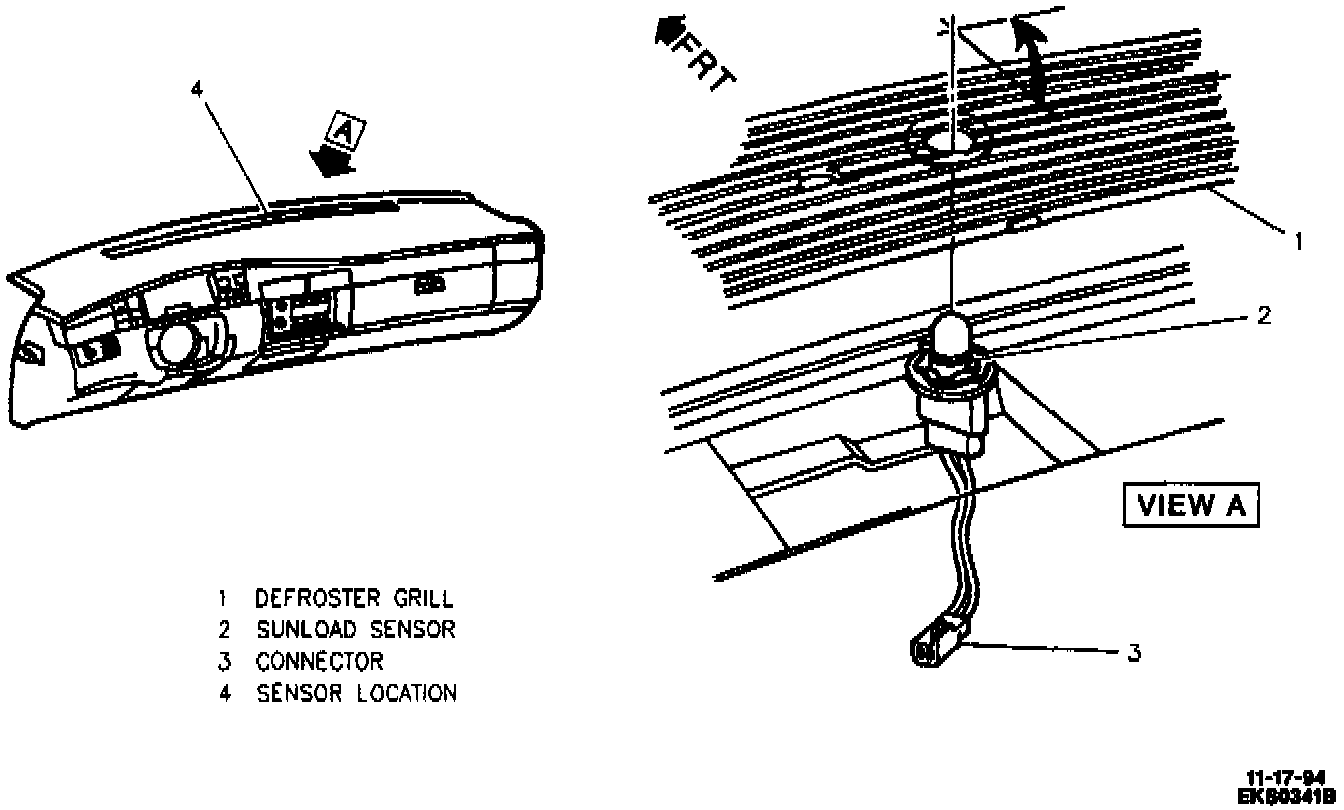

Solar Sensor: Service and Repair
Remove or Disconnect 1.
Windshield defroster grille.
2.
Sunload sensor retaining screw and electrical connector.
3.
Sunload sensor.
Install or Connect 1.
Sensor, securing with retaining screw.
2.
Electrical connector.
3.
Windshield defroster grille.
