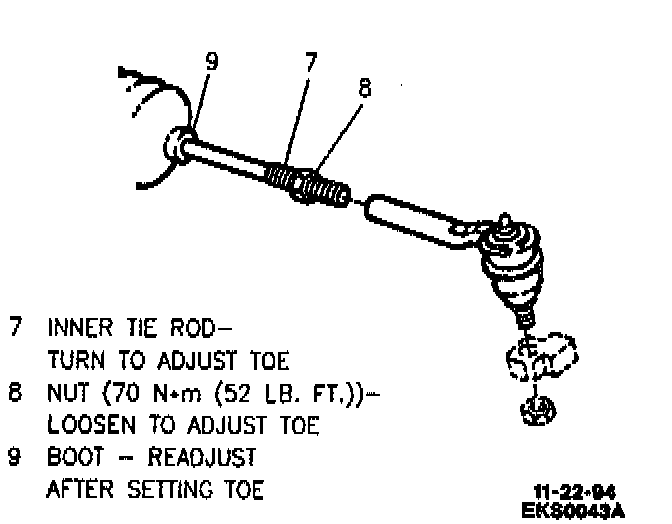

Front Toe Adjustment
1. Loosen lock nut on both inner tie rods.
^ Set toe to specifications by fuming inner tie rod.
^ Tighten locking nut on inner tie rods to 63 Nm (46 ft. lbs.).
^ Reposition boots after setting toe.
1. Loosen lock nut on both inner tie rods.
^ Set toe to specifications by fuming inner tie rod.
^ Tighten locking nut on inner tie rods to 63 Nm (46 ft. lbs.).
^ Reposition boots after setting toe.
