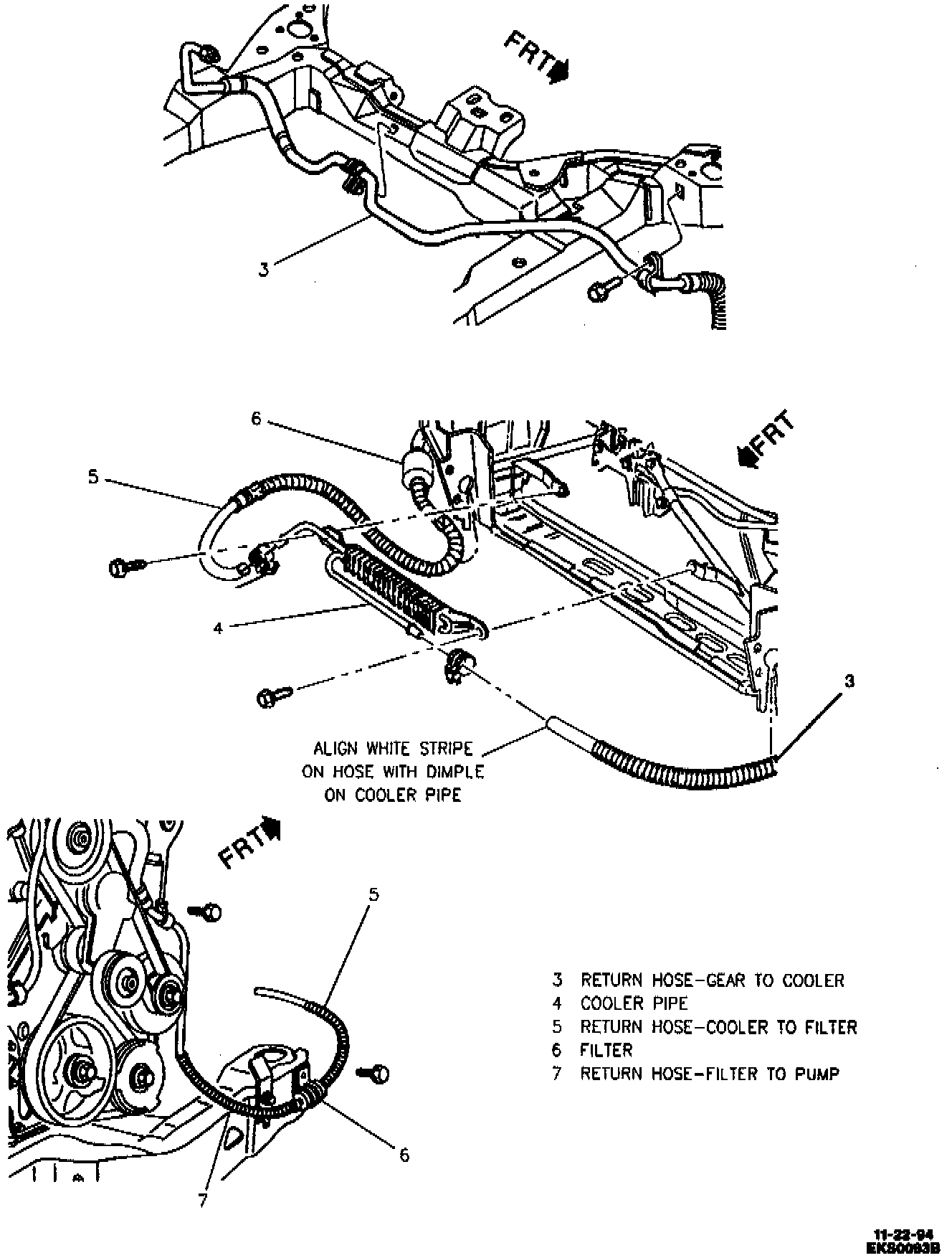

Power Steering Fluid Filter: Service and Repair
Important: The power steering system filter must be replaced whenever the Speed Sensitive Steering solenoid valve is removed.
INSTALL OR CONNECT 1.
Fluid from reservoir.
2.
Cut clamps and remove hoses from filter.
3.
Filter from frame.
INSTALL OR CONNECT 1.
Filter to frame.
2.
Hoses to filter and install screw type clamps.
3.
Fill and bleed power steering system.
