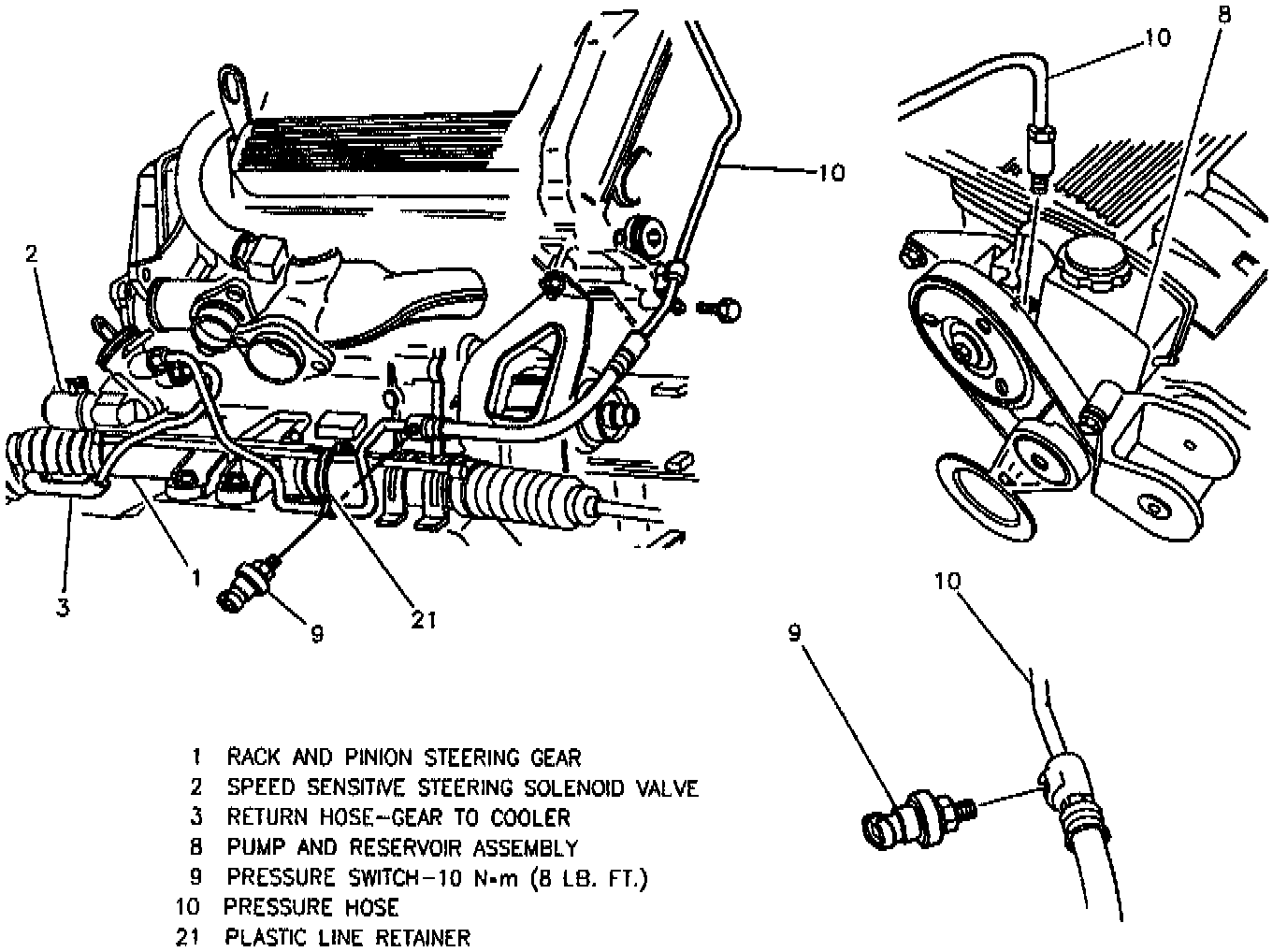

Power Steering Pressure Switch: Service and Repair
REMOVE OR DISCONNECT 1.
Fluid from reservoir.
2.
Raise vehicle on frame contact hoist.
3.
Electrical connection.
4.
Switch.
INSTALL OR CONNECT 1.
Switch.
^
Tighten pressure switch to
10 Nm (8 ft. lbs.).
2.
Electrical connection.
3.
Lower vehicle.
4.
Fill and bleed power steering system.
