Receiver Replacement

REMOVAL PROCEDURE

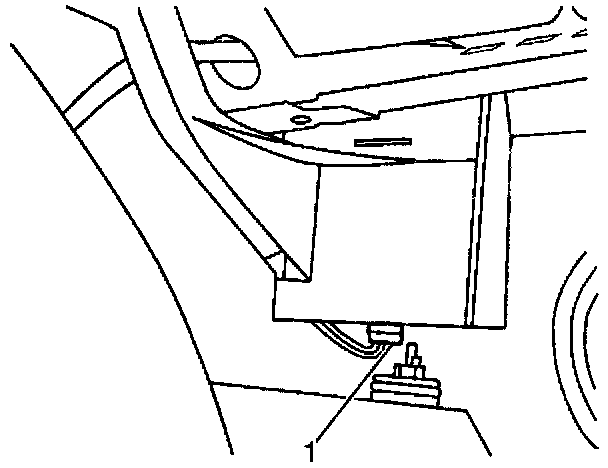

Receiver Replacement: Removal Procedure:




1. Remove the wiring harness connector (1) from the receiver.

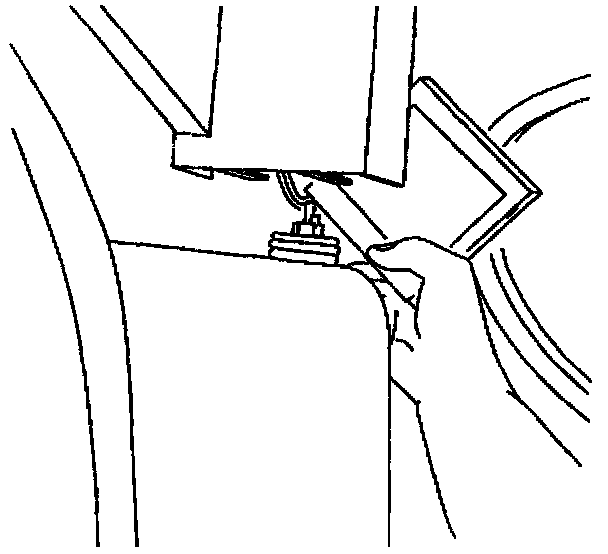

Receiver Replacement: Removal Procedure:




IMPORTANT: Remove the receiver from the mounting position without removing the bracket.

2. Dislodge the bottom of the receiver from the bracket to remove the receiver from the mounting bracket.

INSTALLATION PROCEDURE

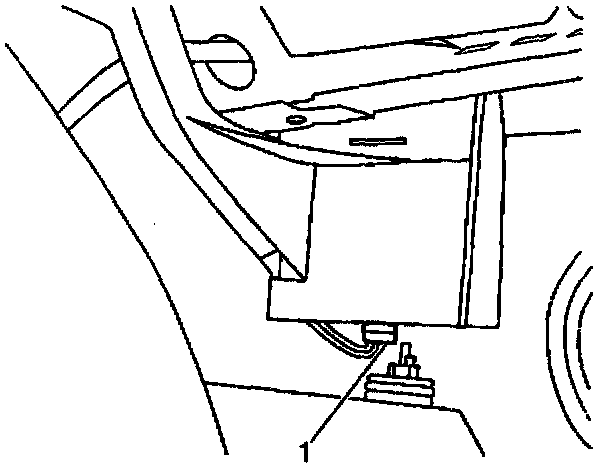

Receiver Replacement: Installation Procedure:




1. Install the receiver into the mounting bracket.

Receiver Replacement: Installation Procedure:




2. Install the wiring harness connector (1) to the receiver.
